Festo
The Festo 532044 is a 2/2 piston seat industrial component featuring electrical actuation, piloted operation with an external pilot air supply, and a mechanical spring reset. This non-reversible valve operates with a working pressure range of 4 to 18 bar, a standard nominal flow rate of 2,700 l/min, and a throttleable exhaust-air function. Designed with a detenting and pushing manual override, a CRC corrosion resistance classification of 2, and 110V AC characteristic coil data, it functions within medium and ambient temperatures of -10 to 60 °C in any assembly position and weighs 680 g. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 531524 is an MS-series industrial component featuring a sintered filter with a centrifugal separator, a size of 6, and a 40 µm grade of filtration. Operating with compressed air across an inlet pressure range of 0 to 20 bar, this unit delivers a standard nominal flow rate of 3,800 l/min and incorporates a manual rotary condensate drain with a 38 cm3 maximum condensate volume. Constructed with a plastic bowl guard and copper- and PTFE-free materials, the 600 g component supports line installation with accessories and functions within a temperature range of -10 to 60 µC. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo
The Festo 531523 is a size 6 industrial component from the MS series featuring a sintered filter with a centrifugal separator, 40 µm filtration grade, and manual rotary condensate drain. It operates with compressed air at an inlet pressure of 0 to 20 bar, a standard nominal flow rate of 4,100 l/min, and achieves air purity class 5:7:- per DIN ISO 8573-1. Designed with a plastic bowl guard, 38 cm3 max condensate volume, 2 NPT1/2-14 pneumatic connection, and copper- and PTFE-free materials, this 600 g unit mounts via line installation or accessories within a vertical +/- 5° assembly position and -10 to 60 °C temperature range. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 531138 is a size 4 industrial component from the MS series featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator. This unit includes a rotary knob actuator lock with an integrated lock, a plastic bowl guard, a manual rotary condensate drain, and operates within a pressure control range of 0.5 to 12 bar alongside a standard nominal flow rate of 800 l/min. It is designed for a vertical assembly position within a plus or minus 5-degree tolerance and functions within ambient, medium, and storage temperatures ranging from -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 531522 is an industrial component featuring a sintered filter with a centrifugal separator and a 40 µm grade of filtration for compressed air operating media. This size 6 MS series unit provides a standard nominal flow rate of 2,500 l/min with an inlet pressure range of 0 to 20 bar, integrating a manual rotary condensate drain with a 38 cm3 maximum condensate volume inside a plastic bowl guard. Configured for vertical ± 5° assembly with 2 NPT1/4-18 pneumatic connection ports, the 600 g assembly operates and stores within a temperature range of -10 to 60 °C and features copper- and PTFE-free materials with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo industrial component, part number 531136, is an MS-series size 4 unit featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator. It delivers a standard nominal flow rate of 850 l/min across an inlet pressure range of 1.5 to 12 bar and a pressure control range of 0.5 to 12 bar, supported by a fully automatic condensate drain and a rotary knob actuator lock with an integrated lock. The assembly operates within an ambient and medium temperature range of 5 to 60 °C, utilizing a 40 µm grade of filtration for compressed air and a plastic bowl guard. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 532028 is a direct-acting pneumatic 2/2 piston seat industrial component featuring a throttleable exhaust-air function and an external pilot air supply with a mechanical spring reset. This non-reversible valve operates at working pressures from 4 to 18 bar, delivering a standard nominal flow rate of 5,050 l/min with a C value of 21.05 l/sbar and a b value of 0.48 through NPT3/8-18 pneumatic connection ports. Weighing 650 g with a CRC 2 corrosion resistance classification, the unit functions within medium and ambient temperatures of -10 to 60 °C and accommodates optional line installation or accessory mounting in any assembly position without a manual override. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 532027 is a 2/2 piston seat industrial component featuring a direct, externally piloted pneumatic actuation with a mechanical spring reset and a throttleable exhaust-air function. Engineered for non-reversible flow direction, this unit operates within a working pressure range of 4 to 18 bar, delivering a standard nominal flow rate of 6,450 l/min with a C value of 28.97 l/sbar and a b value of 0.39. It weighs 650 g, features a 2 NPT1/2-14 pneumatic connection port, and accommodates an ambient and medium temperature range of -10 to 60 °C with a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531518 is an industrial component from the MS series featuring a size 6 design structure with a sintered filter and centrifugal separator. It operates with compressed air at an inlet pressure of 2 to 12 bar, providing a standard nominal flow rate of 3,800 l/min and a 40 µm grade of filtration. This unit includes a fully automatic condensate drain with a maximum condensate volume of 38 cm3, a plastic bowl guard, and 2 NPT3/8-18 pneumatic connection ports for vertical +/- 5° line installation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

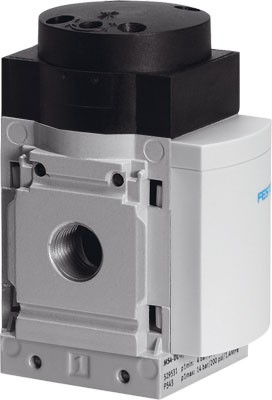

The Festo part number 532026 is a 2/2 piston seat industrial component featuring a directly piloted, externally supplied pneumatic actuation with a mechanical spring reset and a non-reversible flow direction. This throttleable exhaust-air valve operates within a working pressure range of 4 to 18 bar, delivering a standard nominal flow rate of 2,800 l/min with a C value of 11.22 l/sbar and a b value of 0.54. Built for a medium and ambient temperature range of -10 to 60 °C, the 650 g unit supports any assembly position and features an NPT1/4-18 pneumatic connection port with optional line installation or accessory mounting, as well as a CRC 2 corrosion resistance classification and no manual override. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531517 is an industrial component utilizing a sintered filter with a centrifugal separator and a fully automatic condensate drain within the MS series size 6 design structure. It features a standard nominal flow rate of 4,100 l/min, an inlet pressure range of 2 to 12 bar, 2 NPT1/2-14 pneumatic connection ports, and a 40 µm grade of filtration for compressed air operating media. This copper- and PTFE-free unit weighs 600 g, incorporates a plastic bowl guard, and maintains a CRC corrosion resistance classification of 2 for vertical installation within a 5 to 60 °C temperature range. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531516 is an industrial component utilizing a sintered filter with a centrifugal separator and a plastic bowl guard to process compressed air within an operating medium temperature range of 5 to 60 °C. This size 6 unit from the MS series features a 40 µm filtration grade, a fully automatic condensate drain with a 38 cm3 maximum capacity, and 2 NPT1/4-18 pneumatic connection ports supporting an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 2,500 l/min. Designed for vertical assembly within plus or minus 5 degrees and line installation using optional accessories, the 600 g copper- and PTFE-free assembly achieves an output air purity class of 5:7:- per DIN ISO 8573-1 with CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 532010 is an electrically actuated 2/2 piston seat industrial component featuring external pilot air supply, a throttleable exhaust-air function, and mechanical spring reset. This piloted unit operates within a working pressure range of 4 to 14 bar, delivers a standard nominal flow rate of 1,000 l/min with a C value of 4.6 l/sbar and b value of 0.5, and functions in medium and ambient temperatures from -10 to 60 °C. Designed with a detenting and pushing manual override, CRC 2 corrosion resistance classification, and a product weight of 263 g, it supports any assembly position and accommodates a 230V AC characteristic coil alongside optional switching position indicators. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 531128 is an MS series size 4 industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator. Designed for a standard nominal flow rate of 950 l/min, this unit incorporates a 40 µm filtration grade, a fully automatic condensate drain, and a rotary knob actuator lock with an integrated lock. Operating within a pressure control range of 0.3 to 7 bar and an inlet pressure of 1.5 to 12 bar, the assembly maintains an output pressure constant with initial pressure compensation, secondary exhaust, and return flow functions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 532009 is an electrical 2/2 piston seat industrial component featuring a throttleable exhaust-air function, external pilot air supply, and mechanical spring reset. Operating at a working pressure of 4 to 14 bar with a standard nominal flow rate of 2,000 l/min, this piloted valve includes detenting and pushing manual override capabilities and operates on 230V AC coil data across a medium and ambient temperature range of -10 to 60 °C. It offers a C value of 9.6 l/sbar, a b value of 0.45, a CRC corrosion resistance classification of 2, a product weight of 263 g, any assembly position, and a switching position indicator available with accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531496 is an industrial component from the MS series, size 4, featuring a sintered filter with a centrifugal separator and a fully automatic condensate drain. This compressed air unit delivers a standard nominal flow rate of 1,000 l/min across an inlet pressure range of 2 to 12 bar, maintaining a 5 µm filtration grade and achieving air purity class 3.7.- per DIN ISO 8573-1. Constructed with a plastic bowl guard, a maximum condensate volume of 19 ml, and copper- and PTFE-free materials, it weighs 189 g and operates within a medium and ambient temperature range of 5 to 60 µC in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 531495 is an industrial component featuring an MS series design structure with a sintered filter, centrifugal separator, and a plastic bowl guard sized at 4. Operating with compressed air at an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 1,300 l/min, this unit achieves a 5 µm filtration grade with a fully automatic condensate drain and a maximum condensate volume of 19 ml. It includes 2 NPT1/4-18 pneumatic connection ports, supports vertical assembly within +/- 5°, and allows for optional line installation with accessories while maintaining a product weight of 189 g and copper- and PTFE-free materials. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 532006 is a 2/2 piston seat industrial component featuring electrical actuation, piloted piloting with an external pilot air supply, and a mechanical spring reset. This non-reversible valve operates with a working pressure of 4 to 14 bar, delivering a standard nominal flow rate of 1,000 l/min, a C value of 4.6 l/sbar, a b value of 0.5, and a throttleable exhaust-air function. Engineered with a corrosion resistance classification CRC of 2, a product weight of 263 g, detenting or pushing manual override, and 110V AC characteristic coil data, it functions within a medium and ambient temperature range of -10 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

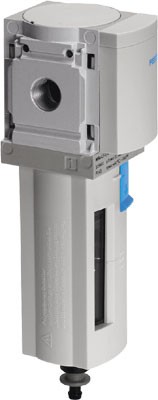

The Festo 531492 is a size 4 industrial component from the MS series featuring a sintered filter with a centrifugal separator designed for compressed air operating media with an inlet pressure range of 0 to 14 bar and a standard nominal flow rate of 1,000 l/min. This assembly incorporates a 5 µm filtration grade, a manual rotary condensate drain with a 19 ml maximum volume, a plastic bowl guard, and 2 NPT1/8-27 pneumatic connection ports supporting vertical +/- 5° installation. Constructed with copper- and PTFE-free materials meeting corrosion resistance classification CRC 2, the 189 g unit operates, stores, and handles medium temperatures between -10 and 60 °C while delivering an output air purity class of 3.7.- per DIN ISO 8573-1 via optional line mounting accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

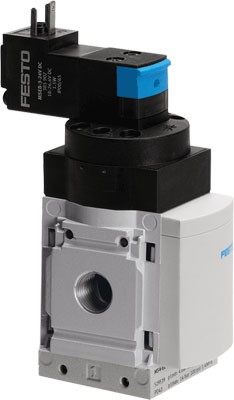

The Festo 532005 is a 2/2 piston seat industrial component featuring electrical actuation, external pilot air supply, and a throttleable exhaust-air function with a mechanical spring reset. Operating at working pressures from 4 to 14 bar, it delivers a standard nominal flow rate of 2,000 l/min with characteristic coil data of 110V AC, a b value of 0.45, and a C value of 9.6 l/sbar. This unit incorporates a detenting and pushing manual override, a corrosion resistance classification CRC of 2, and functions within a medium and ambient temperature range of -10 to 60 °C with a product weight of 263 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
