Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 531554 is an industrial component featuring a size 6 MS series design structure with a sintered filter, centrifugal separator, and fully automatic condensate drain. It provides a standard nominal flow rate of 3,800 l/min for compressed air within an inlet pressure range of 2 to 12 bar and maintains an air purity class of 5:7:- per DIN ISO 8573-1 with a 40 µm filtration grade. Weighing 820 g, the unit includes a metal bowl guard, a 38 cm3 maximum condensate volume, and 2 NPT3/8-18 pneumatic connection ports configured for vertical +/- 5° assembly with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531553 is a size 6 industrial component from the MS series featuring a sintered filter with a centrifugal separator and a fully automatic condensate drain. It provides a 40 µm grade of filtration for compressed air with a standard nominal flow rate of 4,100 l/min and an inlet pressure range of 2 to 12 bar. Weighing 820 g, the unit incorporates a metal bowl guard, a 38 cm3 maximum condensate volume, and 2 NPT1/2-14 pneumatic connection ports for vertical line installation within a 5 to 60 µm temperature range. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo part number 531552 is a size 6 industrial component from the MS series featuring a sintered filter with a centrifugal separator and a fully automatic condensate drain. This compressed air unit delivers a standard nominal flow rate of 2,500 l/min across an inlet pressure range of 2 to 12 bar, maintaining an air purity class of 5:7:- per DIN ISO 8573-1 with a 40 µm filtration grade. Constructed with a metal bowl guard and weighing 820 g, the assembly operates within a temperature range of 5 to 60 °C, includes 2 NPT1/4-18 pneumatic connection ports, and is free of copper and PTFE. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531228 is an MS-series size 4 filter regulator featuring a pressure gauge, a 40 µm filtration grade, and a fully automatic condensate drain with a maximum 19 ml condensate volume. It delivers a constant output pressure with secondary exhaust and return flow across an inlet pressure range of 2 to 12 bar and a pressure control range of 0.3 to 7 bar. Operating on compressed air at a standard nominal flow rate of 1,000 l/min, this component is designed with a plastic bowl guard, a lockable actuator lock with accessories, and a vertical assembly position within +/- 5°. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531227 is a size 4 MS-series filter regulator featuring a design structure with a pressure gauge, a 40 µm filtration grade, and a fully automatic condensate drain with a maximum condensate volume of 19 ml. Engineered for compressed air operating within an inlet pressure range of 2 to 12 bar and a pressure control range of 0.3 to 7 bar, this component delivers a standard nominal flow rate of 1,700 l/min while maintaining a constant output pressure with secondary exhaust and return flow. It includes a plastic bowl guard, a lockable actuator lock via accessories, and operates at medium temperatures between 5 and 60 µC within a vertical assembly position of +/- 5°. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
The Festo part number 532120 is an electrical piston slide industrial component featuring a 3/2 closed, single solenoid valve function with direct piloting and internal pilot air supply. This non-reversible component operates with compressed air at a working pressure of 4 to 18 bar, delivering a standard nominal flow rate of 5,500 l/min with a mechanical spring reset and a non-throttleable exhaust-air function. Designed for any assembly position, it operates within a medium and ambient temperature range of -10 to 60 °C, utilizes 230V AC coil data, and includes a detenting and pushing manual override with a CRC rating of 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

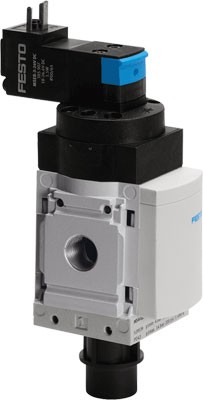

This Festo industrial component, part number 532119, features an electrical piston slide design with a 3/2 closed, single solenoid valve function and internal direct piloting for non-reversible compressed air flow. It operates at working pressures between 4 and 18 bar, delivers a standard nominal flow rate of 7,000 l/min with a 230V AC coil, and functions within a medium and ambient temperature range of -10 to 60 °C. The unit includes a mechanical spring reset, a non-throttleable exhaust-air function, a detenting and pushing manual override, and a CRC 2 corrosion resistance classification for versatile installation in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 531224 is an industrial MS series size 4 filter regulator featuring an integrated pressure gauge, a manual rotary condensate drain with a 19 ml maximum capacity, and a plastic bowl guard. This component operates with compressed air within an inlet pressure range of 0.8 to 14 bar, delivering a controlled output pressure of 0.3 to 7 bar at a standard nominal flow rate of 1,000 l/min. Designed for a vertical assembly position within +/- 5 degrees, the unit provides a 40 µm filtration grade, a secondary exhaust function with return flow, and an actuator lock that is lockable with accessories. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

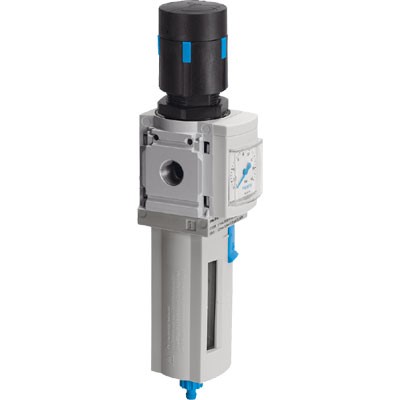

The Festo part number 531223 is an industrial MS series size 4 filter regulator with a pressure gauge and a manual rotary condensate drain featuring a 19 ml max. condensate volume and a 40 µm grade of filtration. Designed for compressed air operation with an inlet pressure range of 0.8 to 14 bar and a pressure control range of 0.3 to 7 bar, this component delivers a standard nominal flow rate of 1,700 l/min while maintaining a constant output pressure with secondary exhaust and return flow. Housed with a plastic bowl guard and a corrosion resistance classification CRC of 2, the unit operates at temperatures between -10 and 60 µ0°C and achieves an air purity class at output of 5:7:- per DIN ISO 8573-1 in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

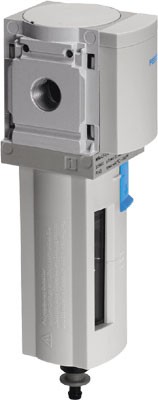

The Festo 531548 is an industrial component featuring a sintered filter design structure with a centrifugal separator, a size 6 MS series construction, and a 5 µm grade of filtration. Operating with compressed air at an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 3,000 l/min, this 820 g unit incorporates a fully automatic condensate drain with a 38 cm3 maximum condensate volume inside a metal bowl guard. It includes 2 NPT3/8-18 pneumatic connection ports, operates within a medium and ambient temperature range of 5 to 60 °C, and achieves an air purity class output of 3.7.- per DIN ISO 8573-1. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 531547 is a size 6 MS-series industrial component featuring a sintered filter with a centrifugal separator and a fully automatic condensate drain. It provides a 5 µm filtration grade, a standard nominal flow rate of 3,200 l/min, and an operating inlet pressure range of 2 to 12 bar for compressed air media. Weighing 820 g, the unit incorporates a metal bowl guard, a 38 cm3 maximum condensate volume, and NPT1/2-14 pneumatic connections designed for vertical assembly within +/- 5°. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 532114 is an electrical, direct-piloted industrial component utilizing a piston slide design structure with a 3/2 closed, single solenoid valve function and non-reversible flow direction. Featuring internal pilot air supply, a mechanical spring reset, and a non-throttleable exhaust-air function, this unit operates with compressed air at a working pressure of 4 to 18 bar and delivers a standard nominal flow rate of 5,500 l/min with a 110V AC coil. It includes a detenting and pushing manual override, a corrosion resistance classification CRC of 2, and functions within medium and ambient temperature ranges of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 531546 is an industrial component from the MS series featuring size 6 dimensions and a 2 NPT1/4-18 pneumatic connection port. This sintered filter with centrifugal separator utilizes a fully automatic condensate drain with a maximum condensate volume of 38 cm3, a metal bowl guard, and a 5 µm grade of filtration to process compressed air at a standard nominal flow rate of 2,000 l/min and an inlet pressure range of 2 to 12 bar. Designed for vertical assembly within +/- 5° via optional line installation accessories, the 820 g copper- and PTFE-free unit operates in ambient and medium temperatures between 5 and 60 °C while maintaining an output air purity class of 3.7.- per DIN ISO 8573-1. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 531219 is an MS-series size 4 filter regulator featuring a design structure with a pressure gauge and a plastic bowl guard. It operates within a 2 to 12 bar inlet pressure and a 0.5 to 12 bar pressure control range, delivering a standard nominal flow rate of 1,200 l/min with a 5 µm grade of filtration. This unit provides a constant output pressure with secondary exhaust and return flow, utilizing a fully automatic condensate drain with a maximum 19 ml condensate volume. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 532113 is an electrical 3/2 closed, single solenoid industrial component featuring a piston slide design structure with direct piloting and internal pilot air supply. It operates within a working pressure range of 4 to 18 bar, delivering a standard nominal flow rate of 7,000 l/min using compressed air as the operating medium. Featuring a mechanical spring reset, non-reversible flow direction, and 110V AC characteristic coil data, this unit accommodates any assembly position and includes a detenting and pushing manual override. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 532112 is a 3/2 closed, single solenoid industrial component featuring a piston slide design structure and direct piloting with internal pilot air supply. It operates within a working pressure range of 4 to 18 bar, delivers a standard nominal flow rate of 2,600 l/min, and utilizes a 110V AC characteristic coil. Featuring a mechanical spring reset, non-reversible flow direction, and a non-throttleable exhaust-air function, this unit functions with compressed air across medium and ambient temperatures of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531216 is a size 4 MS-series filter regulator featuring a manual rotary condensate drain, a 5 µm filtration grade, and an integrated pressure gauge supporting an inlet pressure range of 0.8 to 14 bar and a pressure control range of 0.5 to 12 bar. Designed for compressed air operation within a temperature range of -10 to 60 µC, this unit delivers a standard nominal flow rate of 850 l/min while maintaining a constant output pressure with secondary exhaust, return flow, and a maximum pressure hysteresis of 0.25 bar. The assembly includes a plastic bowl guard, a 19 ml maximum condensate volume, a lockable actuator lock via accessories, and a vertical +/- 5° assembly position achieving an air purity class of 3.7.- per DIN ISO 8573-1 and a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo
The Festo part number 531542 is an industrial component featuring a size 6 MS series design structure with a sintered filter and centrifugal separator. This compressed air operating medium utilizes a manual rotary condensate drain, a 5 µm filtration grade, a metal bowl guard, a 38 cm3 maximum condensate volume, and a standard nominal flow rate of 3,000 l/min with an inlet pressure range of 0 to 20 bar. Weighing 820 g with copper-free and PTFE-free materials, it operates at ambient and medium temperatures from -10 to 60 °C, maintains a vertical assembly position within +/- 5°, and connects via 2 NPT3/8-18 pneumatic ports for line installation or mounting with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 531215 is an MS series size 4 filter regulator featuring a 5 µm grade of filtration, manual rotary condensate drain, plastic bowl guard, and integrated pressure gauge. This component operates within an inlet pressure range of 0.8 to 14 bar and a pressure control range of 0.5 to 12 bar, delivering a standard nominal flow rate of 1,200 l/min for compressed air media. It incorporates a constant output pressure controller function with secondary exhaust, return flow, and a lockable actuator lock using accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531541 is an industrial component from the MS series featuring a size 6 design structure with a sintered filter and centrifugal separator for compressed air. It operates with an inlet pressure range of 0 to 20 bar, a standard nominal flow rate of 3,200 l/min, and a 5 µm grade of filtration yielding an air purity class of 3.7.- per DIN ISO 8573-1. This unit weighs 820 g, includes a manual rotary condensate drain with a 38 cm3 max condensate volume, and features a metal bowl guard while maintaining a vertical +/- 5° assembly position and a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
