Festo

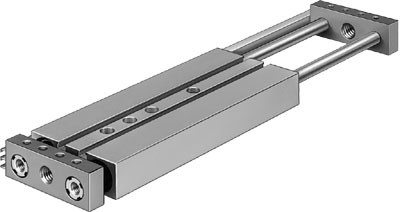

The Festo part number 32733 is a double-acting industrial slide drive featuring a 25 mm piston diameter and a 10 mm stroke with a 10 mm adjustable end-position range. Designed with a plain-bearing guide, fixed metallic stop pneumatic cushioning, and M5 pneumatic connections, this component operates on compressed air complying with ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar. It delivers a theoretical force of 452 N for both advance and return strokes at 6 bar, utilizes wrought aluminum alloy covers and NBR seals, and provides position detection for proximity sensors across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →Festo

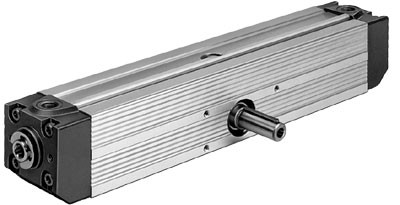

The Festo 30600 is a double-acting rack and pinion industrial component featuring a size 40 design and a 270-degree swivel angle with a 96-degree cushioning angle. Utilizing adjustable PPVJ pneumatic cushioning and operating within a 2.5 to 10 bar working pressure range, this unit delivers a theoretical torque of 9 Nm at 6 bar while accommodating a maximum swivel frequency of 1.8 Hz. Constructed with a case-hardened steel drive shaft and TPE-U(PU) seals, it incorporates internal female threads for mounting and provisions for proximity sensor position detection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo manifold block PRMY-3-M5-4 is an industrial component featuring an aluminum subbase with a product weight of 87 g. This unit includes M5 pneumatic connections for ports 1, 2, and 3, and utilizes a through-hole mounting type. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 32731 is a double-acting industrial slide drive featuring a 20 mm piston diameter, a 100 mm stroke, and a plain-bearing guide operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar. This component utilizes pneumatic cushioning with a fixed metallic stop, provides an adjustable end-position range of 10 mm, and delivers a theoretical force of 282 N for both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover and NBR seals, the assembly supports any mounting position, incorporates position detection for proximity sensors, and withstands moderate corrosion stress with a CRC rating of 2 across ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo manifold block PRMY-3-M5-2 is an industrial component featuring an aluminum subbase construction with a product weight of 52 g. This model includes M5 pneumatic connections for ports 1, 2, and 3, and utilizes a through hole mounting type. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 30599 is a double-acting industrial component featuring a rack and pinion design structure with a size 100 and a swivel angle of 360 degrees. Driven by compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 150 Nm at 6 bar and includes adjustable pneumatic cushioning (PPV) at both ends. Constructed with a case-hardened steel drive shaft, TPE-U(PU) seals, and internal female threads for mounting, it weighs 38,000 g and operates within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 32730 is a double-acting slide drive unit featuring a 20 mm piston diameter, an 80 mm stroke, and a 10 mm adjustable end-position range. Constructed with a wrought aluminum alloy cover, NBR seals, and a plain-bearing guide, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards at pressures ranging from 1 to 10 bar across ambient temperatures of -20 to 80 °C. This component delivers a theoretical force of 282 N for both advance and return strokes at 6 bar, incorporates pneumatic cushioning with a fixed metallic stop, and includes position detection for proximity sensors with an M5 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Manufactured by Festo, this industrial component features a subbase constructed from aluminum with a product weight of 51 g. It includes a pneumatic connection at port 5 G1/8 alongside M5 pilot exhaust ports 82 and 84, and utilizes a mounting type with through hole. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 30598 is a double-acting industrial component featuring a rack and pinion design structure in size 100 with a swivel angle of 270 degrees and a cushioning angle of 52 degrees. Operating with compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 150 Nm at 6 bar and includes adjustable pneumatic cushioning at both ends. It weighs 34,200 g, supports any assembly position via internal female thread mounting, and accommodates position detection using a proximity sensor within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 32729 is a double-acting slide drive unit featuring a 20 mm piston diameter, a 50 mm stroke, and a plain-bearing guide with a 10 mm adjustable end-position range. Operating on compressed air complying with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperatures, it delivers a theoretical force of 282 N for both advance and return strokes at 6 bar. This component utilizes pneumatic cushioning with a fixed metallic stop, M5 pneumatic connections, wrought aluminum alloy covers, NBR seals, and supports position detection via proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this unit.
View product details →Festo
The Festo part number 34314 is an industrial component featuring a subbase constructed from aluminum. This part weighs 56 g and incorporates a mounting type with a through hole, a pilot exhaust port 82 of M5, and a pneumatic connection port 3 of G1/8. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 30597 is a double-acting industrial component featuring a rack and pinion design structure with a size 100 specification. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] across a working pressure range of 2.5 to 10 bar, this unit delivers a theoretical torque of 150 Nm at 6 bar with a maximum swivel frequency of 0.6 Hz. It includes adjustable pneumatic cushioning at both ends (PPV), a 180-degree swivel angle with a 52-degree cushioning angle, and a 3-degree end-position tolerance, constructed with a case-hardened steel drive shaft and TPE-U(PU) seals weighing 30,670 g. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo part number 32728 is a double-acting slide drive unit featuring a 20 mm piston diameter, a 40 mm stroke, and a plain-bearing guide operating across a 1 to 10 bar working pressure range. This component delivers a theoretical force of 282 N for both advance and return strokes at 6 bar, utilizing pneumatic cushioning with a fixed metallic stop and an adjustable end-position range of 10 mm. Constructed with an M5 pneumatic connection, wrought aluminum alloy cover, and NBR seals, the unit supports any assembly position and ambient temperatures from -20 to 80 °C with position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo Subbase AS-MY-3-M5 is an industrial component featuring an aluminum subbase material construction with a product weight of 15 g. This hardware utilizes a through-hole mounting type and includes M5 pneumatic connections for ports 1, 2, and 3. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 30596 is a double-acting industrial component utilizing a rack and pinion design structure with a size 100 and a swivel angle of 90 degrees. Featuring adjustable PPV pneumatic cushioning at both ends, this unit operates with compressed air within a working pressure range of 2.5 to 10 bar, delivering a theoretical torque of 150 Nm at 6 bar. Constructed with a case-hardened steel drive shaft and TPE-U(PU) seals, it accommodates any assembly position and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 32727 is a double-acting slide drive unit featuring a 20 mm piston diameter and a 25 mm stroke, engineered with a plain-bearing guide and a 10 mm adjustable end-position range. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, this component delivers a theoretical force of 282 N for both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover, NBR seals, and M5 pneumatic connections, it utilizes pneumatic cushioning with a fixed metallic stop and accommodates position detection via proximity sensors across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 34312 is a 5/3 exhausted industrial component utilizing a piston slide design with a 2.3 mm nominal size and 5 subbase pneumatic connections. Operating on 24V DC at 1.8W with a 100% duty cycle, this piloted valve features a standard nominal flow rate of 130 l/min across a 2 to 8 bar working pressure range. Constructed with an aluminum die-cast housing and NBR seals, the 105 g unit achieves an IP40 protection class with a plug socket and operates in medium and ambient temperatures from -5 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 30595 is a size 80 double-acting industrial component featuring a rack and pinion design structure with a 360-degree swivel angle and a 69-degree cushioning angle. Utilizing adjustable pneumatic cushioning (PPV) at both ends, this unit operates on compressed air conforming to ISO 8573-1:2010 [7:-:-] across a working pressure range of 2.5 to 10 bar, delivering a theoretical torque of 75 Nm at 6 bar. Constructed with a case-hardened steel drive shaft and TPE-U(PU) seals, the 22,500 g assembly accommodates a maximum swivel frequency of 0.9 Hz at 6 bar, a permissible mass moment of inertia of 0.12 kgm2, and an end-position tolerance of 4 deg within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this hardware.
View product details →Festo
The Festo part number 32726 is a double-acting industrial slide drive featuring a 20 mm piston diameter, a 10 mm stroke, and a 10 mm adjustable end-position range. Constructed with wrought aluminum alloy covers, NBR seals, and a plain-bearing guide, this component operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a working pressure of 1 to 10 bar. It includes pneumatic cushioning with a fixed metallic stop, allows for proximity sensor position detection, and delivers a theoretical force of 282 N for both advance and return strokes at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →Festo

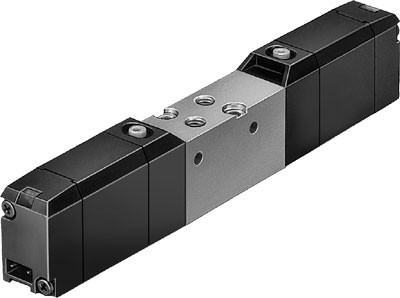

The Festo part number 34311 is a piloted piston slide industrial component featuring a 5/3 closed valve function with a 2.3 mm nominal size and a standard nominal flow rate of 130 l/min. Built with an aluminum die cast housing and NBR seals, this 105 g unit operates on a 24V DC 1.8W coil with a 100% duty cycle across a working pressure range of 2 to 8 bar. It offers an IP40 protection class with a plug socket, a switching time on of 8 ms, a switching time off of 38 ms, and functions within a medium and ambient temperature range of -5 to 50 °C using dried compressed air that is lubricated or unlubricated. Submit the exact part number, quantity, and application requirements for a formal quote.
