Festo
The Festo part number 30594 is a double-acting industrial component featuring a rack and pinion design structure with a size 80 and a product weight of 21,700 g. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 75 Nm at 6 bar with a maximum swivel frequency of 1 Hz. It includes adjustable pneumatic cushioning at both ends (PPV), a 270-degree swivel angle, a 69-degree cushioning angle, a 4-degree end-position tolerance, and provisions for position detection using a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 32724 is a double-acting slide drive unit featuring a 16 mm piston diameter, a 100 mm stroke, and a 10 mm adjustable end-position range. Designed with a plain-bearing guide, a fixed metallic stop for pneumatic cushioning, and provision for proximity sensor position detection, this component operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards at pressures from 1 to 10 bar. It delivers a theoretical force of 180 N for both advance and return strokes at 6 bar, incorporates wrought aluminum alloy covers with NBR seals, and achieves a CRC 2 moderate corrosion resistance classification across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo

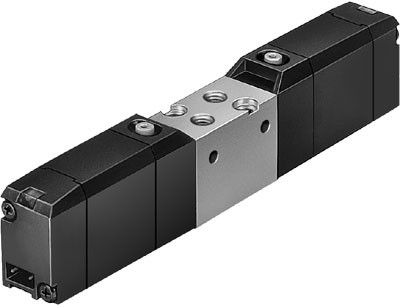

The Festo 34310 is a 5/2 bistable industrial component featuring a piston slide design structure and a 2.3 mm nominal size with a 190 l/min standard nominal flow rate. Operating via piloted actuation at a working pressure of 2 to 8 bar, this 95 g unit utilizes an aluminum die cast housing with NBR seals and delivers a 7 ms switching time reversal under a 100% duty cycle. Characteristic coil data includes 24V DC at 1.8W, while the IP40 protection class is achieved with a plug socket for media temperatures ranging from -5 to 50 °C using dried compressed air. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 30593 is a double-acting industrial component utilizing a rack and pinion design structure with a size 80 specification and an overall product weight of 17,700 g. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] within a working pressure range of 2.5 to 10 bar, this unit delivers a theoretical torque of 75 Nm at 6 bar and a maximum swivel frequency of 1.3 Hz. It features a 180-degree swivel angle with a 69-degree cushioning angle, 4-degree end-position tolerance, adjustable PPV pneumatic cushioning at both ends, and a case-hardened steel drive shaft with TPE-U(PU) seals. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

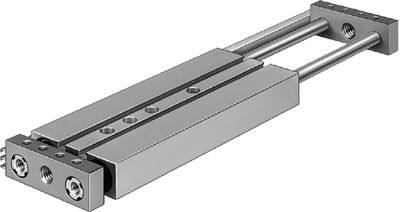

The Festo 32723 is a double-acting slide drive unit featuring an 80 mm stroke, a 16 mm piston diameter, and an adjustable end-position range of 10 mm within an operating pressure of 1 to 10 bar. Built with a plain-bearing guide, wrought aluminum alloy cover, NBR seals, and M5 pneumatic connections, this component incorporates pneumatic cushioning with a fixed metallic stop and supports position detection via proximity sensors. Operating across an ambient temperature range of -20 to 80 °C with a moderate corrosion resistance classification of CRC 2, it delivers a theoretical force of 180 N for both advance and return strokes using compressed air matching ISO 8573-1:2010 [7:4:4] standards. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.
View product details →Festo

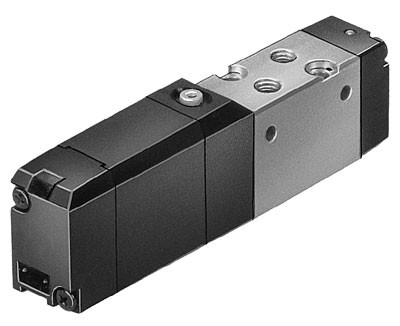

The Festo 34309 is a 5/2 single solenoid industrial component featuring a piston slide design structure, a nominal size of 2.3 mm, and a standard nominal flow rate of 190 l/min. Piloted with a 24V DC (1.8W) coil operating at a 100% duty cycle, this unit achieves switching times of 12 ms on and 23 ms off within a working pressure range of 2 to 8 bar. Constructed with an aluminum die-cast housing and NBR seals, the 65 g device operates on dried compressed air between -5 and 50 °C and provides IP40 protection when fitted with a plug socket. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 30592 is a double-acting industrial component featuring a rack and pinion design structure with a size 80 and a weight of 16,000 g. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 75 Nm at 6 bar and achieves a maximum swivel frequency of 1.7 Hz. It offers a 90-degree swivel angle with a 69-degree cushioning angle, 4-degree end-position tolerance, adjustable PPV pneumatic cushioning at both ends, and position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 32722 is a double-acting slide drive featuring a 16 mm piston diameter, a 50 mm stroke, and an adjustable end-position range of 10 mm, operating within a working pressure of 1 to 10 bar. Built with a plain-bearing guide, wrought aluminum alloy cover, NBR seals, and M5 pneumatic connections, this component incorporates pneumatic cushioning with a fixed metallic stop and accommodates position detection via proximity sensors across an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 180 N for both advance and return strokes at 6 bar while utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4] with provisions for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

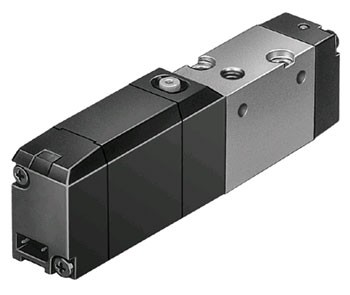

The Festo 34308 is a 3/2 open, single solenoid industrial component featuring a piston slide design structure with a 2.3 mm nominal size and a standard nominal flow rate of 170 l/min. Housed in aluminum die cast with NBR seals, this piloted valve operates on a working pressure range of 2 to 8 bar at a 100% duty cycle with 24V DC 1.8W coil data. Weighing 65 g, the unit includes IP40 protection with a plug socket, features through-hole mounting, and connects via a 5 subbase pneumatic port for dried compressed air within a medium and ambient temperature range of -5 to 50 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 30591 is a double-acting industrial component featuring a rack and pinion design structure with a size 63 and a product weight of 11,500 g. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 37 Nm at 6 bar with a maximum swivel frequency of 0.6 Hz. It includes adjustable PPV pneumatic cushioning at both ends, a 360-degree swivel angle, a 65-degree cushioning angle, a 4-degree end-position tolerance, a permissible mass moment of inertia of 0.04 kgm2, position detection for a proximity sensor, G3/8 pneumatic connections, internal female thread mounting, case-hardened steel drive shafts, and TPE-U(PU) seals within an ambient temperature range of -10 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 32721 is a double-acting slide drive unit featuring a 16 mm piston diameter, a 40 mm stroke, and a 10 mm adjustable end-position range. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, this component utilizes a plain-bearing guide, pneumatic cushioning with a fixed metallic stop, and enables position detection via proximity sensors. Constructed with a wrought aluminum alloy cover and NBR seals, the assembly supports any mounting position, operates within an ambient temperature range of -20 to 80 °C, and delivers a theoretical force of 180 N for both advance and return strokes at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 34307 is a 3/2 closed single solenoid industrial component featuring a piston slide design structure and a 2.3 mm nominal size. Engineered for a working pressure range of 2 to 8 bar, this piloted valve delivers a standard nominal flow rate of 190 l/min with an 8 ms switch-on and 23 ms switch-off time. Housed in aluminum die cast with NBR seals, the unit operates on 24V DC at 1.8W with a 100% duty cycle and provides IP40 protection when fitted with a plug socket. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 30590 is a double-acting industrial component utilizing a rack and pinion design structure with a size 63 and a product weight of 11,000 g. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 37 Nm at 6 bar with a maximum swivel frequency of 0.7 Hz. It features a swivel angle of 270 degrees, a cushioning angle of 65 degrees, an end-position tolerance of 4 degrees, and adjustable pneumatic cushioning at both ends (PPV), alongside a case-hardened steel drive shaft and TPE-U(PU) seals. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 32720 is a double-acting slide drive unit featuring a 16 mm piston diameter, a 25 mm stroke, and a plain-bearing guide with a 10 mm adjustable end-position range. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] across a 1 to 10 bar working pressure range, this component delivers a theoretical force of 180 N for both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover, NBR seals, and M5 pneumatic connections, the unit incorporates pneumatic cushioning with a fixed metallic stop and supports position detection via proximity sensors within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

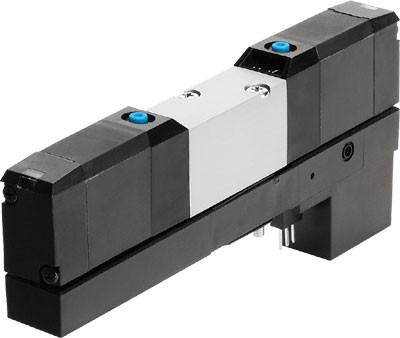

The Festo 34306 is a 5/3 exhausted industrial component featuring a piston slide design structure with a 2.3 mm nominal size and a standard nominal flow rate of 125 l/min. Housed in aluminum die cast with NBR seals, this piloted valve operates on 24V DC at 1.8W with a 100% duty cycle across a working pressure range of 2 to 8 bar. It supports dried compressed air within a medium and ambient temperature range of -5 to 50 °C, utilizing a 5 manifold module pneumatic connection, through-hole mounting, and offering IP40 protection with a plug socket. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 30589 is a double-acting industrial component utilizing a rack and pinion design structure with a size 63 and a product weight of 9,500 g. It features an adjustable pneumatic cushioning (PPV) at both ends, a 180-degree swivel angle, a 65-degree cushioning angle, and a 4-degree end-position tolerance, delivering a theoretical torque of 37 Nm at 6 bar with a maximum swivel frequency of 1.1 Hz. Operating with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a working pressure range of 2.5 to 10 bar and an ambient temperature of -10 to 60 °C, this unit includes a case-hardened steel drive shaft, TPE-U(PU) seals, G3/8 pneumatic connections, internal female thread mounting, and position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
Engineered with a 16 mm piston diameter and a 10 mm stroke, this Festo double-acting slide drive unit features a plain-bearing guide and an adjustable end-position range of 10 mm. The assembly incorporates pneumatic cushioning with a fixed metallic stop, operates across a working pressure of 1 to 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4], and delivers a theoretical force of 180 N for both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover and NBR seals, the component includes M5 pneumatic connections, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 34305 is a 5/3 closed industrial component featuring a piston slide design structure and a standard nominal flow rate of 125 l/min across a working pressure range of 2 to 8 bar. Built with an aluminum die cast housing and NBR seals, this piloted unit operates on a 24V DC 1.8W coil with a 100% duty cycle, offering an on-switching time of 8 ms and an off-switching time of 38 ms. It weighs 105 g, utilizes a 5 manifold module pneumatic connection port, provides an IP40 protection class with plug socket, and mounts via through hole for media temperatures between -5 and 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

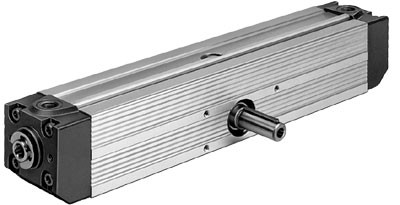

The Festo part number 30588 is a double-acting industrial component utilizing a rack and pinion design structure with a size 63 and a product weight of 8,650 g. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, this unit delivers a theoretical torque of 37 Nm at 6 bar with a max swivel frequency of 1.5 Hz. It features a swivel angle of 90 degrees, a cushioning angle of 65 degrees, an end-position tolerance of 4 degrees, adjustable PPV pneumatic cushioning at both ends, and a permissible mass moment of inertia of 0.04 kgm2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 32717 is a double-acting slide drive unit featuring a 10 mm piston diameter, a 50 mm stroke, and an adjustable end-position range of 10 mm. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a working pressure range of 2.5 to 10 bar, this component delivers a theoretical force of 60 N for both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover, NBR seals, a plain-bearing guide, and pneumatic cushioning with a fixed metallic stop, it supports any assembly position and includes position detection for a proximity sensor within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
