Festo

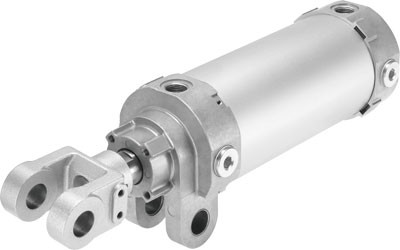

The Festo 2691530 is a double-acting industrial component featuring an 80 mm piston diameter, a 50 mm stroke, and a working pressure range of 1 to 10 bar. This unit incorporates self-adjusting pneumatic end-position cushioning with a 30 mm cushioning length, integrated flow control valves on both sides, and a male thread with a rod clevis on the piston-rod end. Operating within an ambient temperature range of -10 to 60 °C, it delivers a theoretical force of 3,016 N on the advance stroke and 2,721 N on the return stroke at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 2466735 is a manually actuated 2-way disc valve utilizing a soft sealing principle and a reversible flow direction with a nominal diameter DN of 65. Constructed with a non-corrosive high alloy steel housing, disc, and shaft of material number 1.4301, this component features weld-on ends on both process valve connections and operates at a nominal pressure of 10 with an actuation torque of 18 Nm based on DIN 11851. It is configured for any assembly position in line installations to handle water and neutral fluids within a medium temperature range of -10 to 120 degrees Celsius, incorporating materials that contain PWIS substances and conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 2690109 is a double-acting industrial component featuring a 63 mm piston diameter and a 150 mm stroke, operating at pressures from 1 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. This design structure includes a piston rod with a male thread and rod clevis, integrated flow control valves on both sides for speed regulation, self-adjusting PPS pneumatic end-position cushioning, and a swivel mounting on the bearing cap. It delivers a theoretical advance stroke force of 1,870 N and a return stroke force of 1,682 N at 6 bar, while supporting position detection via proximity sensors across any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 2466725 is a manually actuated 2-way disc valve featuring a soft sealing principle and weld-on ends on both process valve connections. Constructed with a high alloy non-corrosive steel housing, disc, and shaft corresponding to material number 1.4301, this component operates within a medium temperature range of -10 to 120 °C and a nominal pressure of 10. Based on the DIN 11851 standard with a nominal diameter DN of 50, it supports water and neutral fluids in any assembly position with a reversible flow direction and an actuation torque of 14 Nm. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo

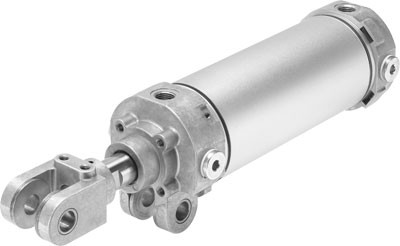

This Festo industrial component, part number 2690108, is a double-acting pneumatic cylinder featuring a 63 mm piston diameter and a 150 mm stroke. It incorporates self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, and a piston rod with a male thread and rod clevis. The unit operates at pressures from 1 to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2466715 is a manual 2-way disc valve utilizing a soft sealing principle and a reversible flow direction, based on the DIN 11851 standard with a nominal diameter DN of 40 and a nominal process valve pressure of 10. Constructed with a high alloy non-corrosive steel housing, disc, and shaft of material number 1.4301, this component features weld-on ends for line installation in any assembly position with an actuation torque of 10 Nm. It operates with water and neutral fluids within a medium temperature range of -10 to 120 °C, and its materials contain PWIS substances while conforming to RoHS. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
This Festo industrial component, part number 2690107, is a double-acting cylinder featuring a 63 mm piston diameter, a 150 mm stroke, and integrated flow control valves on both sides for speed regulation. The unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, a piston rod with a male thread and rod clevis, and a swivel mounting on the bearing cap. Operating within a 1 to 10 bar pressure range using compressed air in accordance with ISO 8573-1:2010 [7:4:4], it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit part number 2690107, desired quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2466705 is a manually actuated 2-way disc valve featuring a soft sealing principle, a nominal diameter of DN 25, and a nominal pressure rating of 10. Constructed with a non-corrosive high alloy steel housing (material number 1.4301), disc, and shaft, this component supports reversible flow direction and operates within a medium temperature range of -10 to 120 °C for water and neutral fluids. Featuring weld-on ends for line installation in any assembly position, the unit requires an actuation torque of 8 Nm and complies with DIN 11851 standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This double-acting industrial component from Festo features a 63 mm piston diameter, a 125 mm stroke, and integrated flow control valves on both sides for speed regulation. Operating at pressures from 1 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4], the unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. The assembly incorporates self-adjusting pneumatic end-position cushioning (PPS), a male piston-rod end with a rod clevis, and a swivel mounting on the bearing cap for installation in any assembly position. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
This Festo industrial component, part number 2690105, is a double-acting cylinder featuring a 63 mm piston diameter, a 125 mm stroke, and integrated flow control valves on both sides for speed regulation. The design incorporates a piston rod with a male thread and rod clevis, a swivel mounting on the bearing cap, and self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length. Operating within a pressure range of 1 to 10 bar using compressed air according to ISO8573-1:2010 [7:4:4], it delivers theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
This double-acting industrial component from Festo features a 63 mm piston diameter and a 125 mm stroke, operating within a pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. The assembly incorporates a piston, a piston rod with a rod clevis, a swivel mounting on the bearing cap, a cylinder barrel, self-adjusting pneumatic end-position cushioning (PPS), and integrated flow control valves on both sides for speed regulation. At 6 bar, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke, with a moving mass of 600 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2465010 is a manual 2-way disc valve featuring a soft sealing principle, a nominal diameter DN of 100, and a nominal pressure of 10 for process valves. Constructed with a non-corrosive high alloy steel housing, disc, and shaft corresponding to material number 1.4404, this component operates with a reversible flow direction, an actuation torque of 35 Nm, and a medium temperature range of -15 to 140 °C for water and neutral fluids. Featuring weld-on ends process valve connections based on the DIN 11851 standard, the assembly position is unrestricted for line installation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2464997 is a manually actuated industrial component featuring a 2-way disc valve design with a soft sealing principle and weld-on ends for line installation in any assembly position. Constructed with a non-corrosive high alloy steel housing, disc, and shaft corresponding to material number 1.4404, this DN 80 valve operates at a nominal pressure of 10 and an actuation torque of 20 Nm based on DIN 11851. It handles water and neutral fluids at medium temperatures ranging from -15 to 140 °C, incorporating materials that contain PWIS substances and conform to RoHS. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 2690103 is a double-acting industrial component featuring a 63 mm piston diameter and a 100 mm stroke with integrated flow control valves on both sides. This unit operates within a 1 to 10 bar working pressure using compressed air in accordance with ISO8573-1:2010 [7:4:4], delivering a theoretical advance force of 1,870 N and a return force of 1,682 N at 6 bar. Constructed with a male piston-rod end with a rod clevis, a swivel mounting on the bearing cap, and self-adjusting pneumatic end-position cushioning (PPS), it supports any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2464987 is a manual 2-way disc valve featuring a soft sealing principle and weld-on ends on both process valve connections based on the DIN 11851 standard. Constructed with a non-corrosive high alloy steel housing, disc, and shaft of material number 1.4404, this component operates with an actuation torque of 18 Nm at a nominal pressure of 10 and a nominal diameter DN of 65 in any assembly position. The reversible flow direction regulates water and neutral fluids within a medium temperature range of -15 to 140 °C, while the materials contain PWIS substances and conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component features a 63 mm piston diameter with a 100 mm stroke and operates in a double-acting mode using compressed air in accordance with ISO8573-1:2010 [7:4:4]. The assembly incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides for speed regulation, and a male thread with a rod clevis at the piston-rod end. At 6 bar, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke across a working pressure range of 1 to 10 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2690101 is a double-acting industrial component featuring a 63 mm piston diameter, a 100 mm stroke, and integrated flow control valves on both sides for speed regulation. This piston design incorporates a rod clevis with a width of 16.5 mm, a swivel mounting on the bearing cap with a 16.5 mm width, a male thread piston-rod end, and self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length. Operating within a 1 to 10 bar working pressure range and an ambient temperature of -10 to 60 °C, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

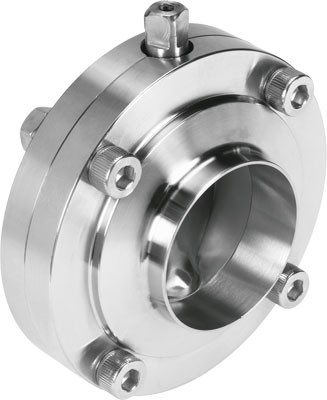

The Festo 2464974 is a manual 2-way disc valve featuring a soft sealing principle and line installation mounting type with weld-on ends for both process valve connections. Constructed with high alloy non-corrosive steel housing, disc, and shaft corresponding to material number 1.4404, this DN 50 component operates at a nominal pressure of 10 and an actuation torque of 14 Nm based on the DIN 11851 standard. It regulates water and neutral fluids at medium temperatures ranging from -15 to 140 °C in any assembly position while incorporating materials that contain PWIS substances and conform to RoHS. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
This Festo double-acting industrial component, part number 2690100, features a 63 mm piston diameter and a 75 mm stroke operating within a 1 to 10 bar pressure range. The unit incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, a male thread with rod clevis, and a swivel mounting on the bearing cap. Designed for compressed air operation in accordance with ISO 8573-1:2010 [7:4:4], it delivers a theoretical advance force of 1,870 N and return force of 1,682 N at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2464962 is a manual 2-way disc valve featuring a soft sealing principle and a nominal diameter of DN 40, built with a non-corrosive high alloy steel housing and disc (material number 1.4404) based on the DIN 11851 standard. This component operates with water and neutral fluids across a medium temperature range of -15 to 140 °C, utilizing a nominal pressure of process valve 10 and an actuation torque of 10 Nm. Featuring weld-on ends connections, a reversible flow direction, and any assembly position, the valve materials conform to RoHS and contain PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
