Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 2464034 is a manual 2-way disc valve featuring a soft sealing principle and weld-on ends on both process valve connections based on the ASME BPE standard. Constructed with non-corrosive high alloy steel housing, disc, and shaft of material number 1.4301, this DN 2" component operates with a nominal pressure of 10 and an actuation torque of 14 Nm across a medium temperature range of -15 to 140 °C for water and neutral fluids. It can be mounted in any assembly position and contains PWIS substances while conforming to RoHS. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

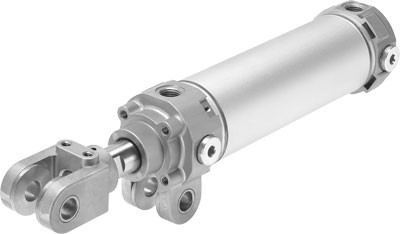

The Festo part number 2689559 is a double-acting industrial component featuring a 50 mm piston diameter, a 125 mm stroke, and a piston rod with a male thread and rod clevis. It operates within a 1 to 10 bar working pressure range using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. This unit includes self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, position detection for proximity sensors, and a swivel mounting on the bearing cap with a 16.5 mm width matching the rod clevis. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

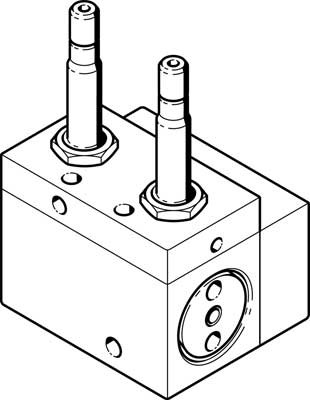

The Festo part number 2136 is an electrical, bistable 4/2 industrial component featuring piloted actuation and a non-reversible flow direction. Operating within a working pressure range of 2 to 10 bar, this unit utilizes 5 G1/4 pneumatic connection ports. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2464023 is a manually actuated 2-way disc valve utilizing a soft sealing principle and a 1 1/2" nominal diameter DN with weld-on ends on both process valve connections. Constructed with a non-corrosive high alloy steel housing, disc, and shaft corresponding to material number 1.4301, this component operates at a nominal pressure of 10 and an actuation torque of 10 Nm based on the ASME BPE standard. It accommodates water and neutral fluids at medium temperatures ranging from -15 to 140 °C in any assembly position with a reversible flow direction. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
The Festo part number 2689557 is a double-acting industrial component featuring a 50 mm piston diameter, a 100 mm stroke, and an operating pressure range of 1 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4]. This design structure incorporates a piston, a piston rod with a male thread and rod clevis, a swivel mounting on the bearing cap, integrated flow control valves on both sides for speed regulation, and self-adjusting pneumatic end-position cushioning. It delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, while accommodating an ambient temperature range of -10 to 60 °C and position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 2464012 is a manually actuated 2-way disc valve featuring a soft sealing principle and a 1" nominal diameter with weld-on ends. Constructed with a non-corrosive high alloy steel housing, disc, and shaft of material number 1.4301, this ASME BPE-based component operates with an actuation torque of 8 Nm in any assembly position. It handles water and neutral fluids at medium temperatures ranging from -15 to 140 °C with a nominal process valve pressure of 10 and reversible flow direction. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 2689556 is a double-acting industrial component featuring a 50 mm piston diameter and a 100 mm stroke. This piston assembly includes a rod clevis with an 18.5 mm width, a swivel mounting on the bearing cap with a 16.5 mm width, a male thread piston-rod end, and integrated flow control valves on both sides for speed regulation. It operates on compressed air within a working pressure range of 1 to 10 bar, delivering a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 2462270 is a manual 2-way disc valve featuring a soft sealing principle and a 4" nominal diameter based on the ASME BPE standard. Constructed with non-corrosive high alloy steel housing, disc, and shaft material number 1.4301, this component delivers a 35 Nm actuation torque for water and neutral fluid media within a temperature range of -10 to 120 °C. It utilizes weld-on ends for line installation, supports a nominal pressure of 10, operates in any assembly position with reversible flow direction, and conforms to RoHS while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This double-acting industrial component from Festo features a 50 mm piston diameter, a 100 mm stroke, and operates within a working pressure range of 1 to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. The unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for proximity sensor position detection. Designated with a CRC corrosion resistance classification of 0 and an ambient temperature range of -10 to 60 °C, the assembly comprises a piston, a piston rod with a male thread and rod clevis, a swivel mounting on the bearing cap, and a cylinder barrel that supports lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo 2462254 is a manual 2-way disc valve featuring a 3 nominal diameter DN and weld-on ends process valve connection based on the ASME BPE standard. Constructed with a non-corrosive high alloy steel housing, disc, and shaft of material number 1.4301, this component utilizes a soft sealing principle and operates with an actuation torque of 18 Nm. It accommodates water and neutral fluids within a medium temperature range of -10 to 120 °C, supports reversible flow direction, and permits installation in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal price quote.
View product details →Festo
The Festo part number 2689554 is a double-acting industrial component featuring a 50 mm piston diameter, a 75 mm stroke, and a working pressure range of 1 to 10 bar. This assembly utilizes self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via proximity sensors. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] with a 0 CRC corrosion resistance classification, it delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 2462238 is a 2-way disc valve featuring manual actuation and a soft sealing principle for water and neutral fluids within a medium temperature range of -10 to 120 °C. Constructed with a non-corrosive high alloy steel housing, disc, and shaft of material number 1.4301, this ASME BPE-compliant component utilizes weld-on ends for line installation in any assembly position. It delivers a nominal pressure of 10, a nominal diameter DN of 2 1/2", a reversible flow direction, and an actuation torque of 15 Nm, containing PWIS substances while conforming to RoHS. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.
View product details →Festo
This Festo industrial component, part number 2689553, is a double-acting cylinder featuring a 50 mm piston diameter, a 75 mm stroke, and an operating pressure range of 1 to 10 bar. It includes self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, a male thread piston-rod end with a rod clevis, and a swivel mounting on the bearing cap for installation in any assembly position. The unit operates with compressed air according to ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -10 to 60 °C, delivering theoretical forces of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

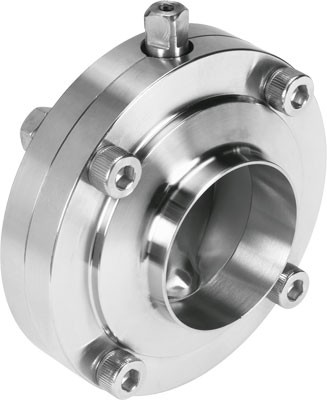

The Festo 2462219 is a manual 2-way disc valve featuring a soft sealing principle and weld-on ends on both process valve connections for line installation in any assembly position. Constructed with a non-corrosive high alloy steel housing, disc, and shaft (material number 1.4301), this 2" nominal diameter component operates with an actuation torque of 14 Nm based on the ASME BPE standard. It handles water and neutral fluids within a medium temperature range of -10 to 120 °C at a nominal pressure of 10, while conforming to RoHS and containing PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 2689552 is a double-acting industrial component featuring a 50 mm piston diameter and a 75 mm stroke, operating at pressures from 1 to 10 bar with compressed air conforming to ISO8573-1:2010 [7:4:4]. This unit integrates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides, and a male thread with rod clevis alongside a swivel mounting on the bearing cap. It delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, while supporting position detection via proximity sensors across any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2462202 is a manual 2-way disc valve featuring a soft sealing principle and weld-on ends on both process valve connections based on the ASME BPE standard. Constructed with non-corrosive high alloy steel housing, disc, and shaft material number 1.4301, this component operates with a nominal diameter DN of 1 1/2", a nominal pressure of 10, and an actuation torque of 10 Nm. It accommodates water and neutral fluids at medium temperatures ranging from -10 to 120 °C in any assembly position with a reversible flow direction. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component features a 50 mm piston diameter with a 50 mm stroke and operates via a double-acting mode using compressed air in accordance with ISO8573-1:2010 [7:4:4] at a working pressure of 1 to 10 bar. The unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via proximity sensors. Structural elements include a piston rod with a male thread and rod clevis, a swivel mounting on the bearing cap, and a cylinder barrel supporting an ambient temperature range of -10 to 60 °C with a CRC corrosion resistance of 0. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo 2462175 industrial component features a 2-way disc valve design with manual actuation and a soft sealing principle. Constructed with a high alloy steel housing and disc (material number 1.4301) along with a high alloy steel shaft, the unit supports line installation with weld-on ends and an ASME BPE standard. It operates with a nominal diameter DN of 1", a nominal pressure of 10, an actuation torque of 8 Nm, and handles water or neutral fluids at temperatures ranging from -10 to 120 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 2689550 is a double-acting industrial component featuring a 50 mm piston diameter, a 50 mm stroke, and an operating pressure range of 1 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4]. This assembly incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via proximity sensor. The unit delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, operating within an ambient temperature range of -10 to 60 °C. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 2462132 is a manually actuated 2-way disc valve featuring a soft sealing principle, a 4-inch nominal diameter DN, and a nominal pressure rating of 10. Built with a non-corrosive high alloy steel housing, disc, and shaft corresponding to material number 1.4404 and based on the ASME BPE standard, this line-installed component accommodates any assembly position and handles water or neutral fluids at temperatures ranging from -15 to 140 °C with an actuation torque of 35 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
