Festo
195194

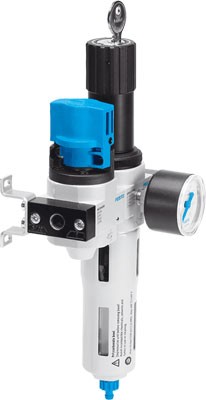

Service unit combination LFRS-3/4-D-DI-MAXI-KC
The Festo part number 195194 is a Maxi size D-series industrial component featuring an on/off valve and a filter regulator with a pressure gauge, operating with compressed air across a medium and ambient temperature range of -10 to 60 °C. This assembly provides a standard nominal flow rate of 5,400 l/min, a pressure control range of 0.5 to 12 bar, an inlet pressure of 1 to 16 bar, a 40 µm filtration grade, and a 43 cm3 max condensate volume managed via a manual rotary condensate drain. Additional physical characteristics include a metal bowl guard, a rotary knob actuator lock with an integrated lock, a vertical assembly position within +/- 5°, a corrosion resistance classification of CRC 2, a product weight of 2,840 g, and G3/4 pneumatic connection ports for optional line installation or mounting with accessories. Submit the exact part number, quantity, and application requirements to request a quote for this unit.
