Festo

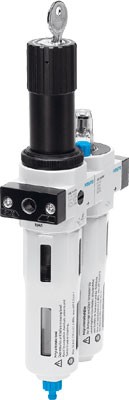

The Festo 194869 is a Series D mini industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a manual rotary condensate drain with a maximum condensate volume of 22 cm3. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar, this unit delivers a standard nominal flow rate of 1,300 l/min while maintaining a maximum pressure hysteresis of 0.2 bar. The assembly includes a 40 µm grade of filtration, a metal bowl guard, an actuator lock utilizing a rotary knob with an integrated lock, and a G1/8 pressure gauge preparation, all housed within a 760 g design configured for a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

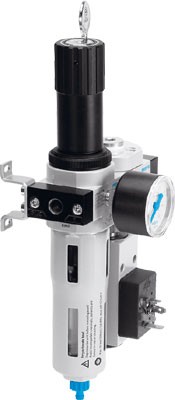

The Festo part number 195184 is a Maxi size Series D industrial component featuring a branch module, pressure sensor, and filter regulator with a pressure gauge, utilizing a G1/2 pneumatic connection port for compressed air operation. It provides a standard nominal flow rate of 5,000 l/min across a pressure control range of 0.5 to 12 bar and an inlet pressure range of 1 to 16 bar, complete with a 40 µm filtration grade, manual rotary condensate drain, 43 cm3 max condensate volume, and metal bowl guard. Designed for vertical assembly within plus or minus 5 degrees and a medium and ambient temperature range of -10 to 60 µC, this unit weighs 2,840 g, includes a rotary knob actuator lock with an integrated lock, and mounts via optional line installation or with accessories under a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive an official price and lead time quote.
View product details →Festo
The Festo flange mounting MF1/MF2-4″, part number 195902, is an industrial component featuring a corrosion resistance classification CRC of 1 according to the official Festo EN-US data sheet. This designation is specified directly within the manufacturer documentation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 195183 is a Series D Maxi industrial component featuring a design structure combining an on-board valve, a filter regulator with a pressure gauge, and a safety start-up valve configured for vertical installation within a plus or minus 5 degree tolerance. This unit operates with compressed air across a medium and ambient temperature range of -10 to 60 °C, offering a pressure control range of 2.5 to 12 bar, an inlet pressure of 3 to 12 bar, and a standard nominal flow rate of 3,000 l/min through G1/2 pneumatic connection ports. Additional attributes include a 40 µm filtration grade, a fully automatic condensate drain with a 43 cm3 maximum volume, a metal bowl guard, a rotary knob actuator lock with an integrated lock, a corrosion resistance classification CRC of 2, and an optional line or accessory mounting type at a product weight of 3,540 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

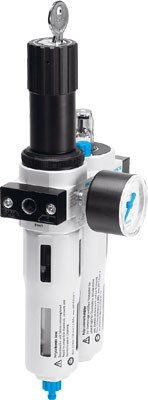

The Festo part number 194868 is a mini Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator, structured with a manual rotary condensate drain, a 40 µm grade of filtration, and a metal bowl guard. Operating within a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar, this unit handles a standard nominal flow rate of 1,300 l/min while maintaining a maximum pressure hysteresis of 0.2 bar and a 22 cm3 max condensate volume. Weighing 760 g with a vertical assembly position of +/- 5°, it utilizes compressed air to ISO 8573-1:2010 [-:9:-] or inert gases within a medium and ambient temperature range of -10 to 60 °C, and incorporates a rotary knob with an integrated lock for actuator security. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo flange mounting MF1/MF2-3 1/4" is an industrial component detailed in the official Festo EN-US data sheet under product designation MF1/MF2-3 1/4". This specified hardware features a corrosion resistance classification CRC 1 according to official documentation. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo

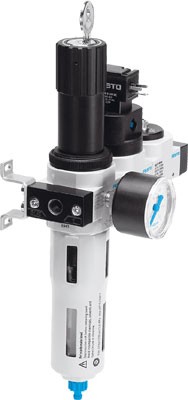

The Festo 195182 is a D series Maxi size industrial component combining an on-off valve, a safety start-up valve, and a filter regulator with a pressure gauge and manual rotary condensate drain. This unit operates with compressed air within a medium and ambient temperature range of -10 to 60 °C, featuring a 40 µm filtration grade, a 43 cm3 maximum condensate volume, and a metal bowl guard. It provides a standard nominal flow rate of 3,000 l/min, an inlet pressure range of 3 to 16 bar, a pressure control range of 2.5 to 12 bar, and G1/2 pneumatic connection ports. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 194867 is a mini Series D filter regulator with a pressure gauge and a proportional standard mist lubricator featuring a fully automatic condensate drain and a 40 µm grade of filtration. This component operates within a working and pressure regulation range of 2 to 12 bar and 0.5 to 12 bar respectively, delivering a standard nominal flow rate of 1,000 l/min while maintaining a maximum pressure hysteresis of 0.2 bar. Constructed with a metal bowl guard and a rotary knob with an integrated lock for the actuator, the unit weighs 700 g and functions with compressed air or inert gases at temperatures from -10 to 60 µC. Submit the exact part number, quantity, and application requirements for a quote today.
View product details →Festo
The Festo 195900 is an industrial component designated as a flange mounting MF1/MF2-2 1/2". Official Festo technical documentation specifies a corrosion resistance classification CRC of 1 for this part. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

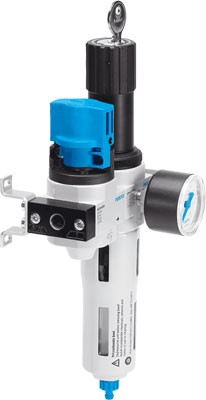

The Festo part number 195181 is a Maxi size D series industrial component featuring an on/off valve and a filter regulator with a pressure gauge, designed for compressed air operating medium within a medium and ambient temperature range of -10 to 60 °C. It provides a standard nominal flow rate of 4,800 l/min, a pressure control range of 0.5 to 12 bar, an inlet pressure of 2 to 12 bar, a 40 µm grade of filtration, and a fully automatic condensate drain with a 43 cm3 max condensate volume. Additional specifications include a rotary knob actuator lock with an integrated lock, a metal bowl guard, G1/2 pneumatic connection ports, a CRC corrosion resistance classification of 2, a weight of 2,840 g, and a vertical +/- 5° assembly position with optional line or accessory mounting. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194866 is a mini Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator. It operates within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 1,000 l/min across an operating temperature of -10 to 60 °C. This unit incorporates a 40 µm grade of filtration, a 22 cm3 max condensate volume, a manual rotary condensate drain, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements to receive a formal price and lead time quote.
View product details →Festo
The Festo flange mounting MF1/MF2-2", identified by part number 195899, is an industrial component featuring a corrosion resistance classification CRC of 1 as specified in the official Festo EN-US data sheet. Request a formal quote for this exact part number by submitting your required quantity and application specifications.
View product details →Festo
The Festo 194865 is a D-series mini filter regulator with a pressure gauge and proportional standard mist lubricator featuring a fully automatic condensate drain and a 40 µm grade of filtration. Designed for a working pressure of 2 to 12 bar and a standard nominal flow rate of 1,000 l/min, this component includes a rotary knob with an integrated lock and a metal bowl guard for an operating and medium temperature range of -10 to 60 µC. Weighing 760 g with a maximum condensate volume of 22 cm³, it operates using compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within a vertical assembly position of +/- 5°. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 195898 is an industrial component designated as a flange mounting MF1/MF2-1 1/2". This part features a corrosion resistance classification CRC of 1, as documented in the official Festo EN-US data sheet. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

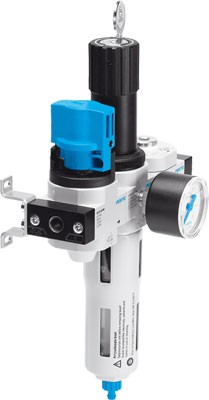

The Festo 195179 is a Series D Maxi industrial component featuring a branching module, an on-off valve, and a filter regulator with a pressure gauge. It operates with compressed air at an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 5,400 l/min, incorporating a 40 µm filtration grade, a fully automatic condensate drain with a 43 cm3 maximum volume, and a rotary knob actuator lock with an integrated lock. The unit has G1/2 pneumatic connection ports, weighs 3,740 g, functions at medium and ambient temperatures between -10 and 60 µC, and offers a pressure control range of 0.5 to 12 bar within a vertical +/- 5° assembly position inside a metal bowl guard. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 195881 is a single-acting industrial component featuring a 63 mm piston diameter, a 50 mm stroke, and an M16x1,5 piston rod thread with a pushing action mode of operation. Designed with flexible cushioning rings at both ends and a CRC 2 moderate corrosion resistance classification, this unit operates within a pressure range of 0.12 to 1 MPa and an ambient temperature range of -20 to 80 °C using compressed air in accordance with ISO8573-1:2010 [7:4:4]. It delivers a theoretical advance force of 1,763 N and a spring return force of 60 N at 0.6 MPa, supported by a basic weight of 1,445 g for a 0 mm stroke. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 195880 is a single-acting industrial component featuring a 63 mm piston diameter, a 25 mm stroke, and an M16x1,5 piston rod thread with a pushing action design structure comprising a piston, piston rod, and cylinder barrel. It operates on compressed air per ISO8573-1:2010 [7:4:4] within an operating pressure range of 0.12 to 1 MPa (1.2 to 10 bar), delivering a theoretical advance force of 1,763 N and an 82 N spring return force at 0.6 MPa (6 bar, 87 psi). Featuring flexible cushioning rings or plates at both ends, a CRC 2 moderate corrosion resistance classification, and an ambient temperature range of -20 to 80 °C, the unit accommodates lubricated operation and can be mounted in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194863 is a mini D-series industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a fully automatic condensate drain with a maximum condensate volume of 22 cm3. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this unit achieves a 5 µm grade of filtration and delivers a standard nominal flow rate of 600 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Additional technical characteristics include a rotary knob actuator lock with an integrated lock, a metal bowl guard, vertical assembly position within +/- 5°, and a product weight of 760 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

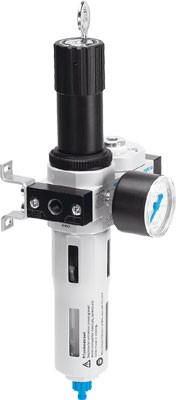

The Festo 195177 is a Maxi size Series D industrial component featuring a branching module and a filter regulator with a pressure gauge, engineered for compressed air with an inlet pressure of 2 to 12 bar and a pressure control range of 0.5 to 12 bar. This unit delivers a standard nominal flow rate of 5,200 l/min utilizing a 40 µm grade of filtration, a fully automatic condensate drain with a 43 cm3 maximum condensate volume, and a metal bowl guard. Operating within a medium and ambient temperature range of -10 to 60 µc, it incorporates a rotary knob actuator lock with an integrated lock, a vertical +/- 5° assembly position, G1/2 pneumatic connection ports, and a CRC 2 corrosion resistance classification at a product weight of 2,840 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

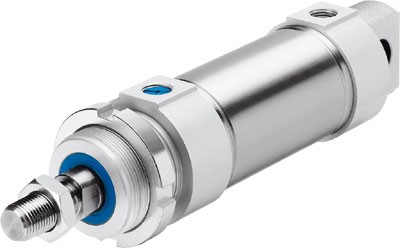

The Festo part number 195879 is a single-acting industrial component featuring a 63 mm piston diameter, a 10 mm stroke, and an M16x1,5 piston rod thread with pushing action. Operating within a pressure range of 0.12 to 1 MPa (1.2 to 10 bar) using compressed air conforming to ISO8573-1:2010 [7:4:4], this unit provides a theoretical advance force of 1,763 N and a retracting spring return force of 95 N at 0.6 MPa. It incorporates flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and an ambient temperature operating range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quotation.
