Festo

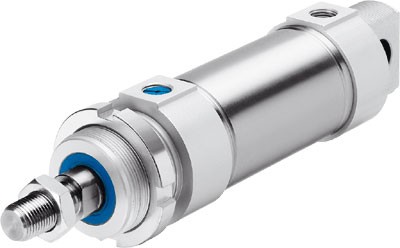

The Festo 195870 is a single-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and an M10x1,25 piston rod thread with a pushing action mode of operation. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a pressure range of 0.12 to 1 MPa (1.2 to 10 bar), this unit incorporates flexible cushioning rings at both ends and delivers an advance theoretical force of 442.2 N at 0.6 MPa. With a moderate corrosion resistance classification CRC of 2, the assembly supports any mounting position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

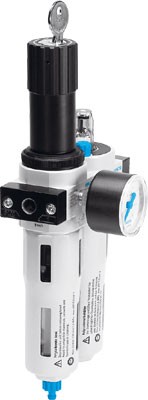

The Festo 194853 is a D-series mini filter regulator featuring an integrated rotary knob lock, a fully automatic condensate drain, and a proportional standard mist lubricator with a 22 cm3 max condensate volume and 40 µm filtration grade. This assembly operates within a 2 to 12 bar working pressure range, a 0.5 to 12 bar pressure regulation range, a max pressure hysteresis of 0.2 bar, and a standard nominal flow rate of 700 l/min using compressed air to ISO 8573-1:2010 [7:9:-] or inert gases at temperatures between -10 and 60 µC. Designed with a metal bowl guard, an included pressure gauge, and a vertical +/- 5° assembly position, the 760 g unit supports lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 194852 is a mini D-series industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator, operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar. This unit includes a manual rotary condensate drain with a 22 cm3 maximum condensate volume, a 40 µm grade of filtration, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. It provides a standard nominal flow rate of 700 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases across a medium and ambient temperature range of -10 to 60 ¼irc}C, with a total product weight of 760 g. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 194851 is a Maxi size Series D filter regulator featuring a fully automatic condensate drain and a rotary knob actuator lock with an integrated lock. Designed without a pressure gauge while being prepared for G1/4, this unit operates within a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar with a standard nominal flow rate of 7,800 l/min. It provides a 43 cm3 maximum condensate volume, a 40 µm grade of filtration, and a metal bowl guard for compressed air or inert gas media operating between 5 and 60 µC. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194850 is a Maxi-size D-series filter regulator featuring an integrated rotary knob lock, a fully automatic condensate drain, and an included pressure gauge within a metal bowl guard. Operating within a working pressure of 2 to 12 bar and a regulation range of 0.5 to 7 bar, this component delivers a standard nominal flow rate of 7,800 l/min with a 40 µm filtration grade for compressed air and inert gases. It operates at temperatures from 5 to 60 µC with a vertical assembly position tolerance of +/- 5° and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194849 is a D series Maxi size filter regulator featuring a 5 µm filtration grade, a fully automatic condensate drain with a maximum volume of 43 cm3, and a metal bowl guard. Operating within a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 6,000 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. It includes an actuator lock with an integrated rotary knob, is prepared for a G1/4 pressure gauge, and maintains an assembly position of vertical plus or minus 5 degrees at a product weight of 1,880 g. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

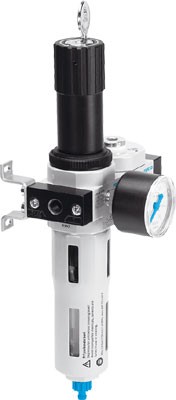

The Festo part number 195093 is a Series D Maxi industrial component featuring a branching module and a filter regulator with a pressure gauge, designed for a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar. This unit operates with compressed air in accordance with ISO 8573-1:2010 [-:-:-] or inert gases within a medium and ambient temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 9,400 l/min with a 40 µm filtration grade and a fully automatic condensate drain. It includes a metal bowl guard, an 80 cm3 max condensate volume, a rotary knob with an integrated lock actuator lock, and a 2,500 g product weight with a CRC 2 moderate corrosion stress classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

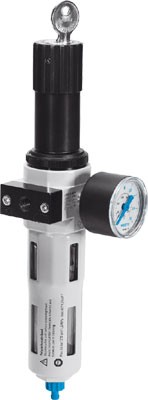

The Festo 194848 is a D-series Maxi size filter regulator with a pressure gauge, designed in a vertical position within +/- 5° for compressed air or inert gases. Featuring a 5 µm filtration grade, a fully automatic condensate drain with a maximum 43 cm3 volume, and a metal bowl guard, this unit operates within a 2 to 12 bar working pressure and a 0.5 to 12 bar pressure regulation range while delivering a standard nominal flow rate of 6,000 l/min. Control is managed via a rotary knob with an integrated actuator lock, maintaining an output air purity class in accordance with ISO 8573-1:2010 [6:8:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

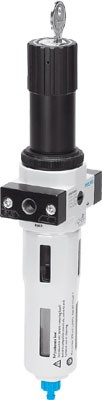

The Festo 194847 is a Size Maxi industrial component from the D series, featuring a filter regulator without a pressure gauge, a rotary knob actuator lock with an integrated lock, and a metal bowl guard. It operates within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 7,000 l/min with a 40 µm filtration grade and a fully automatic condensate drain. The unit is designed for vertical assembly within +/- 5° and processes compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within medium and ambient temperatures of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 195091 is a Series D Maxi industrial component featuring a branching module, pressure sensor, on/off valve, filter regulator with pressure gauge, and a safety start-up valve. It operates within a working pressure of 3 to 12 bar, provides a standard nominal flow rate of 4,200 l/min, and handles a 40 µm filtration grade with a fully automatic condensate drain. This assembly weighs 5,300 g, includes a metal bowl guard, and functions at medium and ambient temperatures ranging from -10 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo part number 194846 is a Maxi size Series D filter regulator with an integrated pressure gauge, rotary knob actuator lock, and fully automatic condensate drain housed within a metal bowl guard. Operating with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases at a working pressure of 2 to 12 bar and a regulation range of 0.5 to 12 bar, this component achieves a standard nominal flow rate of 7,000 l/min with a 40 µm filtration grade. It features a maximum condensate volume of 43 cm3, a maximum pressure hysteresis of 0.4 bar, and a moderate corrosion resistance classification CRC of 2 for operation within medium and ambient temperatures of 5 to 60 µc. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo

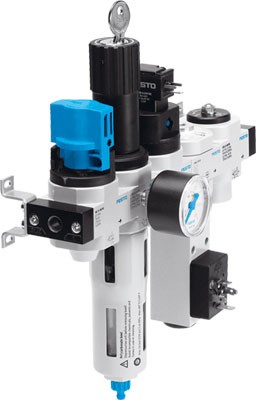

The Festo part number 195090 is a Series D Maxi industrial component featuring a branching module, pressure sensor, on/off valve, filter regulator with pressure gauge, and safety start-up valve with a 4,200 l/min standard nominal flow rate. Operating within a working pressure range of 3 to 16 bar and a pressure regulation range of 2.5 to 12 bar, this unit handles compressed air and inert gases at temperatures from -10 to 60 °C with a 40 µm filtration grade and manual rotary condensate drain. The assembly includes a rotary knob actuator lock with an integrated lock, metal bowl guard, and a maximum condensate volume of 80 cm3 while maintaining a total product weight of 5,300 g. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 194845 is a Maxi size Series D filter regulator featuring a rotary knob with an integrated lock and a fully automatic condensate drain. It offers a standard nominal flow rate of 7,700 l/min within a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar. Designed with a 40 µm filtration grade and a metal bowl guard, this unit operates with compressed air or inert gases at temperatures between 5 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 194844 is a Maxi size Series D filter regulator with a pressure gauge, featuring a 40 µm filtration grade and a fully automatic condensate drain within a metal bowl guard. Operating with a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, this component achieves a standard nominal flow rate of 7,700 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. The unit includes a rotary knob with an integrated lock for the actuator, maintains a vertical assembly position within +/- 5°, and exhibits a moderate corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194843 is a D-series Maxi size filter regulator featuring a 5 µm filtration grade, fully automatic condensate drain, and a 43 cm3 maximum condensate volume designed for vertical installation within +/- 5°. This component operates at a working pressure of 2 to 12 bar, delivers a standard nominal flow rate of 5,800 l/min, and incorporates a rotary knob with an integrated lock for the 0.5 to 12 bar pressure regulation range. Built with a metal bowl guard and prepared for a G1/4 pressure gauge, it processes compressed air and inert gases within a medium and ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194842 is a Series D Maxi industrial component featuring a filter regulator with a pressure gauge, a 5 µm grade of filtration, and a fully automatic condensate drain with a maximum condensate volume of 43 cm3. It operates within a working pressure range of 2 to 12 bar, a pressure regulation range of 0.5 to 12 bar, a maximum pressure hysteresis of 0.4 bar, and delivers a standard nominal flow rate of 5,800 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Built with a metal bowl guard, an actuator lock utilizing a rotary knob with an integrated lock, and a vertical +/- 5° assembly position, the unit weighs 1,950 g and functions at medium and ambient temperatures between 5 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 194841 is a Maxi size industrial component from the D series, functioning as a filter regulator without a pressure gauge and featuring a rotary knob actuator lock with an integrated lock. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this unit achieves a standard nominal flow rate of 6,800 l/min for compressed air to ISO 8573-1:2010 [7:9:-] and inert gases. It incorporates a fully automatic condensate drain, a 40 µm grade of filtration, a metal bowl guard, and a maximum condensate volume of 43 cm3, while designed for a vertical assembly position within a ± 5° tolerance. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 194840 is a D-series Maxi filter regulator featuring an integrated rotary knob lock and a pressure gauge with a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar. Designed for a standard nominal flow rate of 6,800 l/min, this assembly includes a 40 µm filtration grade, a fully automatic condensate drain, a 43 cm3 maximum condensate volume, and a metal bowl guard for operation within an ambient and medium temperature range of 5 to 60 µC. It processes compressed air conforming to ISO 8573-1:2010 [7:9:-] or inert gases, maintains a maximum pressure hysteresis of 0.4 bar, exhibits a CRC rating of 2 for moderate corrosion stress, and requires a vertical assembly position within a plus or minus 5-degree tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194839 is a Maxi size Series D filter regulator featuring a 40 µm filtration grade, a fully automatic condensate drain, and a 43 cm3 max condensate volume within a metal bowl guard. Operating with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases at a working pressure of 2 to 12 bar, this unit delivers a standard nominal flow rate of 7,600 l/min with a pressure regulation range of 0.5 to 7 bar. It incorporates a rotary knob with an integrated lock, is prepared for a G1/4 pressure gauge, and is designed for a vertical assembly position within plus or minus 5 degrees. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194838 is a Series D Maxi design structure combining a filter regulator with a pressure gauge, featuring a 40 µm filtration grade and a fully automatic condensate drain with a maximum condensate volume of 43 cm3. This component operates within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, delivering a standard nominal flow rate of 7,600 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Enclosed in a metal bowl guard with a rotary knob actuator lock having an integrated lock, the unit requires a vertical assembly position of +/- 5° and a medium temperature of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
