Festo

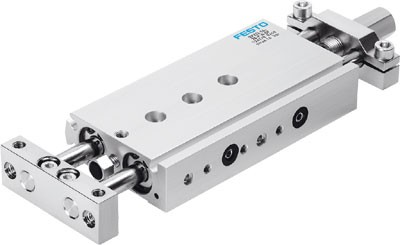

The Festo part number 194429 is a double-acting guide drive unit featuring a 16 mm piston diameter, a 20 mm stroke, and a yoke operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. Designed with a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and provisions for position detection via proximity sensors, this component operates within a 1 to 10 bar working pressure range and achieves a maximum speed of 0.8 m/s using dried compressed air that can be lubricated or unlubricated. Certified with ATEX category II 2G for gas with c T4 explosion ignition protection and ATEX category II 2D for dust with c 120°C protection, the unit functions in any assembly position across an explosion-proof ambient temperature range of -5°C to +60°C, featuring an adjustable end-position range of 15 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

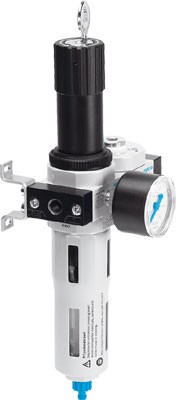

The Festo part number 195022 is a mini D-series branching module and filter regulator featuring an integrated rotary knob lock, a manual rotary condensate drain, a metal bowl guard, and an included pressure gauge. It operates within a working pressure range of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and provides a standard nominal flow rate of 1,140 l/min with a 40 µm filtration grade. This component functions with compressed air conforming to ISO 8573-1:2010 [-:-:-] or inert gases at a medium and ambient temperature range of -10 to 60 ¼irc}C, while weighing 900 g and maintaining a CRC 2 moderate corrosion stress classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194428 is a double-acting industrial drive unit featuring a yoke operating mode, a 16 mm piston diameter, and a 10 mm stroke with a 15 mm adjustable end-position range. This component incorporates a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and position detection for a proximity sensor, functioning at a working pressure of 1 to 10 bar and a maximum speed of 0.8 m/s with dried compressed air. Certified with ATEX category II 2G for gas and II 2D for dust, it operates within an explosion-proof ambient temperature range of -5°C to +60°C and can be assembled in any position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194777 is a Midi size Series D filter regulator featuring a 5 µm filtration grade, a manual rotary condensate drain with a 43 cm3 maximum condensate volume, and a metal bowl guard. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 2,600 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. The assembly position is vertical plus or minus 5 degrees, and the component includes a rotary knob actuator lock with an integrated lock alongside a preparation for a G1/4 pressure gauge. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo mini Series D industrial component features a branching module, pressure sensor, on/off valve, filter regulator with pressure gauge, and safety start-up valve, operating at a standard nominal flow rate of 575 l/min within a working pressure of 3 to 12 bar. Designed with a 40 µm grade of filtration, fully automatic condensate drain, metal bowl guard, and a rotary knob actuator lock with an integrated lock, it supports a pressure regulation range of 2.5 to 12 bar and a maximum condensate volume of 22 cm3. The assembly requires a vertical position within +/- 5° for compressed air or inert gases conforming to ISO8573-1:2010 [-:-:-] across medium and ambient temperatures of -10 to 60 °C, yielding a product weight of 1,600 g with a CRC rating of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Engineered with a 10 mm piston diameter and a 50 mm stroke, this Festo double-acting drive unit features a yoke operating mode and a recirculating ball bearing guide with a working load to yoke plate centre of gravity distance of 0 mm. The assembly supports any mounting position, operates within a 1.5 to 10 bar working pressure range using dried compressed air, and incorporates flexible cushioning rings at both ends alongside an adjustable end-position range of 15 mm. Rated for hazardous locations under ATEX categories II 2G and II 2D with specific explosion-proof ambient temperatures from -5°C to +60°C, the component includes position detection capability for proximity sensors and achieves a maximum speed of 0.8 m/s. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 195020 is a mini series D industrial component featuring a branching module, pressure sensor, on/off valve, filter regulator with pressure gauge, and safety start-up valve with a rotary knob with integrated lock. It operates within a working pressure of 3 to 16 bar, a pressure regulation range of 2.5 to 12 bar, and delivers a standard nominal flow rate of 575 l/min with a 40 µm filtration grade and manual rotary condensate drain. The unit functions at temperatures from -10 to 60 °C, weighs 1,600 g, and incorporates a metal bowl guard with a maximum condensate volume of 22 cm3. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 194775 is a Midi size filter regulator from the D series, featuring a rotary knob actuator lock with an integrated lock and a fully automatic condensate drain. Engineered for vertical mounting within +/- 5°, this component delivers a standard nominal flow rate of 4,000 l/min across a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar. It incorporates a 40 µm filtration grade, a 43 cm3 maximum condensate volume, a metal bowl guard, and a pressure gauge prepared for G1/4. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194426 is a double-acting industrial component featuring a 10 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with a recirculating ball bearing guide. This unit operates within a working pressure range of 1.5 to 10 bar, achieves a maximum speed of 0.8 m/s, and includes flexible cushioning rings or plates at both ends with an adjustable end-position range of 15 mm. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust, it functions in an explosion-proof ambient temperature range of -5°C to +60°C using dried compressed air that can be lubricated or unlubricated. Submit your exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →Festo
The Festo part number 195019 is a Series D mini industrial component featuring a branching module, pressure sensor, on-off valve, and filter regulator with a pressure gauge. It operates within a working pressure of 2 to 12 bar and a regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 700 l/min for compressed air and inert gases. This unit includes a fully automatic condensate drain with a 22 cm3 max condensate volume, a 40 µm filtration grade, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194425 is a double-acting industrial component featuring a yoke drive unit design with a 10 mm piston diameter, a 30 mm stroke, and a recirculating ball bearing guide. This unit operates on dried compressed air, lubricated or unlubricated, across a working pressure range of 1.5 to 10 bar, achieving a maximum speed of 0.8 m/s with flexible cushioning rings or plates at both ends and a 15 mm adjustable end-position range. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust, it supports position detection via proximity sensor and can be mounted in any assembly position within an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo

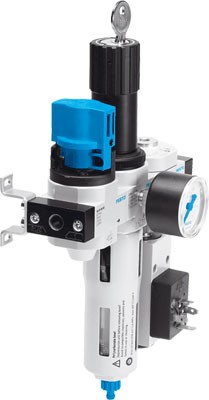

The Festo part number 195018 is a mini Series D industrial component featuring a branching module, pressure sensor, on-off valve, and a filter regulator with a pressure gauge. It operates within a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and delivers a standard nominal flow rate of 700 l/min using compressed air or inert gases. This unit includes a manual rotary condensate drain with a 22 cm3 max condensate volume, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194424 is a double-acting industrial guide component featuring a 10 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 15 mm while supporting any assembly position, position detection via proximity sensor, and an operating pressure of 1.5 to 10 bar at a maximum speed of 0.8 m/s using dried compressed air that is lubricated or unlubricated. Rated for hazardous environments with ATEX category II 2G gas and II 2D dust certifications, an explosion ignition protection type of c T4 for gas and c 120°C for dust, and an explosion-proof ambient temperature range of -5°C to +60°C in accordance with the EU-Ex protection guideline, it meets specific operational criteria. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo 194773 is a Midi size Series D filter regulator featuring a 40 µm filtration grade, a manual rotary condensate drain, and a design structure without a pressure gauge while being prepared for G1/4. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar, this component achieves a standard nominal flow rate of 4,000 l/min and accommodates compressed air or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

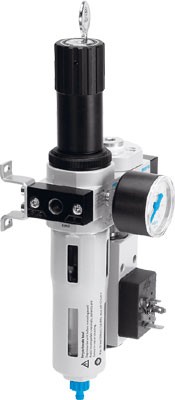

The Festo 195017 is a mini D-series industrial component featuring a branching module, pressure sensor, and a filter regulator with a pressure gauge, operating within a working pressure range of 2 to 12 bar and a regulation range of 0.5 to 12 bar. It incorporates a 40 µm filtration grade, a fully automatic condensate drain with a maximum 22 cm3 volume, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. The unit handles compressed air and inert gases at temperatures from -10 to 60 ¼irc}C, delivering a standard nominal flow rate of 720 l/min with a maximum pressure hysteresis of 0.15 bar and weighing 1,100 g. Request a quote by submitting part number 195017, quantity, and application requirements.
View product details →Festo
The Festo part number 194423 is a double-acting industrial drive unit featuring a 10 mm piston diameter, a 10 mm stroke, and a yoke operating mode with a recirculating ball bearing guide. This component operates on dried compressed air, lubricated or unlubricated, within a working pressure range of 1.5 to 10 bar, incorporating flexible cushioning rings or plates at both ends and an adjustable end-position range of 15 mm. Certified with ATEX category II 2G for gas and II 2D for dust, it provides explosion-proof operation in ambient temperatures from -5°C to +60°C and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 195016 is a mini D-series industrial component featuring a branching module, pressure sensor, and filter regulator with a pressure gauge and manual rotary condensate drain. It operates with a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, a standard nominal flow rate of 720 l/min, and a 40 µm grade of filtration for compressed air and inert gases. This unit includes a rotary knob actuator lock with an integrated lock, a metal bowl guard, a maximum condensate volume of 22 cm3, and a product weight of 1,100 g for vertical assembly within +/- 5°. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194422 is a double-acting industrial drive unit featuring a yoke operating mode, a 6 mm piston diameter, and a 50 mm stroke with a 10 mm adjustable end-position range. Equipped with a recirculating ball bearing guide, flexible cushioning rings at both ends, and position detection for proximity sensors, this component operates within a working pressure range of 2 to 10 bar and a maximum speed of 0.5 m/s using dried compressed air. Certified under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C), it functions at explosion-proof ambient temperatures from -5°C to +60°C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

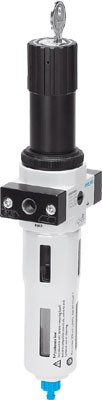

The Festo 194771 is a Midi size D series filter regulator without a pressure gauge, featuring a rotary knob with an integrated actuator lock and a fully automatic condensate drain. Designed for a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this component achieves a standard nominal flow rate of 3,400 l/min with a 40 µm filtration grade. It incorporates a metal bowl guard, a maximum condensate volume of 43 cm3, and operates within a medium temperature range of 5 to 60 °C using compressed air or inert gases. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

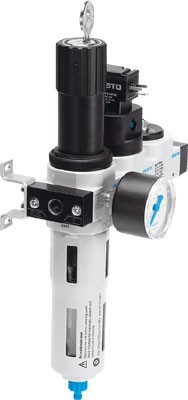

The Festo part number 195015 is a mini D-series industrial component featuring an on/off valve, a filter regulator with a pressure gauge, and a safety start-up valve designed for a standard nominal flow rate of 595 l/min. Operating within a working pressure range of 3 to 12 bar and a pressure regulation range of 2.5 to 12 bar, this unit incorporates a rotary knob with an integrated lock, a fully automatic condensate drain, a metal bowl guard, and a 40 µm filtration grade. It processes compressed air or inert gases at temperatures from -10 to 60 °C with a maximum condensate volume of 22 cm3 and a product weight of 1,000 g. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
