Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 194413 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a 30 mm stroke, and a yoke operating mode with a recirculating ball bearing guide. This component operates on dried compressed air, lubricated or unlubricated, across a working pressure range of 1 to 10 bar and achieves a maximum speed of 0.8 m/s with flexible cushioning rings at both ends. Certified for hazardous environments, it carries ATEX ratings for II 2G gas and II 2D dust with an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo

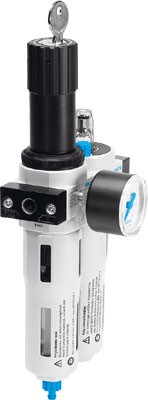

The Festo part number 195006 is a Maxi-size Series D filter regulator featuring a proportional standard mist lubricator, integrated pressure gauge, and a rotary knob actuator lock. This component operates within a working and pressure regulation range of 2 to 12 bar and 0.5 to 12 bar respectively, supporting a standard nominal flow rate of 5,200 l/min for compressed air media conforming to ISO8573-1:2010 [-:-:-]. Built for vertical installation within a plus or minus 5-degree tolerance, the unit includes a fully automatic condensate drain with a 43 cm3 maximum volume, a 40 µm filtration grade, and a metal bowl guard across a temperature range of -10 to 60 °C. Weighing 2,600 g with G1 pneumatic connection ports, this line-installation assembly is available for procurement. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

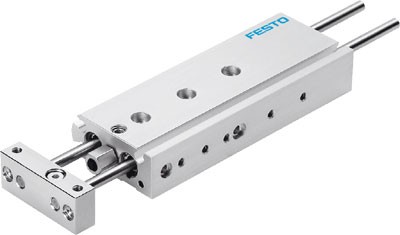

The Festo part number 194412 is a double-acting industrial component featuring a 16 mm piston diameter, a 20 mm stroke, and a yoke drive unit with a recirculating ball bearing guide. This guide design includes flexible cushioning rings or plates at both ends, a 15 mm adjustable end-position range, a through piston rod (S2 variant), and position detection for a proximity sensor that operates within a working pressure range of 1 to 10 bar and a maximum speed of 0.8 m/s using dried compressed air. Certified for hazardous locations under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C), the unit functions at explosion-proof ambient temperatures from -5°C to +60°C in any assembly position. Submit the exact part number, quantity, and application requirements for a formal price quote.
View product details →Festo
The Festo 194761 is a Midi size filter regulator from the D series, featuring a design structure without a pressure gauge and a rotary knob actuator lock with an integrated lock. It provides a standard nominal flow rate of 3,900 l/min across a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar. Operating with compressed air to ISO 8573-1:2010 [-:9:-] or inert gases, the unit incorporates a 40 µm filtration grade, a manual rotary condensate drain, a 43 cm3 maximum condensate volume, and a metal bowl guard. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

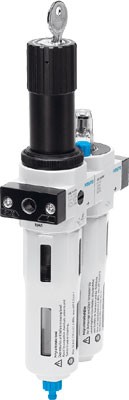

The Festo part number 195005 is a Maxi-size Series D industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a fully automatic condensate drain with a 43 cm3 maximum condensate volume and metal bowl guard. It operates within a pressure control range of 0.5 to 12 bar, an inlet pressure of 1.5 to 12 bar, a maximum pressure hysteresis of 0.4 bar, and delivers a standard nominal flow rate of 3,800 l/min using compressed air at medium and ambient temperatures between -10 and 60 °C. The unit includes a G1/4" prepared pressure gauge, 2 G1 pneumatic connection ports, a rotary knob actuator lock with an integrated lock, and weighs 2,880 g for vertical line installation within +/- 5°. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 194411 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a 10 mm stroke, and a yoke design with a recirculating ball bearing guide. Operating on dried compressed air at working pressures from 1 to 10 bar, this component includes flexible cushioning rings at both ends, position detection for proximity sensors, a through piston rod variant, and ATEX certification for explosive gas and dust environments. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 195004 is a D-series Maxi industrial component combining a filter regulator with a pressure gauge and a proportional standard mist lubricator for compressed air operation. It features a 5 µm filtration grade, a fully automatic condensate drain with a 43 cm3 max condensate volume, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. The unit provides a pressure control range of 0.5 to 12 bar, an inlet pressure of 1.5 to 12 bar, a max pressure hysteresis of 0.4 bar, and a standard nominal flow rate of 3,800 l/min through G1 pneumatic connection ports. Designed for vertical assembly within +/- 5° via line installation, it operates in medium and ambient temperatures ranging from -10 to 60 °C and has a product weight of 2,950 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194410 is a double-acting industrial component featuring a 10 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This guide design incorporates a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 15 mm, supporting an operating pressure of 1.5 to 10 bar at speeds up to 0.8 m/s using dried compressed air. Certified with ATEX category II 2G for gas and II 2D for dust within an explosion-proof ambient temperature range of -5°C to +60°C, it includes position detection for proximity sensors and an S2 through piston rod variant for versatile assembly positions. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 195003 is a D-series Maxi industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator with a 40 µm filtration grade and fully automatic condensate drain. This assembly operates with compressed air within an inlet pressure range of 2 to 12 bar, a pressure control range of 0.5 to 12 bar, a standard nominal flow rate of 4,000 l/min, and a maximum condensate volume of 43 cm3 across a medium and ambient temperature range of -10 to 60 µ0C. Designed for vertical line installation within +/- 5°, it incorporates a rotary knob actuator lock with an integrated lock, a metal bowl guard, a G1/4" prepared pressure gauge, and G2 pneumatic connection ports at a product weight of 2,600 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194759 is a Midi-sized D-series filter regulator featuring a 40 µm filtration grade, a fully automatic condensate drain with a 43 cm3 maximum volume, and a metal bowl guard. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 3,400 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. It is equipped with a rotary knob with an integrated lock, is prepared for a G1/4 pressure gauge, and has a moderate corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194409 is a double-acting industrial drive unit featuring a yoke operating mode, a 10 mm piston diameter, and a 40 mm stroke with an adjustable end-position range of 15 mm. Constructed with a recirculating ball bearing guide and flexible cushioning rings or plates at both ends, this component operates on dried compressed air at working pressures from 1.5 to 10 bar and achieves a maximum speed of 0.8 m/s in any assembly position. Rated for hazardous environments with ATEX gas category II 2G and dust category II 2D certifications, it includes position detection for proximity sensors and features a through piston rod variant. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 194758 is a Midi size D series filter regulator featuring a manual rotary condensate drain, a 40 µm filtration grade, and a design structure without a pressure gauge while being prepared for G1/4 connection. Operating with compressed air or inert gases across a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this component delivers a standard nominal flow rate of 3,400 l/min with a maximum pressure hysteresis of 0.2 bar. The assembly includes a metal bowl guard, a rotary knob actuator lock with an integrated lock, a maximum condensate volume of 43 cm3, and is configured for a vertical ± 5° assembly position within a medium and storage temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194755 is a D-series Midi industrial component functioning as a filter regulator without a pressure gauge, featuring a rotary knob with an integrated lock and a fully automatic condensate drain within a metal bowl guard. It operates within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 2,400 l/min with a 5 µm filtration grade for compressed air and inert gases. Designed for a vertical assembly position within plus or minus 5 degrees, this unit handles a maximum condensate volume of 43 cm3 and is prepared for a G1/4 pressure gauge while maintaining moderate corrosion resistance under CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194753 is a Midi size D series filter regulator without a pressure gauge, featuring a 5 µm filtration grade and a manual rotary condensate drain with a maximum condensate volume of 43 cm3. It operates within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 2,400 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. The unit incorporates a metal bowl guard, an actuator lock with a rotary knob and integrated lock, and is prepared for a G1/4 pressure gauge while maintaining a vertical +/- 5° assembly position and CRC 2 moderate corrosion resistance. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194751 is a Midi size Series D filter regulator featuring a 40 µm filtration grade, a fully automatic condensate drain, and a metal bowl guard with a 43 cm3 maximum condensate volume. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, this unit delivers a standard nominal flow rate of 3,200 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. It includes a rotary knob with an integrated lock, is prepared for a G1/4 pressure gauge, and maintains a vertical installation position within +/- 5° under moderate corrosion stress (CRC 2) and temperatures from 5 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 194749 is a Midi size Series D filter regulator featuring a design structure with a pressure gauge and a rotary knob with an integrated lock for actuator locking. It operates within a working pressure of 1 to 16 bar, provides a pressure regulation range of 0.5 to 7 bar with a max pressure hysteresis of 0.2 bar, and delivers a standard nominal flow rate of 3,200 l/min using compressed air or inert gases. The unit includes a 40 µm filtration grade, a manual rotary condensate drain, a 43 cm3 max condensate volume, a metal bowl guard, and a vertical assembly position of +/- 5°. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194747 is a Midi-sized D-series filter regulator featuring a 40 µm filtration grade, a fully automatic condensate drain, and a maximum condensate volume of 43 cm3 within a metal bowl guard. Operating with compressed air or inert gases across a working pressure range of 2 to 12 bar and a regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 3,100 l/min while incorporating a rotary knob with an integrated lock and a pressure gauge prepared for G1/4. Built with a CRC 2 moderate corrosion resistance classification, it operates in temperatures from 5 to 60 µC and maintains an output air purity class of ISO 8573-1:2010 [7:8:4]. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194990 is a Maxi-size D series industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator, designed for line installation with G1/2 pneumatic connection ports. This unit operates within a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 3,300 l/min for compressed air media conforming to ISO8573-1:2010 [-:-:-]. It incorporates a 40 µm grade of filtration, a fully automatic condensate drain with a 43 cm3 maximum condensate volume, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

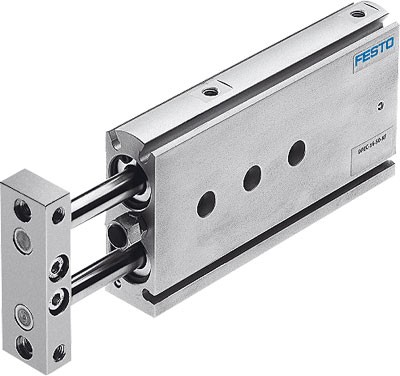

The Festo part number 194396 is a double-acting industrial component featuring a 16 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating with flexible cushioning rings or plates at both ends. Designed with a recirculating ball bearing guide and a 15 mm adjustable end-position range, this unit operates at working pressures from 1 to 10 bar and a maximum speed of 1 m/s using dried compressed air that is lubricated or unlubricated. It incorporates position detection for proximity sensors, permits assembly in any position, and complies with ATEX category II 2G gas and II 2D dust explosion protection guidelines for ambient temperatures between -5°C and +60°C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

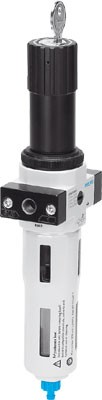

The Festo 194746 is a Midi size Series D filter regulator featuring a 40 µm filtration grade, a manual rotary condensate drain with a 43 cm3 maximum capacity, and a metal bowl guard. Operating within a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this component delivers a standard nominal flow rate of 3,100 l/min for compressed air to ISO 8573-1:2010 [-:9:-] and inert gases. The unit is designed with a rotary knob actuator lock with an integrated lock, a vertical +/- 5° assembly position, and a design structure without a pressure gauge while being prepared for G1/4. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
