Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 194940 is a Maxi size Series D industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator in a vertical assembly position within +/- 5°. This unit operates with a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 7 bar, and a standard nominal flow rate of 7,700 l/min utilizing G1/2 pneumatic connection ports. Additional attributes include a 40 µm grade of filtration, an 80 cm3 max condensate volume, a manual rotary condensate drain, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194699 is a mini Series D filter regulator featuring a fully automatic condensate drain, a 40 µm filtration grade, and a metal bowl guard with a 22 cm3 maximum condensate volume. Designed without a pressure gauge while being prepared for G1/8, it operates within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 750 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. The unit incorporates a rotary knob with an integrated lock, maintains a maximum pressure hysteresis of 0.2 bar, and requires a vertical assembly position within +/- 5° for media temperatures between 5 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194346 is a double-acting industrial guide component featuring a 16 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. Designed with a plain-bearing guide and flexible cushioning rings or plates at both ends, this unit operates across a working pressure range of 1 to 10 bar at a maximum speed of 1 m/s using dried compressed air that can be lubricated or unlubricated. It incorporates an adjustable end-position range of 15 mm, position detection for a proximity sensor, and any assembly position capability, alongside ATEX certification for Category II 2G gas and II 2D dust within an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

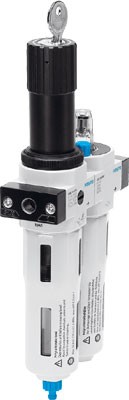

The Festo part number 194939 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator, designed with a fully automatic condensate drain and an 80 cm3 max condensate volume. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 7,600 l/min while maintaining a 40 µm grade of filtration and an actuator lock via a rotary knob with an integrated lock. Weighing 2,390 g with a metal bowl guard and prepared for a G1/4 pressure gauge, it processes compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

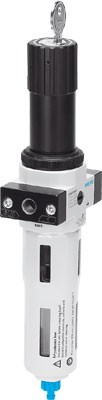

The Festo 194698 is a mini series D filter regulator featuring a 40 µm filtration grade, a manual rotary condensate drain with a 22 cm3 max volume, and a metal bowl guard. Designed without a pressure gauge while prepared for G1/8, it delivers a standard nominal flow rate of 750 l/min across a working pressure of 1 to 16 bar and a regulation range of 0.5 to 12 bar. The unit incorporates a rotary knob actuator lock with an integrated lock and is rated for a vertical +/- 5° assembly position with an operating medium of compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194345 is a double-acting industrial guide component featuring a 16 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 15 mm, operating at pressures from 1 to 10 bar with a maximum speed of 1 m/s on dried compressed air. Certified for hazardous environments with ATEX category II 2G gas and II 2D dust protection, it functions across an ambient temperature range of -5°C to +60°C and includes position detection for proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194938 is a Series D Maxi industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a manual rotary condensate drain with an 80 cm3 maximum condensate volume. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 7,600 l/min with a 40 µm grade of filtration. Designed for vertical assembly within +/- 5°, it includes a metal bowl guard and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194344 is a double-acting industrial component featuring a 16 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates within a working pressure range of 1 to 10 bar on dried compressed air, which can be lubricated or unlubricated, achieving a maximum speed of 1 m/s with flexible cushioning rings or plates at both ends. Certified for hazardous environments under ATEX category II 2G for gas and II 2D for dust, this guide includes position detection for a proximity sensor and functions in ambient temperatures from -5°C to +60°C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Engineered with a 16 mm piston diameter, 10 mm stroke, and a yoke-type drive unit operating mode, this Festo industrial component features a plain-bearing guide and flexible cushioning rings or plates at both ends. The double-acting unit functions within an operating pressure range of 1 to 10 bar, a maximum speed of 1 m/s, and accommodates any assembly position using dried compressed air that is lubricated or unlubricated. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust, the part operates in ambient temperatures from -5°C to +60°C and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a formal price and lead time quote.
View product details →Festo
The Festo part number 194342 is a double-acting industrial component featuring a yoke drive unit with a 10 mm piston diameter, a 50 mm stroke, and a plain-bearing guide operating at a maximum speed of 1 m/s across a working pressure range of 1.5 to 10 bar. It includes flexible cushioning rings or plates at both ends, an adjustable end-position range of 15 mm, position detection for proximity sensors, and can be assembled in any position using dried compressed air that is either lubricated or unlubricated. Certified for hazardous locations under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C), this unit operates within an explosion-proof ambient temperature range of -5°C to +60°C in accordance with the EU-Ex protection guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194935 is a Midi size D series industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator with a fully automatic condensate drain and a 43 cm3 max condensate volume. Operating within a 2 to 12 bar working pressure and 0.5 to 12 bar regulation range, this unit delivers a 2,100 l/min standard nominal flow rate while utilizing a 5 µm grade of filtration and a metal bowl guard. Designed for a vertical +/- 5° assembly position, it accommodates compressed air to ISO 8573-1:2010 [7:9:-] or inert gases across a medium and ambient temperature range of -10 to 60 °C with a total product weight of 1,680 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194341 is a double-acting industrial component featuring a 10 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This guide design incorporates a plain-bearing guide, a 15 mm adjustable end-position range, flexible cushioning rings or plates at both ends, and position detection for a proximity sensor operating in any assembly position. Rated for working pressures from 1.5 to 10 bar and a maximum speed of 1 m/s, it functions with dried compressed air that is lubricated or unlubricated and holds ATEX certification for hazardous environments under category II 2G and II 2D within an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 194934 is a Midi size D series filter regulator with pressure gauge and proportional standard mist lubricator, featuring a fully automatic condensate drain and a 43 cm3 maximum condensate volume. Operating with a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this industrial component provides a 5 µm grade of filtration and a standard nominal flow rate of 2,100 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Built with a metal bowl guard and a rotary knob with integrated lock for the actuator lock, the unit weighs 1,680 g and operates within medium and ambient temperature ranges of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 194340 is a double-acting industrial drive unit featuring a yoke operating mode, a 10 mm piston diameter, and a 30 mm stroke with a 15 mm adjustable end-position range. Designed with a plain-bearing guide, flexible cushioning rings or plates at both ends, and a centre of gravity distance of 0 mm from the working load to the yoke plate, it operates at working pressures from 1.5 to 10 bar and a maximum speed of 1 m/s on dried compressed air. Certified for hazardous environments under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C) within an ambient temperature range of -5°C to +60°C, this component includes position detection for proximity sensors and permits assembly in any position. Submit your exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 194933 is a Midi size industrial component from the D series, featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator with a manual rotary condensate drain. This assembly operates within a working pressure range of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and provides a standard nominal flow rate of 2,100 l/min with a 5 µm grade of filtration. The unit includes a metal bowl guard, a rotary knob actuator lock with an integrated lock, and weighs 1,680 g for vertical installation within a +/- 5° tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 194339 is a double-acting industrial guide component featuring a 10 mm piston diameter, a 20 mm stroke, and a 15 mm adjustable end-position range driven via a yoke with a plain-bearing guide. Operating on dried compressed air at a working pressure of 1.5 to 10 bar, this unit achieves a maximum speed of 1 m/s and incorporates flexible cushioning rings at both ends with provisions for proximity sensor position detection. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust within an ambient temperature range of -5°C to +60°C, it supports assembly in any position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

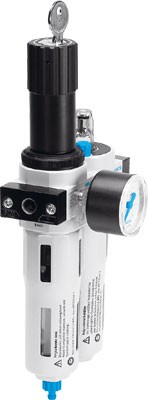

The Festo 194932 is a Midi size D-series industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator, offering a standard nominal flow rate of 2,100 l/min and a 5 µm grade of filtration. Designed for a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this unit operates within a medium and ambient temperature range of -10 to 60 µC and includes a manual rotary condensate drain with a max condensate volume of 43 cm3, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Weighing 1,680 g, the assembly operates in a vertical +/- 5° position using compressed air or inert gases to ISO 8573-1:2010 standards. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo part number 194338 is a double-acting industrial guide component featuring a 10 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 15 mm while supporting any assembly position and position detection via proximity sensors. Operating on dried compressed air (lubricated or unlubricated) at working pressures between 1.5 and 10 bar and a maximum speed of 1 m/s, it carries ATEX certification for gas (II 2G c T4) and dust (II 2D c 120°C) within an explosion-proof ambient temperature range of -5°C to +60°C according to the EU-Ex protection guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194931 is a Midi size D series industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator. It operates within a working pressure of 2 to 12 bar, a pressure regulation range of 0.5 to 7 bar, and delivers a standard nominal flow rate of 2,800 l/min with a 40 µm grade of filtration. This unit includes a fully automatic condensate drain, a metal bowl guard, an actuator lock with an integrated rotary knob, and is prepared for a G1/4 pressure gauge while maintaining an operating and medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194337 is a double-acting industrial guide component featuring a 6 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates flexible cushioning rings or plates at both ends, a plain-bearing guide, a 10 mm adjustable end-position range, and position detection capabilities for a proximity sensor across an operating pressure of 2.5 to 10 bar and a maximum speed of 0.5 m/s in any assembly position. Certified with an ATEX category II 2G gas and II 2D dust rating for explosive environments between -5°C and +60°C, it operates on dried compressed air that can be lubricated or unlubricated. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
