Festo

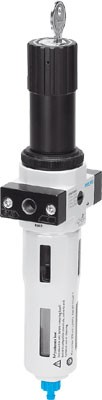

The Festo 194707 is a mini-size Series D filter regulator featuring a rotary knob with an integrated lock and a fully automatic condensate drain within a metal bowl guard. Operating within a working and pressure regulation range of 2 to 12 bar and 0.5 to 12 bar respectively, this unit delivers a standard nominal flow rate of 650 l/min using compressed air or inert gases. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194948 is a Series D Maxi industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator, designed for vertical installation within a +/- 5° tolerance. This assembly operates with compressed air to ISO 8573-1:2010 [-:9:-] or inert gases across a working pressure range of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and a standard nominal flow rate of 8,300 l/min. It includes a 40 µm grade of filtration, an 80 cm3 max condensate volume with a manual rotary condensate drain, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194354 is a double-acting industrial drive unit featuring a 6 mm piston diameter, a 50 mm stroke, and a yoke drive mode with a plain-bearing guide and a through piston rod variant (S2). It operates within a working pressure range of 2.5 to 10 bar using dried compressed air, which may be lubricated or unlubricated, achieving a maximum speed of 0.5 m/s while utilizing flexible cushioning rings or plates at both ends with a 10 mm adjustable end-position range. Certified for hazardous locations, this component meets ATEX category II 2G for gas with c T4 explosion ignition protection and ATEX category II 2D for dust with c 120°C protection across an ambient temperature range of -5°C to +60°C, and includes position detection capabilities for proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo

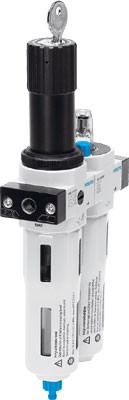

The Festo 194947 is a Maxi size Series D filter regulator featuring a proportional standard mist lubricator and a fully automatic condensate drain with an 80 cm3 maximum condensate volume. Designed for a working and pressure regulation range of 2 to 12 bar and 0.5 to 12 bar respectively, this component delivers a standard nominal flow rate of 6,800 l/min through a 5 µm grade of filtration. Operating within a temperature range of -10 to 60 µC, the unit includes a rotary knob actuator lock with an integrated lock, a metal bowl guard, and a weight of 2,490 g. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194353 is a double-acting industrial guide component featuring a yoke drive unit with a 6 mm piston diameter, a 40 mm stroke, and a 0 mm centre of gravity distance from the working load to the yoke plate. This unit operates within a working pressure range of 2.5 to 10 bar, achieves a maximum speed of 0.5 m/s, incorporates a plain-bearing guide, and utilizes flexible cushioning rings or plates at both ends with an adjustable end-position range of 10 mm. Certified for hazardous locations, it carries ATEX ratings for gas (II 2G c T4) and dust (II 2D c 120°C) within an explosion-proof ambient temperature range of -5°C to +60°C, supports position detection via proximity sensor, includes a through piston rod (S2 variant), and functions in any assembly position using dried compressed air that is lubricated or unlubricated. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194705 is a mini Series D filter regulator featuring a 5 µm filtration grade, a manual rotary condensate drain with a maximum 22 cm3 volume, and a design structure without a pressure gauge while being prepared for G1/8. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 650 l/min for compressed air to ISO 8573-1:2010 [-:9:-] and inert gases. It includes a rotary knob with an integrated lock, a metal bowl guard, and a vertical assembly position tolerance of +/- 5° with a moderate corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo
The Festo part number 194946 is an industrial component featuring a Maxi size D-series design structure comprising a filter regulator with a pressure gauge and a proportional standard mist lubricator. It delivers a standard nominal flow rate of 6,800 l/min across a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, incorporating a 5 µm grade of filtration, a fully automatic condensate drain, and an 80 cm3 max condensate volume enclosed within a metal bowl guard. Operating within a medium and ambient temperature range of -10 to 60 °C, the unit weighs 2,490 g and utilizes a rotary knob with an integrated lock for actuator locking while functioning with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194352 is a double-acting industrial guide component featuring a 6 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating mode with zero center of gravity distance from the working load to the yoke plate. Designed with a plain-bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 10 mm, this unit supports a working pressure of 2.5 to 10 bar at speeds up to 0.5 m/s using dried compressed air. It includes a through piston rod variant (S2), position detection for proximity sensors, and ATEX certification for hazardous environments under category II 2G (Gas c T4) and II 2D (Dust c 120°C) within an ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194945 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a manual rotary condensate drain with a maximum condensate volume of 80 cm3. It operates within a working pressure range of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and a standard nominal flow rate of 6,800 l/min, utilizing compressed air or inert gases across a medium and ambient temperature range of -10 to 60 °C. The unit incorporates a 5 °m grade of filtration, a metal bowl guard, and a rotary knob actuator lock with an integrated lock, configured for a vertical assembly position within +/- 5° and weighing 2,490 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194351 is a double-acting industrial component featuring a 6 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates a plain-bearing guide design structure, a through piston rod variant, flexible cushioning rings or plates at both ends, and position detection for a proximity sensor while functioning at a working pressure between 2.5 and 10 bar with a maximum speed of 0.5 m/s on dried compressed air. Certified for hazardous environments with ATEX category II 2G and II 2D ratings alongside an explosion-proof ambient temperature range of -5°C to +60°C, it supports assembly in any position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 194703 is a mini D-series filter regulator featuring a design structure without a pressure gauge and a rotary knob with an integrated lock for actuator security. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, this component achieves a standard nominal flow rate of 900 l/min with a 40 µm filtration grade and a fully automatic condensate drain. It is built with a metal bowl guard, a condensate volume capacity of 22 cm3, and a corrosion resistance classification of CRC 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo 194944 is a Maxi size D-series industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator designed for a standard nominal flow rate of 6,800 l/min. It operates within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, utilizing compressed air or inert gases with a 5 µm filtration grade. This unit includes a manual rotary condensate drain, a metal bowl guard, an 80 cm3 max condensate volume, and a rotary knob actuator lock with an integrated lock for vertical installation within ±5°. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 194350 is a double-acting industrial component featuring a 6 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates with a working pressure of 2.5 to 10 bar, a maximum speed of 0.5 m/s on dried compressed air, and incorporates flexible cushioning rings at both ends with an adjustable end-position range of 10 mm. Rated for hazardous locations with ATEX category II 2G gas and II 2D dust certifications across an ambient temperature range of -5°C to +60°C, this unit supports position detection via proximity sensor and includes a through piston rod variant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194943 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a fully automatic condensate drain housed with a metal bowl guard. Operating with a standard nominal flow rate of 7,700 l/min and a working pressure of 2 to 12 bar, this unit regulates pressure across a 0.5 to 7 bar range with a maximum pressure hysteresis of 0.4 bar and a 40 µm grade of filtration. It is designed for vertical assembly within plus or minus 5 degrees, accommodates compressed air per ISO8573-1:2010 [-:-:-] at temperatures from -10 to 60 °C, and includes a rotary knob with an integrated lock alongside G1/2 pneumatic ports. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194349 is a double-acting industrial drive unit featuring a 16 mm piston diameter and a 100 mm stroke with a plain-bearing guide and yoke operating mode. This component operates at working pressures from 1 to 10 bar using dried compressed air, whether lubricated or unlubricated, reaching a maximum speed of 1 m/s with flexible cushioning rings or plates at both ends. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust, it functions within an explosion-proof ambient temperature range of -5°C to +60°C and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

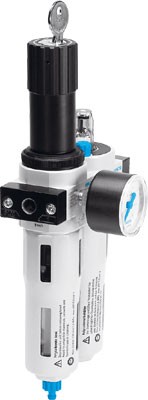

The Festo part number 194942 is a Maxi-size Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator in a vertical assembly position within a +/- 5° tolerance. This unit incorporates a 40 µm grade of filtration, a fully automatic condensate drain with an 80 cm3 maximum condensate volume, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Operating at a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar with a 0.4 bar maximum pressure hysteresis, it delivers a standard nominal flow rate of 7,700 l/min through G1/2 pneumatic connection ports using compressed air per ISO8573-1:2010 [-:-:-] at temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194701 is a mini-sized D-series filter regulator featuring a filter grade of 40 µm, a manual rotary condensate drain, and a maximum condensate volume of 22 cm3. Designed without a pressure gauge while being prepared for G1/8, it operates within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar with a standard nominal flow rate of 900 l/min. This industrial component includes a metal bowl guard, a rotary knob with an integrated lock for actuator locking, and is configured for a vertical assembly position within a ±5° tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194348 is a double-acting industrial guide component featuring a 16 mm piston diameter, an 80 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates on dried compressed air, lubricated or unlubricated, across a working pressure range of 1 to 10 bar and a maximum speed of 1 m/s, incorporating flexible cushioning rings or plates at both ends with a 15 mm adjustable end-position range. Certified with ATEX categories II 2G for gas and II 2D for dust within an explosion-proof ambient temperature range of -5°C to +60°C, this unit supports position detection via proximity sensors and can be assembled in any position. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo
The Festo industrial component, part number 194941, combines a filter regulator without a pressure gauge and a proportional standard mist lubricator in a Maxi size D-series design structure featuring a 40 µm filtration grade, an 80 cm3 max condensate volume, and a manual rotary condensate drain. This unit operates within a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 7 bar, a maximum pressure hysteresis of 0.4 bar, and delivers a standard nominal flow rate of 7,700 l/min using compressed air according to ISO8573-1:2010 [-:-:-] at temperatures between -10 and 60 °C. Enclosed with a metal bowl guard and an actuator lock utilizing a rotary knob with an integrated lock, the 2,490 g assembly mounts via line installation or with accessories using G1/2 pneumatic connection ports and is prepared for a G1/4 pressure gauge at a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194347 is a double-acting industrial component featuring a 16 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. Designed with a plain-bearing guide structure and flexible cushioning rings or plates at both ends, this unit functions across an adjustable end-position range of 15 mm, a working pressure of 1 to 10 bar, and a maximum speed of 1 m/s using dried compressed air that is lubricated or unlubricated. It includes position detection for a proximity sensor, operates in any assembly position, and complies with ATEX category II 2G for gas and II 2D for dust within an explosion-proof ambient temperature range of -5°C to +60°C. Request a quote by submitting the exact part number, quantity, and application requirements.
