Festo
The Festo part number 188463 is an industrial component featuring a wrought aluminum alloy anodized housing and cover, NBR seals, and galvanized steel screws with a total product weight of 1,600 g. Operating within a DC voltage range of 20.4 to 28.8 V and a maximum current consumption of 120 mA, this unit functions at a working pressure of 3 to 8 bar with a nominal working pressure of 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. It is rated for IP65 protection in an assembled condition per IEC 60529, operates at ambient temperatures from -5 to 50 °C, and maintains a corrosion resistance classification CRC of 3 for weather-protected locations classified as C1. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 188424 is a double-acting industrial component featuring a 25 mm piston diameter, a 200 mm stroke, and yoke kinematics with an adjustable end-position range of 12 mm. Designed with a recirculating ball bearing guide and flexible cushioning rings at both ends, this unit operates on compressed air within a 1 to 10 bar pressure range and handles temperatures from -20 to 60 °C. It provides position detection via proximity sensor and accommodates a maximum force of 1,170 N for both Fy and Fz loads, alongside a maximum torque of 64 Nm for Mx and My. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo
The Festo 188687 is a double-acting industrial component featuring a 40 mm piston diameter, a 25 mm stroke, and an axial supply port. Operating on dried compressed air, lubricated or unlubricated, within a pressure range of 1.5 to 10 bar and temperatures from 0 to 80 °C, it delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. This unit utilizes flexible cushioning rings or plates at both ends, accommodates position detection via proximity sensor, and features a corrosion resistance classification of CRC 1 alongside materials containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 188686 is a double-acting industrial component featuring a 32 mm piston diameter, a 320 mm stroke, and axial supply ports with G1/8 pneumatic connections. Operating on dried compressed air, either lubricated or unlubricated, it functions across a working pressure range of 1.5 to 10 bar and an ambient temperature range of 0 to 80 °C. This design incorporates flexible cushioning rings or plates at both ends, position detection for proximity sensors, and a corrosion resistance classification of CRC 1, delivering a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 188423 is a double-acting industrial component featuring yoke kinematics and a recirculating ball bearing guide, engineered with a 25 mm piston diameter and a 150 mm stroke. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends with a 12 mm adjustable end-position range and a 0.5 Nm impact energy rating. It handles a maximum force of 1,300 N for both Fy and Fz loads, alongside a maximum torque of 47 Nm for both Mx and My axes, across an ambient temperature range of -20 to 60 °C with CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo ZBH-12 centering sleeve, part number 189653, features an any assembly position and a CRC 2 moderate corrosion stress corrosion resistance classification. This component is free of copper and PTFE while conforming to RoHS standards. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 188685 is a double-acting industrial component featuring a 32 mm piston diameter and a 250 mm stroke with axial supply ports. Designed with flexible cushioning rings at both ends and a design structure comprising a piston, piston rod, and cylinder barrel, it operates on dried compressed air within a 1.5 to 10 bar working pressure range and 0 to 80 °C ambient temperature limits. This unit provides a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, featuring a basic weight of 216.5 g with 15.5 g additional weight per 10 mm stroke and containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 188422 is a double-acting industrial component featuring yoke kinematics, a 25 mm piston diameter, and a 125 mm stroke with a 12 mm adjustable end-position range. Designed with a recirculating ball bearing guide and flexible cushioning rings or plates at both ends, this drive unit operates on compressed air meeting ISO 8573-1:2010 [7:4:4] standards across a working pressure of 1 to 10 bar. It accommodates ambient temperatures from -20 to 60 °C, withstands a 0.5 Nm impact energy in end positions, and supports a CRC corrosion resistance classification of 0 with maximum forces of 1,380 N for Fy and Fz, alongside maximum torques of 37 Nm for Mx and My. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

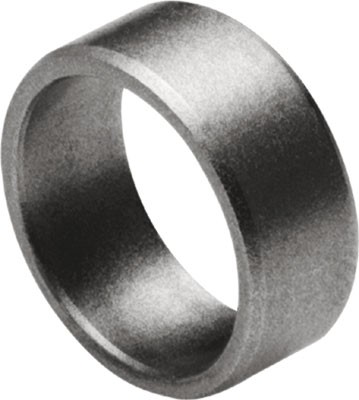

The Festo ZBH-5 centering sleeve, part number 189652, features an assembly position of any and a corrosion resistance classification CRC of 2 for moderate corrosion stress. This industrial component conforms to RoHS and maintains PWIS conformity according to VDMA24364-B2-L specifications. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 188684 is a double-acting industrial component featuring a 32 mm piston diameter, a 200 mm stroke, and axial supply ports with G1⁄8 pneumatic connections. Designed with a piston, piston rod, and cylinder barrel structure, this unit operates on dried compressed air within a working pressure range of 1.5 to 10 bar and temperatures from 0 to 80 °C. It provides flexible cushioning rings or plates at both ends, position detection for proximity sensors, and delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

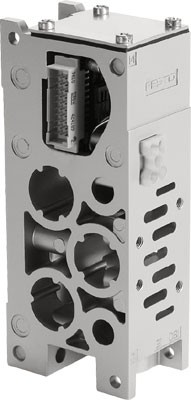

The Festo part number 18842 is an industrial component designed to operate with compressed air in accordance with ISO8573-1:2010 [7:-:-] within a working pressure range of -0.9 to 16 bar. This unit features UL - Recognized (OL) authorization, VDMA24364-B2-L PWIS conformity, and materials that conform to RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 18961 industrial component features a width of 20 mm and a height of 51 mm. It maintains an IP65 protection class in assembled condition according to IEC 60529, with operating and storage temperature ranges spanning from -20 to 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 188683 is a double-acting industrial component featuring a 32 mm piston diameter and a 160 mm stroke with axial supply ports. Operating on dried compressed air, lubricated or unlubricated, within a pressure range of 1.5 to 10 bar, it utilizes flexible cushioning rings or plates at both ends and includes position detection for a proximity sensor. Constructed with a piston, piston rod, and cylinder barrel design, it delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar across an ambient temperature range of 0 to 80 °C. Please submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 188418 is a double-acting industrial component featuring a 20 mm piston diameter, a 200 mm stroke, and a yoke kinematics design structure with an operating mode of drive unit utilizing a yoke. This unit operates at a working pressure of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], incorporates flexible cushioning rings or plates at both ends with an impact energy of 0.4 Nm, and includes a recirculating ball bearing guide supporting an adjustable end-position range of 12 mm. Designed for any assembly position with position detection for a proximity sensor, it accommodates an ambient temperature range of -20 to 60 °C and handles maximum forces Fy and Fz up to 1,170 N alongside maximum torques Mx and My of 64 Nm under a CRC 0 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
Engineered with yoke kinematics and a recirculating ball bearing guide, this double-acting Festo industrial component features a 20 mm piston diameter and a 150 mm stroke with a 12 mm adjustable end-position range. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] across a working pressure of 1 to 10 bar, incorporating flexible cushioning rings at both ends and position detection for proximity sensors. The drive unit accommodates any assembly position within an ambient temperature range of -20 to 60 °C, withstanding maximum forces of 1,300 N for Fy and Fz, and maximum torques of 47 Nm for Mx and My. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
This Festo double-acting industrial component, part number 188682, features a 32 mm piston diameter and a 125 mm stroke with an axial supply port design structure comprising a piston, piston rod, and cylinder barrel. Operating on dried compressed air, either lubricated or unlubricated, it functions within a working pressure range of 1.5 to 10 bar and an ambient temperature range of 0 to 80 °C, delivering theoretical forces of 483 N on advance stroke and 415 N on return stroke at 6 bar. The unit incorporates flexible cushioning rings or plates at both ends, accommodates position detection via proximity sensor, and offers a basic weight of 216.5 g with a moving mass of 79.1 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 18959 is an industrial component featuring a 34 mm x 210 mm x 80 mm reinforced polyamide housing, an LCD display, and a membrane keypad with 5 function keys. This unit operates on a nominal DC voltage of 28 V with a lithium battery power supply, supports an AS-Interface SPEC 3.0 fieldbus interface via an M12x1 A-coded 5-pin plug socket connection, and provides a permissible load current of 100 mA with short circuit strength and overload withstand capability. Constructed with RoHS-conforming and VDMA24364-B2-L PWIS-conforming materials, the 610 g device is rated to IP20 protection class for ambient temperatures between 0 and 40 °C, and carries a CE symbol according to the EU-EMV guideline. Please submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 188681 is a double-acting industrial component featuring a 32 mm piston diameter and a 100 mm stroke. This unit operates on dried compressed air, lubricated or unlubricated, within a working pressure range of 1.5 to 10 bar and ambient temperatures from 0 to 80 °C. Designed with flexible cushioning rings or plates at both ends, an axial supply port, and position detection for proximity sensors, it delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 188416 is a double-acting industrial component featuring a 20 mm piston diameter, 125 mm stroke, and yoke kinematics driven by a recirculating ball bearing guide with an adjustable end-position range of 12 mm. Engineered for operation with compressed air conforming to ISO8573-1:2010 [7:4:4] across a working pressure of 1 to 10 bar, this drive unit incorporates flexible cushioning rings at both ends and accommodates proximity sensors for position detection. It functions within an ambient temperature range of -20 to 60 °C while delivering a maximum force of 1,380 N for both Fy and My dimensions, alongside 37 Nm maximum torque for Mx and My. Submit the exact part number, quantity, and application requirements to receive a quote for this hardware.
View product details →Festo
The Festo part number 18923 is a modular and expandable valve manifold type 04 featuring a piston slide design structure with electrical actuation and fieldbus or integrated controller electrical connections. This component supports 5/2 monostable, 5/2 bistable, 5/3 pressurized, 5/3 exhausted, and 5/3 closed valve functions across up to 16 valve positions, delivering a standard nominal flow rate of 1,200 to 2,600 l/min with throttleable exhaust-air function. Operating within a working pressure of -0.9 to 10 bar, a pilot pressure of 2 to 10 bar, and vacuum suitability, it requires 24 V DC or 110 V AC nominal operating voltage while providing IP65 protection class and compliance with the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
