Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 18837 is an industrial component subbase based on the ISO 5599-2 standard, constructed from aluminum die cast with through hole mounting. It features one valve position, a 5 G1/2 pneumatic connection port, and operates with filtered compressed air at a working pressure of -0.9 to 16 bar and medium and ambient temperatures ranging from -10 to 60 °C. This component holds UL - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo 188671 double-acting industrial component features a 25 mm piston diameter, a 100 mm stroke, and an axial supply port with a G1/8 pneumatic connection. Operating on dried compressed air within a 1.5 to 10 bar working pressure range, the unit delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. Constructed with a piston, piston rod, and cylinder barrel design incorporating flexible cushioning rings or plates at both ends, it supports any assembly position and includes position detection for a proximity sensor within an ambient temperature range of 0 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

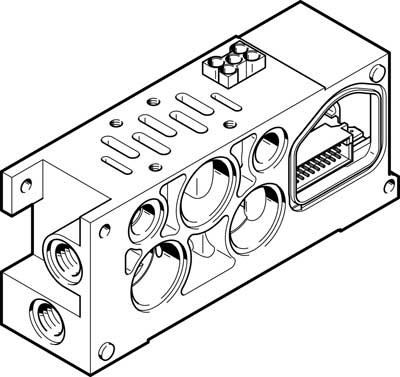

The Festo part number 18836 is an industrial component rated for a working pressure of -0.9 to 16 bar and operates with compressed air conforming to ISO8573-1:2010 [7:-:-]. This unit holds UL - Recognized (OL) authorization, features VDMA24364-B2-L PWIS conformity, and includes materials that conform to RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 18835 is an industrial component designed with a maximum of 1 valve position based on the ISO 5599-2 standard. Featuring an aluminum die-cast connecting plate and 5 G1 pneumatic connection ports, this unit operates within a working pressure range of -0.9 to 16 bar for compressed air meeting ISO 8573-1:2010 [7:-:-]. It carries UL-Recognized (OL) authorization, IP65 protection class, and RoHS-compliant materials, supporting medium and ambient temperatures from -10 to 60 °C with VDMA24364-B2-L PWIS conformity and through-hole subbase mounting. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 188670 is a double-acting industrial component featuring a 25 mm piston diameter and an 80 mm stroke, operating within a working pressure range of 1.5 to 10 bar using dried compressed air that can be lubricated or unlubricated. Designed with a piston, piston rod, and cylinder barrel with an axial supply port, this unit provides flexible cushioning rings or plates at both ends, position detection for a proximity sensor, and a corrosion resistance classification of CRC 1 with materials containing PWIS substances. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, with an ambient temperature range of 0 to 80 °C, a basic weight of 132.8 g for 0 mm stroke, and G1/8 pneumatic connections. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 18867 is an industrial component featuring a fixed-grid valve manifold structure of type 02 that accommodates up to 10 valve positions with electrical actuation and a Multipol electrical connection. This piston slide design operates on a nominal DC operating voltage of 24 V, supporting 5/2 single solenoid, 5/2 bistable, 5/3 pressurized, 5/3 exhausted, and 5/3 closed valve functions with a standard nominal flow rate between 750 and 1,000 l/min. The unit functions within a working and pilot pressure range of -0.9 to 10 bar and 1.5 to 10 bar respectively, an ambient and medium temperature range of -5 to 50 °C, maintains an IP65 protection class, utilizes internal or external pilot air supply, and contains PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 188669 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and axial supply ports with G1/8 pneumatic connections. Operating on dried compressed air, lubricated or unlubricated, at a working pressure of 1.5 to 10 bar, this unit delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. Constructed with a piston, piston rod, and cylinder barrel, it incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 188668 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and an axial supply port design structure with a piston, piston rod, and cylinder barrel. Operating on dried compressed air, either lubricated or unlubricated, within a working pressure range of 1.5 to 10 bar, it delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings or plates at both ends, position detection capabilities for a proximity sensor, and a corrosion resistance classification CRC of 1 while containing PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 188667 is a double-acting industrial component featuring a 25 mm piston diameter and a 25 mm stroke, utilizing flexible cushioning rings or plates at both ends with an axial supply port. Operating on dried compressed air, lubricated or unlubricated, within a working pressure range of 1.5 to 10 bar and an ambient temperature range of 0 to 80 °C, it delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. This piston, piston rod, and cylinder barrel assembly accommodates any mounting position with accessories, features position detection for proximity sensors, and includes a G1/8 pneumatic connection along with a corrosion resistance classification CRC of 1. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 188666 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and axial supply ports with G1/8 pneumatic connections. Designed with a piston, piston rod, and cylinder barrel, it operates on dried compressed air at working pressures from 1.5 to 10 bar and ambient temperatures between 0 and 80 °C. Flexible cushioning rings or plates are integrated at both ends, supporting position detection via proximity sensors and accommodating any assembly position with mounting via accessories. This unit yields theoretical forces of 295 N on advance stroke and 247 N on return stroke at 6 bar, with a basic weight of 132.8 g for a 0 mm stroke, a moving mass of 46.9 g, an additional weight of 11.2 g per 10 mm stroke, a CRC rating of 1, and contains PWIS substances. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 188664 is a double-acting industrial component featuring a 20 mm piston diameter, a 320 mm stroke, and an axial supply port design structure comprising a piston, piston rod, and cylinder barrel. It operates within a working pressure range of 1.5 to 10 bar using dried compressed air, delivering a theoretical force of 189 N on the advance stroke and 158 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 1 corrosion resistance classification for ambient temperatures between 0 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 188663 is a double-acting industrial component featuring a 20 mm piston diameter and a 250 mm stroke, operating within a pressure range of 1.5 to 10 bar using dried compressed air that may be lubricated or unlubricated. Built with a piston, piston rod, and cylinder barrel design structure, this unit includes flexible cushioning rings or plates at both ends, axial supply ports, and provisions for position detection via proximity sensor across any assembly position. It delivers a theoretical force of 189 N on the advance stroke and 158 N on the return stroke at 6 bar, with a basic weight of 107.6 g, a moving mass of 31.3 g at 0 mm stroke, and an additional weight of 7.4 g per 10 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 188662 is a double-acting industrial component featuring a 20 mm piston diameter, a 200 mm stroke, and an axial supply port design structure comprising a piston, piston rod, and cylinder barrel. Operating on dried compressed air within a 1.5 to 10 bar working pressure and 0 to 80 °C ambient temperature range, it delivers a theoretical force of 189 N on the advance stroke and 158 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, G1/8 pneumatic connections, and a CRC 1 corrosion resistance classification with materials containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 188661 is a double-acting industrial component featuring a 20 mm piston diameter and a 160 mm stroke, operating on dried compressed air at pressures ranging from 1.5 to 10 bar. Built with a piston, piston rod, and cylinder barrel design, it utilizes flexible cushioning rings at both ends, accommodates position detection via proximity sensors, and incorporates an axial supply port with G1/8 pneumatic connections. This unit operates within ambient temperatures of 0 to 80 °C, delivering a theoretical force of 189 N for the advance stroke and 158 N for the return stroke at 6 bar. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 188660 is a double-acting industrial component featuring a 20 mm piston diameter and a 125 mm stroke, operating via dried compressed air at working pressures from 1.5 to 10 bar. This unit utilizes a piston, piston rod, and cylinder barrel design with flexible cushioning rings or plates at both ends, an axial supply port, and a G1/8 pneumatic connection. It delivers a theoretical force of 189 N on the advance stroke and 158 N on the return stroke at 6 bar, with position detection for proximity sensors and an ambient temperature range of 0 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 18866 is an electrical piston slide industrial component utilizing a fixed-grid valve manifold structure of type 02 supporting up to 8 valve positions. It operates with a standard nominal flow rate of 750 to 1,000 l/min, a working pressure range of -0.9 to 10 bar, a pilot pressure of 1.5 to 10 bar, and a nominal operating voltage of 24 V DC with a Multipol electrical connection. The unit accommodates 5/2 single solenoid, 5/2 bistable, 5/3 pressurized, 5/3 exhausted, or 5/3 closed valve functions, features internal or external pilot air supply, and operates within ambient and medium temperatures of -5 to 50 °C with an IP65 protection class and materials containing PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
This Festo industrial component, part number 18834, features an aluminum die cast subbase with a width of 183 mm and utilizes through hole mounting. It operates within a working pressure range of -0.9 to 16 bar and a medium and ambient temperature range of -10 to 60 °C, accommodating compressed air operating medium in accordance with ISO8573-1:2010 [7:-:-]. The unit includes NPT1/8-27 auxiliary pilot air ports 12/14, NPT3/4-14 pneumatic connection ports 5, an IP65 protection class, and UL Recognized (OL) authorization. Please submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
This Festo industrial component, part number 188659, is a double-acting pneumatic cylinder featuring a 20 mm piston diameter and a 100 mm stroke with axial supply ports. Designed with a piston, piston rod, and cylinder barrel, it operates on dried compressed air at working pressures from 1.5 to 10 bar across an ambient temperature range of 0 to 80 °C. The unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a G1/8 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 188658 is a double-acting industrial component featuring a 20 mm piston diameter, an 80 mm stroke, and axial supply ports with G1/8 pneumatic connections. Operating on dried compressed air within a 1.5 to 10 bar working pressure range, this unit utilizes flexible cushioning rings at both ends and accommodates position detection via proximity sensors in any assembly position. It delivers a theoretical force of 189 N on the advance stroke and 158 N on the return stroke at 6 bar, while maintaining a basic weight of 107.6 g for a 0 mm stroke and a CRC corrosion resistance classification of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo part number 188657 is a double-acting industrial component featuring a 20 mm piston diameter and a 50 mm stroke with an axial supply port. This piston, piston rod, and cylinder barrel assembly operates on dried compressed air, lubricated or unlubricated, within a working pressure range of 1.5 to 10 bar and an ambient temperature range of 0 to 80 °C. It utilizes flexible cushioning rings or plates at both ends, accommodates position detection via a proximity sensor, and features a corrosion resistance classification of CRC 1 with materials containing PWIS substances. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
