Festo
The Festo 177181 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, a 2.6 degree cushioning angle, and a 272 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at a pressure of 2.5 to 8 bar, this S20 variant utilizes a through, hollow piston rod, a ball-bearing guide for torque protection, and flexible cushioning rings or plates at both ends with a 4.5 mm cushioning length. It delivers a torque of 1.25 Nm at 6 bar, supports a maximum swivel frequency of 2 Hz, accommodates a maximum impact speed of 500 mm/s, and provides position detection for inductive or proximity sensors across an ambient temperature range of -10 to 60 °C using dried compressed air. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 178042 is a double-acting industrial component featuring a 4-inch piston diameter, a 6-inch stroke, and a 3/4-16 UNF-2A male piston-rod thread built on the ISO 15552 standard. Operating with compressed air conforming to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar), this profile barrel unit utilizes flexible cushioning rings at both ends and delivers a theoretical retracting force of 4,418 N at 0.6 MPa. It is designed for any assembly position across an ambient temperature range of -20 to 80 °C, featuring a single-ended piston rod with a CRC 2 moderate corrosion resistance classification and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 177180 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, a 238-deg swivel angle, and an operating pressure range of 2.5 to 8 bar that delivers 1.25 Nm of torque at 6 bar. This unit incorporates a ball-bearing guide for torque protection, an adjustable rotation angle range of 270 deg with a 1.5-deg fine adjustment, a 13-deg cushioning angle, and dual-end shock absorber and flexible cushioning options. Operating on dried compressed air within an ambient temperature range of -10 to 60 deg C, the part supports position detection via inductive and proximity sensors and includes a through piston rod variant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 178041 is a double-acting industrial component featuring a 4" piston diameter and a 5" stroke built on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended male piston rod having a 3/4-16 UNF-2A thread, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It includes flexible cushioning rings at both ends, accommodates any assembly position, and delivers a theoretical retracting force of 4,418 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo part number 177179 is a double-acting industrial component featuring a rotary vane design structure with a 16 mm piston diameter and a ball-bearing guide for torque and guide protection. Operating within a pressure range of 2.5 to 8 bar, this unit delivers a torque of 1.25 Nm at 6 bar and supports a swivel angle of 272 degrees with a 270 degree rotation angle adjustment range. It incorporates flexible cushioning rings and plates at both ends with a 2.6 degree cushioning angle, a 4.5 mm cushioning length, and allows for position detection via inductive or proximity sensors using dried compressed air between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 178040 is a double-acting industrial component featuring a 4-inch piston diameter, a 4-inch stroke, and a 3/4-16 UNF-2A male piston-rod thread based on the ISO 15552 standard. Operating within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], this profile barrel design incorporates flexible cushioning rings at both ends and delivers a theoretical retracting force of 4,418 N at 0.6 MPa. It functions within an ambient temperature range of -20 to 80 °C, exhibits a CRC 2 moderate corrosion resistance classification, and permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 177178, is a double-acting rotary vane design featuring a 16 mm piston diameter, a 100 mm stroke, and a ball-bearing guide for torque and guide protection. It operates between 2.5 and 8 bar using dried compressed air in ambient temperatures from -10 to 60 °C, delivering a torque of 1.25 Nm at 6 bar with a maximum impact speed of 500 mm/s and a maximum swivel frequency of 1.5 Hz. The unit offers a swivel angle of 238 degrees, a rotation angle adjustment range of 270 degrees with a 1.5-degree fine adjustment, a 13-degree cushioning angle, and dual cushioning consisting of shock absorbers and flexible cushioning rings at both ends. Additional specifications include position detection capabilities for inductive and proximity sensors, an S20 through hollow piston rod variant, and an any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 178039 is a double-acting industrial component featuring a 4-inch piston diameter, a 3-inch stroke, and a 3/4-16 UNF-2A male piston rod thread based on the ISO 15552 standard. Built with a piston, piston rod, and profile barrel design structure, this unit operates within a working pressure of 0.6 to 12 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It incorporates flexible cushioning rings at both ends, accommodates any assembly position, and delivers a theoretical retracting force of 4,418 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

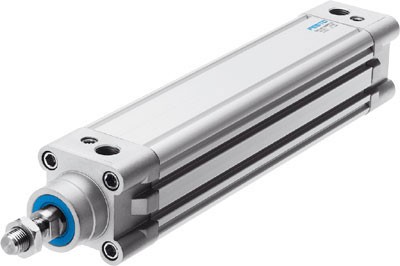

This Festo industrial component, part number 177884, is a double-acting pneumatic actuator featuring a 2-inch piston diameter, a 4-inch stroke, and a male 5/8-18 UNF-2A piston rod thread based on the ISO 15552 standard. The design utilizes a profile barrel with a single-ended piston rod, flexible cushioning rings at both ends, and operates within an ambient temperature range of -20 to 80 °C at pressures from 0.6 to 12 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 990 N at 0.6 MPa and exhibits a CRC rating of 2 for moderate corrosion stress with VDMA 24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo protective conduit connector threaded connector MKGV-37-PG-29 features an assembly position of any and a corrosion resistance classification CRC of 2. Built with materials free of copper and PTFE, this component adheres to official Festo specifications. Submit your exact part number, quantity, and application requirements for a formal quote on this industrial component.
View product details →Festo
The Festo part number 177177 is a double-acting industrial component featuring a rotary vane design structure with a 16 mm piston diameter, 100 mm stroke, and a ball-bearing guide for torque and guide protection. Operating efficiently within a pressure range of 2.5 to 8 bar and an ambient temperature range of -10 to 60 °C, this unit delivers a torque of 1.25 Nm at 6 bar with a maximum swivel frequency of 2 Hz and a max impact speed of 500 mm/s. It incorporates flexible cushioning rings and plates at both ends with a 2.6 deg cushioning angle, 4.5 mm cushioning length, a 272 deg swivel angle, a 270 deg rotation angle adjustment range, a 5 deg fine adjustment, and is compatible with inductive and proximity sensors for position detection while utilizing an S20 through, hollow piston rod variant. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 178038 is a double-acting industrial component featuring a 4-inch piston diameter and a 2-inch stroke built on the ISO 15552 standard. This profile barrel cylinder operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 4,418 N at 0.6 MPa. Integrated with flexible cushioning rings at both ends, the unit accommodates any assembly position and functions in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo MKGV-23-PG-29 protective conduit connector threaded connector features an assembly position of any and a corrosion resistance classification CRC 2. Constructed free of copper and PTFE, this component adheres to the official Festo specification text. Request a formal quotation for part number 177592 by submitting your required quantity and application specifications.
View product details →Festo
The Festo part number 177176 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, 100 mm stroke, and a ball-bearing guide for torque and guide protection. Operating within a 2.5 to 8 bar pressure range, this unit delivers 1.25 Nm of torque at 6 bar and includes a 270 degree rotation angle adjustment range with a 238 degree swivel angle. Cushioning is provided via shock absorbers at both ends and flexible cushioning rings or plates at both ends, supporting an operating medium of dried compressed air across an ambient temperature range of -10 to 60 degrees Celsius. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 178037 is a double-acting industrial component featuring a 4-inch piston diameter, a 1.625-inch stroke, and a 3/4-16 UNF-2A male piston rod thread based on the ISO 15552 standard. Operating at a working pressure of 0.6 to 12 bar utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4], this profile barrel design incorporates flexible cushioning rings at both ends and achieves a theoretical retracting force of 4,418 N at 0.6 MPa. Rated for ambient temperatures from -20 to 80 °C with moderate corrosion stress resistance, the unit functions in any assembly position with single-ended piston rod variants and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo MKGV-20-PG-21 protective conduit connector threaded connector features an assembly position of any and a corrosion resistance classification CRC of 2. This industrial component is manufactured with materials that are free of copper and PTFE. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 177175 is a double-acting industrial component featuring a rotary vane design structure with a 16 mm piston diameter, a 100 mm stroke, and a ball-bearing guide for torque and guide protection. Operating on dried compressed air within a 2.5 to 8 bar pressure range, this unit delivers a torque of 1.25 Nm at 6 bar and supports a swivel angle of 272 degrees with a 270 degree rotation angle adjustment range. It incorporates flexible cushioning rings at both ends, a 4.5 mm cushioning length, a 2.6 degree cushioning angle, and provisions for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo MKG-37-PG-29 is an industrial protective conduit featuring an assembly position of any and a corrosion resistance classification CRC of 2. Its materials are free of copper and PTFE while conforming to RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

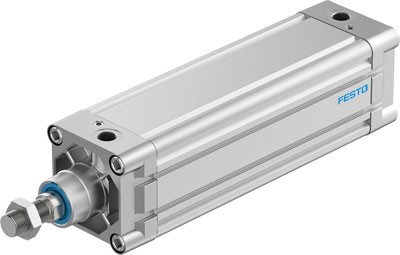

The Festo 178036 is a double-acting industrial component featuring a 4" piston diameter, a 1" stroke, and a male 3/4-16 UNF-2A piston rod thread based on the ISO 15552 standard. Built with a profile barrel design structure and flexible cushioning rings at both ends, it operates within a pressure range of 0.06 to 1.2 MPa using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This variant delivers a theoretical retracting force of 4,418 N at 0.6 MPa and withstands ambient temperatures from -20 to 80 °C under a CRC 2 moderate corrosion stress classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component, part number 177174, is a double-acting rotary vane design featuring a 16 mm piston diameter, an 80 mm stroke, and an S20 through, hollow piston rod with a ball-bearing guide. It operates within a pressure range of 2.5 to 8 bar using dried compressed air, lubricated or unlubricated, delivering a torque of 1.25 Nm at 6 bar and a maximum swivel frequency of 1.5 Hz. The unit offers a 238-degree swivel angle, a 270-degree rotation angle adjustment range, 1.3-degree cushioning angle, 4.5 mm cushioning length, 1.5-degree fine adjustment, and dual-end cushioning via shock absorbers and flexible cushioning rings or plates, while supporting position detection through inductive and proximity sensors across any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
