Festo
The Festo 177165 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, 40 mm stroke, and a ball-bearing guide for torque and guide protection. Operating at pressures from 2.5 to 8 bar with dried compressed air, it delivers a torque of 1.25 Nm at 6 bar, a swivel angle of 272 degrees, and a maximum swivel frequency of 2 Hz. This variant includes a through, flexible hollow piston rod, 270-degree rotation angle adjustment range, 5-degree fine adjustment, 2.6-degree cushioning angle, and flexible cushioning rings or plates at both ends with a 4.5 mm cushioning length. Designed for ambient temperatures between -10 and 60 °C and compatible with inductive or proximity sensors, it functions in any assembly position at a maximum impact speed of 500 mm/s. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177879 is a double-acting industrial component featuring a 2-inch piston diameter, a 5/8-18 UNF-2A male piston-rod thread, and a stroke length ranging from 0.08 to 80 inches. Built upon the ISO 15552 standard with a profile barrel design structure, this unit operates on compressed air matching ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.6 to 12 bar and accommodates ambient temperatures from -20 to 80 °C. It incorporates flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and delivers a theoretical retracting force of 990 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177164 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and a ball-bearing guide for torque and guide protection. Operating within a 2.5 to 8 bar pressure range and an ambient temperature of -10 to 60 °C, this unit delivers a torque of 1.25 Nm at 6 bar with a 238 degree swivel angle, a 270 degree rotation angle adjustment range, and shock absorbers plus flexible cushioning rings at both ends. Position detection is supported for inductive and proximity sensors, utilizing dried compressed air as the operating medium with an S2 through piston rod variant. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177878 is a double-acting industrial component featuring a 20-inch stroke, a 1 5/8-inch piston diameter, and a 1/2-20 UNF-2A male piston rod thread based on ISO 15552 standards. Built with a profile barrel design, this unit includes adjustable pneumatic cushioning at both ends (PPV), position detection for proximity sensors, and an operating pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) for compressed air media conforming to ISO 8573-1:2010 [7:4:4]. It operates within an ambient temperature range of -20 to 80 °C, maintains a CRC 2 moderate corrosion resistance classification, and permits lubricated operation when subsequently required. Submit your exact part number, quantity, and application requirements to receive a formal quote for this Festo component.
View product details →
Festo
The Festo part number 177163 is a double-acting industrial component featuring a rotary vane design structure with a 16 mm piston diameter, a 40 mm stroke, and a ball-bearing guide providing torque and guide protection. Operating within a 2.5 to 8 bar pressure range and a -10 to 60 °C ambient temperature range, this unit delivers a torque of 1.25 Nm at 6 bar and supports a maximum swivel frequency of 2 Hz. It incorporates flexible cushioning rings at both ends with a 2.6-degree cushioning angle, a 4.5 mm cushioning length, a 272-degree swivel angle, and a 270-degree rotation angle adjustment range with 5-degree fine adjustment. Position detection is available for inductive and proximity sensors, utilizing dried compressed air as the operating medium and featuring a through piston rod variant (S2) with any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177877 is a double-acting industrial component featuring a 1 5/8" piston diameter, a 16" stroke, and a single-ended piston rod with a 1/2-20 UNF-2A male thread. Built on the ISO 15552 standard, this profile barrel design includes adjustable pneumatic cushioning at both ends, position detection for proximity sensors, and an operating pressure range of 0.06 to 1.2 MPa. It operates within an ambient temperature range of -20 to 80 °C using compressed air in accordance with ISO 8573-1:2010 [7:4:4], and achieves a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 177162 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, a 25 mm stroke, and a ball-bearing guide for torque and guide protection. Operating at pressures from 2.5 to 8 bar, this unit delivers a torque of 1.25 Nm at 6 bar and achieves a swivel angle of 238 degrees with a 270-degree rotation angle adjustment range. It incorporates flexible cushioning rings and plates alongside shock absorbers at both ends, a 13-degree cushioning angle, and a 4.5 mm cushioning length for operation within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
This Festo industrial component, part number 177876, is a double-acting piston rod cylinder featuring a 1 5/8" piston diameter, a 12" stroke, and a 1/2-20 UNF-2A male piston-rod thread built on the ISO 15552 standard. The design incorporates a profile barrel with adjustable pneumatic cushioning at both ends (PPV), a 20 mm cushioning length, 0.2 J impact energy capacity in end positions, and position detection for proximity sensors operable within a 0.06 to 1.2 MPa pressure range. Rated for an ambient temperature range of -20 to 80 °C, the unit utilizes compressed air per ISO 8573-1:2010 [7:4:4] with optional lubricated operation, holds a CRC 2 moderate corrosion resistance classification, and maintains VDMA24364-B1/B2-L PWIS conformity in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

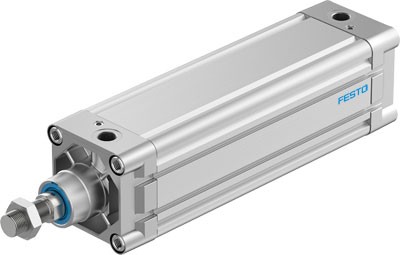

The Festo 178029 is a double-acting industrial component featuring a 3-inch piston diameter and a 6-inch stroke based on the ISO 15552 standard. This profile barrel design incorporates adjustable pneumatic cushioning at both ends (PPV), a 3/4-16 UNF-2A male piston rod thread, and position detection capabilities for proximity sensors. It operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177161 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, 25 mm stroke, and a 272 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at 2.5 to 8 bar with a torque of 1.25 Nm at 6 bar, this unit includes a ball-bearing guide, flexible cushioning rings at both ends, and position detection compatibility for inductive and proximity sensors. It operates within an ambient temperature range of -10 to 60 °C using dried compressed air and achieves a maximum swivel frequency of 2 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

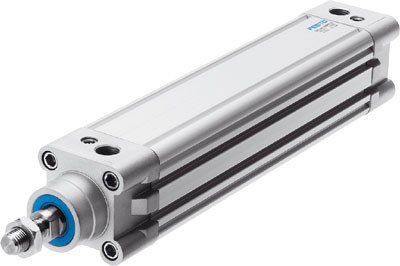

The Festo 177875 is a double-acting industrial component featuring a 10-inch stroke, a 1 5/8-inch piston diameter, and a 1/2-20 UNF-2A male piston rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It includes adjustable pneumatic cushioning at both ends with a 20 mm cushioning length, position detection capabilities for proximity sensors, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 177160 is a double-acting industrial component featuring a rotary vane design with a 16 mm piston diameter, a 25 mm stroke, and a ball-bearing guide for torque and guide protection. Operating within a 2.5 to 8 bar pressure range, this unit delivers a 1.25 Nm torque at 6 bar, supports a 238-degree swivel angle with a 270-degree rotation angle adjustment range, and includes CC shock absorbers and P flexible cushioning rings at both ends. It accommodates inductive and proximity sensors for position detection and operates on dried compressed air across ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177874 is a double-acting industrial component featuring a profile barrel design with a single-ended piston rod having a 1/2-20 UNF-2A male thread, an 8-inch stroke, and a 1 5/8-inch piston diameter based on the ISO 15552 standard. Operating between 0.06 and 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit includes adjustable pneumatic cushioning at both ends (PPV) with a 20 mm cushioning length, 0.2 J impact energy in end positions, and position detection capabilities for proximity sensors. It operates within an ambient temperature range of -20 to 80 °C, offering CRC 2 moderate corrosion resistance, VDMA24364-B1/B2-L PWIS conformity, and the option for lubricated operation in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 177159 is a double-acting industrial component featuring a rotary vane design with a 16 mm piston diameter and a 25 mm stroke. It operates within a pressure range of 2.5 to 8 bar, delivering a torque of 1.25 Nm at 6 bar with a maximum swivel frequency of 2 Hz. The unit includes a ball-bearing guide for torque protection, a 272-degree swivel angle with a 270-degree rotation angle adjustment range, and flexible cushioning rings at both ends. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 177873 is a double-acting industrial component featuring a 1 5/8-inch piston diameter, a 6-inch stroke, and a 1/2-20 UNF-2A male piston rod thread based on the ISO 15552 standard. Designed with a profile barrel and single-ended piston rod, this unit includes adjustable pneumatic cushioning at both ends (PPV), position detection for proximity sensors, and an operating pressure range of 0.06 to 1.2 MPa. It operates within ambient temperatures from -20 to 80 °C using compressed air compliant with ISO 8573-1:2010 [7:4:4] and maintains a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177872 is a double-acting industrial component featuring a 5-inch stroke, a 1 5/8-inch piston diameter, and a 1/2-20 UNF-2A male piston rod thread based on the ISO 15552 standard. Built with a profile barrel design incorporating adjustable pneumatic cushioning at both ends (PPV), a 20 mm cushioning length, and position detection for proximity sensors, it operates at pressures from 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit functions across an ambient temperature range of -20 to 80 °C with a CRC 2 moderate corrosion stress rating and supports lubricated operation. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177871 is a double-acting industrial component featuring a 4-inch stroke, a 1 5/8-inch piston diameter, and a 1/2-20 UNF-2A male piston rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It incorporates adjustable pneumatic cushioning at both ends with a 20 mm cushioning length, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
The Festo part number 177870 is a double-acting industrial component featuring a 3-inch stroke, a 1 5/8-inch piston diameter, and a 1/2-20 UNF-2A male piston-rod thread. Built with a piston, piston rod, and profile barrel design adhering to ISO 15552 standards, this unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 20 mm cushioning length and 0.2 J impact energy capacity. It operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], supports ambient temperatures from -20 to 80 °C, and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 177869 is a double-acting industrial component featuring a 2-inch stroke, a 1 5/8-inch piston diameter, and a male 1/2-20 UNF-2A piston rod thread based on the ISO 15552 standard. This profile barrel design incorporates adjustable pneumatic cushioning at both ends with a 20 mm cushioning length, operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], and accommodates ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177868 is a double-acting industrial component featuring a 1 5/8" piston diameter, a 1.625" stroke, and a 1/2-20 UNF-2A male piston rod thread based on the ISO 15552 standard. This profile barrel design incorporates adjustable pneumatic cushioning at both ends with a 20 mm cushioning length, operates within a pressure range of 0.06 to 1.2 MPa, and includes position detection capabilities for proximity sensors. Constructed with a CRC 2 moderate corrosion stress classification, it functions with compressed air under ISO 8573-1:2010 [7:4:4] standards within an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
