Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 173863 is a Midi industrial component featuring a zinc die-casting housing, a polycarbonate bowl, and a fully automatic condensate drain with a 40 µm filtration grade. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 2,600 l/min using compressed air or inert gases. It operates at temperatures between -10 and 60 µC, includes 1/2 NPT pneumatic connections, and weighs 1,350 g with CRC 2 moderate corrosion stress resistance. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 175122 is a 3/2 open/closed monostable industrial component featuring an electrical actuation and a piston slide design structure with a 10 mm width. Operating at a working pressure of 3 to 10 bar and a pilot pressure of 3 to 8 bar, this piloted valve delivers a standard nominal flow rate of 220 l/min through a nominal size of 3.6 mm using compressed air in accordance with ISO8573-1:2010 [7:4:4]. It utilizes an air spring reset, soft sealing principle, and non-reversible flow direction, achieving an on switching time of 8 ms and an off switching time of 18 ms with a b value of 0.27 and C value of 1.03 l/sbar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 173122 is an electrical 5/3 closed industrial component featuring a piston slide design structure with a soft sealing principle and a positive overlap lap. This 17.8 mm wide unit provides a standard nominal flow rate of 600 l/min, a nominal size of 5 mm, an 18 mm grid dimension, and an operating working pressure range of -0.9 to 10 bar with external pilot air supply and throttleable exhaust-air function. Additional technical specifications include mechanical spring reset, piloted type of piloting, reversible flow direction, IP65 protection class, c UL us recognition, and a CE symbol according to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo mounting kit SMBR-10-63 is an industrial component featuring size 63 specifications and materials that conform to RoHS standards. This Festo part number 175108 is detailed in the official manufacturer data sheet. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo mounting kit SMBR-10-50 is an industrial component featuring a size 50 specification. This assembly conforms to RoHS material standards as detailed in the official Festo documentation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 173121 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a positive overlap lap. This 17.8 mm wide unit provides a standard nominal flow rate of 600 l/min, a nominal size of 5 mm, an 18 mm grid dimension, and an operating working pressure ranging from 3 to 8 bar utilizing internal piloted air supply with a mechanical spring reset. It is equipped with IP65 protection class, soft sealing principle, throttleable exhaust-air function, non-reversible flow direction, and c UL us recognized authorization alongside a CE symbol according to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo mounting kit SMBR-10-40 is an industrial component designated for size 40 configurations. Materials utilized in this assembly conform to RoHS standards according to the official Festo data sheet. Request a formal quotation for part number 175106 by submitting your required quantity and application parameters.
View product details →
Festo
The Festo 173120 is an electrical 5/3 exhausted industrial component featuring a piston slide design structure with a mechanical spring reset and positive overlap lap. This 17.8 mm wide valve delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar, supported by a soft sealing principle and throttleable exhaust-air function. Built with an IP65 protection class and c UL us recognition, the unit includes an external pilot air supply, reversible flow direction, and detenting manual override accessories. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo mounting kit SMBR-10-32 is an industrial component featuring a size 32 specification and materials that conform to RoHS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo 173119 is an electrical industrial component featuring a 5/3 exhausted valve function and a piston slide design structure with a soft sealing principle. This 17.8 mm wide unit operates at a working pressure of 3 to 8 bar, delivering a standard nominal flow rate of 500 l/min through a 5 mm nominal size and 18 mm grid dimension. Equipped with internal pilot air supply, mechanical spring reset, and a throttleable exhaust-air function, the component includes IP65 protection and c UL us - Recognized (OL) authorization with a CE symbol according to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo mounting kit SMBR-10-25 is an industrial component featuring size 25 dimensions and materials that conform to RoHS standards according to the official Festo data sheet. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 173118 is an electrical industrial component featuring a 5/3 pressurized valve function, a 17.8 mm width, and a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar. Designed with a piston slide structure, mechanical spring reset, soft sealing principle, and IP65 protection class, this c UL us recognized unit includes throttleable exhaust-air function, external pilot air supply, and a nominal size of 5 mm with an 18 mm grid dimension. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo mounting kit SMBR-10-20 is an industrial component of size 20 featuring materials that conform to RoHS standards, as specified in the official Festo EN-US data sheet. Request a formal quotation for part number 175103 by submitting your required quantity and application details.
View product details →
Festo
The Festo 173117 is an electrically actuated industrial component featuring a 5/3 pressurized valve function with freedom from overlap and a standard nominal flow rate of 500 l/min. Built with a 17.8 mm width, a 5 mm nominal size, and an 18 mm grid dimension, this piston slide design utilizes internal pilot air supply, mechanical spring reset, and a soft sealing principle operating at a working pressure of 3 to 8 bar. It includes an IP65 protection class rating, c UL us recognition, throttleable exhaust-air function, non-reversible flow direction, and a detenting manual override used with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
The Festo SMBR-10-12 mounting kit, part number 175102, is an industrial component featuring a size 12 specification. All materials used in this official Festo part conform to RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

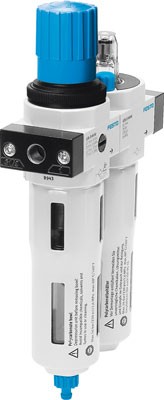

The Festo part number 173855 is a Midi industrial component featuring a fully automatic condensate drain and a 40 µm grade of filtration. Operating within a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 2,000 l/min using compressed air or inert gases. Constructed with a zinc die-casting housing and a PC bowl, it operates at temperatures between -10 and 60 µC and weighs 1,350 g with 2 3/8 NPT pneumatic connections. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo mounting kit SMBR-10-8 is an industrial component designated as size 8. Materials used in this product conform to RoHS specifications according to the official Festo data sheet. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173116 is an electrically actuated 5/2 monostable industrial component featuring a 17.8 mm width, a 5 mm nominal size, and an 18 mm grid dimension. This piston slide valve delivers a standard nominal flow rate of 700 l/min across a working pressure range of -0.9 to 10 bar utilizing external pilot air supply and a mechanical spring reset. Constructed with soft sealing principles, positive overlap, and throttleable exhaust-air functions, it includes an IP65 protection class, c UL us recognition, and a CE symbol in accordance with the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173115 is an electrical 5/2 monostable industrial component featuring a piston slide design structure and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 700 l/min across a working pressure range of -0.9 to 10 bar utilizing an air spring reset, soft sealing principle, and external pilot air supply with throttleable exhaust-air function. Built with an IP65 protection class and c UL us recognition, this piloted unit incorporates a 5 mm nominal size, reversible flow direction, freedom from overlap, and detenting manual override available with accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Engineered with a 17.8 mm width and a grid dimension of 18 mm, this Festo 5/2 monostable electrical industrial component utilizes a piston slide design structure featuring positive overlap and soft sealing. The unit operates within a working pressure range of 2.5 to 8 bar, delivering a standard nominal flow rate of 700 l/min through internal pilot air supply with throttleable exhaust-air function and air spring reset. It carries c UL us - Recognized (OL) authorization, complies with the EU low voltage guideline for the CE symbol, and offers IP65 protection class with any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
