Festo
The Festo 173113 is an electrical 5/2 monostable industrial component featuring a piston slide design structure with a soft sealing principle and a 17.8 mm width. It operates within a working pressure range of 2.5 to 8 bar, delivers a standard nominal flow rate of 700 l/min, and incorporates internal pilot air supply with throttleable exhaust-air function. Certified with c UL us recognition and an IP65 protection class, this unit includes a mechanical spring reset, positive overlap lap, and accommodates any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173111 is an electrical 5/2 bistable industrial component featuring a piston slide design structure with a 17.8 mm width, an 18 mm grid dimension, and a 5 mm nominal size. It operates with a standard nominal flow rate of 700 l/min across a working pressure range of -0.9 to 10 bar utilizing an air spring reset, external pilot air supply, reversible flow direction, and throttleable exhaust-air function. Certified with a c UL us Recognized (OL) authorization and a CE symbol according to the EU low voltage guideline, the unit provides IP65 protection, soft sealing principle, positive overlap, any assembly position, and a detenting manual override via accessories. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →
Festo
The Festo 173110 is an electrical 5/2 bistable industrial component featuring a piston slide design structure and an air spring reset. This 17.8 mm wide valve delivers a standard nominal flow rate of 700 l/min across a working pressure range of 1.5 to 8 bar with internal pilot air supply and positive overlap lap. Built with IP65 protection class, soft sealing principle, and a nominal size of 5 mm, it includes throttleable exhaust-air function and supports any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this c UL us recognized and CE compliant unit.
View product details →
Festo

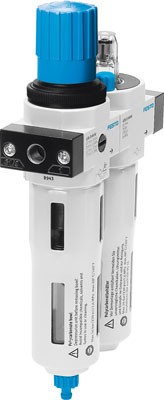

The Festo 173847 is a mini industrial component featuring a fully automatic condensate drain and a 40 µm filtration grade, operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar. Constructed with a zinc die-casting housing and a polycarbonate bowl, this unit delivers a standard nominal flow rate of 1,200 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within a temperature range of -10 to 60 µC. It features 3/8 NPT pneumatic connections, a moderate corrosion resistance classification CRC of 2, and supports lubricated operation when subsequently required. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
Engineered by Festo, the part number 173108 is an electrical industrial component featuring a 5/3 closed valve function, a piston slide design structure, and a 17.8 mm width with an 18 mm grid dimension. This piloted unit operates with an external pilot air supply, a soft sealing principle, a mechanical spring reset, and a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar. It includes a nominal size of 5 mm, a reversible flow direction, throttleable exhaust-air function, freedom from overlap, and an IP65 protection class with c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173846 is a mini industrial component featuring a manual momentary-contact condensate drain and a 40 µm filtration grade, operating at a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar with a standard nominal flow rate of 1,200 l/min. Housed in zinc die-casting with a PC bowl, it operates on compressed air to ISO 8573-1:2010 [-:9:-] or inert gases within a temperature range of -10 to 60 °C, and weighs 600 g with a 3/8 NPT pneumatic connection port. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 173107 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a mechanical spring reset. This piloted unit operates within a working pressure range of 3 to 8 bar, delivering a standard nominal flow rate of 500 l/min across an 18 mm grid dimension and a 17.8 mm width. Equipped with soft sealing, IP65 protection class, and c UL us recognition, the assembly supports internal pilot air supply, throttleable exhaust-air function, and positive overlap lap. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 175067 is an industrial component featuring a one-way flow control function with M5 pneumatic connections on both ports and a slotted head screw adjusting element. This threaded component operates within a working pressure range of 0.2 to 10 bar, an ambient and medium temperature range of -10 to 60 °C, and accommodates filtered compressed air with a 40 µm filtration requirement. Constructed with a nickel-plated brass screw-in stud, brass regulating screw, zinc die-casting swivel joint, NBR seals, and a POM release ring, the 14 g unit delivers a standard nominal flow rate of 48 l/min in the flow control direction and 40 to 65 l/min in the non-return direction. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173106 is a 5/3 exhausted industrial component featuring electrical actuation, a piston slide design, and a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar. Built with a 17.8 mm width, 5 mm nominal size, 18 mm grid dimension, and soft sealing principle, this piloted valve incorporates a mechanical spring reset, external pilot air supply, and throttleable exhaust-air function. It offers an IP65 protection class, c UL us recognition, a reversible flow direction, freedom from overlap, and detenting manual override accessible with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 175066 is an industrial throttle valve featuring a slotted head screw adjusting element, a threaded mounting type, and dual QS-4 pneumatic connection ports. Constructed with a brass screw-in stud and regulating screw, zinc die-casting swivel joint, POM release ring, and NBR seals, this component supports a working pressure range of 0 to 10 bar and an operating temperature range of -10 to 60 °C using filtered compressed air with a 40 µm filtration level. It delivers a standard nominal flow rate of 40 l/min in the flow control direction, a flow rate of 80 l/min from 6 to 0 bar, and a maximum tightening torque of 1.5 Nm at a product weight of 14 g in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
The Festo 173105 is an electrically actuated industrial component featuring a 5/3 exhausted valve function with a piston slide design structure and mechanical spring reset. This piloted unit operates within a working pressure range of 3 to 8 bar, delivering a standard nominal flow rate of 500 l/min across a 17.8 mm width and 18 mm grid dimension. Equipped with internal pilot air supply, soft sealing, throttleable exhaust-air function, and an IP65 protection class rating, it is c UL us recognized and supports any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 175065 is an industrial component featuring a one-way flow control function with M5 pneumatic connections on both ports and a slotted head screw adjusting element for threaded mounting. It operates within a working pressure range of 0.2 to 10 bar and an ambient and medium temperature range of -10 to 60 °C using filtered compressed air with a 40 °m filtration. Constructed with a nickel-plated and brass screw-in stud, NBR seals, POM release ring, brass regulating screw, and zinc die-casting swivel joint, this 14 g unit achieves a standard nominal flow rate of 40 l/min in the flow control direction and 50 to 75 l/min in the non-return direction. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173104 is an electrical industrial component featuring a 5/3 pressurized valve function, a piston slide design structure, and a standard nominal flow rate of 400 l/min across a working pressure range of -0.9 to 10 bar. Built with a 17.8 mm width, 18 mm grid dimension, 5 mm nominal size, and soft sealing principle, this piloted unit utilizes external pilot air supply, mechanical spring reset, and features throttleable exhaust-air function with a reversible flow direction and freedom from overlap. Rated to IP65 protection class with c UL us recognition, the device includes detenting manual override with accessories, supports any assembly position, and requires a switching frequency of at least once a week for forced dynamisation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 175064 is an industrial component featuring a one-way flow control function with M5 pneumatic connections on port 2 and a slotted head screw adjusting element for threaded mounting. Constructed with a zinc die-casting swivel joint, brass and nickel-plated screw-in stud, brass regulating screw, POM release ring, and NBR seals, it operates within a working pressure range of 0.2 to 10 bar and ambient temperatures of -10 to 60 °C using filtered compressed air with 40 µm filtration. This component delivers a standard nominal flow rate of 48 l/min in the flow control direction and 36 to 52 l/min in the non-return direction, with a maximum tightening torque of 1.5 Nm and a product weight of 14 g. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173103 is a 5/3 pressurized industrial component featuring electrical actuation and internal pilot air supply with a piston slide design structure. It provides a standard nominal flow rate of 400 l/min across a working pressure range of 3 to 8 bar within an 17.8 mm width and 18 mm grid dimension. Built with a soft sealing principle, mechanical spring reset, and IP65 protection class, this unit includes a throttleable exhaust-air function and positive overlap lap. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →
Festo
The Festo part number 175063 is an industrial component featuring a throttle function valve with two QS-3 pneumatic connections and a slotted head screw adjusting element for threaded mounting. Constructed with a brass screw-in stud and regulating screw, NBR seals, a POM release ring, and a zinc die-casting swivel joint, this 14 g unit operates across a working pressure range of 0 to 10 bar and ambient temperatures from -10 to 60 °C with filtered compressed air requiring 40 µm filtration. It delivers a standard nominal flow rate of 40 l/min in the flow control direction and 80 l/min from 6 to 0 bar, operating with a maximum tightening torque of 1.5 Nm in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 173102 is an electrical industrial component featuring a 5/2 monostable valve function with a piston slide design structure and mechanical spring reset. This piloted unit operates within a working pressure range of -0.9 to 10 bar, delivering a standard nominal flow rate of 600 l/min across a 17.8 mm width and 18 mm grid dimension. Constructed with soft sealing principles, an IP65 protection class, and c UL us recognition, the device includes throttleable exhaust-air functions and external pilot air supply. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 175062 is an industrial component featuring a one-way flow control function with M5 pneumatic connections on port 2 and a slotted head screw adjusting element for threaded mounting. It operates within a working pressure range of 0.2 to 10 bar and an ambient and medium temperature range of -10 to 60 °C, utilizing filtered compressed air with a 40 µm filtration that can be either unlubricated or lubricated. Constructed with a nickel-plated brass screw-in stud, brass regulating screw, NBR seals, POM release ring, and zinc die-casting swivel joint, the 14 g unit delivers a standard nominal flow rate of 40 l/min in the flow control direction and 46 to 70 l/min in the non-return direction. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 173101 is an electrical industrial component featuring a 5/2 monostable valve function with a piston slide design structure and soft sealing principle. This piloted unit operates within a working pressure range of -0.9 to 10 bar, delivering a standard nominal flow rate of 600 l/min across an 18 mm grid dimension and a 17.8 mm width. Additional technical characteristics include an air spring reset, IP65 protection class, c UL us recognition, throttleable exhaust-air function, external pilot air supply, and reversible flow direction with freedom from overlap. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
The Festo part number 175061 is an industrial component featuring a one-way flow control function with M5 pneumatic connections on both ports and a slotted head screw adjusting element for threaded mounting. Built with a zinc die-casting swivel joint, brass regulating screw and screw-in stud with nickel plating, and NBR seals, this 7 g component operates within a working pressure range of 0.2 to 10 bar and ambient and medium temperatures from -10 to 60 °C. It accommodates filtered lubricated or unlubricated compressed air with 40 µm filtration, delivering a standard nominal flow rate of 48 l/min in the flow control direction and 35 to 58 l/min in the non-return direction with a maximum tightening torque of 1.5 Nm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
