Festo
The Festo 173436 is an electrical industrial component featuring a 5/2 bistable valve function and a piston slide design structure with a 17.8 mm width and 18 mm grid dimension. This piloted unit operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 1.5 to 8 bar, and delivers a standard nominal flow rate of 650 l/min through a 5 mm nominal size. Equipped with an air spring reset, soft sealing principle, throttleable exhaust-air function, external pilot air supply, positive overlap lap, and IP65 protection class, it carries c UL us - Recognized (OL) authorization and supports any assembly position with detenting manual override accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173077 is an electrically actuated industrial component featuring a 5/3 exhausted valve function and a piston slide design structure with a positive overlap lap. This 17.8 mm wide unit provides a standard nominal flow rate of 500 l/min across a working pressure range of 3 to 8 bar, utilizing an internal pilot air supply with mechanical spring reset and throttleable exhaust-air function. Built with an IP65 protection class and soft sealing principle, the device includes detenting manual override compatibility via accessories and carries c UL us recognition along with a CE symbol according to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173435 is a 5/2 bistable industrial component featuring electrical actuation and an external pilot air supply with a pilot pressure range of 1.5 to 8 bar. Built with a 17.8 mm width, a piston slide design structure, an air spring reset, and a soft sealing principle, this piloted unit delivers a standard nominal flow rate of 700 l/min across a working pressure of -0.9 to 10 bar. It includes an IP65 protection class rating, a positive overlap lap, throttleable exhaust-air function, and c UL us recognized authorization. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173076 is an electrical industrial component featuring a 5/3 pressurized valve function, a piston slide design structure, and a standard nominal flow rate of 500 l/min across an 18 mm grid dimension with a 17.8 mm width. This piloted unit operates within a working pressure range of -0.9 to 10 bar, utilizes a mechanical spring reset with freedom from overlap, and incorporates a soft sealing principle with throttleable exhaust-air function. Built with an IP65 protection class and c UL us - Recognized (OL) authorization, the assembly supports any position, external pilot air supply, reversible flow direction, and a detenting manual override with accessories. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 173434 is a 5/2 bistable industrial component featuring electrical actuation and a piston slide design structure with an air spring reset. Operating at a standard nominal flow rate of 650 l/min across a working pressure range of -0.9 to 10 bar, this piloted unit includes an external pilot air supply, positive overlap lap, and throttleable exhaust-air function within a 17.8 mm width and 18 mm grid dimension. It offers IP65 protection, soft sealing principle, reversible flow direction, and a c UL us Recognized authorization alongside detenting manual override capabilities usable with accessories in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173075 is an electrical industrial component featuring a 5/3 pressurized valve function, a piston slide design structure, and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of 3 to 8 bar utilizing a soft sealing principle and internal pilot air supply. Additional technical attributes include a mechanical spring reset, IP65 protection class, c UL us recognized authorization, and throttleable exhaust-air function. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 173433 is a 5/2 bistable industrial component featuring electrical actuation and a piston slide design with internal pilot air supply. This unit offers a standard nominal flow rate of 650 l/min, a nominal size of 5 mm, a width of 17.8 mm, and an IP65 protection class across an operating working and pilot pressure range of 1.5 to 8 bar. It incorporates soft sealing, a positive overlap lap, throttleable exhaust-air function, an air spring reset, and can be mounted in any assembly position with a grid dimension of 18 mm. Submit the exact part number, quantity, and application requirements to receive a quote for this c UL us - Recognized component.
View product details →
Festo
The Festo 173074 is an electrical 5/2 monostable industrial component featuring a piston slide design structure with mechanical spring reset and a 17.8 mm width. This piloted valve has a standard nominal flow rate of 700 l/min, a nominal size of 5 mm, a working pressure range of -0.9 to 10 bar, an IP65 protection class, and c UL us recognition. It incorporates a soft sealing principle, throttleable exhaust-air function, external pilot air supply, positive overlap, and a grid dimension of 18 mm with an assembly position of any. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 173432 is an electrical industrial component featuring a 5/2 bistable valve function and a piston slide design structure with a 17.8 mm width and an 18 mm grid dimension. This piloted unit operates within a working and pilot pressure range of 1.5 to 8 bar, delivering a standard nominal flow rate of 700 l/min through a 5 mm nominal size. It includes an air spring reset, internal pilot air supply, non-reversible flow direction, throttleable exhaust-air function, soft sealing principle, positive overlap lap, IP65 protection class, c UL us Recognized (OL) authorization, and a detenting manual override usable with accessories in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 173814 is a Series D Maxi industrial component featuring a vertical assembly position and a 40 µm filtration grade with a manual rotary condensate drain. This unit handles an operating pressure of 1 to 16 bar, a standard nominal flow rate of 10,000 l/min, and a maximum condensate volume of 80 cm3 while utilizing compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. Equipped with a metal bowl guard and rated for moderate corrosion stress with a CRC of 2, the 1,400 g assembly operates within temperature limits of -10 to 60 µC. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 173073, is a 5/2 monostable valve featuring electrical actuation and a piston slide design structure with a soft sealing principle. The unit provides a width of 17.8 mm, a grid dimension of 18 mm, a nominal size of 5 mm, a standard nominal flow rate of 700 l/min, and an operating working pressure ranging from -0.9 to 10 bar utilizing an external pilot air supply and air spring reset. Additional specifications include IP65 protection class, positive overlap lap, reversible flow direction, throttleable exhaust-air function, detenting manual override with accessories, c UL us recognition, and a CE symbol according to the EU low voltage guideline for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 173431 is a 5/2 bistable industrial component featuring an electrical actuation and a piston slide design structure. It operates within a working pressure and pilot pressure range of 1.5 to 8 bar, delivering a standard nominal flow rate of 650 l/min through a 5 mm nominal size. Built with an IP65 protection class, soft sealing principle, and internal pilot air supply, this unit includes a throttleable exhaust-air function, air spring reset, and positive overlap lap. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 173072 is an electrical 5/2 monostable industrial component featuring a 17.8 mm width, a 5 mm nominal size, and an 18 mm grid dimension. Built with a piston slide design structure, soft sealing principle, and positive overlap lap, it delivers a standard nominal flow rate of 700 l/min across a working pressure range of 2.5 to 8 bar utilizing internal pilot air supply and an air spring reset. This piloted valve includes throttleable exhaust-air function, IP65 protection class, c UL us recognition, and CE compliance according to the EU low voltage guideline, with any assembly position and optional detenting manual override accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173071 is an electrical 5/2 monostable industrial component featuring a piston slide design structure with a soft sealing principle and positive overlap. Operating at a working pressure of 2.5 to 8 bar, this 17.8 mm wide piloted valve delivers a standard nominal flow rate of 700 l/min through a 5 mm nominal size and 18 mm grid dimension. It includes an internal pilot air supply, a mechanical spring reset, throttleable exhaust-air function, non-reversible flow direction, and IP65 protection class with c UL us recognition and a CE symbol according to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 173069 is an electrical 5/2 bistable industrial component featuring a piston slide design structure and an air spring reset. This piloted valve has a 17.8 mm width, a 5 mm nominal size, an 18 mm grid dimension, and a standard nominal flow rate of 700 l/min operating across a working pressure of -0.9 to 10 bar. Built with a soft sealing principle, throttleable exhaust-air function, external pilot air supply, and IP65 protection class, it includes a detenting manual override with accessories and c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 173068 is an electrical 5/2 bistable industrial component featuring a 17.8 mm width, a piston slide design structure with positive overlap, and a standard nominal flow rate of 700 l/min. Operating at a working pressure of 1.5 to 8 bar with internal pilot air supply, this IP65-protected unit incorporates a soft sealing principle, an air spring reset, and a throttleable exhaust-air function. It includes a detenting manual override option via accessories, features a nominal size of 5 mm with an 18 mm grid dimension, and carries c UL us recognition along with a CE symbol conforming to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173409 is an electrical industrial component featuring a 5/3 exhausted valve function, a piston slide design structure, and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 500 l/min across a working pressure and pilot pressure of 3 to 8 bar, utilizing internal pilot air supply, positive overlap lap, and a soft sealing principle. This IP65-rated unit includes a mechanical spring reset, throttleable exhaust-air function, non-reversible flow direction, and c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173066 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a soft sealing principle. It provides a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar, utilizing an 18 mm grid dimension with a 17.8 mm width and 5 mm nominal size. This piloted unit operates with an external pilot air supply, mechanical spring reset, throttleable exhaust-air function, and freedom from overlap, while carrying an IP65 protection class and c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

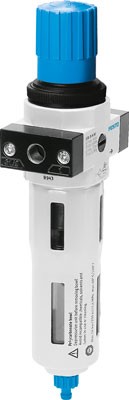

The Festo part number 173807 is a Maxi size industrial component from the D series, engineered for vertical assembly positions with a standard nominal flow rate of 9,700 l/min and a working pressure range of 2 to 12 bar. This unit features a 40 µm grade of filtration, a fully automatic condensate drain with an 80 cm3 max condensate volume, and a metal bowl guard for a product weight of 1,300 g. Operating with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within a medium and ambient temperature range of 5 to 60 µc, it achieves an air purity class at the output of ISO 8573-1:2010 [7:8:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173065 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a positive overlap lap. Measuring 17.8 mm in width with an 18 mm grid dimension and a 5 mm nominal size, this piloted unit operates at a working pressure of 3 to 8 bar and delivers a standard nominal flow rate of 500 l/min. It incorporates internal pilot air supply, mechanical spring reset, throttleable exhaust-air function, soft sealing principle, and IP65 protection class with c UL us recognition and CE compliance according to the EU low voltage guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
