Festo

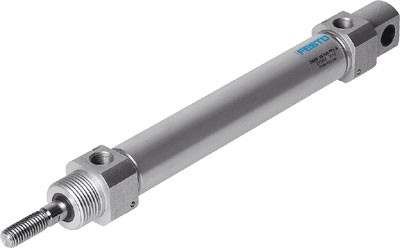

The Festo 172638 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating on compressed air compliant with ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar. This unit incorporates PPV pneumatic cushioning at both ends with a 27 mm cushioning length, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, delivering theoretical forces of 1,178 N advancing and 989 N retracting at 6 bar (0.6 MPa). It possesses a CRC rating of 2 for moderate corrosion stress, VDMA24364-B2-L PWIS conformity, an ambient temperature range of -20 to 80 °C, an M45x1,5 pneumatic connection, and a basic weight of 977 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

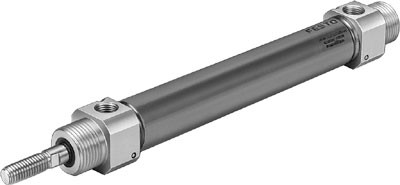

Engineered by Festo, part number 172627 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and pneumatic cushioning at both ends (PPV). Operating within a 1 to 10 bar pressure range using compressed air per ISO8573-1:2010 [7:4:4], this assembly provides a theoretical retracting force of 989 N and an advancing force of 1,178 N at 0.6 MPa (6 bar, 87 psi). The unit incorporates wrought aluminum alloy covers, NBR and TPE-U(PU) seals, a CRC 2 moderate corrosion resistance classification, and functions in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

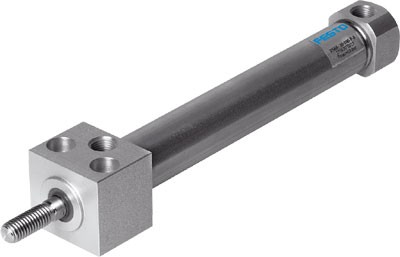

The Festo part number 172616 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating at pressures between 1 and 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4]. It is constructed with wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and features PPV pneumatic cushioning adjustable at both ends with a 27 mm cushioning length. The unit delivers a theoretical force of 1,178 N on advance and 989 N on retraction at 0.6 MPa, while maintaining a CRC rating of 2 for moderate corrosion stress and an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 173055 is a 5/2 bistable industrial component featuring electrical actuation, a piston slide design, and a standard nominal flow rate of 650 l/min across an 17.8 mm width. This piloted valve operates within a working pressure range of -0.9 to 10 bar utilizing an external pilot air supply, an air spring reset, and a soft sealing principle with positive overlap. Built with an IP65 protection class, 5 mm nominal size, 18 mm grid dimension, throttleable exhaust-air function, and reversible flow direction, it holds c UL us - Recognized (OL) authorization and carries the CE symbol according to the EU low voltage guideline for any assembly position with detenting manual override accessories. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 1709209 is a size 186 electrically adjustable pressure regulator featuring a nominal diameter DN of 45 and a vertical assembly position from series L. Operating with a working pressure of 0 to 50 bar and a pressure regulation range of 0.4 to 40 bar, this unit delivers a constant output pressure with initial pressure compensation, secondary exhaust, and a safety function for exhausting the control chamber to category 3, Performance Level d. It requires a nominal operating voltage of 24 V DC, utilizes 0 to 10 V analog input and output signal ranges for setpoint and actual values, and maintains a maximum pressure hysteresis of 0.1 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173054 is an electrically actuated 5/2 bistable industrial component featuring a piston slide design structure with a soft sealing principle and positive overlap. Operating at a working pressure range of 1.5 to 8 bar, this 17.8 mm wide valve delivers a standard nominal flow rate of 650 l/min utilizing an internal pilot air supply, air spring reset, and throttleable exhaust-air function. Built to an IP65 protection class with c UL us recognition and CE compliance according to the EU low voltage guideline, the unit incorporates a detenting manual override and supports any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

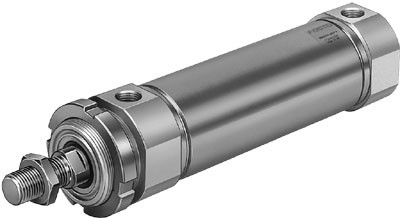

The Festo 172605 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and a pneumatic connection of M45x1,5. Operating on compressed air according to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit delivers a theoretical retracting force of 989 N and an advance force of 1,178 N at 0.6 MPa (6 bar, 87 psi). Constructed with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and PPV pneumatic cushioning adjustable at both ends, it functions in ambient temperatures from -20 to 80 °C under a CRC 2 moderate corrosion stress classification. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 1709208 is an electrically adjustable pressure regulator of size 186 in series L, featuring a nominal diameter DN of 45 and a vertical assembly position. This unit provides a controller function with output pressure constant, initial pressure compensation, and secondary exhaust, operating across a working pressure of 0 to 50 bar and a pressure regulation range of 0.4 to 40 bar. It includes a safety function for exhausting the control chamber, achieving category 3, Performance Level d according to the EU machines guideline and EU printing device guideline. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 172594 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating via compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range. This unit incorporates PPV pneumatic cushioning at both ends with a 27 mm cushioning length, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification. At 0.6 MPa (6 bar, 87 psi), the component delivers a theoretical retracting force of 989 N and an advancing force of 1,178 N, functioning across ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 173052 is a 5/3 closed industrial component featuring electrical actuation and a piston slide design structure with a 17.8 mm width and 18 mm grid dimension. This piloted valve operates within a working pressure range of -0.9 to 10 bar, delivers a standard nominal flow rate of 500 l/min, and utilizes a mechanical spring reset along with a soft sealing principle. Additional technical specifications include an IP65 protection class, c UL us authorization, reversible flow direction, throttleable exhaust-air function, and external pilot air supply. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo mounting kit SMBR-10-16 is an industrial component featuring a size 16 configuration. This product conforms to RoHS materials requirements as documented in the official Festo data sheet. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo mounting kit SMBR-10-10, part number 173227, features size 10 specifications and is manufactured with materials that conform to RoHS standards. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
The Festo 173051 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a soft sealing principle. It has an 17.8 mm width, an 18 mm grid dimension, a 5 mm nominal size, and a standard nominal flow rate of 500 l/min operating at a working pressure of 3 to 8 bar. This piloted unit utilizes internal pilot air supply, mechanical spring reset, non-reversible flow direction, throttleable exhaust-air function, freedom from overlap, and an IP65 protection class with c UL us recognition. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo mounting kit SMBR-10-6 is an industrial component featuring size 6 dimensions. Materials used in this assembly conform to RoHS standards as detailed in the official Festo data sheet. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 173050 is an electrical 5/3 exhausted industrial component utilizing a piston slide design structure and a mechanical spring type of reset. This piloted unit features a 17.8 mm width, a 5 mm nominal size, an 18 mm grid dimension, a standard nominal flow rate of 500 l/min, and a working pressure range of -0.9 to 10 bar with external pilot air supply. Additional attributes include IP65 protection class, c UL us recognized authorization, soft sealing principle, reversible flow direction, throttleable exhaust-air function, freedom from overlap, and detenting manual override usable with accessories in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 173225 is a magnetoresistive industrial component designed for round slots, featuring an NPN normally open contact switch output and a reproducibility of switching value of +/- 0,1 mm. This unit operates within a 10 to 30 V DC voltage range, supports a maximum output current of 200 mA, and functions at ambient temperatures from -5 to 60 °C. Constructed free of copper and PTFE, it complies with EN 60947-5-2 and the EU-EMV guideline with C-Tick authorization. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 173049 is an electrical piston slide industrial component featuring a 5/3 exhausted valve function with a 17.8 mm width, an 18 mm grid dimension, and a 5 mm nominal size. This piloted unit operates within a working pressure range of 3 to 8 bar, delivers a standard nominal flow rate of 500 l/min utilizing internal pilot air supply, and includes a mechanical spring reset, a soft sealing principle, throttleable exhaust-air function, and freedom from overlap. Rated to IP65 protection class and c UL us - Recognized (OL) authorization, it supports any assembly position, non-reversible flow direction, detenting manual override via accessories, and requires a switching frequency of at least once a week for forced dynamisation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 173224 is an industrial component designed for round slots utilizing a magnetoresistive measuring principle with an NPN normally open contact switch output. It operates within a 10 to 30 V DC range, featuring pulsing short circuit strength, overload withstand capability, and reverse polarity protection for all electrical connections. Conforming to EN 60947-5-2 standards with C-Tick authorization and a CE symbol according to the EU-EMV guideline, this copper- and PTFE-free unit functions in ambient temperatures from -5 to 60 °C with a max output current of 200 mA. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173048 is an electrical industrial component featuring a 5/3 pressurized valve function, a piston slide design structure, and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 400 l/min across a working pressure range of -0.9 to 10 bar, utilizing external pilot air supply, a soft sealing principle, and a mechanical spring type of reset. Certified with an IP65 protection class and c UL us - Recognized (OL) authorization, this unit includes throttleable exhaust-air function, reversible flow direction, freedom from overlap, and detenting manual override available with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 173223 is an industrial component designed for round slots utilizing a magnetoresistive measuring principle with an NPN switch output and a normally open contact switching element function. It operates within a 10 to 30 V DC voltage range, providing a maximum output current of 200 mA, a max DC contact rating of 6 W, and a reproducibility of switching value of +/- 0,1 mm across an ambient temperature range of -5 to 60 °C. Conforming to EN 60947-5-2 with C-Tick authorization, CE symbol compliance under the EU-EMV guideline, and a copper- and PTFE-free materials note, the unit includes pulsing short circuit strength, overload withstand capability, and polarity protection for all electrical connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
