Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Gewiss
The Gewiss GW14121 is a 1-module, three-way switch featuring a 1P 10 AX rating for 250 V ac applications and a neutral button key with an UP-DOWN symbol. Constructed from glossy titanium technopolymer, this EN 60669-1 compliant component includes screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². The mechanism sustains 40,000 position changes at In 250 V ac cosφ=0.6, withstands a test voltage of 2000 V at 50 Hz for 1 minute, and supports a rated power of 230V LED lamps up to 100 W. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Gewiss
The Gewiss GW14103F is a 250 V ac 1P 16 AX illuminable intermediate switch featuring a glossy titanium finish and a replaceable neutral lens occupying 2 modules. Built from technopolymer adhering to EN 60669-1, it incorporates quick spring wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x2.5 mm². Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW14103 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac, featuring a glossy titanium finish and a replaceable neutral lens occupying 2 modules. Constructed from technopolymer, it complies with EN 60669-1 standards and is rated for a rated power of 230V LED lamps up to 200 W, with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². The component delivers a prolonged operation of 40,000 position changes at In 250 V ac (cosφ=0.6) and withstands a test voltage resistance of 2000 V at 50 Hz for 1 minute along with an insulation resistance greater than 5 MOhm. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Gewiss
The Gewiss GW14102F is a 2-module intermediate switch rated for 1P 250 V ac and 16 AX, featuring an illuminable button key with a diffuser in a glossy titanium technopolymer finish. Built to EN 60669-1 standards, this component utilizes spring-actuated quick wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x2.5 mm², with a rated power of 230V LED lamps up to 200 W. It withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and delivers 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Gewiss
The Gewiss GW14102 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac, featuring a glossy titanium finish with an integrated diffuser occupying 2 modules. Built from technopolymer, the unit complies with EN 60669-1 and supports screw wiring terminals with solid cable capacities from 0.5 to 2x2.5 mm² and stranded capacities from 0.75 to 2x4 mm². Request a quote for this part by submitting your exact part number, required quantity, and application specifications.
View product details →
Gewiss
The Gewiss GW14101F is a 1P 16 AX intermediate switch operating at 250 V ac, constructed from glossy titanium technopolymer in a 2-module configuration featuring quick spring wiring terminals. Built to EN 60669-1 standards, it withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 200 W. This unit endures 40,000 position changes at In 250 V ac cosφ=0.6, incorporates a ball thermo-pressure rating of 125 °C, passes the 850 °C Glow Wire Test, and accommodates solid or stranded cables from 0.5 mm² to 2x2.5 mm² with a terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Gewiss
The Gewiss GW14101 is a 1-pole reversing switch rated at 250 V ac and 16 AX featuring a neutral button key in a glossy titanium finish spanning 2 modules. Constructed from technopolymer, this EN 60669-1 compliant device supports a rated power of 200 W for 230V LED lamps and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm² with a terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW14093 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac, constructed from technopolymer in a glossy titanium finish with a replaceable neutral lens. This single-module component complies with EN 60669-1 and features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It delivers a prolonged operation endurance of 40,000 position changes at In 250 V ac cosφ=0.6, alongside a Glow Wire Test rating of 850 °C and ball thermo-pressure resistance at 125 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss
The Gewiss GW14092 is a 1-module, 1-pole reversing switch rated for 250 V ac and 16 AX, featuring an illuminable design with a glossy titanium diffuser made of technopolymer. Built to EN 60669-1 standards, it withstands 2000 V at 50 Hz for 1 minute, offers insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 200 W. Featuring screw wiring terminals with a solid cable capacity of 0.5 to 2.5 mm² and stranded cable capacity of 0.75 to 2x4 mm², this component endures 40,000 position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure of 125 °C, and a Glow Wire Test of 850 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW14091 is a 1-module reversing switch rated for 250 V ac and 16 AX featuring a neutral button key in a glossy titanium finish. Constructed from technopolymer, this component complies with EN 60669-1 and incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for 1 minute, provides an insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 200 W. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

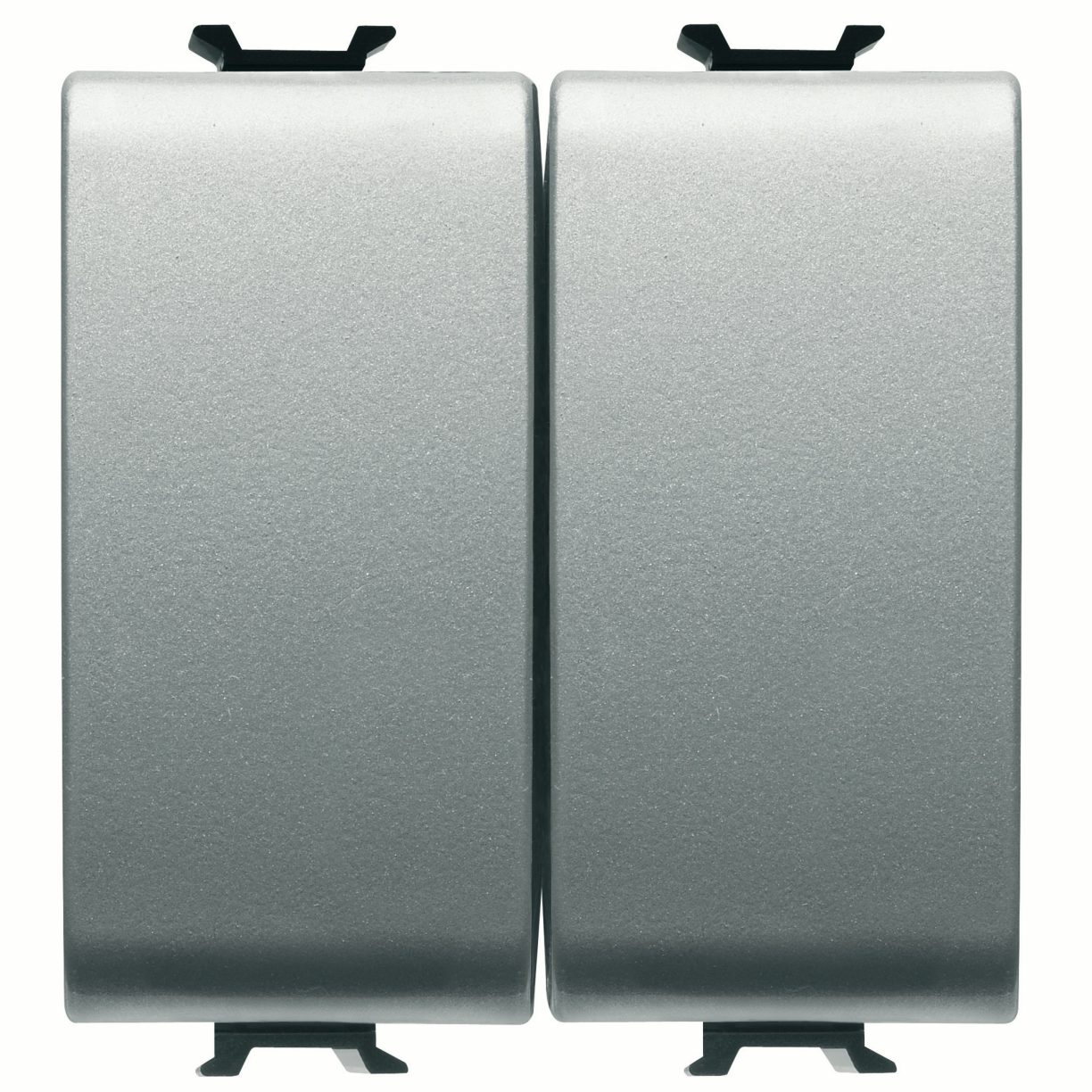

The Gewiss GW14078F is a twin two-way switch rated for 250 V ac with a 1P 16 AX configuration, featuring quick spring wiring terminals and a neutral glossy titanium button key spanning 2 modules. Constructed from technopolymer, it complies with the EN 60669-1 standard and is rated for a LED lamp load of 200 W at 230V, enduring 40,000 position changes at In 250 V ac cosφ=0.6. Terminal capacities accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x2.5 mm², with a dielectric strength resistance of 2000 V at 50 Hz for 1 minute. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Gewiss
The Gewiss GW14073F is a 2-module, 1-pole 16AX illuminable two-way switch rated for 250 V ac, featuring a glossy titanium finish and a button key with a replaceable neutral lens. Constructed from technopolymer, it utilizes quick spring wiring terminals with a stranded cable capacity of min. 0.75 to max. 2x2.5 mm² and a solid cable capacity of min. 0.5 to max. 2x2.5 mm². The component conforms to EN 60669-1 with a rated power for 230V LED lamps of 200 W, insulation resistance greater than 5 MOhm, and a dielectric strength of 2000 V at 50 Hz for 1 minute. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Gewiss
The Gewiss GW14073 is a 1P 16AX illuminable two-way switch rated at 250 V ac, constructed from glossy titanium technopolymer and occupying 2 modules. Built with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this component features a replaceable neutral lens button key and complies with EN 60669-1. It withstands 2000 V at 50 Hz for 1 minute, offers insulation resistance greater than 5 MOhm, and delivers a rated power of 200 W for 230V LED lamps. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss GW14072F is a 2-module, 1P 16AX illuminable two-way switch rated for 250 V ac, featuring a glossy titanium technopolymer construction with a diffusers button key and quick spring wiring terminals. Compliant with EN 60669-1, this component demonstrates a rated power of 200 W for 230V LED lamps, 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6, and withstands a test voltage resistance of 2000 V at 50 Hz for 1 minute with insulation resistance exceeding 5 MOhm. It incorporates a ball thermo-pressure rating of 125 °C, a glow wire test of 850 °C, terminal grip on cable traction over 50 N, and accommodates solid cables from 0.5 to 2x2.5 mm² alongside stranded cables from 0.75 to 2x2.5 mm². Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →Gewiss
The Gewiss GW14072 is a 1P 16AX illuminable two-way switch rated at 250 V ac, constructed from glossy titanium technopolymer occupying 2 modules. Built in accordance with EN 60669-1, this component features screw wiring terminals, a built-in diffuser button key, and a rated power capacity of 200 W for 230V LED lamps. Technical performance parameters include 40,000 position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure rating of 125 °C, and an 850 °C Glow Wire Test resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW14071F is a two-way 1P 16AX switch operating at 250 V ac, constructed from glossy titanium technopolymer in a 2-module format with a neutral button key. It features quick spring wiring terminals accommodating solid and stranded cables from 0.5 mm² to 2x2.5 mm², complying with EN 60669-1 with a rated power for 230V LED lamps of 200 W. Built for durability, it withstands 40,000 position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure test of 125 °C, and a glow wire test of 850 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW14071 is a 1P 16 AX two-way switch rated at 250 V ac featuring a neutral button key in a glossy titanium finish spanning 2 modules. Built from technopolymer adhering to EN 60669-1, it delivers a rated power of 200 W for 230V LED lamps and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss
The Gewiss GW14061 is a 1P 10AX two-way switch rated at 250 V ac featuring a neutral button key in glossy titanium and a compact 1/2 module technopolymer construction. Built with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this component complies with EN 60669-1 and delivers a rated power of 230V LED lamps up to 100 W. It sustains 40,000 position changes at In 250 V ac cosφ=0.6, a test voltage resistance of 2000 V at 50 Hz for 1 minute, and insulation resistance greater than 5 MOhm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

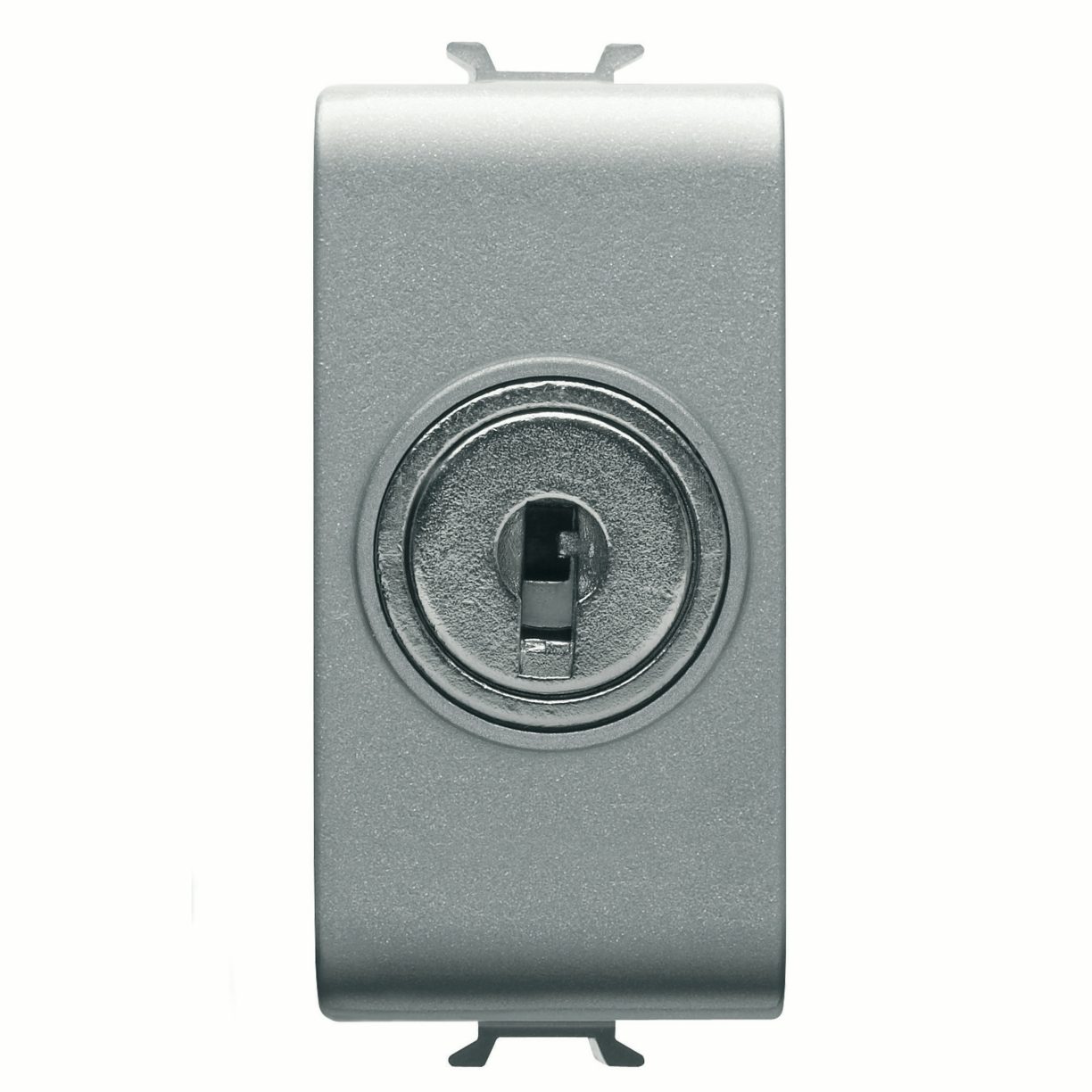

The Gewiss GW14054 is a 1-pole, 10AX two-way switch rated for 250 V ac, constructed from glossy titanium technopolymer in a 1-module format with an integrated key mechanism and screw wiring terminals. Built in accordance with EN 60669-1, it endures 40,000 position changes at In 250 V ac cosφ=0.6 and accommodates solid cables from 0.5 to 2x2.5 mm² alongside stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Gewiss
The Gewiss GW14053 is a 1P 16AX illuminable two-way switch rated at 250 V ac, constructed from glossy titanium technopolymer in a single-module format. Built with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from min. 0.75 to max. 2x4 mm², this component features a button key with a replaceable neutral lens and complies with EN 60669-1. It delivers a rated power of 200 W for 230V LED lamps, withstands a test voltage resistance of 2000 V at 50 Hz for one minute, and endures 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
