Gewiss
The Gewiss GW14001 is a 1-module, one-way 1P 250 V ac 16AX neutral switch featuring a glossy titanium technopolymer button key and screw wiring terminals. Built to EN 60669-1 standards, this component supports a rated power of 200 W for 230V LED lamps and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Technical parameters include an insulation resistance greater than 5 MOhm, 2000 V test voltage resistance at 50 Hz for 1 minute, an 850 °C glow wire test rating, and terminal capacities accommodating 0.5 to 2.5 mm² solid cables and 0.75 to 2x4 mm² stranded cables. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

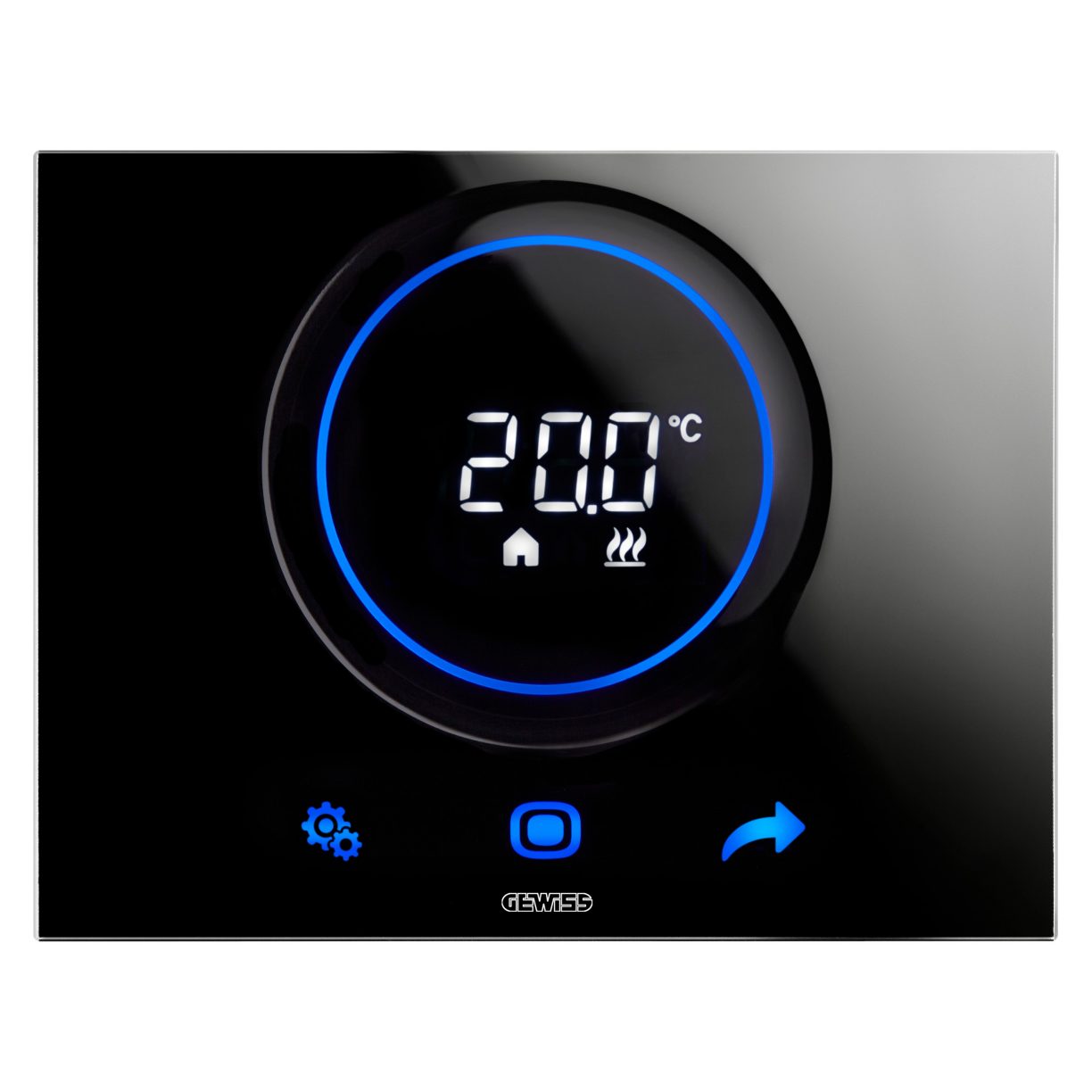

The Gewiss GW16970CN is a wall-mounting Chorus system Wi-Fi thermostat featuring a black technopolymer front plate and dimensions of 123.2x95.2x20.6 mm with an IP20 degree of protection. Operating on a 110-230 V ac power supply at 50/60 Hz, the unit consumes under 3 W with less than 1 W in stand-by and integrates IEEE 802.11 b/g/n 2.4GHz Wi-Fi communication alongside two NO 6 A potential-free output channels and one input channel for an external NTC sensor. It measures temperature, humidity, and external NTC temperature values within a working temperature range of -5 to +45 °C and maximum 93% non-condensative relative humidity, utilizing screw wiring terminals with a maximum tightening capacity of 1.5 mm² for stranded and solid cables. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW12918 is a 2-module electronic soft-click push-button featuring a backlit design and a replaceable neutral lens. This component utilizes a 1NO potential-free type of contact and functions as a bus contacts interface, classified under HS code 85365080. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →
Gewiss
The Gewiss GW12917 is an electronic soft-click push-button featuring a backlit design and a diffuser, occupying 2 modules. This component utilizes a 1NO potential-free type of contact and is designated for bus contacts interfaces, corresponding to HS code 85365080. Request a formal quote by submitting the exact part number, quantity, and application requirements.
View product details →
Gewiss
The Gewiss GW12916 is a 1-module electronic soft-click push-button featuring a backlit design and a replaceable neutral lens. This component utilizes a 1NO potential-free contact type and functions as a bus contacts interface classified under HS code 85365080. Request a formal quote by submitting the exact part number, required quantity, and application specifications.
View product details →
Gewiss
The Gewiss GW12915 is a 1-module electronic soft-click push-button featuring a neutral button key and a potential-free 1NO/NC 4 A (AC1) 230 V ac type of contact. This component is specified for use with relay, dimmer, and bus contacts interfaces under HS code 85365080. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW12914 electronic soft-click push-button is a 1-module double unit designed for bus contact integration. This component features neutral dual potential-free button keys with an interlock and an UP - DOWN symbol, classified under HS code 85365080. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Gewiss
The Gewiss GW12913 is an electronic soft-click push-button featuring 1 module and a button key with a diffuser. This component includes a 1NO potential-free type of contact and is specified for bus contacts interfaces, corresponding to HS code 85365080. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Gewiss
The Gewiss GW12912 electronic soft-click push-button features a backlit design with an integrated diffuser and operates at a supply voltage of 230 V ac across 50/60 Hz. This unit incorporates a 1NO 4 A (AC1) 230 V ac contact type for use with relays and dimmers (Ware Number: 85365080). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Gewiss

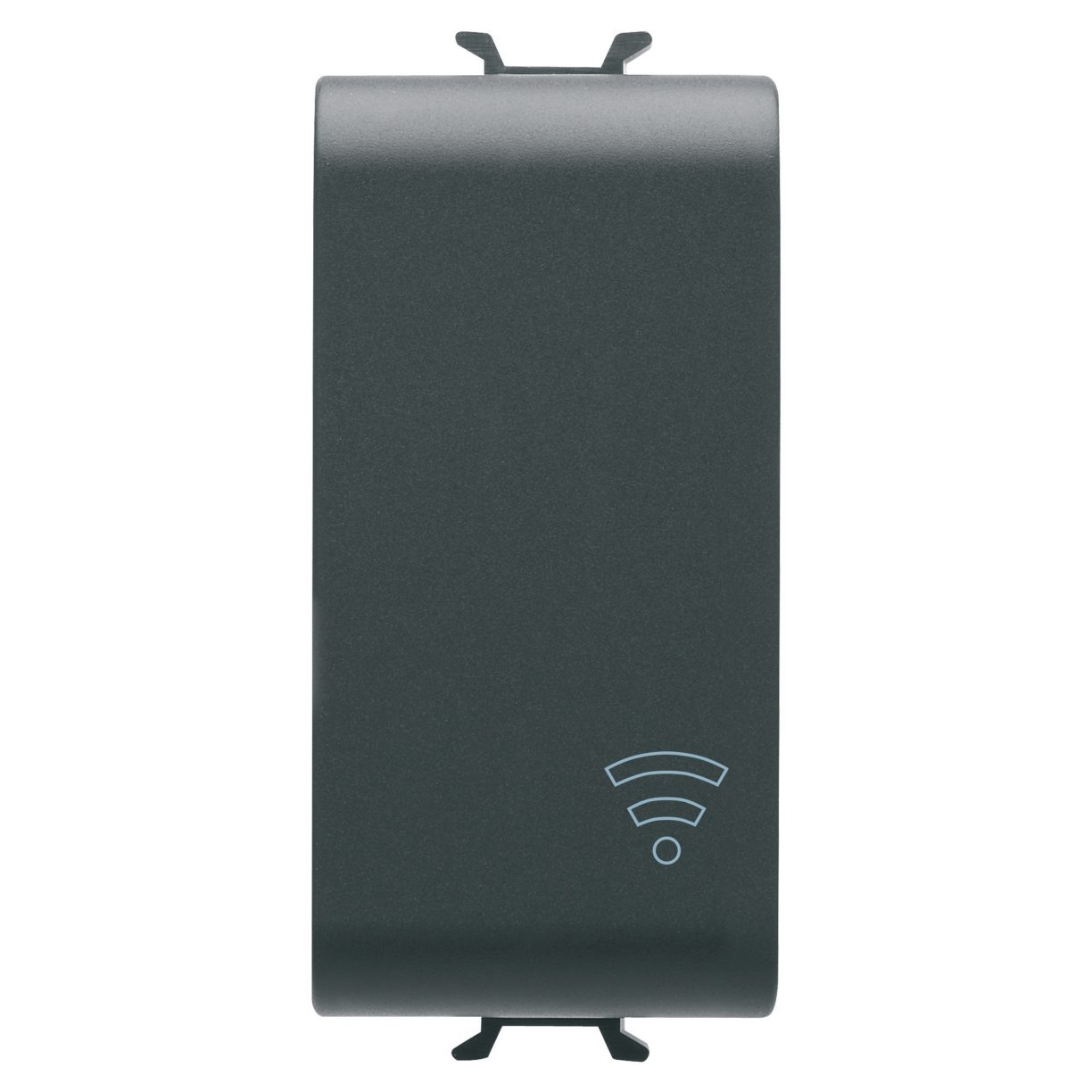

The Gewiss GW12750 is a 1-module blanking module for Zigbee devices featuring a satin black technopolymer construction with a radio frequency symbol. This component complies with EN 60669-1 and is suitable for contacts interfaces and Zigbee actuators, exhibiting a ball thermo-pressure rating of 125 °C and a glow wire test rating of 850 °C. The item has an electrocod of 0100 and a HS code of 85389099. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

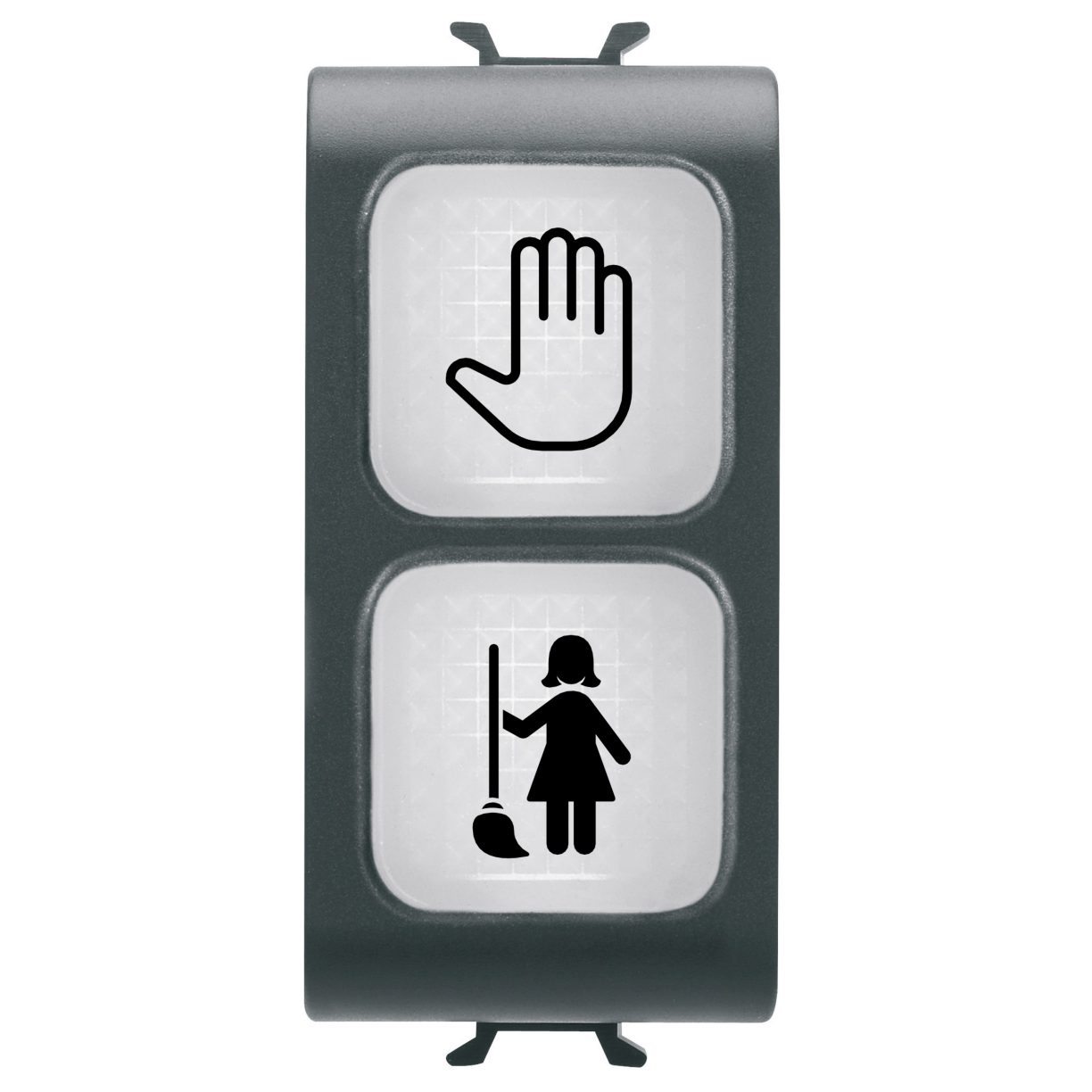

The Gewiss GW12736 is a 1-module double indicator lamp featuring an opal diffuser with a DND+MUR symbol and a satin black finish. Manufactured in accordance with EN 62094-1 standards, this device has an Electrocod of 0781 and a custom HS code of 85308000. It exhibits a ball thermo-pressure rating of 125 °C and withstands the Glow Wire Test at 850 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

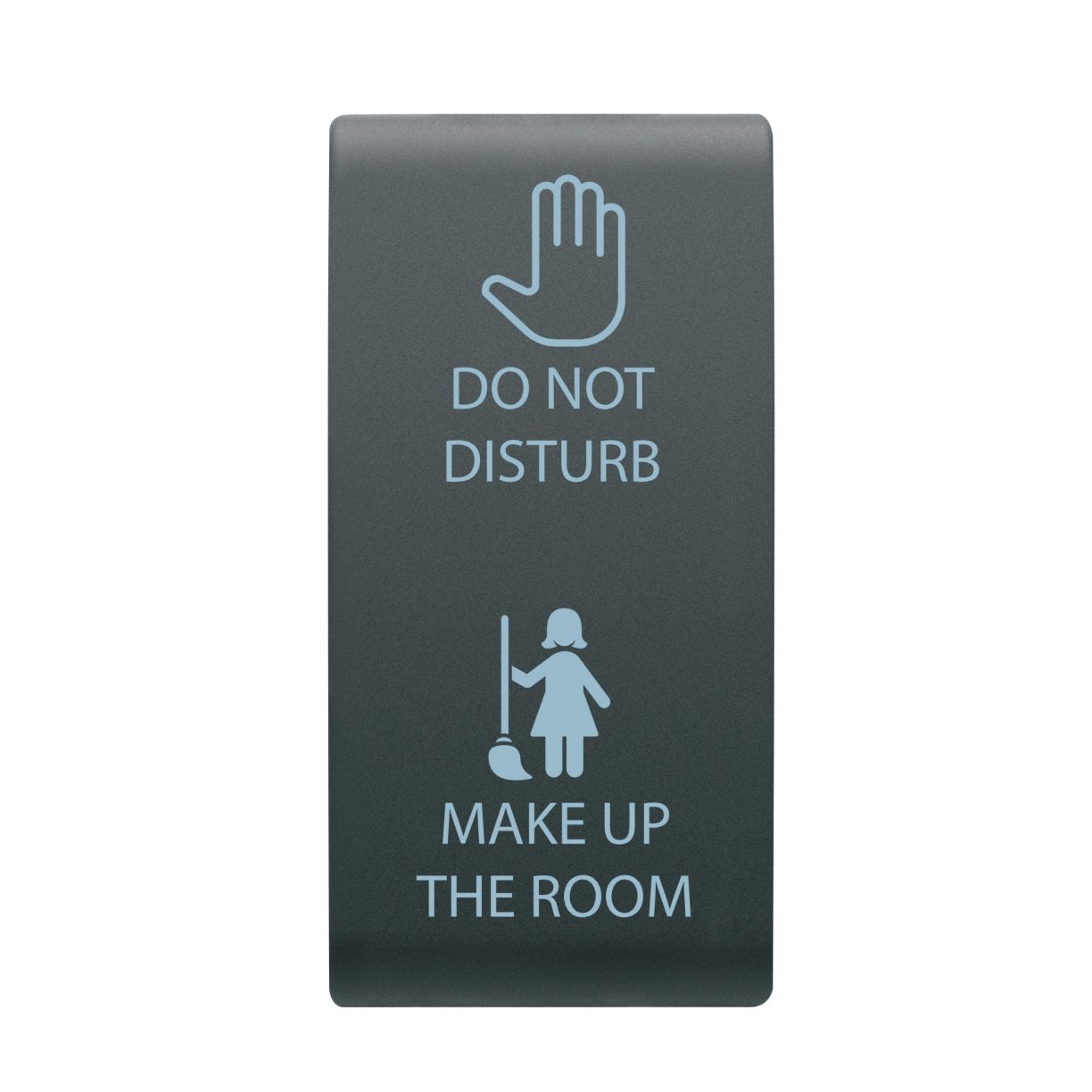

The Gewiss GW12733 is a 1-module neutral interchangeable button key featuring the DND+MUR symbol in a satin black finish. This component complies with the EN 60669-1 standard and features a ball thermo-pressure rating of 125 °C along with a 850 °C glow wire test rating. It is classified under Electrocod 140 and HS code 85389099. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Gewiss

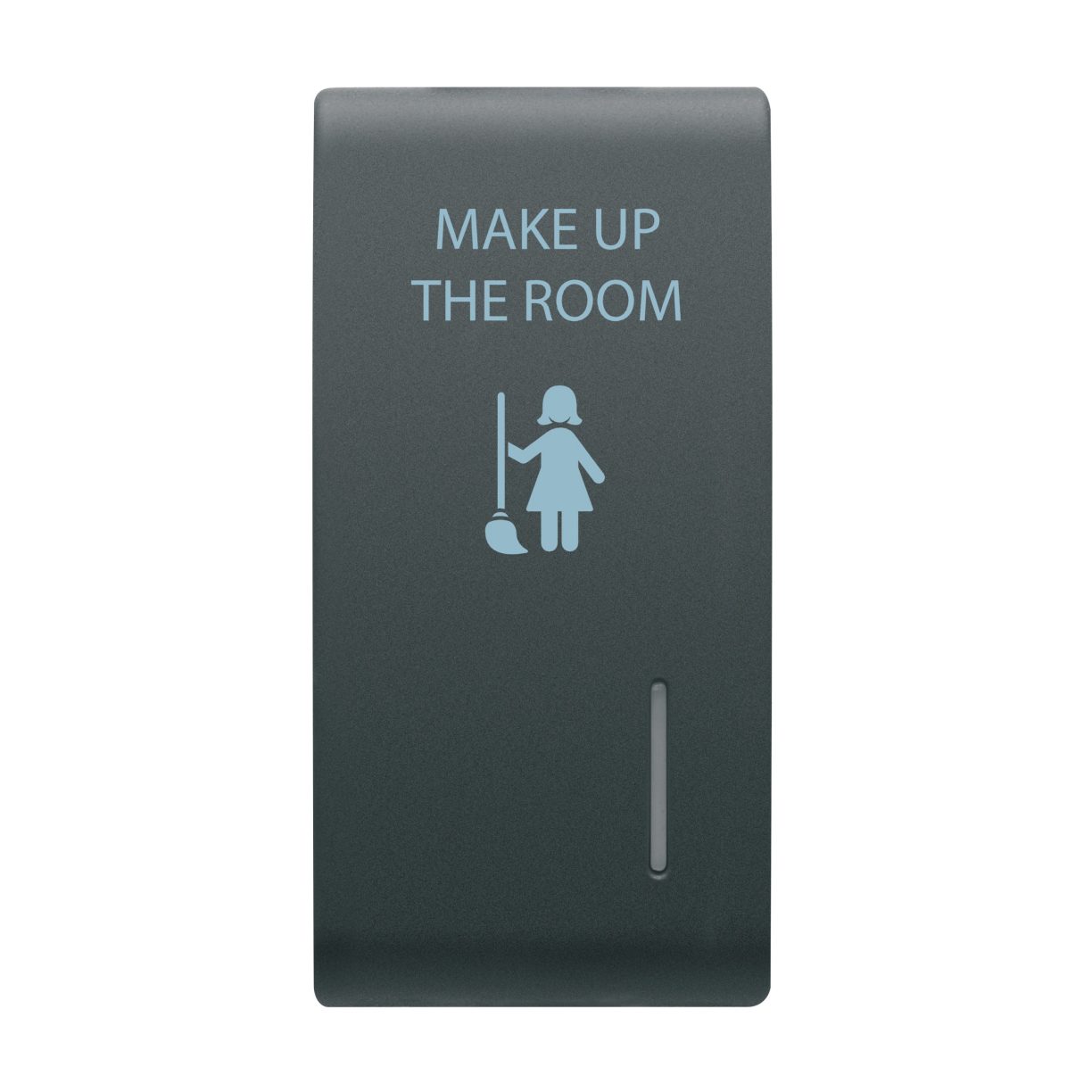

The Gewiss GW12732 is a 1-module interchangeable button key featuring a diffuser and the MUR symbol in a satin black finish. This component complies with the EN 60669-1 standard and features an electrocod rating of 140, a ball thermo-pressure rating of 125 °C, and an 850 °C glow wire test rating under the 85389099 HS code. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

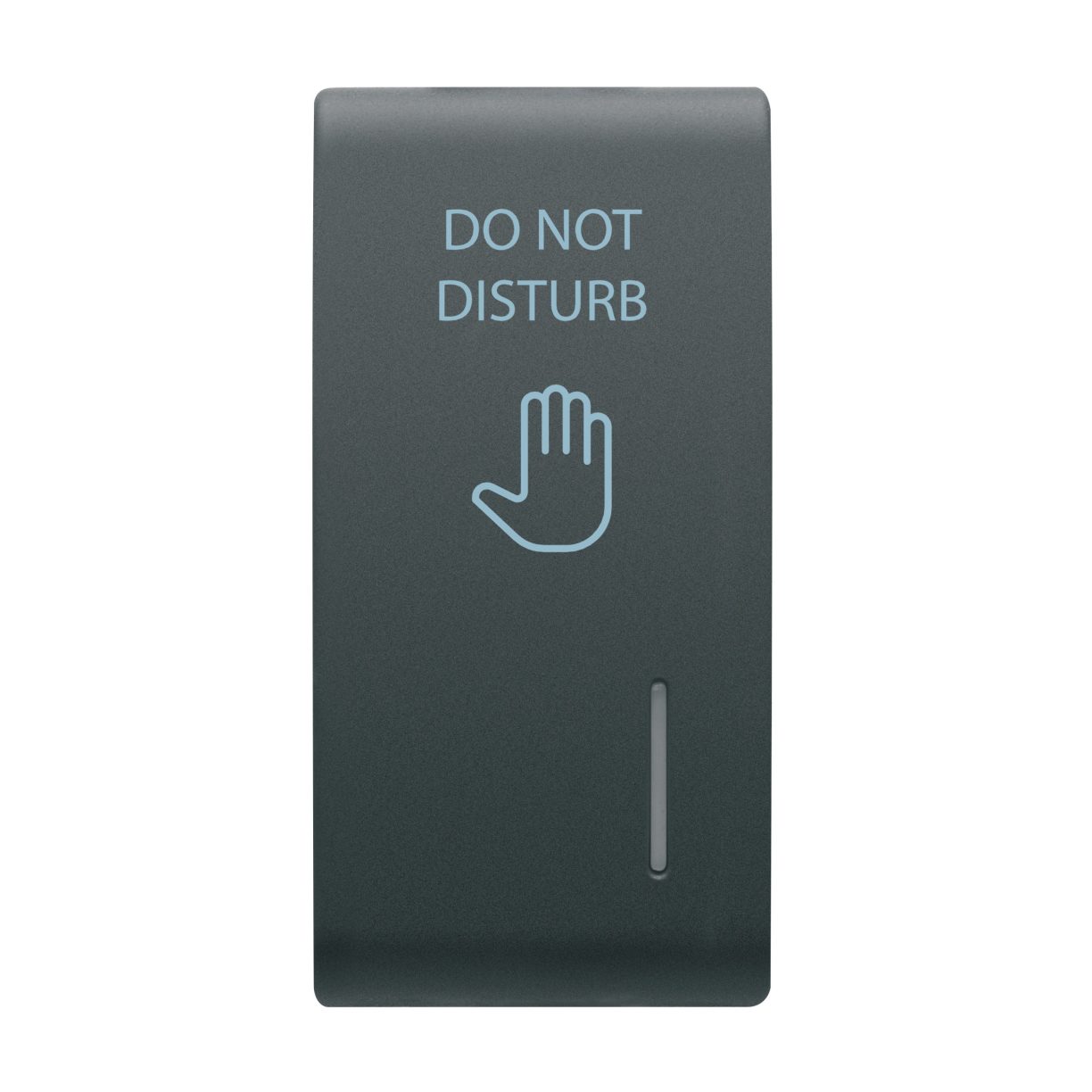

The Gewiss GW12731 is a 1-module interchangeable button key featuring a diffuser and the 'DND' symbol in satin black. This component complies with EN 60669-1 and incorporates an Electrocod of 140, a ball thermo-pressure rating of 125 °C, and an 850 °C Glow Wire Test rating under commodity code 85389099. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Gewiss
The Gewiss GW12726 is a 1-module call relay supplied at 12 V ac/dc featuring a 1P 1NO/NC output contact rated for a maximum of 1 A. Housed in a satin black technopolymer body, this component integrates screw wiring terminals with solid cable capacities from 0.5 to 2x2.5 mm² and stranded cable capacities from 0.75 to 2x4 mm². It complies with EN 60669-1 and EN 60669-2-2 standards, with a test voltage resistance of 2000 V at 50 Hz for 1 minute and insulation resistance exceeding 5 MOhm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

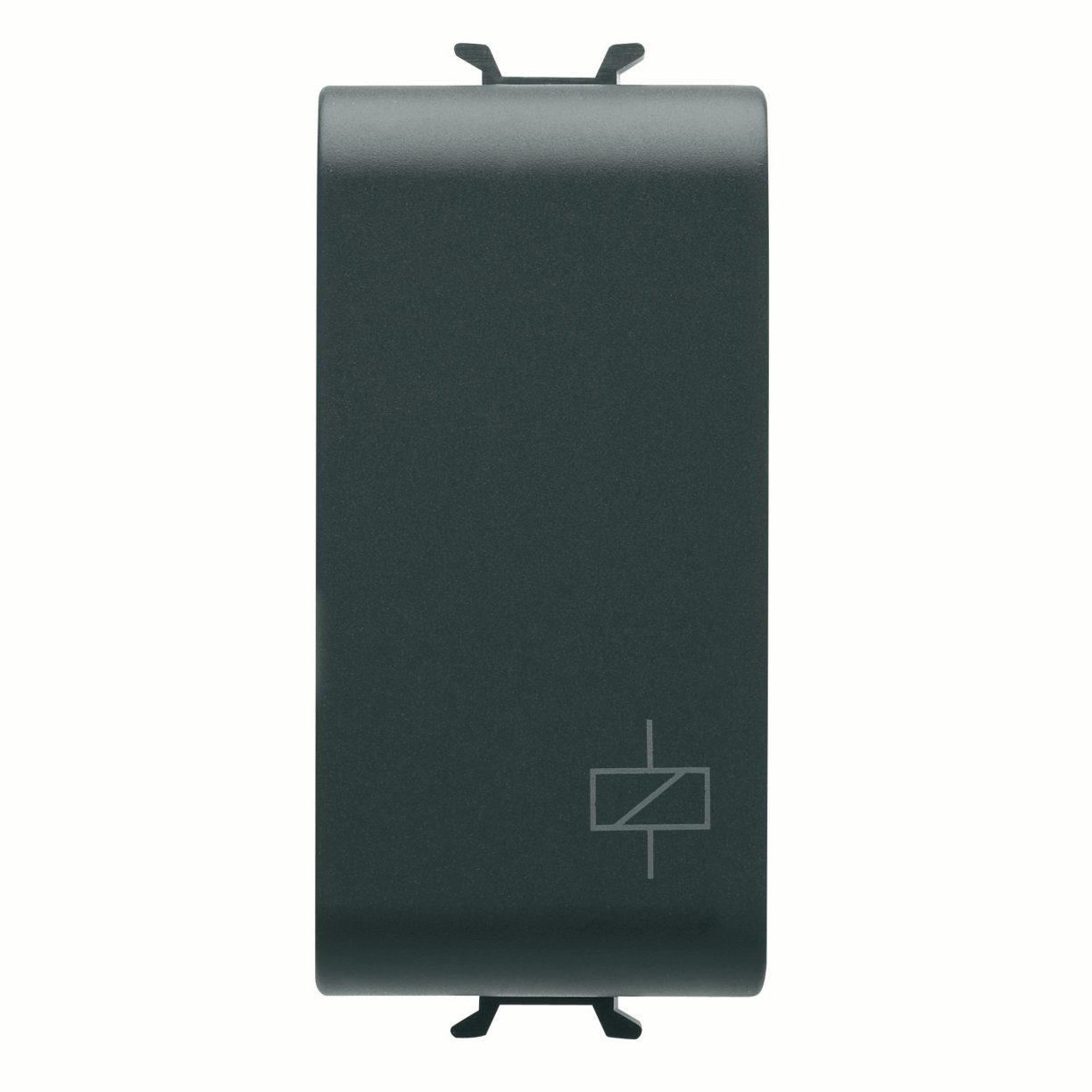

The Gewiss GW12724 is a 1-pole monostable momentary relay operating at 230 V ac (50/60 Hz) in a satin black technopolymer housing occupying 1 module. It features 1NO/NC output contacts rated for 10 A (AC1) and 2 A (AC15) at 250 V ac, screw wiring terminals accommodating stranded cables from 1 mm² to 2x4 mm² and solid cables from 1 mm² to 2x2.5 mm², and conforms to EN 60669-1 and EN 60669-2-2 standards with an electrocod of 140. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

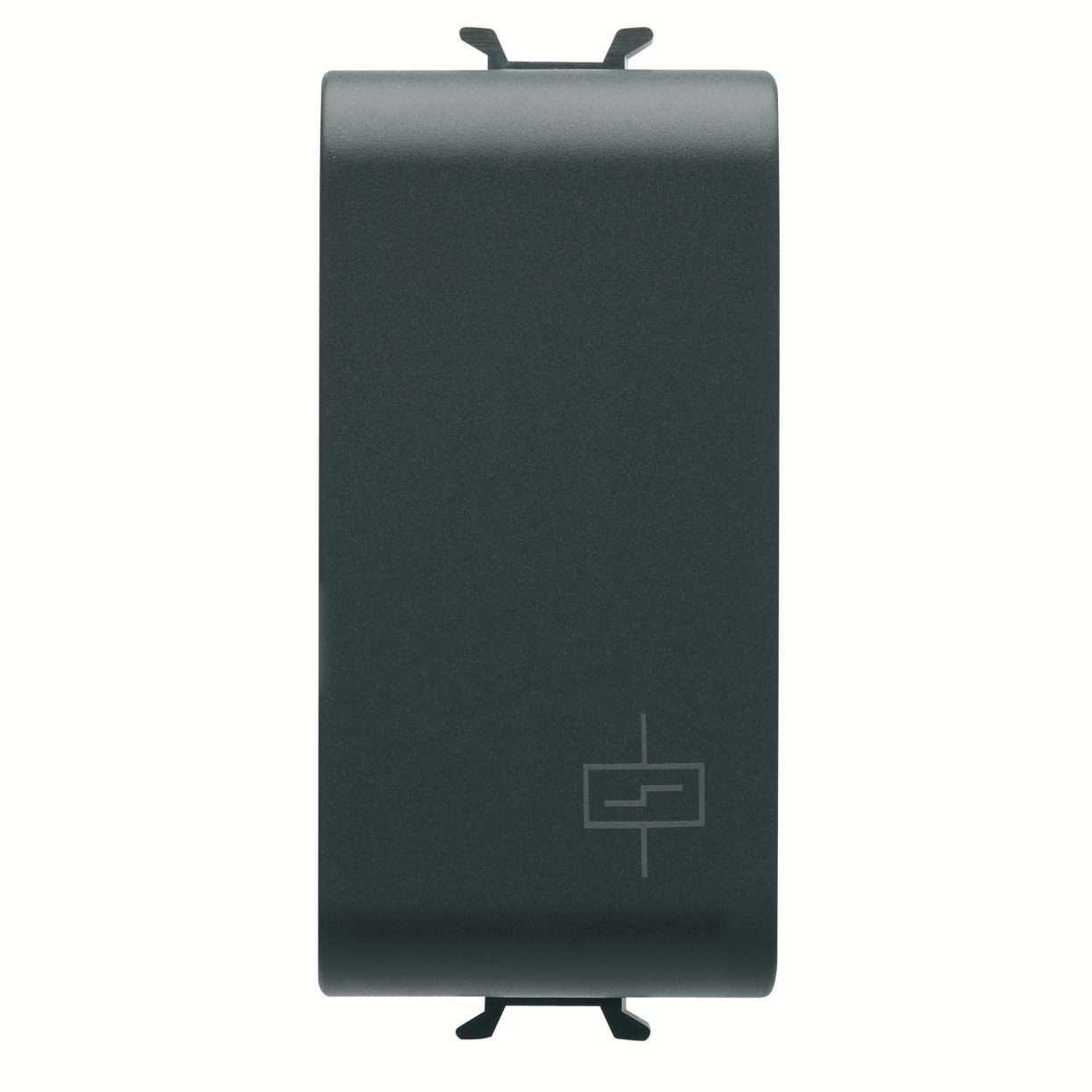

The Gewiss GW12721 is a 1-module latching relay in satin black rated for 230 V ac at 50/60 Hz with 1P 10 AX 250 V ac output contacts, complying with EN 60669-1 and EN 60669-2-2 standards. It features screw wiring terminals with a solid cable tightening capacity of 2x2.5 mm², stranded cable capacity of 1x4 or 2x2.5 mm², and a terminal grip on cable traction exceeding 50 N. Rated for 40,000 prolonged operation switch position changes at In 250 V ac cosφ=0.6, the unit withstands 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and supports 1000 W incandescent-halogen lamps and 400 W fluorescent lamps with electronic ballasts. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Gewiss

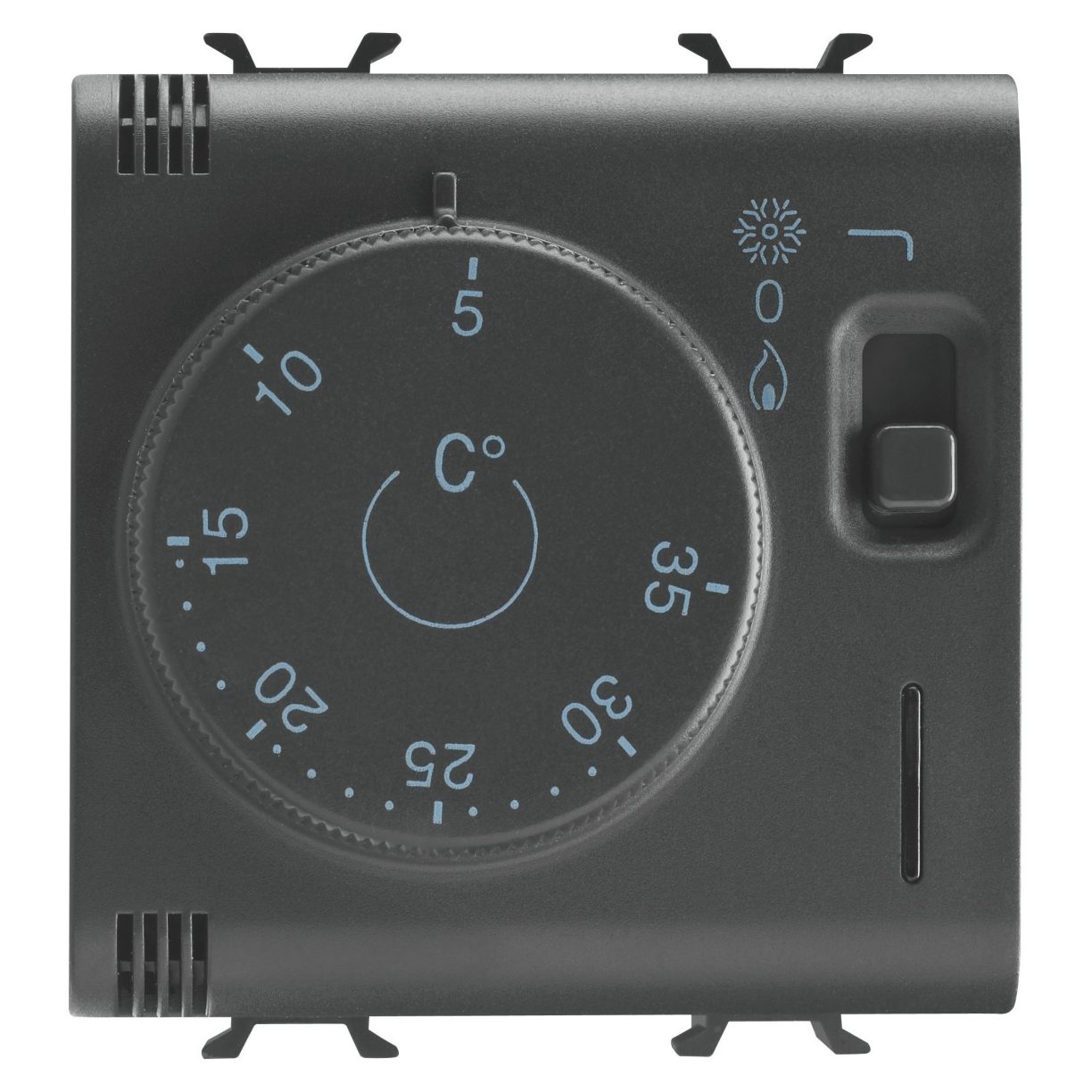

The Gewiss GW12705 is a 2-module thermostat operating at a supply voltage of 230 V ac at 50/60 Hz with a satin black finish. This unit features a temperature adjustment range from +5 °C to +35 °C and includes 1NO/NC 8 A (AC1) 250 V ac output contacts, cataloged under HS code 90321020. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

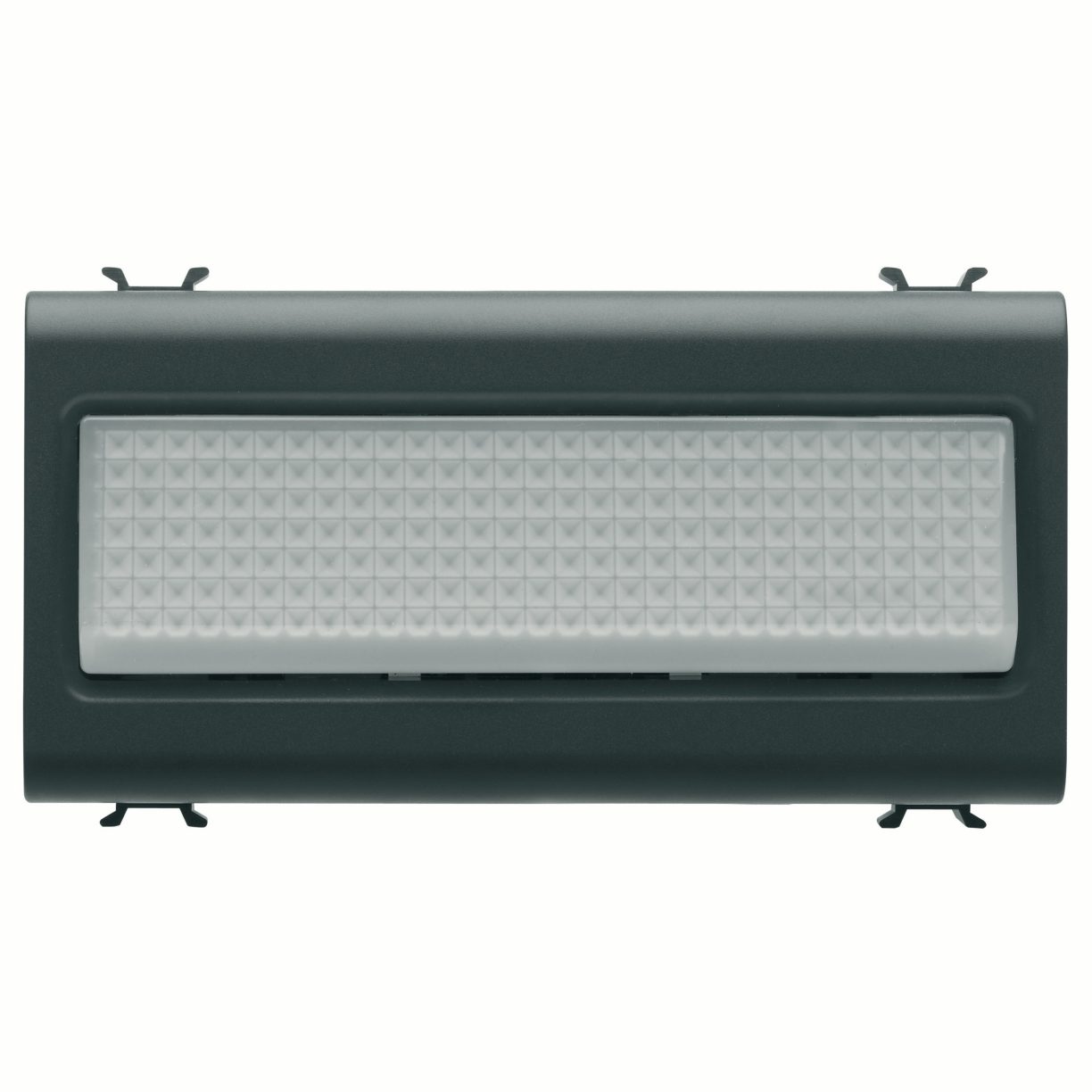

The Gewiss GW12666 is an autonomous emergency lamp operating on a supply voltage of 230 V ac at 50/60 Hz with a 4-module configuration. This unit features a white LED lamp powered by Ni-Mh batteries, providing a minimum autonomy of 1 h. Ware number 85131000 applies to this model. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

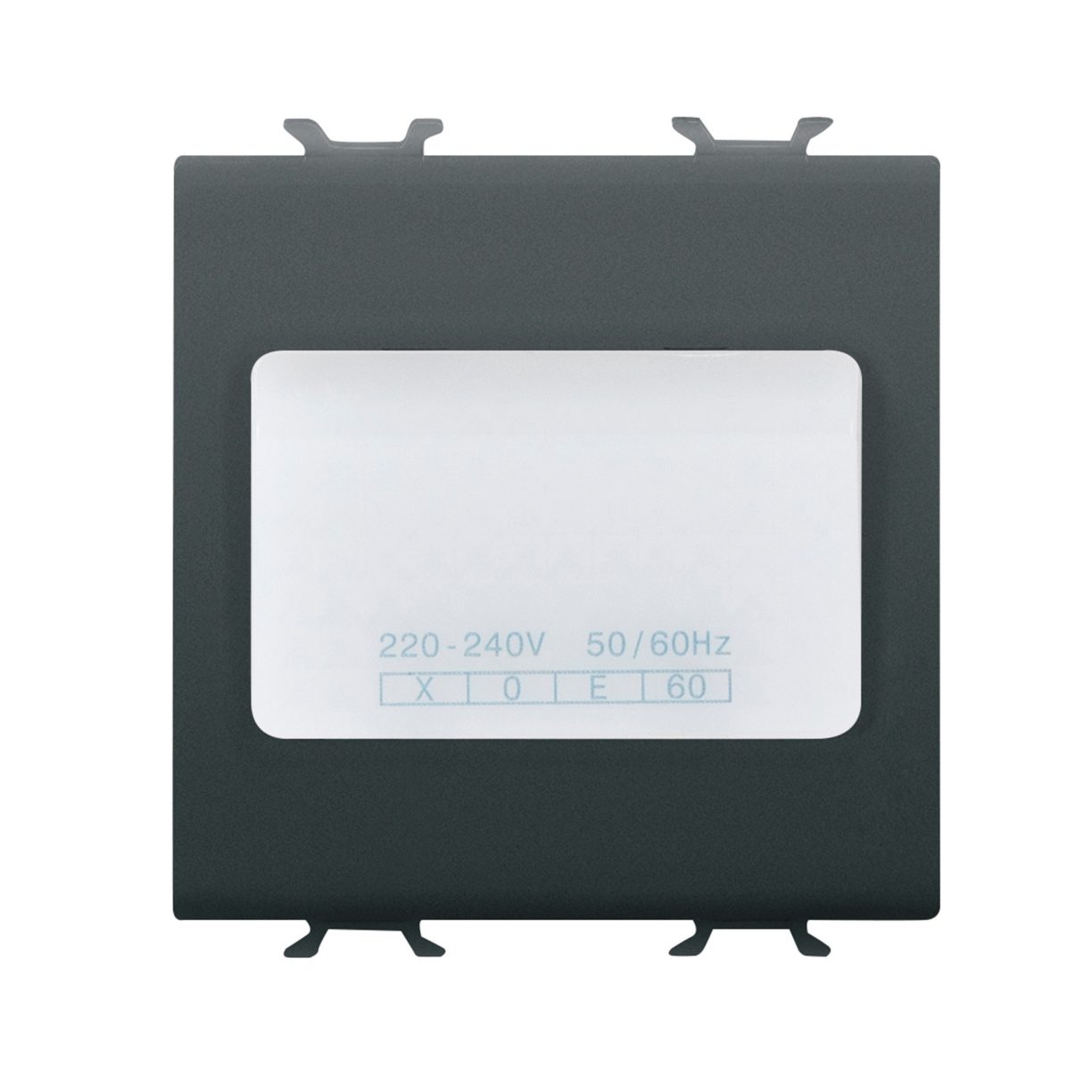

The Gewiss GW12663 is an autonomous emergency lamp powered by a 230 Vac 50/60 Hz supply voltage with Ni-Mh batteries providing a minimum autonomy of 1 hour. This unit features a white LED lamp and occupies 2 modules, classified under HS code 85131000. Submit the exact part number, quantity, and application requirements for an RFQ quote.
