Gewiss

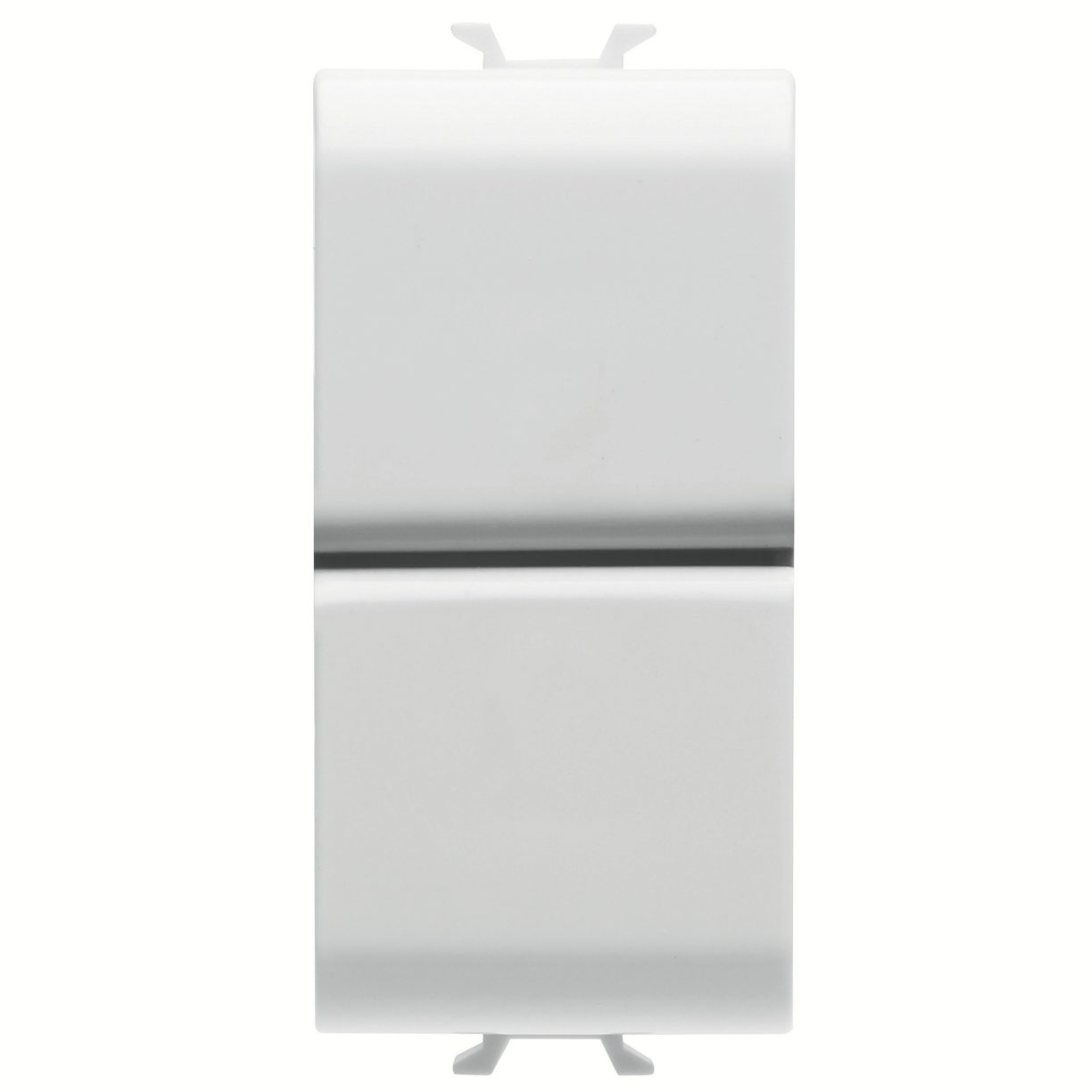

The Gewiss GW10141 is a double push-button switch featuring a 1-pole configuration with dual normally open (NO+NO) circuits rated at 16 A and 250 V ac. Constructed from technopolymer with a glossy white finish, this 1-module component complies with EN 60669-1 and incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2.5 mm² and stranded cables from 0.75 up to 2x4 mm². The unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and delivers a prolonged operation rating of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

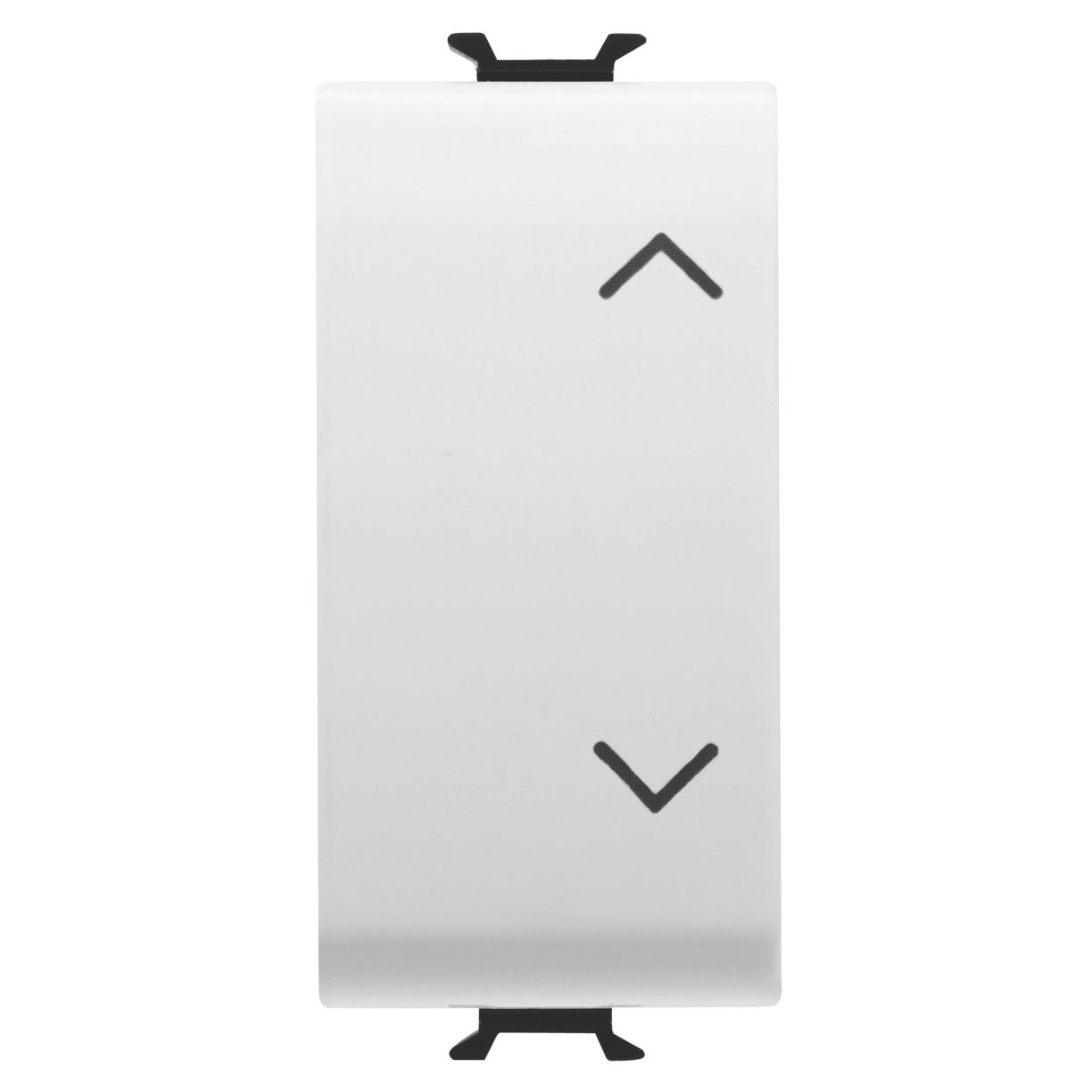

The Gewiss GW10140 is a 1-pole push-button switch rated at 250 V ac and 10 A featuring a NO+NO contact configuration and a mechanical interlock. Fabricated from technopolymer in a glossy white finish, this 1-module component displays an UP-DOWN symbol and utilizes screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Built to EN 60669-1 standards, it withstands a test voltage of 2000 V at 50 Hz for 1 minute, provides an insulation resistance greater than 5 MOhm, and delivers an operational lifespan of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

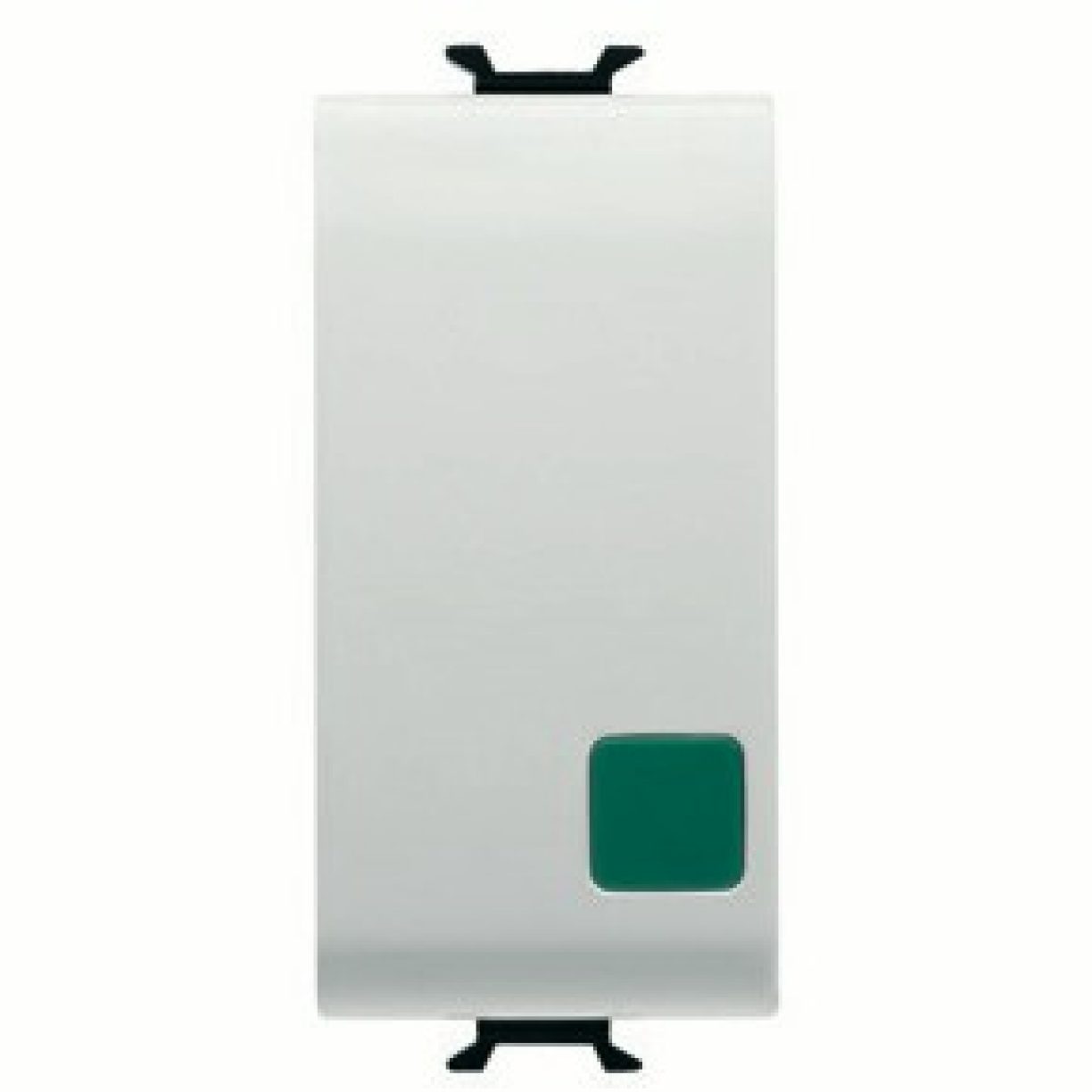

The Gewiss GW10139 is a 1-pole push-button switch featuring a green Start symbol, glossy white finish, and a 1-module technopolymer construction rated at 250 V ac and 16 A with NO+NC contacts. Built in accordance with EN 60669-1, this component delivers an insulation resistance greater than 5 MOhm, a test voltage resistance of 2000 V at 50 Hz for 1 minute, and a prolonged operation endurance of 40,000 position changes at In 250 V ac cosφ=0.6. It is equipped with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a ball thermo-pressure rating of 125 °C and a Glow Wire Test rating of 850 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW10138 is a 1-module push-button featuring a red stop symbol, a glossy white finish, and a 1P NC+NO 16A configuration rated for 250 V ac in accordance with EN 60669-1. Constructed from technopolymer, this component incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², delivering a terminal grip on cable traction exceeding 50 N. It sustains 40,000 position changes at In 250 V ac cosφ=0.6, alongside a test voltage resistance of 2000 V at 50 Hz for 1 minute and an insulation resistance greater than 5 MOhm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

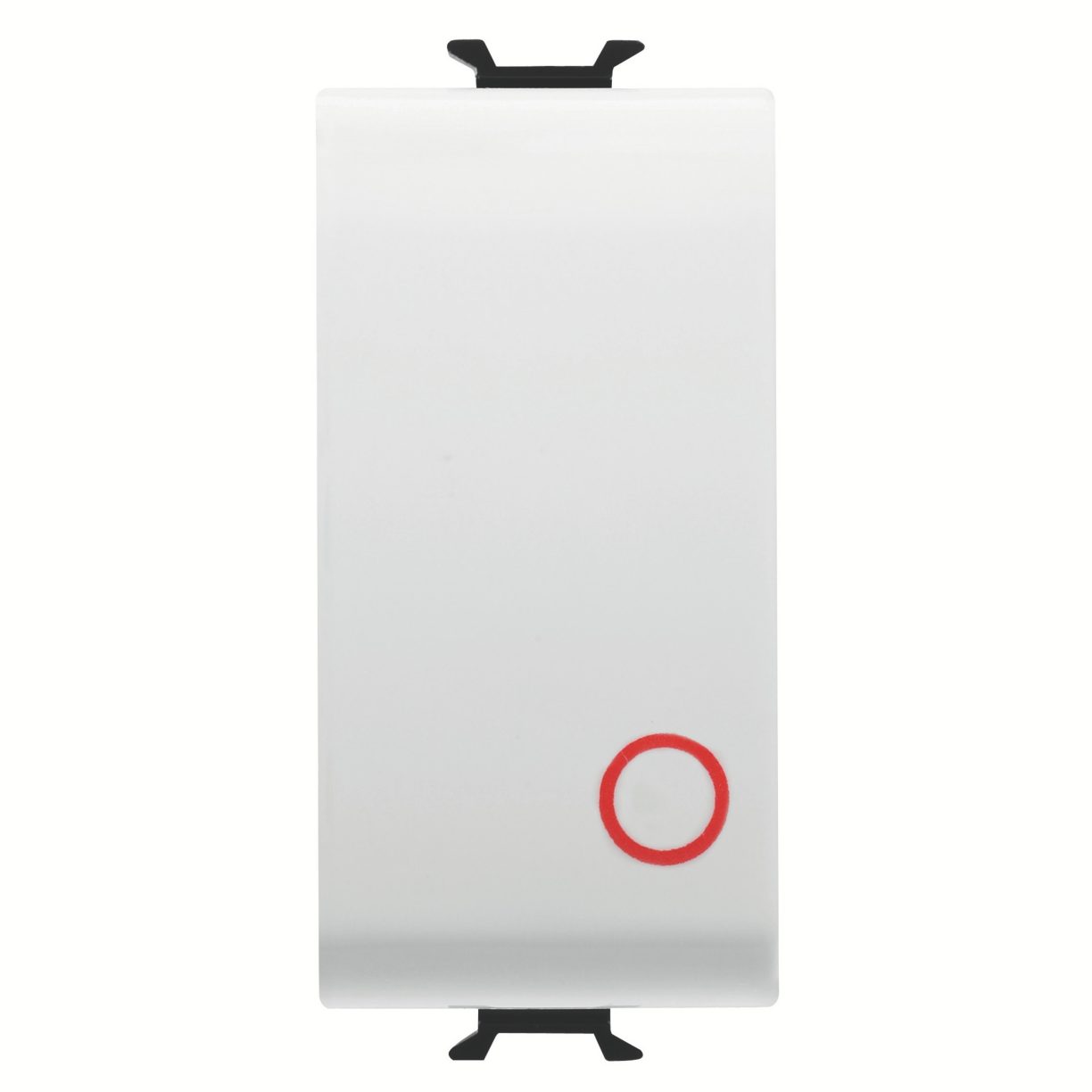

The Gewiss GW10137 is a 1-pole, 16 A, 250 V ac push-button featuring a normally closed (NC) contact, a neutral glossy white key, and a red "O" symbol in a 1-module technopolymer body. Built to EN 60669-1 standards, it incorporates screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a terminal grip exceeding 50 N on cable traction. The component delivers a prolonged operation rating of 40,000 position changes at In 250 V ac cosφ=0.6, withstands a test voltage of 2000 V at 50 Hz for 1 minute, and exhibits an insulation resistance greater than 5 MOhm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Gewiss

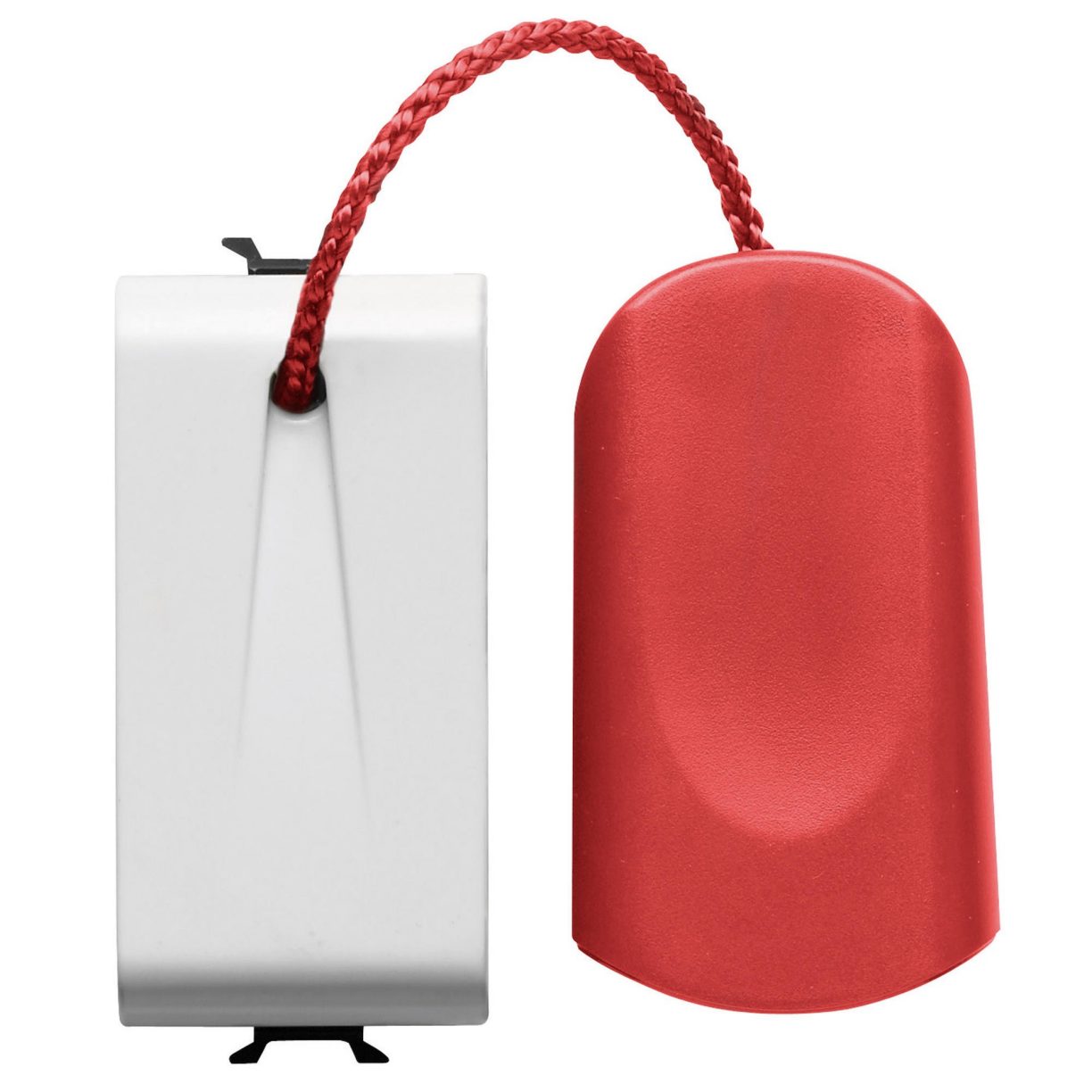

The Gewiss GW10136 is a 1-module pull-cord push-button switch rated for 1P 250 V ac and 16 A, constructed from glossy white technopolymer. Built to EN 60669-1 standards, it features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a terminal grip on cable traction exceeding 50 N. This component delivers 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6, alongside an insulation resistance greater than 5 MOhm and a test voltage resistance of 2000 V at 50 Hz for 1 minute. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss
The Gewiss GW10135 is a 1-module, 2P NO 250 V ac illuminable push-button featuring a glossy white finish and a replaceable neutral lens molded from technopolymer. Built to EN 60669-1 standards, this component withstands 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and delivers a prolonged operation rating of 40,000 position changes at In 250 V ac cosφ=0.6. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², while providing a terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

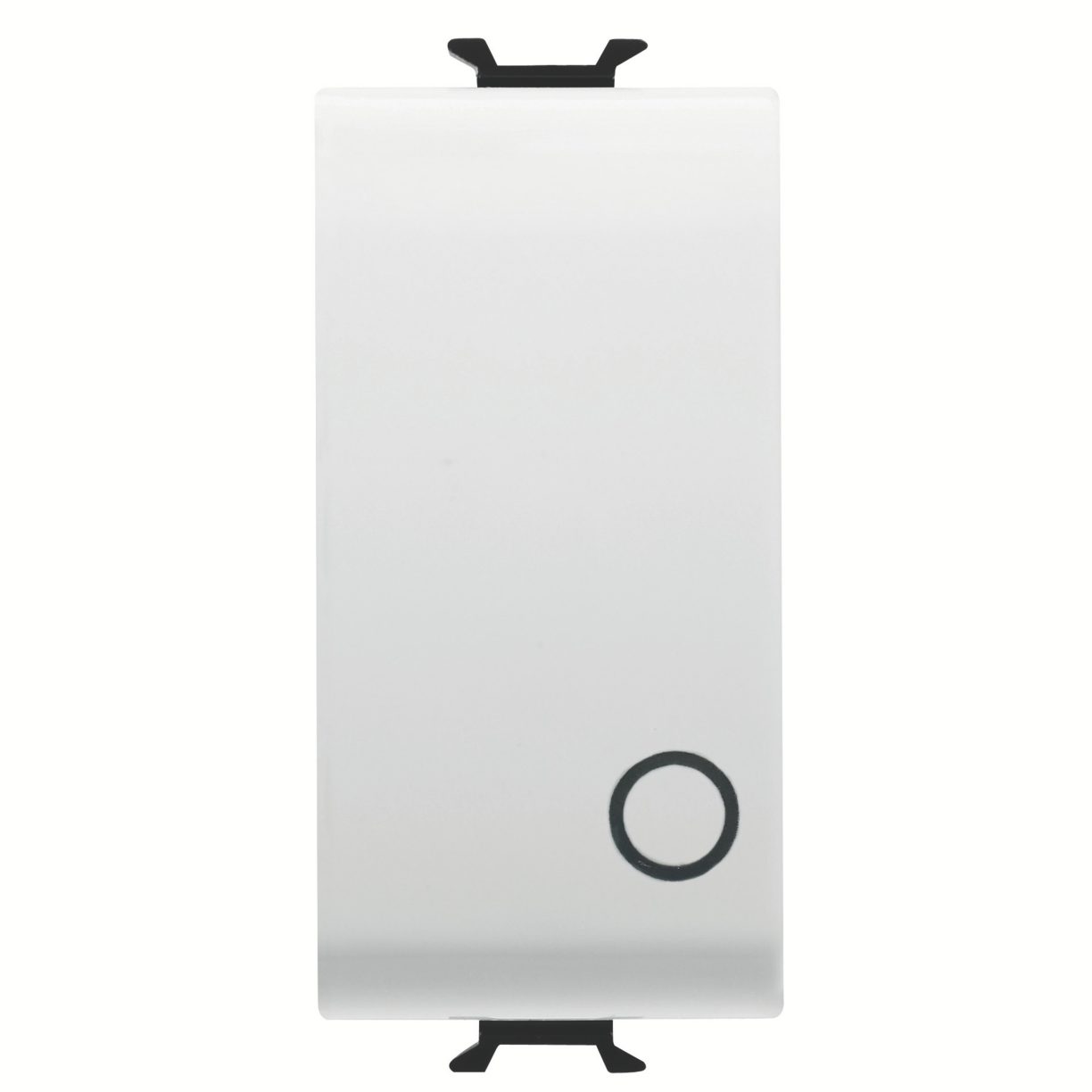

The Gewiss GW10134 is a 1-module, 2P NO push-button switch rated for 250 V ac and 16 A, featuring a neutral glossy white key with the "0" symbol. Constructed from technopolymer, it complies with EN 60669-1 and incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². The component delivers a prolonged operation lifespan of 40,000 position changes at In 250 V ac cosφ=0.6, along with an insulation resistance greater than 5 MOhm and a test voltage resistance of 2000 V at 50 Hz for 1 minute. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Gewiss
The Gewiss GW10133 is a 1-pole, 16 A, 250 V ac illuminable push-button featuring a glossy white technopolymer construction with a replaceable neutral lens and screw wiring terminals. Built to EN 60669-1 standards, it occupies one module and delivers a mechanical endurance of 40,000 position changes at In 250 V ac cosφ=0.6, alongside a ball thermo-pressure rating of 125 °C and Glow Wire Test resistance at 850 °C. Terminal capacities accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm² with a cable traction grip exceeding 50 N, while maintaining an insulation resistance above 5 MOhm at a 2000 V test voltage. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →
Gewiss
The Gewiss GW10132 is a 1-pole, 16 A illuminable push-button rated for 250 V ac, featuring a glossy white technopolymer body with a diffuser and occupying 1 module. Built to EN 60669-1 standards, this component includes screw wiring terminals with a solid cable tightening capacity of 0.5 to 2x2.5 mm² and a stranded cable capacity of 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and is rated for 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW10131 is a 1-module, glossy white push-button switch rated for 1P 250 V ac and 16 A with a neutral button key. Constructed from technopolymer, this component features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², adhering to the EN 60669-1 standard. It withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and delivers 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

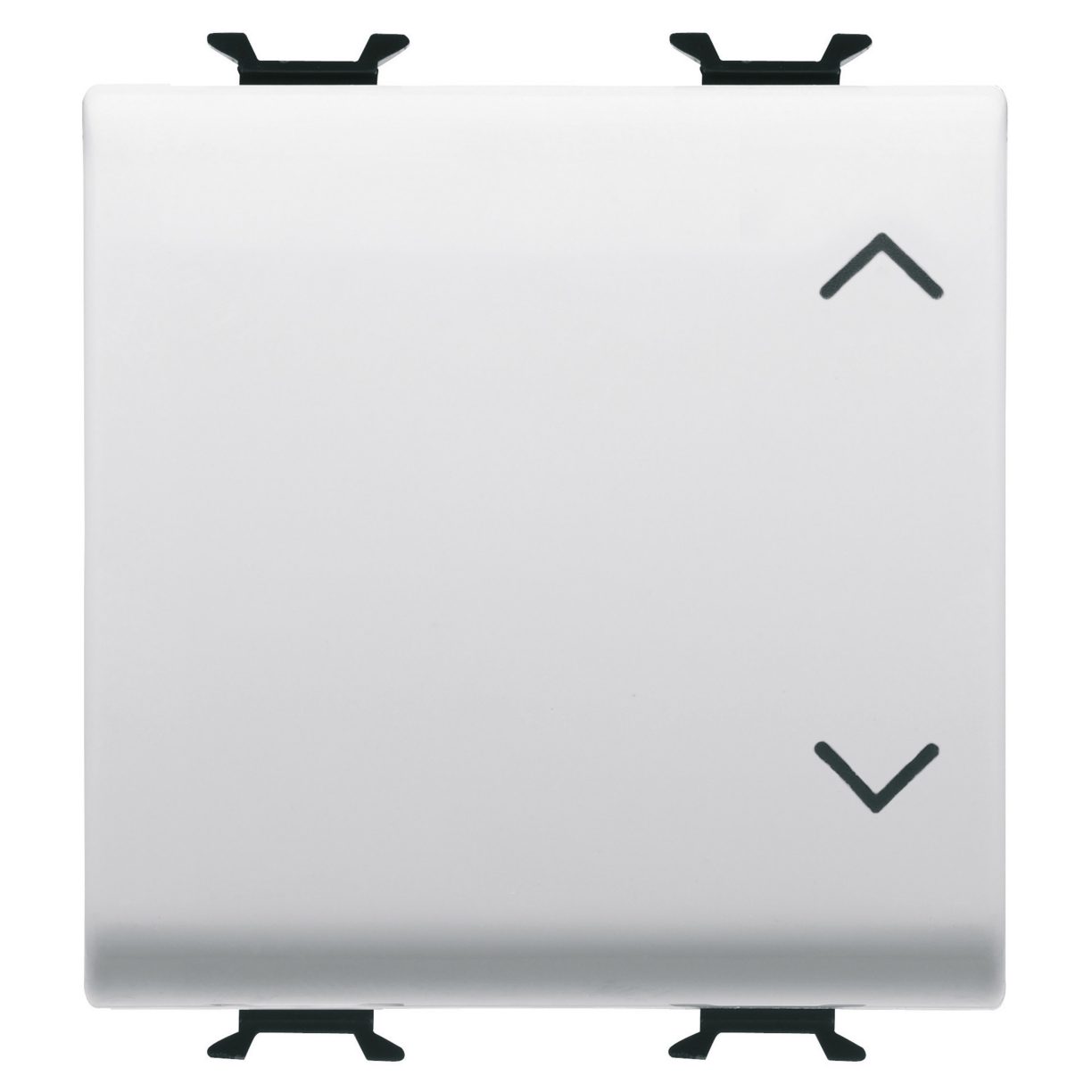

The Gewiss GW10123 is a glossy white technopolymer three-way switch rated at 1P 250 V ac and 10 AX, occupying two modules and featuring a neutral button key with an UP-DOWN symbol. Built in accordance with EN 60669-1, this component delivers a rated power of 230V LED lamps up to 100 W, insulation resistance greater than 5 MOhm, and withstands a test voltage of 2000 V at 50 Hz for 1 minute. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², backed by a terminal grip on cable traction exceeding 50 N. Designed for 40,000 prolonged operation switch position changes at In 250 V ac cosφ=0.6, it features a ball thermo-pressure rating of 125 °C and a Glow Wire Test rating of 850 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Gewiss
The Gewiss GW10122 is a 1-module, 2P 10 AX three-way switch featuring a glossy white technopolymer body, a neutral button key with an UP-DOWN symbol, and screw wiring terminals. Operating at 250 V ac in compliance with EN 60669-1, this component delivers an insulation resistance exceeding 5 MOhm, a test voltage resistance of 2000 V at 50 Hz for 1 minute, and a rated power of 100 W for 230V LED lamps. It withstands 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6, alongside a ball thermo-pressure rating of 125 °C and a Glow Wire Test rating of 850 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Gewiss
The Gewiss GW10121 is a 1-module, 1-pole three-way switch rated at 250 V ac and 10 AX, featuring a glossy white technopolymer body with a neutral up-down symbol key. Built to EN 60669-1 standards, it withstands a test voltage of 2000 V at 50 Hz for 1 minute, provides an insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 100 W. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a terminal grip on cable traction exceeding 50 N. This component sustains 40,000 position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure rating of 125 °C, and a glow wire test of 850 °C. Submit the exact part number, quantity, and application requirements for a quote on the Gewiss GW10121.
View product details →
Gewiss
The Gewiss GW10103F is an illuminable 1P 16 AX intermediate switch rated for 250 V ac, featuring a glossy white technopolymer body with a replaceable neutral lens and occupying 2 modules. Built to EN 60669-1 standards, it incorporates quick spring wiring terminals accommodating solid and stranded cables from 0.5 mm² to 2x2.5 mm² alongside a 200 W rated power capacity for 230V LED lamps. Technical parameters include 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure rating of 125 °C, and an 850 °C Glow Wire Test resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW10103 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac, manufactured from glossy white technopolymer with a replaceable neutral lens. Built to EN 60669-1 standards, it features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a rated power of 230V LED lamps up to 200 W. The component withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates insulation resistance greater than 5 MOhm, and delivers 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss
The Gewiss GW10102F is a 250 V ac 1P 16 AX illuminable intermediate switch featuring a glossy white technopolymer body with a diffuser and occupying 2 modules. Built to EN 60669-1 standards, it incorporates quick spring wiring terminals with a stranded cable capacity of 0.75 to 2x2.5 mm² and a solid cable capacity of 0.5 to 2x2.5 mm². The component delivers a rated power of 200 W for 230V LED lamps and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Gewiss
The Gewiss GW10102 is a 1-pole, 16 AX illuminable reversing switch in glossy white technopolymer, rated for 250 V ac and complying with EN 60669-1. This 2-module component features a diffuser, screw wiring terminals, a rated LED lamp power of 200 W at 230V, and a durability of 40,000 position changes at In 250 V ac cosφ=0.6. Built to withstand a ball thermo-pressure of 125 °C and an 850 °C Glow Wire Test, it accommodates solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Gewiss
The Gewiss GW10101F is a 1P 16 AX intermediate switch operating at 250 V ac featuring a neutral button key, glossy white technopolymer construction, and a 2-module width. Built to EN 60669-1 standards, it incorporates quick spring wiring terminals with a solid and stranded cable tightening capacity of 0.5 to 2x2.5 mm², alongside a rated power of 200 W for 230V LED lamps. The component withstands 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and delivers 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW10101 is a 1-pole, 16 AX reversing switch rated at 250 V ac, featuring a neutral neutral button key in a glossy white technopolymer finish occupying 2 modules. Built to EN 60669-1 standards, it withstands 2000 V at 50 Hz for 1 minute, exhibits an insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 200 W with screw wiring terminals. Constructed to endure 40,000 position changes at In 250 V ac cosφ=0.6, the unit features a ball thermo-pressure rating of 125 °C, a glow wire test rating of 850 °C, and terminal tightening capacities accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
