Gewiss
The Gewiss GW10033 is a 1P 16 AX illuminable one-way switch rated at 250 V ac, constructed from glossy white technopolymer taking up 2 modules. Built in accordance with EN 60669-1, it features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a button key equipped with a replaceable neutral lens. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss
The Gewiss GW10032F is a 2-module, 1-pole 250 V ac illuminable one-way switch rated at 16 AX with a glossy white finish and button key with a diffuser. Constructed from technopolymer with quick spring wiring terminals, it accommodates solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x2.5 mm², supporting a rated power of 230V LED lamps up to 200 W. Certified to EN 60669-1, this component endures 40,000 position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure test of 125 °C, and a glow wire test of 850 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss GW10032 is a glossy white 1P 16AX illuminable one-way switch featuring an integrated diffuser and screw wiring terminals across two modules. Manufactured from technopolymer compliant with EN 60669-1, this component delivers a rated power of 200 W for 230V LED lamps at 250 V ac, demonstrating an insulation resistance greater than 5 MOhm and a test voltage resistance of 2000 V at 50 Hz for 1 minute. Operational longevity reaches 40,000 position changes at In 250 V ac cosφ=0.6, supported by a ball thermo-pressure rating of 125 °C, an 850 °C glow wire test rating, and terminal tightening capacities accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Gewiss
The Gewiss GW10031F is a 2-module, 1-pole one-way switch rated for 250 V ac and 16 AX with a neutral button key in glossy white technopolymer. Featuring quick spring wiring terminals with a stranded cable capacity from 0.75 mm² to 2x2.5 mm² and solid cable capacity from 0.5 mm² to 2x2.5 mm², it complies with EN 60669-1 and includes a rated power of 230V LED lamps at 200 W. This unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and endures 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Gewiss
The Gewiss GW10031 is a 1P 16 AX one-way switch rated for 250 V ac, featuring a neutral button key in glossy white technopolymer requiring 2 modules. Built in accordance with EN 60669-1, it delivers a rated power of 200 W for 230V LED lamps, withstands a test voltage of 2000 V at 50 Hz for 1 minute, and maintains an insulation resistance greater than 5 MOhm. Equipped with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², the unit achieves 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6 and features terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

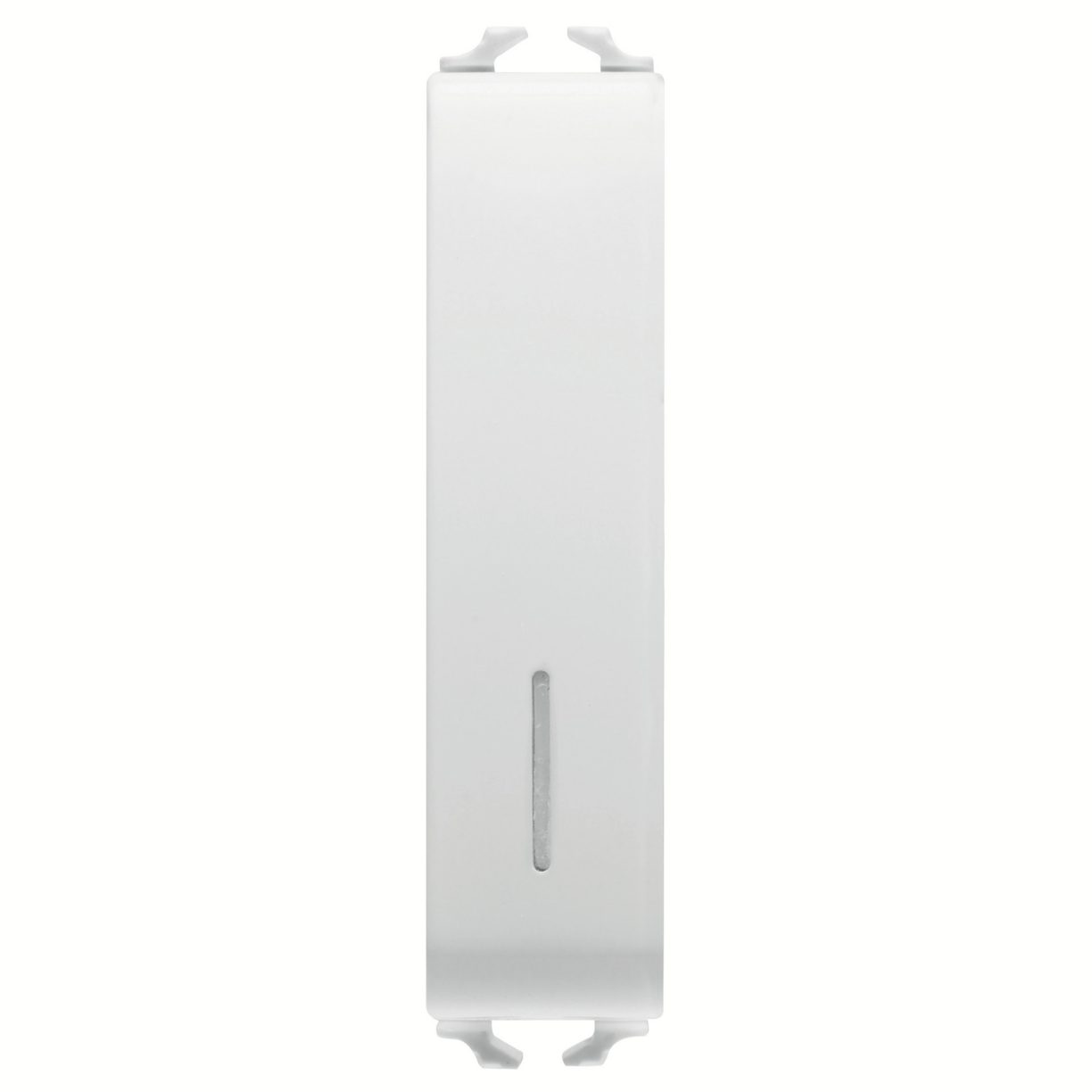

The Gewiss GW10022 is a 1P 10AX illuminable one-way switch rated at 250 V ac, featuring a glossy white technopolymer construction with a diffuser and occupying 1/2 modules. Built in accordance with EN 60669-1, this component demonstrates a test voltage resistance of 2000 V at 50 Hz for 1 minute, an insulation resistance greater than 5 MOhm, and a rated power of 230V LED lamps up to 100 W. It utilizes screw wiring terminals with a terminal tightening capacity for solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², supporting terminal grip on cable traction greater than 50 N and enduring 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Additional technical parameters include a ball thermo-pressure rating of 125 °C, a glow wire test rating of 850 °C, Electrocod 0130, and Ware Number 85365080. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss
The Gewiss GW10021 is a 1P 250 V ac 10AX one-way switch featuring a neutral button key in glossy white and a compact 1/2 module technopolymer construction. Built in accordance with EN 60669-1, this component delivers a rated power of 230V LED lamps at 100 W and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², backed by a glow wire test rating of 850 °C and ball thermo-pressure resistance of 125 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

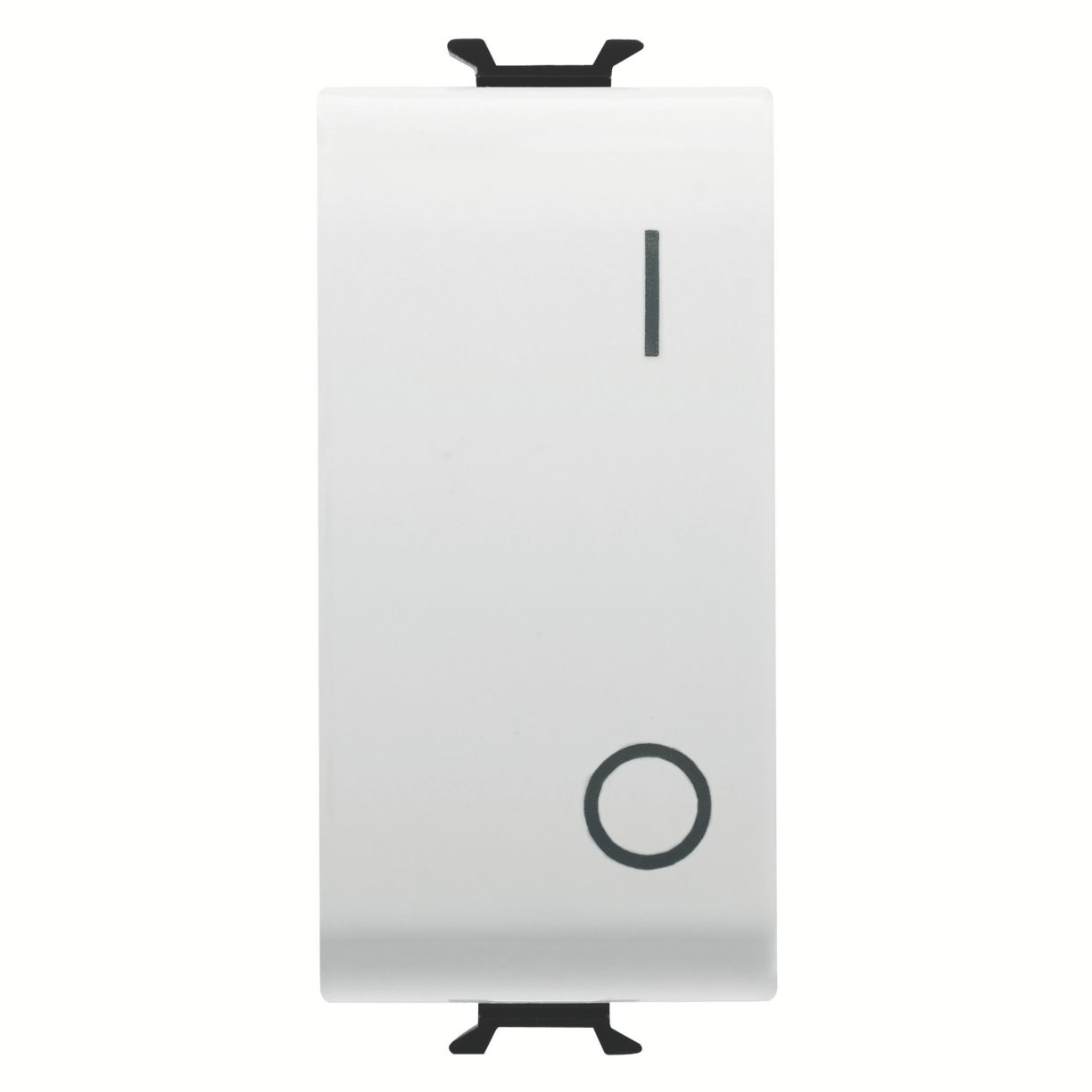

The Gewiss GW10007 is a heavy-duty 2P 250V ac one-way switch featuring a 25AX rating, a neutral button with a 0/1 symbol, and a 1-module technopolymer construction in glossy white. Built to EN 60669-1 standards, it withstands a 2000 V test voltage for 1 minute, offers greater than 5 MOhm insulation resistance, and provides a rated power of 250 W for 230V LED lamps. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

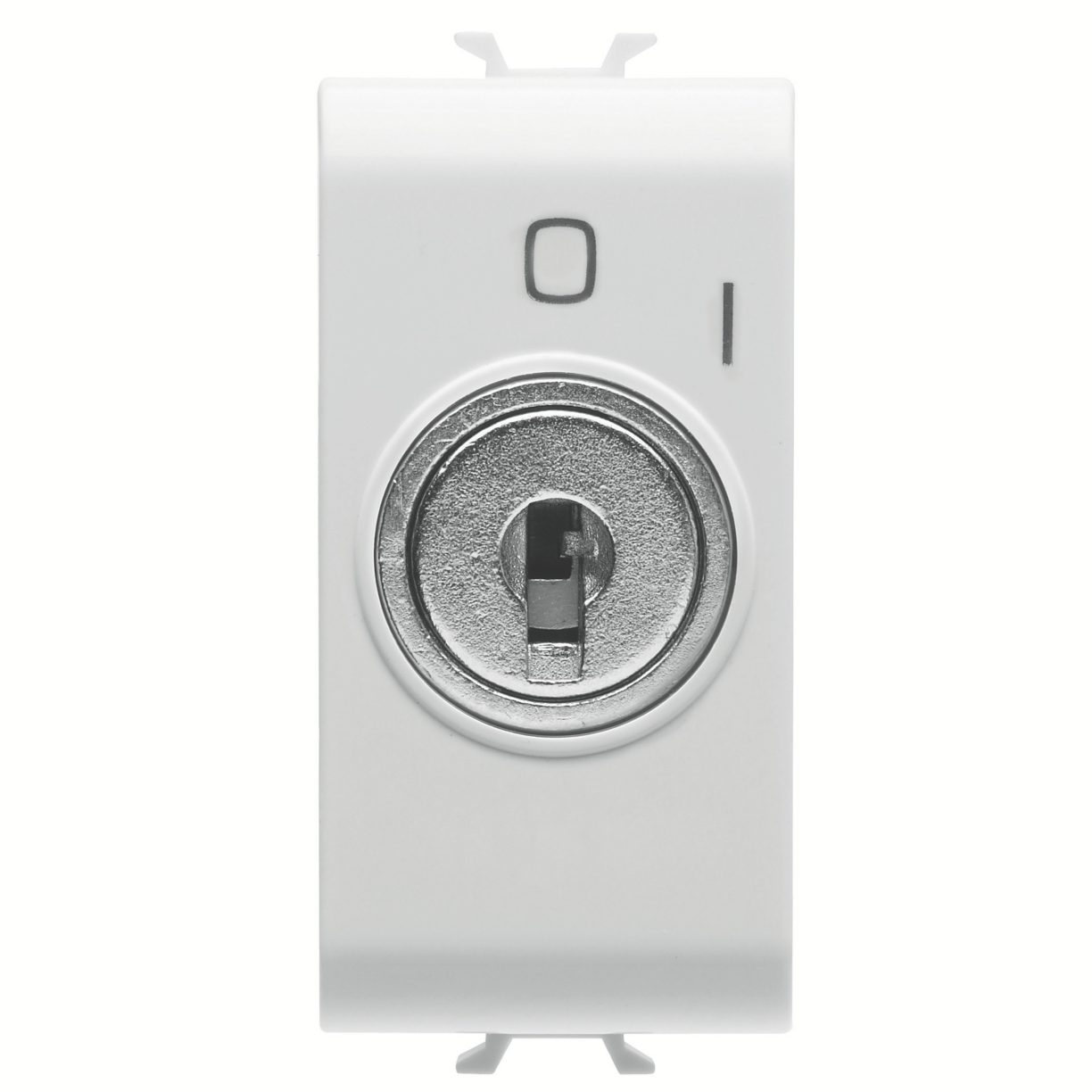

The Gewiss GW10006 is a 1-module, 2-pole one-way switch rated at 250 V ac and 10 AX featuring a glossy white technopolymer construction with a key and 0/1 symbol. Built to EN 60669-1 standards, it incorporates screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a rated power of 230V LED lamps of 100 W and a prolonged operation durability of 40,000 position changes at In 250 V ac cosφ=0.6. Additional technical properties include 2000 V test voltage resistance, insulation resistance greater than 5 MOhm, 125 °C ball thermo-pressure, 850 °C Glow Wire Test, and terminal grip on cable traction over 50 N. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss
The Gewiss GW10005 is a 2P 16AX illuminable one-way switch rated at 250 V ac, manufactured in a glossy white technopolymer material occupying one module. Constructed to EN 60669-1 standards, this component features screw wiring terminals, a replaceable neutral lens button key, and a rated power of 230V LED lamps up to 200 W. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss GW10004 is a 1-module, two-pole one-way switch rated for 250 V ac and 16 AX, featuring a neutral button with a 0 symbol in a glossy white technopolymer finish. Built to EN 60669-1 standards, this component provides a rated power of 200 W for 230V LED lamps, screw wiring terminals, and a prolonged operation lifespan of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this hardware.
View product details →Gewiss
The Gewiss GW10003 is a 1-module, 1P 16AX illuminable one-way switch rated at 250 V ac in a glossy white technopolymer finish featuring a replaceable neutral lens and screw wiring terminals. Built in accordance with EN 60669-1, this component delivers a rated power of 200W for 230V LED lamps, a dielectric resistance of 2000 V at 50 Hz for one minute, and an insulation resistance greater than 5 MOhm. It withstands 40,000 position changes at In 250 V ac cosφ=0.6, a ball thermo-pressure of 125 °C, a glow wire test of 850 °C, and cable traction up to 50 N, while accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss
The Gewiss GW10002 is a 1-module, 1P 16AX illuminable one-way switch rated for 250 V ac featuring a glossy white technopolymer body with a diffuser and symbol 0. Built with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this component conforms to EN 60669-1 with a rated power of 230V LED lamps of 200 W. It undergoes a Glow Wire Test at 850 °C and test voltage resistance of 2000 V at 50 Hz for 1 minute, delivering an insulation resistance exceeding 5 MOhm and a prolonged operation endurance of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Gewiss
The Gewiss GW10001 is a 1-module, 1-pole one-way switch rated for 250 V ac and 16 AX with a neutral button key in glossy white technopolymer. Built to EN 60669-1 standards, it features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a rated power capacity of 200 W for 230V LED lamps. The component withstands test voltages of 2000 V at 50 Hz for 1 minute, insulation resistance exceeding 5 MOhm, ball thermo-pressure up to 125 °C, and a glow wire test of 850 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Gewiss

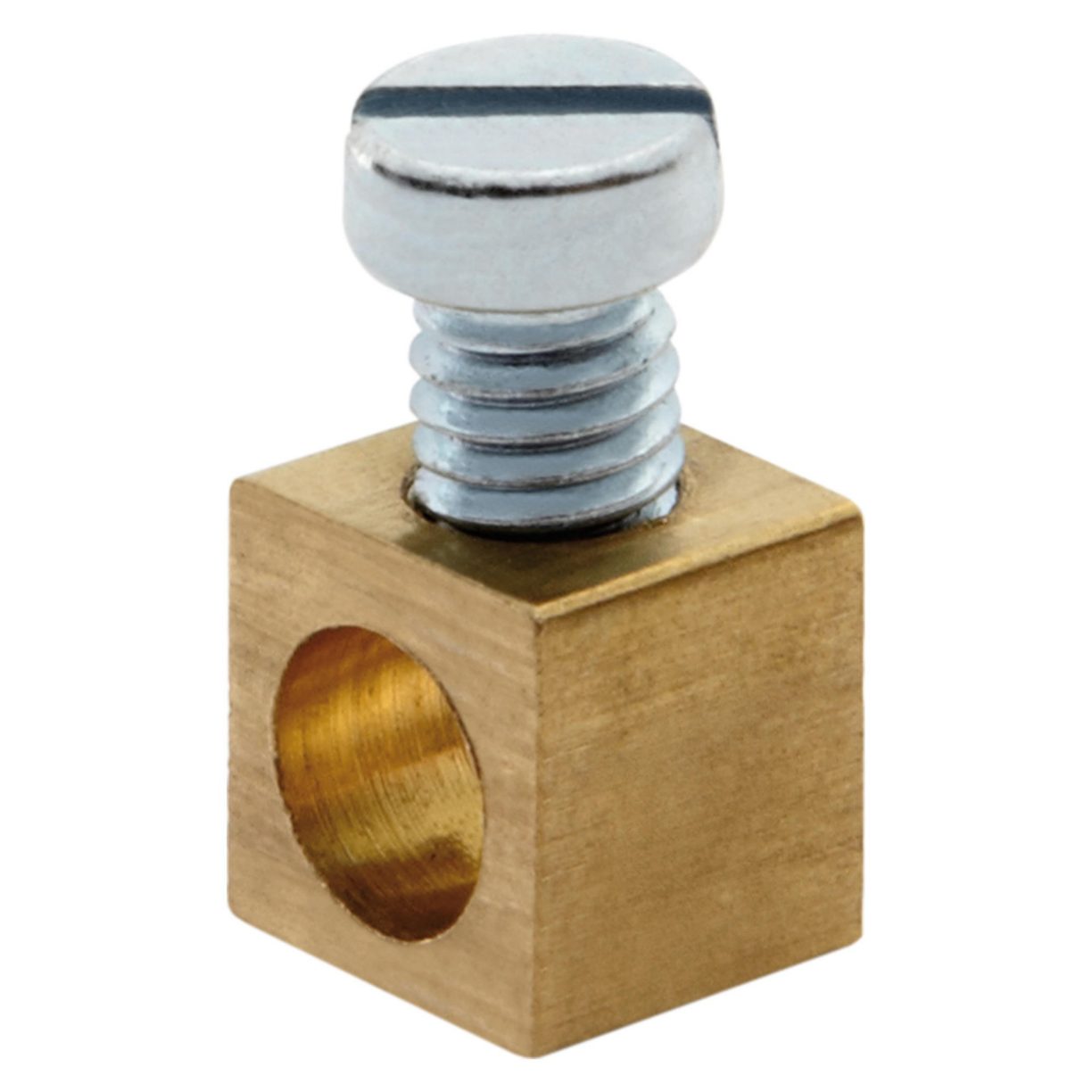

The Gewiss GW26407 is a brass terminal designed for through-line earth conductors featuring a 4mm² section and pressure-operated fixing under HS code 85369010. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Gewiss

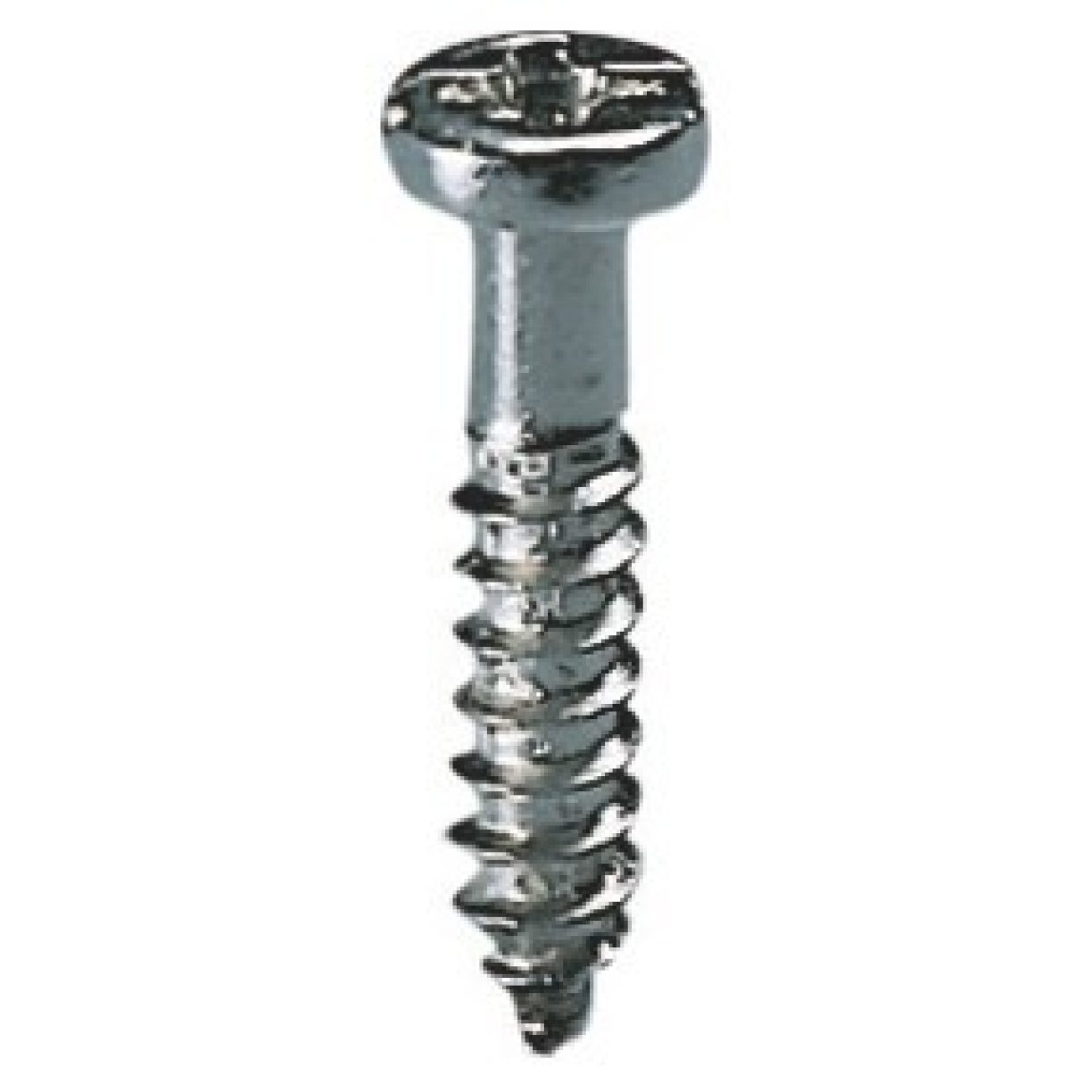

The Gewiss GW24229 self-tapping screws for fixing the devices feature dimensions of TC 3.5x50 mm and are suitable for deep-mounted boxes under HS code 73181499. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss GW24225 self-tapping screws for fixing the devices feature dimensions of TC 3.5x30 mm and are suitable for deep-mounted boxes under HS code 73181499. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss part number GW24224 is a self-tapping screw for fixing devices featuring dimensions of TC 3.5x17 mm. This component under HS code 73181499 is suitable for wood, plastic, and aluminium. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

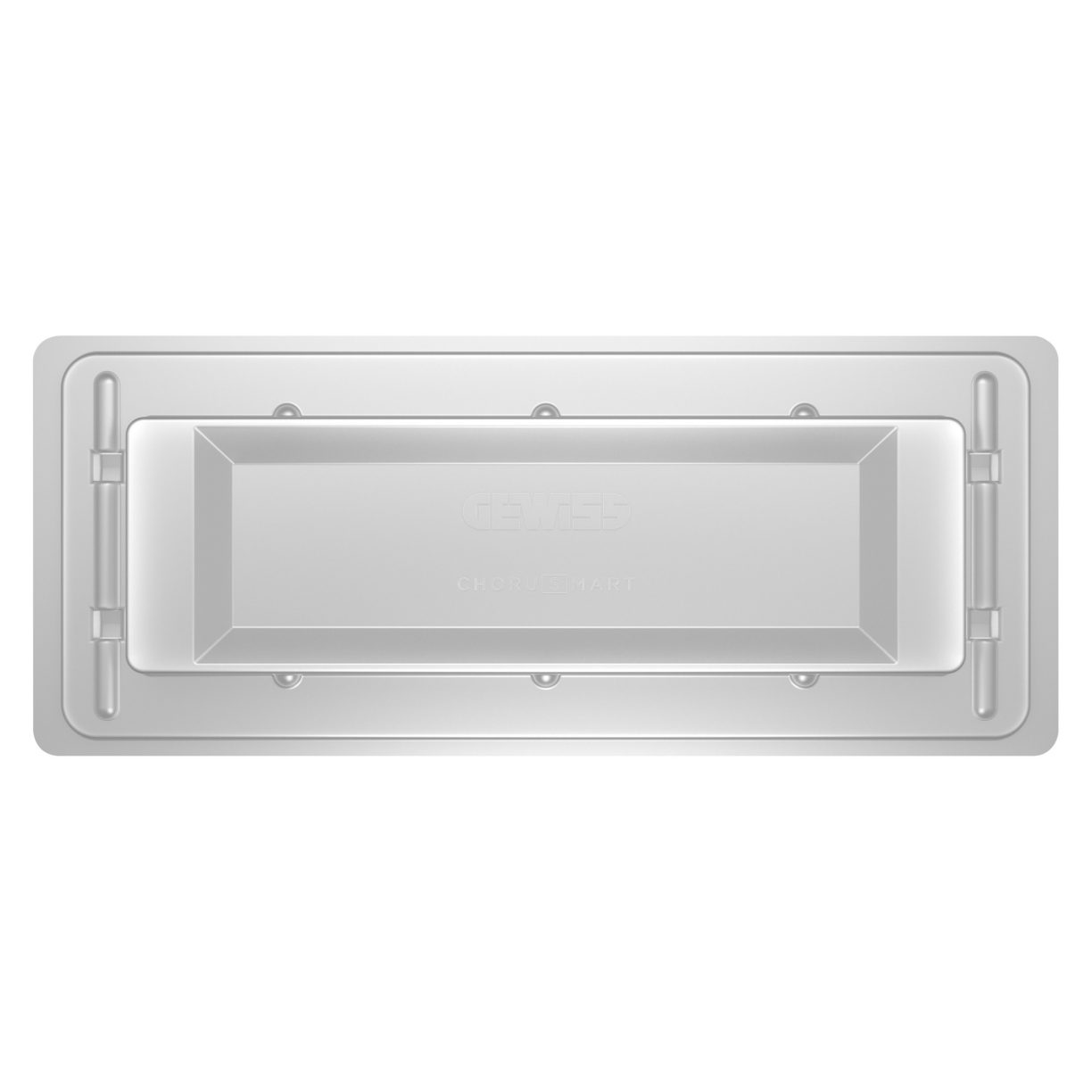

The Gewiss GW16877N is a transparent protective cover for painting configured for 7 modules with electrocod 0110 and HS code 85389099. This component is suitable for support GW16807N. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss
The Gewiss GW16876 is a transparent protective cover for painting designed to house 6 modules and is suitable for support GW16806. Featuring electrocod 0110 and HS code 85389099, this component provides the specified operational coverage for designated modular installations. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
