Murata
The Murata SCR410T-K03 is an IC device type single-axis gyro featuring a 300°/s measuring range, a ±300°/s angular range, and a ±6,8g acceleration rating. This component operates on a supply voltage of 3,0 to 3,6 VDC while delivering a sensitivity of 80 LSB/(°/sec), an in-band quiescent noise of 0,0009°/s rms, a bias over temperature of ± 0,1 °/s, and a bias instability of 1.3 °/hr across selectable bandwidths of 10 Hz and 60 Hz. Although this part is not recommended for new design, it remains available for procurement through established supply channels. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →
Murata
The Murata SCR2200-D15 is a 1-axis IC gyro designed with a measuring range of ±300 °/s and a sensitivity of 50 LSB/(°/sec). Operating on a supply voltage from 3,0 to 3,6 VDC, this device features selectable bandwidths of 10 Hz and 60 Hz, an in-band quiescent noise of 0,12 °/s rms, and a bias over temperature of ± 1,3 °/s. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Murata
The Murata SCR2200-D13 is a 1-axis gyro IC featuring a measuring range of ±125°/s and a sensitivity of 50 LSB/(°/sec). This device operates at a supply voltage of 3,0 to 3,6 VDC, delivering an in-band quiescent noise of 0,12 °/s rms, a bias over temperature of ± 1,3 °/s, and selectable bandwidths of 10 Hz and 60 Hz. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Murata
The Murata SCR2100-D15 is a 1-axis IC gyro designed with a measuring range of 300°/s and an angular range of ±300°/s. This device features a sensitivity of 50 LSB/(°/sec), an in-band quiescent noise of 0,12 °/s rms, a bias over temperature of ± 1,3 °/s, and selectable bandwidths of 10 Hz and 60 Hz. Operating on a supply voltage from 3,0 to 3,6 VDC, this component integrates precise inertial sensing capabilities. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Murata
The Murata SCR2100-D08 is a 1-axis IC gyro designed with a measuring range of ±125°/s and a sensitivity of 50 LSB/(°/sec). This device features a supply voltage from 3.0 to 3.6 VDC, a bandwidth of 10 Hz and 60 Hz, an in-band quiescent noise of 0.05 °/s rms, a bias over temperature of ±0.8 °/s, and a bias instability of 1 °/hr. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Murata

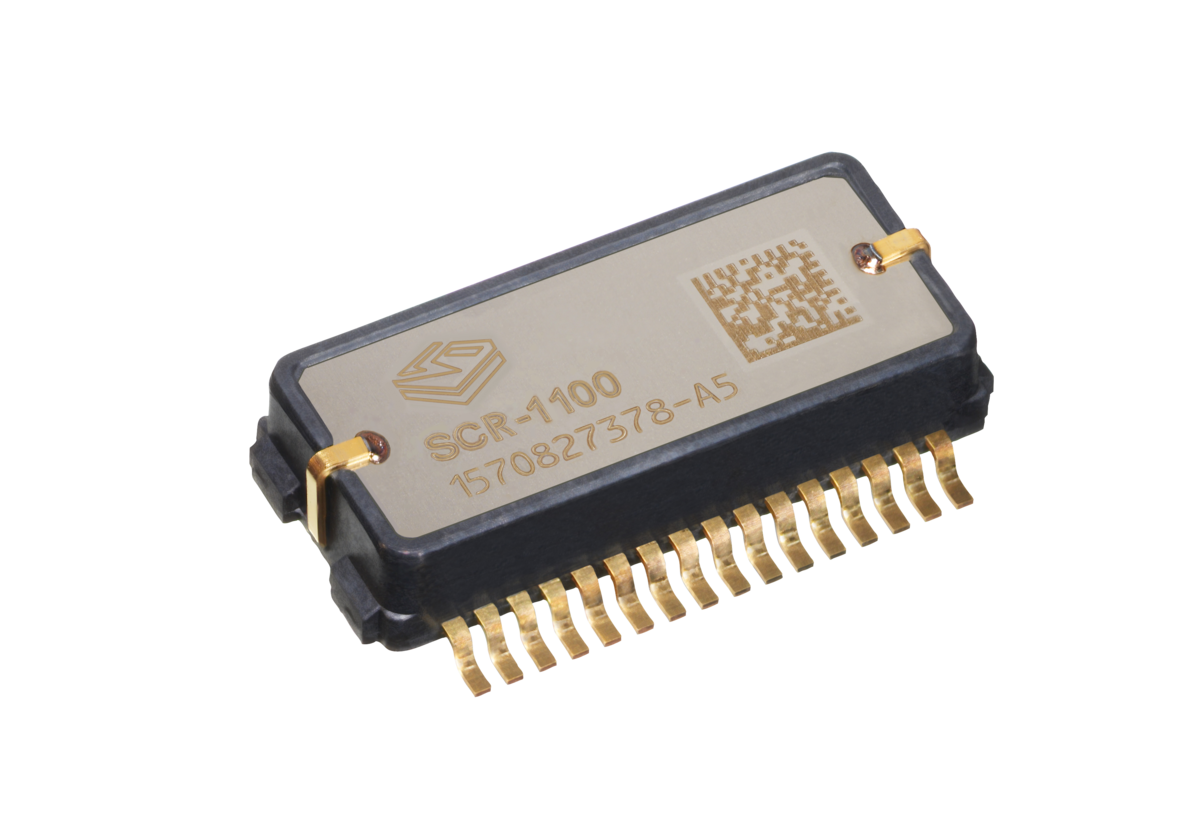

The Murata SCR1100-D04 is a 1-axis IC gyro designed with a 300°/s angular and measuring range, an 18 LSB/(°/sec) sensitivity, and a 50 Hz bandwidth. This device features an in-band quiescent noise of 0.14 °/s rms, bias over temperature of ± 0.9 °/s, bias instability under 2.10 °/hr, and operates on a supply voltage from 4.75 to 5.25 VDC. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Murata

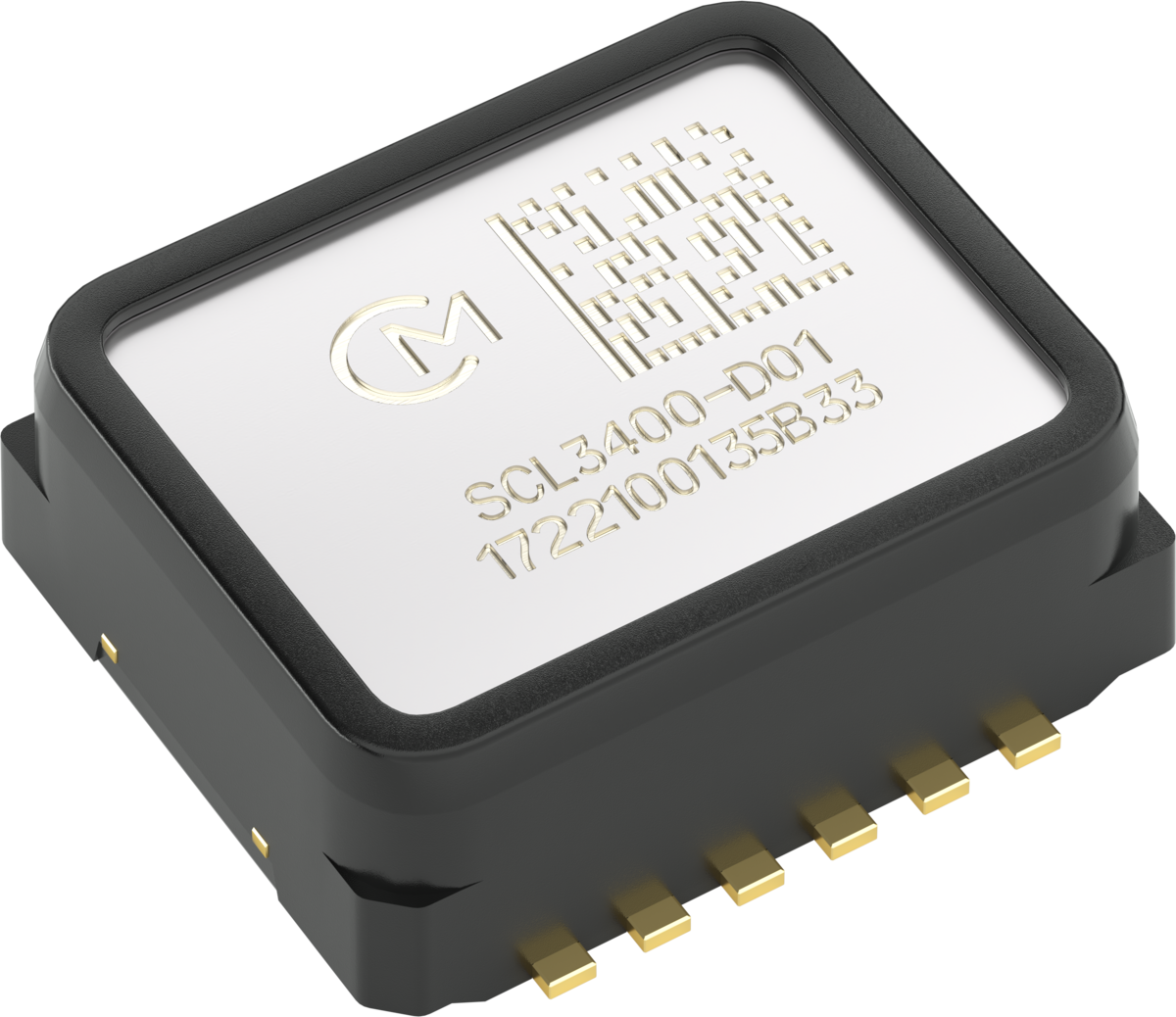

The Murata SCL3400-D01 is an IC design 2-axis sensor providing a measuring range of ± 0 to 91 and an SPI output signal. It operates on an input voltage of 3.0 to 3.6 VDC across a temperature range of -40 to 85 °C, featuring a noise level of 16 μg / SQRT (Hz), 1 % FS linearity, a bandwidth of 10 to 40 Hz, and 0.7 % FS sensitivity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Murata

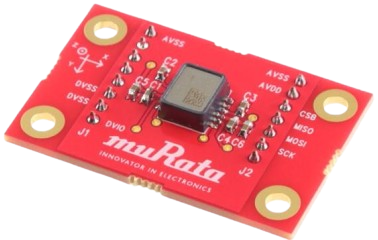

The Murata SCL3400-D01-PCB is a 2-axis PCB design sensor featuring a measuring range of ± 0 to 92 and an SPI output signal. Operating on an input voltage of 3.0 to 3.6 VDC within a temperature range of -40 to 85 °C, this component delivers 16 μg / SQRT (Hz) noise, 1 % FS linearity, 10 to 40 Hz bandwidth, and 0.7 % FS sensitivity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Murata part.
View product details →
Murata

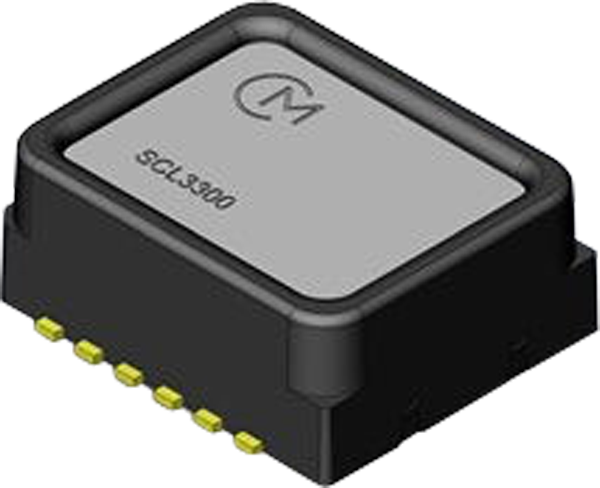

The Murata SCL3300-D01 is a 3-axis IC featuring an SPI output signal and an input voltage range of 3.0 to 3.6 VDC. This component operates across a temperature range of -40 to 125 °C with a measuring range of ± 10 to 90, noise levels of 15 to 32 μg / SQRT (Hz), a bandwidth of 10 to 70 Hz, and a sensitivity of 52 to 209 LSB/°. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Murata sensor.
View product details →
Murata

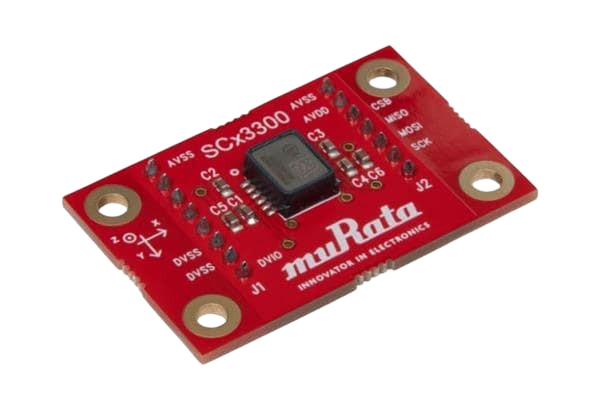

The Murata SCL3300-D01-PCB is a 4-axis PCB design featuring an SPI output signal and a measuring range of ± 0 to 90. Operating on an input voltage of 3.0 to 3.6 VDC, this component operates across a temperature range of -40 to 125 °C with a bandwidth of 10 to 70 Hz and a sensitivity of 52 to 209 LSB/°. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Murata

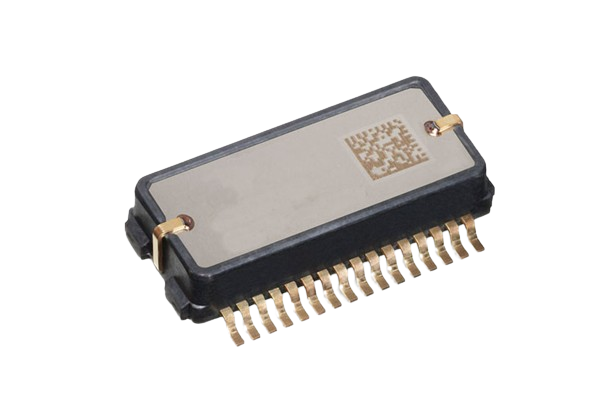

The Murata SCHA63T-K03 is an integrated circuit 6-DoF sensor featuring 6 axes, a 300°/s measuring range, a 300 ±°/s angular range, and a ±6g acceleration capability. This device delivers a sensitivity of 80 LSB/(°/sec), an in-band quiescent noise of 0.0014°/s rms, a bias over temperature of ±0.15 °/s, a bias instability of 1.68 °/hr, and selectable bandwidths of 10 Hz and 60 Hz within a 3.0 to 3.6 VDC supply voltage range. Please note this component is subject to a last time buy of September 2026, with the SCH16T series designated as the replacement. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Murata
The Murata SCHA63T-K01 is a 6-DoF sensor IC featuring 6 axes and a measuring range of 125°/s with an angular range of ±125°/s. This component provides a sensitivity of 160 LSB/( °/sec), an in-band quiescent noise of 0.0011°/s rms, a bias over temperature of ±0.15°/s, a bias instability of 1.11°/hr, and selectable bandwidths of 10 Hz or 60 Hz while operating on a supply voltage from 3.0 to 3.6 VDC. Please note that this part has a last time buy date of September 2026, with the SCH16T series designated as the replacement. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Murata
The Murata SCHA63T-K01-PCB is a 6-DoF evalboard PCB featuring a 125°/s measuring range and a sensitivity of 160 LSB/(°/sec). This evaluation board operates on a supply voltage of 3,0 to 3,6 VDC, delivering an in-band quiescent noise of 0,0011°/s rms, a bias instability of 1.11 °/hr, and a bias over temperature of ± 0,15 °/s across selectable bandwidths of 10 Hz and 60 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Murata evaluation board.
View product details →
Murata

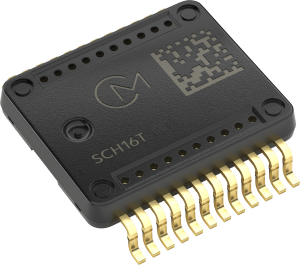

The Murata SCH16T-K20 is an IC 6-DoF sensor featuring 6 axes with a measuring range of 300°/s, an angular range of ±300°/s, and an acceleration of ±8 g. This high performance leveling 6DoF device operates on a supply voltage of 3.0 to 3.6 VDC and delivers a sensitivity of 100 / 1600 LSB/(°/sec), an in-band quiescent noise of 0.0004°/s rms, and a bias instability of 0.3 °/hr across selectable bandwidths of 13 Hz and 370 Hz. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Murata
The Murata SCH16T-K10 is a 6-DoF sensor IC featuring 6 axes with an angular range of plus-minus 2000 degrees per second, a measuring range of 2600 degrees per second, and an acceleration of plus-minus 16 g. This device operates on a supply voltage of 3.0 to 3.6 VDC and delivers a sensitivity of 12.5 and 200 LSB per degree per second, an in-band quiescent noise of 0.0002 degrees per second rms, a bias over temperature of plus-minus 0.2 degrees per second, a bias instability of 2 degrees per hour, and selectable bandwidths of 13 Hz and 370 Hz. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Murata

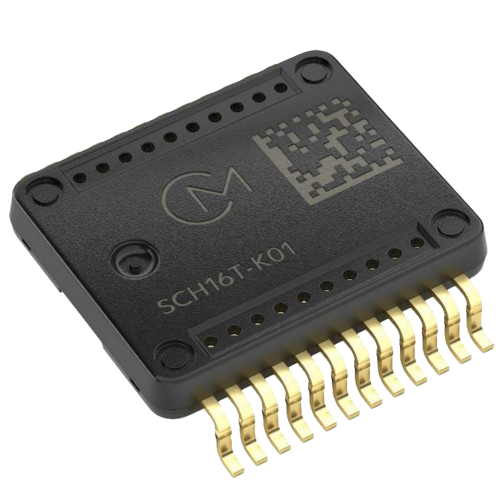

The Murata SCH16T-K01 is an IC 6-DoF sensor featuring 6 axes, an angular range of ±300°/s, and an acceleration of ±8 g. This device delivers a measuring range of 300°/s, sensitivity of 100 / 1600 LSB/(°/sec), in-band quiescent noise of 0.0002°/s rms, bias over temperature of ±0.2°/s, bias instability of 0.5°/hr, and selectable bandwidths of 13 Hz and 320 Hz while operating on a supply voltage from 3.0 to 3.6 VDC. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this sensor.
View product details →
Murata
The Murata SCC433T-K03 is a 5-DoF integrated circuit sensor featuring 4 axes, an angular range of plus or minus 300 degrees per second, and selectable acceleration of plus or minus 6 or 8 g. This component delivers a sensitivity of 80 LSB per degree per second, in-band quiescent noise of 0.0009 degrees per second rms, bias over temperature of plus or minus 0.1 degrees per second, and a bias instability of 1.3 degrees per hour across selectable bandwidths of 10 Hz and 60 Hz operating on a supply voltage from 3.0 to 3.6 VDC. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →
Murata

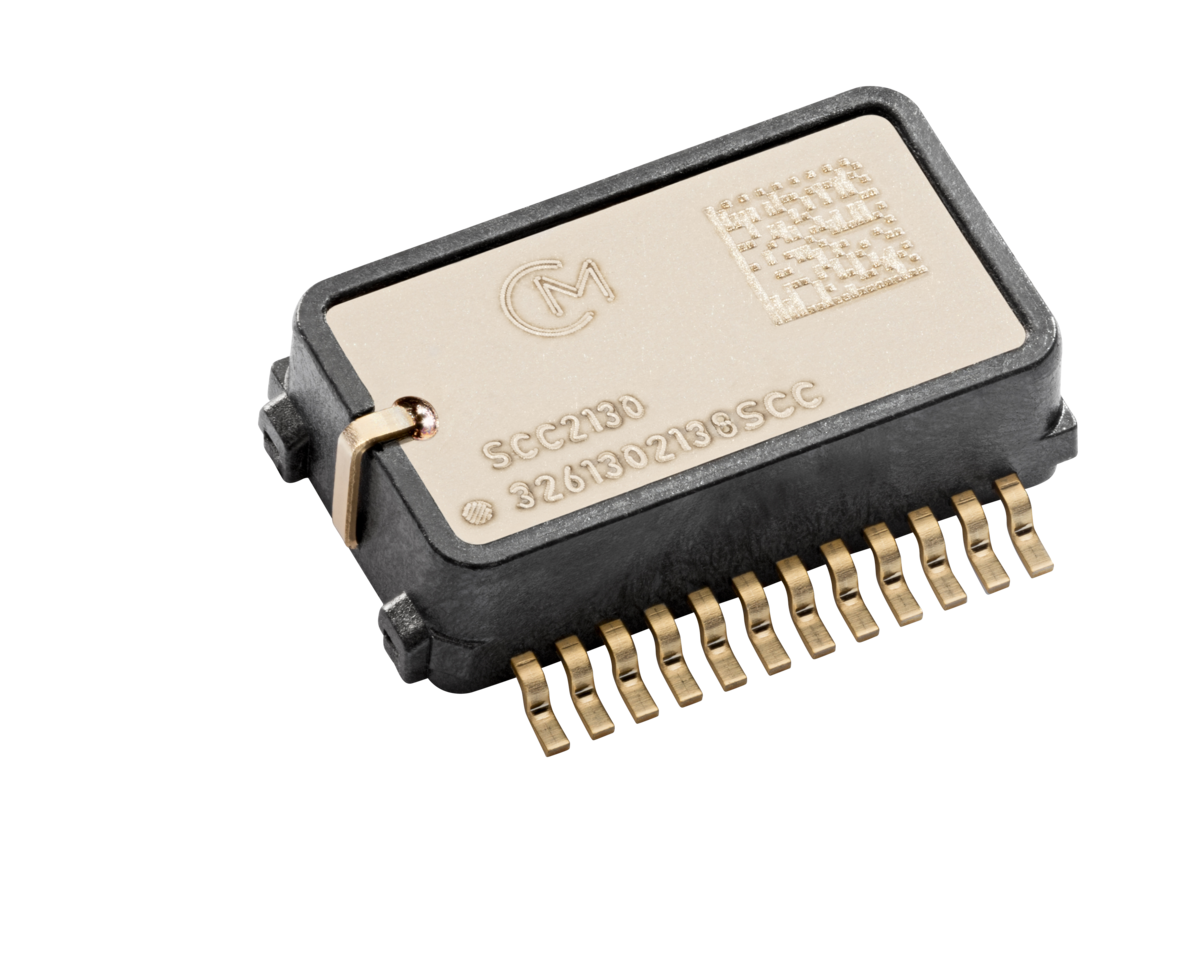

The Murata SCC2230-E02 is a 4-axis combi sensor IC featuring an angular range of ±125°/s and an acceleration range of ±2g. Operating at a supply voltage from 3.0 to 3.6 VDC, this component delivers a sensitivity of 50 LSB/(°/sec), an in-band quiescent noise of 0.08 °/s rms, a bias over temperature of ±0.8 °/s, a bias instability of 2 °/hr, and selectable bandwidths of 10 Hz and 60 Hz. Submit your exact part number, quantity, and application requirements to request a quote for this part.
View product details →
Murata

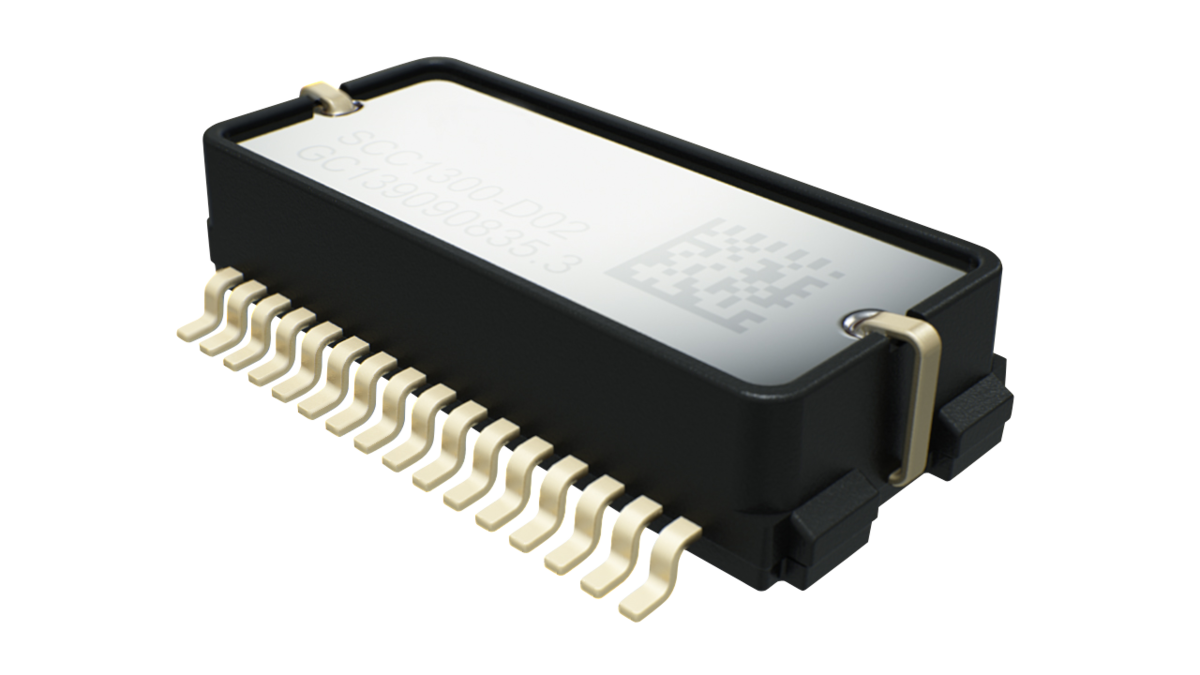

The Murata SCC1300-D04 is an integrated circuit combi sensor featuring 4 axes with a measuring range of 300°/s and 6g, operating at a supply voltage of 4.75 to 5.25 VDC. This component delivers an angular range of ±300 °/s, an acceleration of ±6 g, a sensitivity of 18 LSB/( °/sec), an in-band quiescent noise of 0,14 °/s rms, a bias over temperature of ± 0,9 °/s, a bias instability under <2,10 °/hr, and a 50 Hz bandwidth. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Murata
The Murata SCA830-D07 is an IC-design single-axis accelerometer featuring a measuring range of ± 0 to 90 and an SPI output signal. This component operates on an input voltage of 3.0 to 3.6 VDC within a temperature range of -40 to 125 °C, delivering a sensitivity of 0.00179 °/g, a noise level of 50 μg / SQRT (Hz), and a bandwidth of 6.25 Hz. Submit the exact part number, quantity, and application requirements to receive a quote for this part.
View product details →
