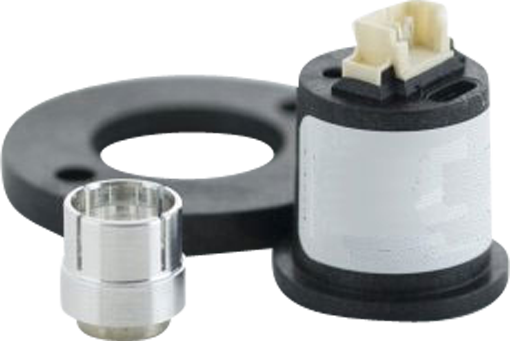

Reference imageConfirm configuration by manufacturer part number.
US Digital
MAE3
US Digital MAE3 — Linear Position Sensors Angle Sensors
The US Digital MAE3 is a miniature contactless absolute encoder utilizing Hall technology within a 12.2 mm diameter flange-mounting housing. Operating on a 5 V DC supply voltage with a 20 mA current consumption, this bearingless hollow shaft unit delivers 0 to 5 V DC or PWM output signals across a 360-degree electrical angle with 1024 to 4096 resolution and 0.14 ± %FS linearity. It accommodates shaft and bore diameters of 3, 3.175, 4, 4.76, 5, 6, and 6.35 mm via a miniature connector, and functions reliably across a temperature range of -40 to 125 ¹C. Submit the exact part number, quantity, and application requirements to request a quote for this US Digital component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued US Digital references — within one business day.
- Manufacturer
- US Digital
- Part number
- MAE3
- Product series
- MAE3 - not recommended for new dsigns
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to MAE3.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Name
- MAE3 - not recommended for new dsigns
- Product Category
- Linear Position Sensors Angle Sensors
- Technology
- Contacless, Hall
- Housing Ø [mm]
- 12.2
- Supply voltage [V]
- 5
- Output signal
- 0 to 5 V DC, PWM
- Number of outputs
- 1
- Angle el. [°]
- 360
- Mounting
- Flange
- Output Connection
- Miniature connector
- Shaft
- Hollow shaft
- Shaft & bore Ø [mm]
- 3, 3.175, 4, 4.76, 5, 6, 6.35
- Ball bearing
- Bearingless
- Backspring
- No
- Linearity [± %FS]
- 0.14
- Temp. range [°C]
- -40 to 125
- Current consumption [mA]
- 20
- Comment
- Miniature contactless
- Function
- Absolute
- Category
- Encoder
- Resolution
- 1024-4096
- Case Ø [mm]
- 12.7
- Supply volatge [V]
- 5
- Output
- Analog, PWM
