US Digital
The US Digital MAE4 is a miniature absolute kit encoder featuring a 12.7 mm case diameter and a 5V supply voltage. It provides analog and PWM outputs with shaft and bore diameter options of 1/8", 6 mm, and 1/4", operating within a temperature range of -40 to 125 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
US Digital
The US Digital MA4 is a miniature absolute kit encoder utilizing magnetic sensing within a 12.7 mm case diameter. Operating on a 5V supply voltage, this unit features analog and PWM outputs while accommodating shaft and bore diameters of 1/8", 6 mm, and 1/4" across a -40 to 125 °C temperature range. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →
US Digital
The US Digital MAE3 is a miniature contactless absolute encoder utilizing Hall technology within a 12.2 mm diameter flange-mounting housing. Operating on a 5 V DC supply voltage with a 20 mA current consumption, this bearingless hollow shaft unit delivers 0 to 5 V DC or PWM output signals across a 360-degree electrical angle with 1024 to 4096 resolution and 0.14 ± %FS linearity. It accommodates shaft and bore diameters of 3, 3.175, 4, 4.76, 5, 6, and 6.35 mm via a miniature connector, and functions reliably across a temperature range of -40 to 125 ¹C. Submit the exact part number, quantity, and application requirements to request a quote for this US Digital component.
View product details →
US Digital

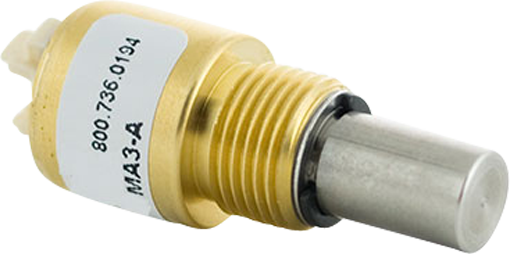

Manufactured by US Digital, the miniature MA3 is a contactless Hall-effect absolute singleturn magnetic encoder featuring a 12.2 mm housing diameter and a 360-degree electrical angle. Operating on a 4.5 to 5.5 V DC supply voltage, this bushing-mounted component provides 0 to 5 V DC or PWM output signals across a temperature range of -40 to 125 °C. Shaft diameters are available in 3.2, 6, and 6.4 mm supported by a ball bearing and metal sleeve, drawing 20 mA of current with a linearity of ±0.14% FS. Please submit the exact part number, quantity, and application requirements to receive a formal quotation for this superseded model.
View product details →
US Digital

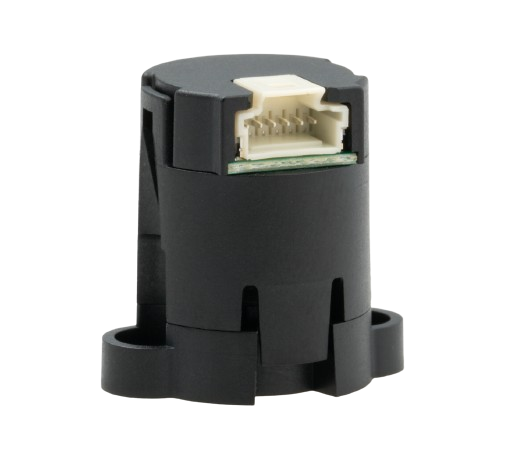

The US Digital M3K is an absolute and incremental encoder featuring a case diameter of 16 mm and a resolution ranging from 1 to 8192. Operating on a supply voltage of 4 to 16.5 V across a temperature range of -40 to 100 °C, this unit provides incremental and PWM outputs with shaft and bore diameter options of 3, 3.175, 4, 4.76, 5, 6, and 6.35 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
US Digital
The US Digital LIN is an incremental component featuring a resolution of 120-500. This unit operates within a temperature range of -40 to +100 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
US Digital

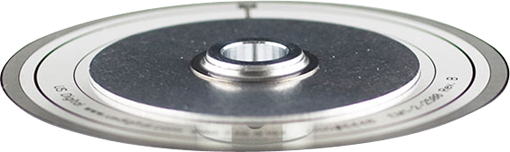

The US Digital HUBDISK-2 is an incremental hubdisk featuring a case diameter of 51.2 mm and a resolution ranging from 64 to 10000. It accommodates shaft and bore diameters of 2, 3, 3.175, 4, 4.76, 5, 6, 6.35, 7, 8, 9.52, 10, 12, 12.7, 14, 15.875, 19.05, 20, 22.225, 25, and 25.4 mm while operating within a temperature range of -40 to +100 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
US Digital

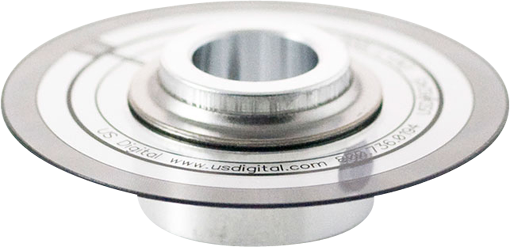

The US Digital HUBDISK-1 is an incremental hubdisk featuring a 25.4 mm case diameter and a resolution ranging from 32 to 5000. It accommodates shaft and bore diameters of 2, 3, 3.175, 4, 4.76, 5, 6, 6.35, 7, 8, 9.52, and 10 mm while operating within a temperature range of -40 to +100 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this US Digital component.
View product details →
US Digital

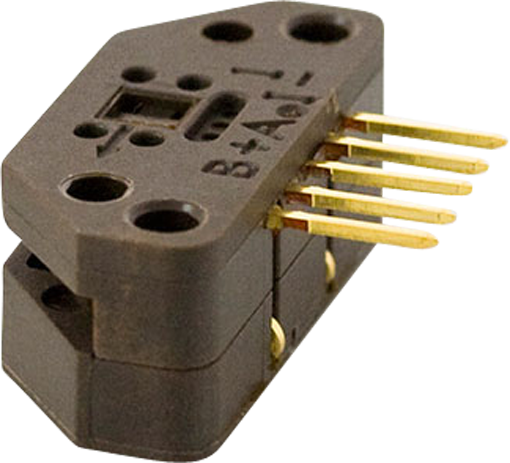

The US Digital EM2 is an incremental encoder featuring a resolution range of 2000 to 10000 and an ABZ output type. Operating on a 5V supply voltage, this unit functions within a temperature range of -25 to +100 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →US Digital
The US Digital EM1 is an incremental encoder featuring an adjustable resolution from 32 to 2500 and operating on a 5V supply voltage. This component provides ABZ outputs and functions reliably across a temperature range of -40 to +125 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the EM1.
View product details →
US Digital

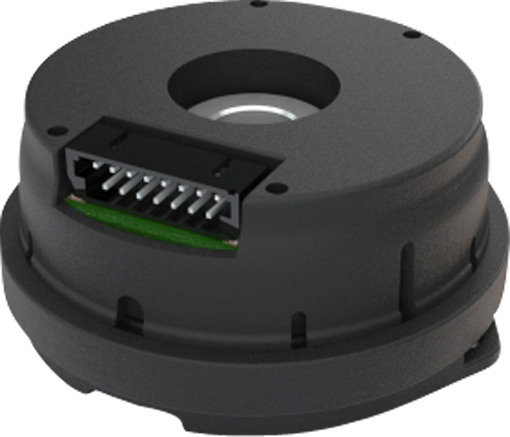

The US Digital EC35 is an incremental encoder featuring a 38 mm case diameter and a 5 V supply voltage. It offers a resolution ranging from 500 to 60000 cycles per revolution, providing ABZ and UVW outputs alongside shaft and bore diameters of 5, 6, 6.35, 8, 9.52, and 10 mm. Operating within a temperature range of -20 to +105 °C, this component integrates precisely into motion control assemblies. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
US Digital

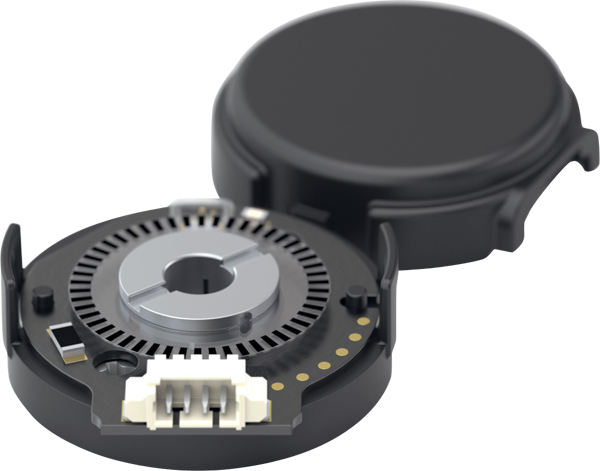

The US Digital E8T is an incremental optical encoder featuring a 28 mm case diameter and a 5 V supply voltage. This component provides resolutions ranging from 180 to 720, AB outputs, and accommodates shaft and bore diameters of 3, 3.175, 3.97, 4, 5, 6, 6.35, 7, 8, and 9.525 mm within a temperature range of -20 to 100 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
US Digital

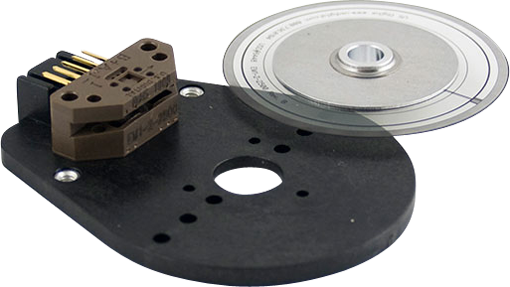

The US Digital E6 is an incremental kit encoder featuring a case diameter of 56.4 mm and a wide resolution range from 64 to 10000. It operates on a supply voltage of 5 to 30 V, delivers ABZ outputs, accommodates shaft and bore diameters ranging from 2 mm to 25.4 mm, and functions within a temperature range of -40 to 100 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this US Digital component.
View product details →
US Digital

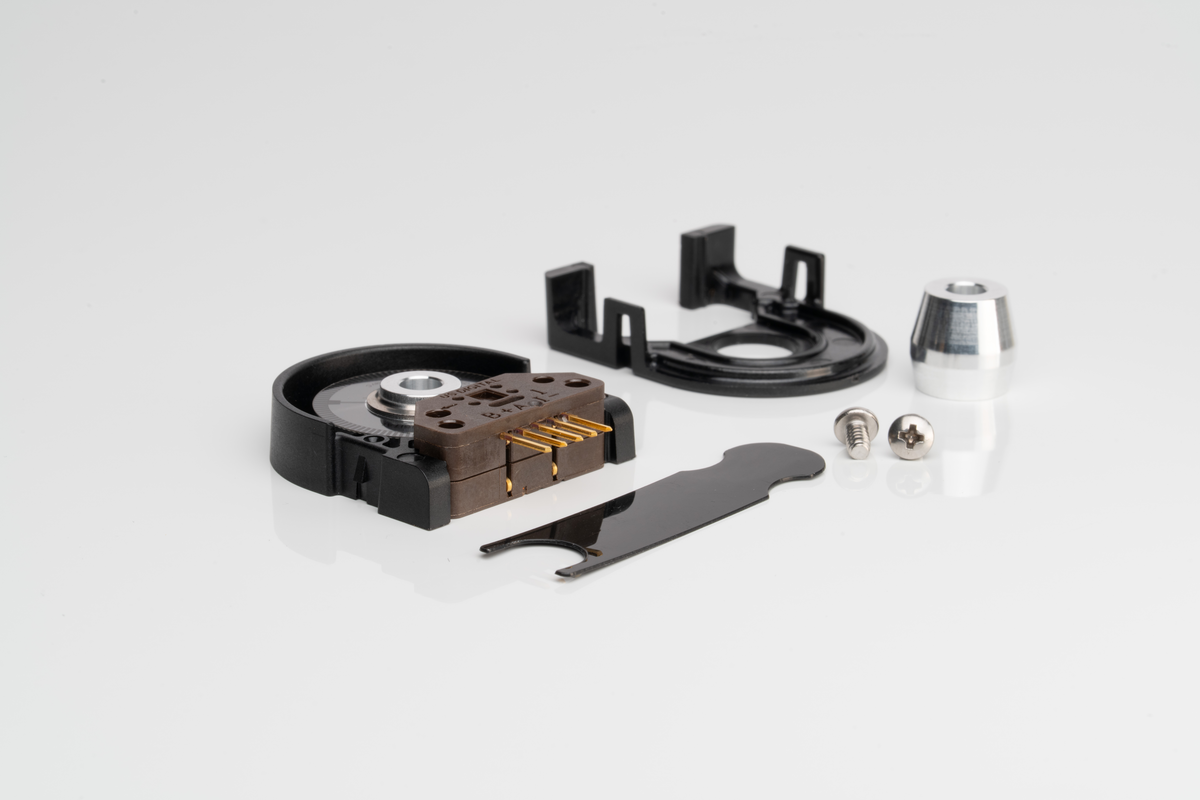

The US Digital L2 is a low profile incremental kit encoder featuring a case diameter of 34.58 mm and a wide resolution range from 32 to 5000 cycles per revolution. This model operates on a 5 to 30 V supply voltage, provides ABZ outputs, and accommodates shaft and bore diameters spanning 2 to 8 mm alongside 1/8 to 5/16 inches across a -40 to 100 °C temperature range. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
US Digital

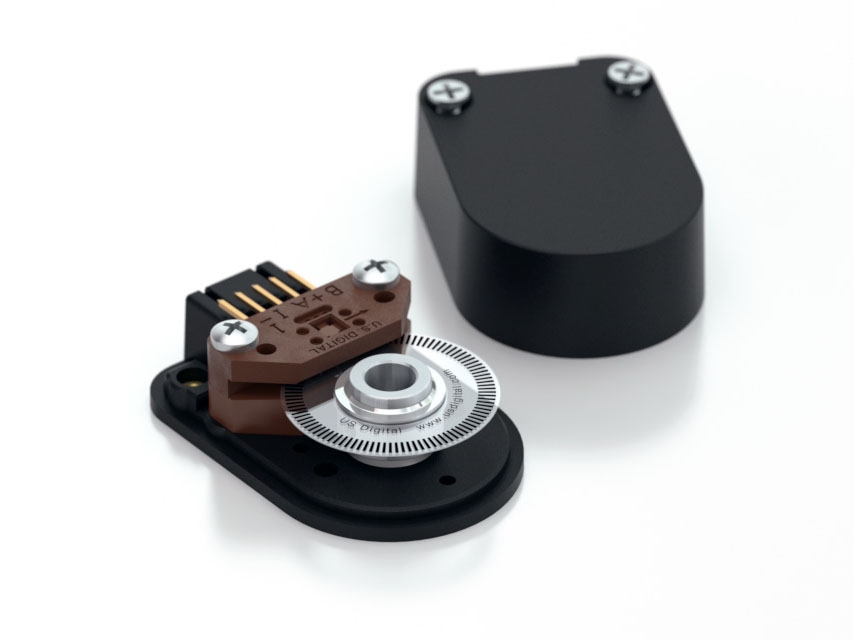

The US Digital E5 is an incremental kit encoder featuring a 31 mm case diameter and a flexible shaft and bore diameter ranging from 2 mm to 10 mm. It delivers a resolution of 32 to 5000 with ABZ outputs, operating on a supply voltage of 5 to 30 V across a temperature range of -40 to 100 °C, with a -25 °C minimum for counts per revolution above 2000. Submit the exact part number, quantity, and application requirements to request a quote for this US Digital component.
View product details →
US Digital

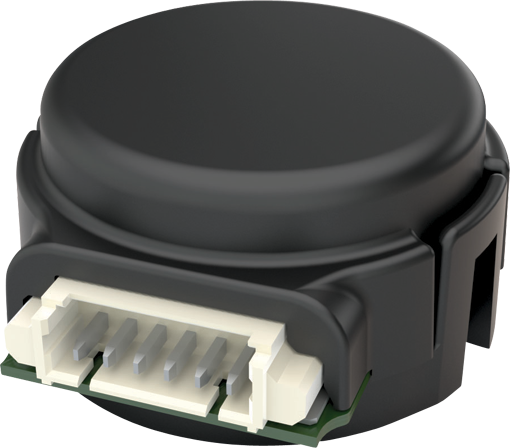

The US Digital E4T is an incremental optical encoder featuring a 22 mm case diameter and a 5 V supply voltage. This model delivers a resolution ranging from 100 to 1000 with AB quadrature outputs and operates within a temperature range of -20 to 100 °C, supporting shaft and bore diameters of 2, 2.5, 3, 3.175, 4, 4.76, 5, 6, and 6.35 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
US Digital

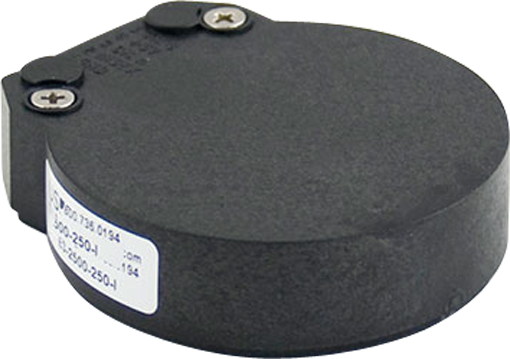

The US Digital E3 is an incremental optical encoder featuring an ABZ output format and a programmable resolution ranging from 64 to 10000 cycles per revolution. Housed in a 55.9 mm diameter case, this 5V unit accommodates a broad selection of shaft and bore diameters spanning from 2 mm to 25.4 mm and operates within a temperature range of -40 to 100 °C. Request a formal quotation by submitting the exact part number, required quantity, and your specific application parameters.
View product details →
US Digital

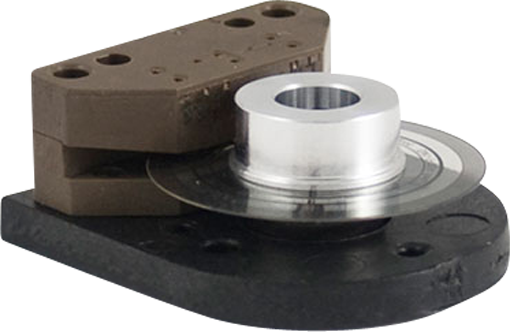

The US Digital E2 is an incremental optical encoder featuring a 30.5 mm case diameter and a 5 V supply voltage. It offers a resolution range of 32 to 5000 CPR with ABZ outputs and accommodates shaft and bore diameters from 2 mm to 10 mm. Operating within a temperature range of -40 to 100 °C (-25 °C for CPR above 2000), this component provides precise feedback for motion control systems. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
US Digital

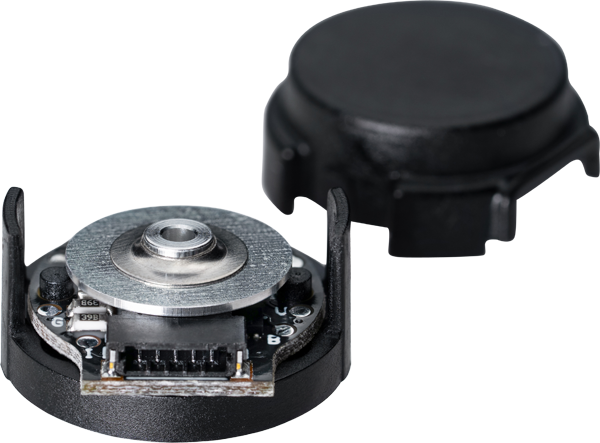

The US Digital E16 is an incremental encoder featuring a 16 mm case diameter and a 5V supply voltage. This component provides an ABI output with a resolution range of 250 to 4096, accommodating shaft and bore diameters of 1.5 mm and 2 mm while operating across a temperature range of -40 to 100 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
US Digital

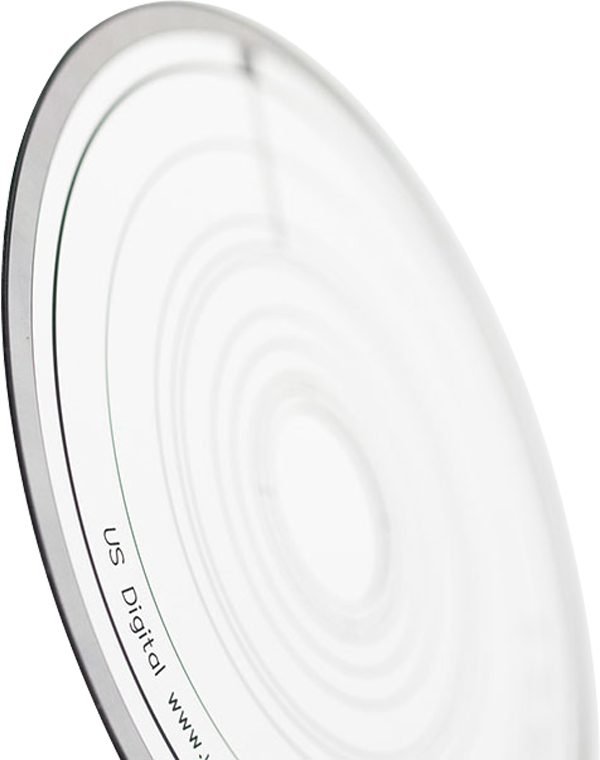

The US Digital DISK-2 is an incremental encoder disk featuring a resolution range of 64 to 2500, housed in a 50.8 mm case diameter. It accommodates shaft and bore diameters of 2.36, 3.175, 9.52, 11.2, 12, 12.7, 14, 15.88, 19.05, 22.22, 25, and 25.4 mm while operating within a temperature range of -40 to +100 °C. Submit the exact part number, quantity, and application requirements to request a quote for this US Digital component.
View product details →
