Danfoss Industrieautomatik
032U7128

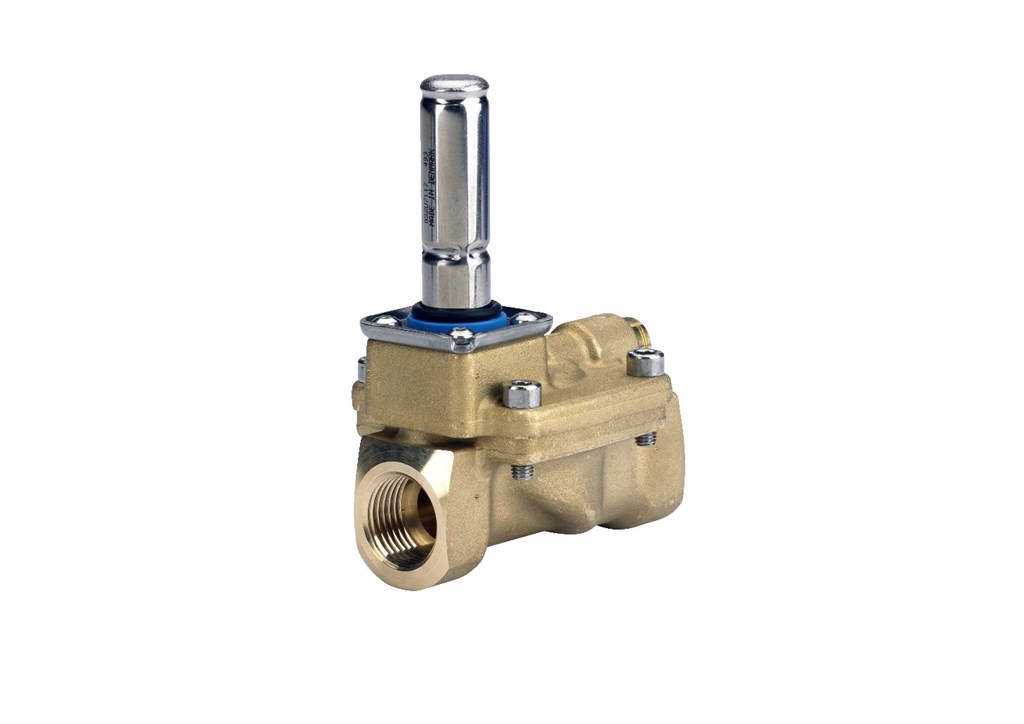

Danfoss Industrieautomatik 032U7128 — Solenoid Valve
The Danfoss Industrieautomatik 032U7128 is a servo-operated diaphragm solenoid valve featuring a G 1 port size and a 25.0 mm nominal size. Constructed with a brass housing and FKM seals, this normally open (NO) valve operates within a differential pressure range of 0.3 to 10 bar and a media temperature range of 0 to 100 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8026232
Common supply manifold VABM-B10-25-N12-6-P53
The Festo 8026232 industrial component features a width dimension of 27.5 mm, a product weight of 586 g, and a wrought aluminum alloy manifold rail material with RoHS compliance. Featuring a 1/2 NPT pneumatic connection 1 and mounting via a bracket in any mounting position, this unit accommodates a maximum of six valve positions while maintaining a CRC rating of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8005067
Quarter turn actuator DAPS-0960-090-RS1-F1216-MW
The Festo 8005067 industrial component is a single-acting valve actuator featuring a 0960 size and a kinematic yoke system with a 92-degree swivel angle. It operates at a nominal pressure of 0.56 MPa (5.6 bar) with an operating pressure range of 0.28 MPa to 0.84 MPa and includes an ISO 5211 flange hole pattern of F12 or F16 alongside a VDI/VDE 3845 NAMUR valve connection. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 hazardous environments, this model supports functional safety up to SIL 2 in both high and low demand modes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8022825
Pressure sensor SPAW-P10R-G12M-2NA-M12
The Festo part number 8022825 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure across a range of 0 to 1 MPa, 0 to 10 bar, or 0 to 145 psi with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This device operates with compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature range of -20 °C to 85 °C and an ambient temperature range of 0 °C to 80 °C, featuring 2xNPN switching outputs with a maximum output current of 250 mA alongside a 4 to 20 mA analog output with a 3 ms rise time. It carries RCM compliance, c UL us - Listed (OL) certification, CE marking per EU EMC and RoHS directives, and UKCA marking per UK EMC and RoHS instructions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8003303
Inscription label ASLR-L-S6-2016
This Festo industrial component, part number 8003303, features dimensions of 12.5 by 6 mm with a height of 6 mm and a length of 12.5 mm. The pack size includes 24 units, each marked with labelling 24, and the materials are RoHS compliant. It is rated with a corrosion resistance class of CRC 0 for no corrosion stress and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8026231
Common supply manifold VABM-B10-25-N12-5-P53
The Festo 8026231 is an industrial component featuring a width dimension of 27.5 mm, a product weight of 504 g, and a manifold rail constructed from wrought aluminum alloy with a RoHS compliant material note. This assembly accommodates a maximum of five valve positions, includes a 1/2 NPT pneumatic connection 1, and utilizes mounting bracket installation for any mounting position. It achieves a corrosion resistance class (CRC) of 2 for moderate corrosion stress alongside VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
8005066
Quarter turn actuator DAPS-0960-090-RS1-F14-MW
The Festo 8005066 is a single-acting industrial component utilizing a kinematic yoke system with a 0960 valve actuator size, an F14 flange hole pattern, and a 92-degree swivel angle. Operating within a pressure range of 2.8 bar to 8.4 bar and a nominal pressure of 5.6 bar, this unit features a 48.5 mm shaft connection depth, ISO 5211 standard valve connection, VDI/VDE 3845 NAMUR compliance, and an optionally adjustable single end position without cushioning. Certified for ATEX and UKCA hazardous areas including Zones 1, 2, 21, and 22, it supports up to SIL 2 in both high and low demand modes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8003300
Pressure sensor SPAN-
The Festo part number 8003300 is a piezoresistive pressure sensor designed to measure relative pressure within a measuring range from -0.1 MPa (-1 bar, -14.5 psi) to 1.6 MPa (16 bar, 232 psi). This industrial component operates with compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases across a medium and ambient temperature range of 0 °C to 50 °C, supporting lubricated operation. Featuring an accuracy of 1.5 %FS, a repetition accuracy of 0.3 %FS, switchable 2 x PNP or 2 x NPN outputs, and analog output options of 0 - 10 V, 4 - 20 mA, or 1 - 5 V, it carries RCM compliance, c UL us - Listed (OL), CE marking per EU EMC and RoHS directives, and UKCA marking for UK EMC and RoHS instructions. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
8026230
Common supply manifold VABM-B10-25-N12-4-P53
The Festo 8026230 is an industrial component featuring a width dimension of 27.5 mm and a wrought aluminum alloy manifold rail with a maximum of 4 valve positions. This RoHS compliant part weighs 422 g, incorporates a 1/2 NPT pneumatic connection 1, and utilizes a mounting bracket for any mounting position. It has a corrosion resistance class (CRC) of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8022824
Pressure sensor SPAW-P6R-G12M-2NA-M12
The Festo 8022824 is an industrial piezoresistive pressure sensor engineered to measure relative pressure across a 0 to 0.6 MPa (0 to 6 bar, 0 to 87 psi) range with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This component features a measured medium temperature range of -20 °C to 85 °C, an ambient operating temperature range of 0 °C to 80 °C, and an overload pressure threshold of 1.2 MPa (12 bar, 174 psi). It incorporates two NPN switching outputs with freely programmable and switchable switching functions up to a maximum output current of 250 mA, alongside a 4 to 20 mA analog output with a 3 ms rise time. Designed for compressed air per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media, the unit holds RCM and c UL us - Listed (OL) certifications while complying with EU and UKCA directives for EMC and RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8026229
Common supply manifold VABM-B10-25-N12-3-P53
: Festo part number 8026229 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 27.5 mm and a product weight of 340 g. This assembly accommodates a maximum of 3 valve positions, incorporates a 1/2 NPT pneumatic connection 1, and utilizes mounting bracket installation for any mounting position. The unit provides a corrosion resistance class (CRC) of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8005065
Quarter turn actuator DAPS-0720-090-RS4-F14-MW
The Festo size 0720 industrial component features a single-acting structural design utilizing a kinematic yoke system with a 92-degree swivel angle and right-closing direction. It operates within a pressure range of 5.6 bar to 8.4 bar, integrates an ISO 5211 valve connection with an F14 flange hole pattern, and provides ATEX and UKCA certifications for Zones 1, 2, 21, and 22 alongside SIL 2 compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8003134
Connecting cable NEBU-M12G5-K-7-LE4
The Festo 8003134 industrial component is a 197 g connecting part featuring an M12x1 A-coded straight socket with 5 pins (4 occupied) on the field device end and an open-ended 4-wire cable on the control side. It operates within a 0 V to 250 V AC/DC range at a 4 A current rating at 40° C and includes two label holders along with a screw-type lock mounting. Certified for ATEX Zone 2 and Zone 22 with compliance to EN 60947-5-2 and EN 61076-2-101 standards, the unit requires adherence to certificate instructions. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8022823
Pressure sensor SPAW-P2R-G12M-2NA-M12
The Festo part number 8022823 is an industrial component utilizing a piezoresistive pressure sensor to measure relative pressure across a 0 to 0.2 MPa (0 to 2 bar, 0 to 29 psi) range with an overload pressure rating of 0.4 MPa (4 bar, 58 psi). It features dual NPN switching outputs, a 4 to 20 mA analog output, 1 %FS accuracy, and 0.15 %FS repetition accuracy, operating within a medium temperature range of -20 °C to 85 °C and ambient temperatures from 0 °C to 80 °C. This unit complies with RCM, c UL us - Listed (OL), CE, UKCA, and RoHS directives for compressed air, liquid, and gaseous media. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
8026228
Common supply manifold VABM-B10-25-N12-2-P53
The Festo 8026228 is an industrial component featuring a width dimension of 27.5 mm, a product weight of 258 g, and a wrought aluminum alloy manifold rail. This part includes 1/2 NPT pneumatic connection 1, supports a maximum of 2 valve positions, and offers any mounting position using a mounting bracket with a corrosion resistance class of CRC 2 - Moderate corrosion stress. Material notes confirm RoHS compliance alongside VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Danfoss Industrieautomatik
032U7127
Danfoss Industrieautomatik 032U7127 — Solenoid Valve
The Danfoss Industrieautomatik 032U7127 is a servo-controlled diaphragm solenoid valve featuring a G 1 port size and a 25.0 mm nominal size within a brass housing. Equipped with an EPDM seal material and a normally open function, this component operates across a differential pressure range of 0.3 to 16 bar and a media temperature range of -30 to 140 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8005064
Quarter turn actuator DAPS-0720-090-RS4-F12-MW
The Festo 8005064 is a single-acting industrial component featuring a size 0720 valve actuator, an F12 flange hole pattern, and a kinematic yoke system structural design with a 92-degree swivel angle. It operates at a nominal pressure of 0.56 MPa (5.6 bar) with an operating pressure range of 0.56 MPa to 0.84 MPa, a 38.5 mm shaft connection depth, and ISO 5211 standard valve connections conforming to VDI/VDE 3845 (NAMUR). This un-cushioned unit offers position sensing options of none, an adjustable end position, right-closing direction, and ATEX/UKCA explosion protection certifications for Zones 1, 2, 21, and 22, maintaining SIL 2 compliance for both high and low demand modes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8026227
Common supply manifold VABM-B10-25-G12-10-P53
The Festo 8026227 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 27.5 mm and a product weight of 914 g. This unit accommodates a maximum of 10 valve positions, utilizes G1/2 pneumatic connection 1, and incorporates a moderate corrosion resistance class (CRC) of 2 alongside VDMA24364-B1/B2-L LABS conformity. Designed for mounting with a bracket in any position, it includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8003133
Connecting cable NEBU-M8G3-K-1.5-M8G3
This Festo industrial component, part number 8003133, features an M8x1 A-coded round socket with a straight cable outlet and screw-type lock on the field device end, alongside an M8x1 A-coded round plug with a straight cable outlet and screw-type lock on the control side. Both electrical connections include three occupied pins and wires configured to EN 61076-2-104, with wire colors and connection numbers conforming to EN 60947-5-2. The assembly includes two label holders, has a product weight of 45 g, and is rated for ATEX Zone 2 and Zone 22 hazardous locations in accordance with the product certificate. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8022822
Pressure sensor SPAW-B11R-G12M-2NA-M12
The Festo 8022822 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure within a range of -0.1 to 1 MPa (-1 to 10 bar, -14.5 to 145 psi) and an overload pressure threshold of 2 MPa (20 bar, 290 psi). It features dual NPN switching outputs with freely programmable and switchable functions, a 4 to 20 mA analog output, an accuracy of 1 %FS, and a repetition accuracy of 0.15 %FS. Certified with RCM and c UL us - Listed (OL) marks, this device complies with EU and UK directives for EMC and RoHS, operating with compressed air, liquid, and gaseous media across a medium temperature range of -20 °C to 85 °C and ambient temperatures from 0 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
