Festo
The Festo 547389 is an electrical 2/2-way closed monostable industrial component featuring a 10 mm piston gate valve design with soft sealing and a positive overlap lap. Operating on 12V DC with an operating pressure range of -0.09 MPa to 0.7 MPa and a normal nominal flow rate of 150 l/min, this piloted valve utilizes an external pilot air supply port and a pneumatic spring reset method. It incorporates a non-detenting manual override, an IP40 degree of protection, non-throttled exhaust air function, non-reversible flow direction, and c UL us recognition while supporting any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 547912 is a round industrial component utilizing an optoelectronic diffuse sensor measuring principle with red light to detect position within a working range of 40 mm to 600 mm. Operating on a 10 V to 36 V DC voltage range with a 20% residual ripple, this PNP switching output device features an antivalent switching element function, a 60 mm hysteresis, a maximum switching frequency of 1000 Hz, a maximum output current of 200 mA, a 2 V voltage drop, and pulsed short-circuit protection across an ambient temperature range of -25 °C to 55 °C. It conforms to EN 60947-5-2, carries RCM compliance and c UL us - Listed (OL) certifications, and features CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 547388 is a 10 mm piston gate valve featuring a 5/2-way bistable electrical actuation and a normal nominal flow rate of 170 l/min normalized to DIN 1343. This piloted component operates within a pressure range of -0.09 MPa to 0.7 MPa (-0.9 bar to 7 bar), utilizes an external pilot air supply port with a pilot pressure of 0.3 MPa to 0.7 MPa (3 bar to 7 bar), and includes a QS-3 pneumatic working port alongside a non-detenting manual override. Built with a soft sealing principle, positive overlap lap, and non-throttled exhaust air function, it offers an IP40 degree of protection, operates on 12V DC, accommodates any mounting position, and carries a c UL us - recognized (OL) certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 547131 is an 18 mm electrical industrial component featuring a 2x3/2 open monostable valve function, a piston gate valve structural design, and a normal nominal flow rate of 400 l/min normalized to DIN 1343. Operating on 12V DC with an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), this piloted unit utilizes internal pilot air supply, soft sealing, and a pneumatic spring reset method. It conforms to ISO 15407-1 and VDMA 24563 standards, offering an adjustable exhaust air function, non-detenting manual override, IP65 and NEMA 4 protection degrees, and multiple pneumatic working port options including sub-base size 18 mm, connecting plate size 02, and G1/8. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo

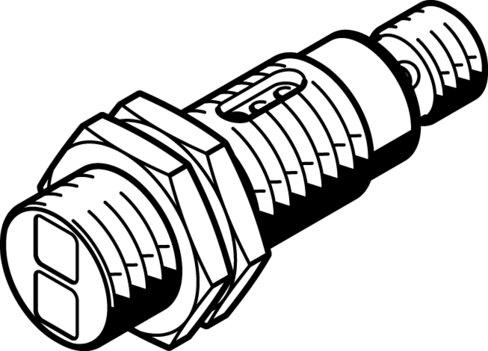

The Festo 547911 is a round optoelectronic diffuse sensor designed for position measurement with a working range of 40 mm to 600 mm using red light. Conforming to EN 60947-5-2, this industrial component operates on 10 V to 36 V DC, featuring an NPN antivalent switching output with a maximum switching frequency of 1000 Hz and a 200 mA output current capacity. It includes pulsed short-circuit protection, a 60 mm hysteresis, and functions within an ambient temperature range of -25 °C to 55 °C while carrying RCM, c UL us - Listed (OL), CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 547387 is a 5/2-way monostable industrial component featuring a 10 mm valve size, a piston gate valve structural design, and soft sealing principles. It operates on 12V DC with a normal nominal flow rate of 170 l/min, a pneumatic working port of QS-3, and an operating pressure range of -0.09 MPa to 0.7 MPa. This pilotive-controlled unit utilizes a pneumatic spring reset method, an external pilot air supply port with pilot pressure ranging from 0.3 MPa to 0.7 MPa, and provides a non-detenting manual override with IP40 protection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 547130 is an electrically actuated industrial component featuring a 2x3/2 open monostable valve function with a 26 mm valve size and a piston gate valve structural design. This piloted unit operates at 12V DC within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), delivering a normal nominal flow rate of 900 l/min through ISO 15407-1 and VDMA 24563 compatible sub-base ports. Equipped with soft sealing, an adjustable exhaust air function, non-detenting manual override, and IP65 and NEMA 4 protection degrees, it conforms to ISO 15407-1 and VDMA 24563 standards for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

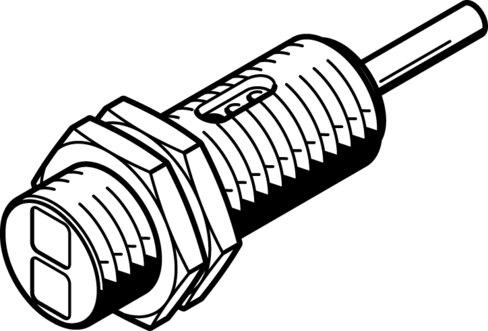

The Festo part number 547910 is a round industrial component utilizing an optoelectronic diffuse sensor measuring principle with red light to detect position across a working range of 40 mm to 600 mm. Operating on a DC voltage range of 10 V to 36 V, this EN 60947-5-2 compliant device features an NPN antivalent switching output, a maximum switching frequency of 1000 Hz, a 200 mA max output current, and pulsed short-circuit protection within an ambient temperature range of -25 °C to 55 °C. It carries CE and UKCA markings per EMC and RoHS directives, alongside RCM compliance and c UL us - Listed (OL) certifications. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo retainer CPE18-H5-50 features a high-alloy stainless steel retainer bracket and complies with RoHS material standards. This industrial component achieves corrosion resistance class (CRC) 2 for moderate corrosion stress and holds VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for part 547047.
View product details →
Festo
The Festo retainer CPE14-H5-50, part number 547046, features a retainer bracket constructed from high-alloy stainless steel and provides corrosion resistance class (CRC) 2 for moderate corrosion stress. This RoHS-compliant industrial component maintains LABS conformity under VDMA24364-B1/B2-L. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 547386 is an electrical 10 mm piston gate valve featuring a 3/2-way monostable open function, soft sealing principle, and positive overlap lap. Operating on 12V DC with an operating pressure range of -0.09 MPa to 0.7 MPa and a normal nominal flow rate of 170 l/min, this c UL us-recognized component includes external pilot air supply, pneumatic spring reset, and non-detenting manual override. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 547129 is an 18 mm electrical industrial component featuring a 2x3/2 closed, monostable valve function and a piston gate valve structural design. It delivers a normal nominal flow rate of 400 l/min at an operating pressure ranging from 0.2 MPa to 1 MPa (2 bar to 10 bar) using a 12V DC operating voltage, a soft sealing principle, and internal pilot air supply. Built to ISO 15407-1 and VDMA 24563 standards with IP65 and NEMA 4 protection degrees, it includes a pneumatic spring reset, non-detenting manual override, and adjustable exhaust air function for sub-base or connecting plate mounting. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 547909 is a round optoelectronic diffuse sensor designed for position measurement utilizing a red light source with a working range of 70 mm to 300 mm. This component conforms to EN 60947-5-2 and features a PNP switching output with light switching, a max switching frequency of 1000 Hz, and a DC operating voltage range of 10 V to 36 V. It operates within an ambient temperature of -25 °C to 55 °C and includes pulsed short-circuit protection, carrying RCM compliance, c UL us listing, along with CE and UKCA markings for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo Retainer CPE10-H5-50, part number 547045, features a retainer bracket constructed from high-alloy stainless steel and carries a corrosion resistance class (CRC) 2 rating for moderate corrosion stress. This RoHS-compliant industrial component maintains LABS conformity according to VDMA24364-B1/B2-L standards. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
The Festo 547385 is an electrical 10 mm piston gate valve featuring a 3/2-way, closed, monostable valve function with piloted control and an external pilot air supply port. This component operates on 12V DC with an operating pressure ranging from -0.09 MPa to 0.7 MPa (-0.9 bar to 7 bar) and a normal nominal flow rate of 170 l/min normalized to DIN 1343. Designed with a soft sealing principle, pneumatic spring reset method, non-detenting manual override, and IP40 degree of protection, the unit holds c UL us recognition (OL) and supports any mounting position. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 547908 is a round industrial component utilizing a diffuse optoelectronic measuring principle with red light to monitor position across a working range of 70 mm to 300 mm. This device conforms to EN 60947-5-2 and features a PNP switching output with light switching, a max switching frequency of 1000 Hz, and a DC operating voltage range of 10 V to 36 V. It operates within an ambient temperature range of -25 °C to 55 °C and carries c UL us - Listed (OL) and RCM compliance certifications alongside CE and UKCA markings for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 547128 is an electrical 2x3/2 closed, monostable industrial component featuring a 26 mm valve size, a piston gate valve structural design, and a normal nominal flow rate of 900 l/min normalized to DIN 1343. Operating on 12V DC with an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), this piloted valve incorporates a pneumatic spring reset method, internal pilot air supply, and adjustable exhaust air function. It offers IP65 and NEMA 4 protection, conforms to ISO 15407-1 and VDMA 24563 standards, and utilizes sub-base size 26 mm according to ISO 15407-1, connecting plate size 01 according to VDMA 24563, or G1/4 pneumatic working ports. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 547384 is a 10 mm electrical piston gate valve featuring a 2/2-way, closed, monostable function with a soft sealing principle and positive overlap lap. Operating on 12V DC within an operating pressure range of -0.09 MPa to 0.7 MPa, this piloted component utilizes an external pilot air supply port with pilot pressures from 0.3 MPa to 0.7 MPa to achieve a normal nominal flow rate of 150 l/min through QS-3 pneumatic working ports. Featuring a pneumatic spring reset, non-detenting manual override, non-reversible flow direction, non-throttleable exhaust air function, and IP40 protection, the c UL us-recognized unit supports any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 547907 is a round optoelectronic diffuse sensor utilizing red light for position measurement within a working range of 70 mm to 300 mm. This component conforms to EN 60947-5-2 with an NPN switching output, light switching element function, 30 mm hysteresis, and a maximum switching frequency of 1000 Hz. Operating on a DC voltage range from 10 V to 36 V, it features pulsed short-circuit protection, 200 mA max output current, 2 V voltage drop, and 20% residual ripple across an ambient temperature range of -25 °C to 55 °C. Certified with RCM compliance, c UL us listing, and CE/UKCA markings as per EU and UK EMC and RoHS directives, this unit is available for procurement. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 547127 is an electrical 18 mm 5/3-way closed piston gate valve featuring a soft sealing principle and a nominal width of 5 mm. This piloted component delivers a normal nominal flow rate of 450 l/min across an operating pressure range of -0.09 MPa to 1 MPa, utilizing an external pilot air supply, mechanical spring reset, and non-detenting manual override. Conforming to ISO 15407-1 and VDMA 24563 standards, it provides IP65 and NEMA 4 protection with sub-base size 18 mm, connecting plate size 02, and G1/8 pneumatic working ports for 24V AC operation. Submit the exact part number, quantity, and application requirements for a formal quote.
