Festo
The Festo part number 9148 is a double-acting industrial component featuring a 12 mm piston diameter and a 200 mm stroke with a single-ended piston rod. Operating within a working pressure range of 1 to 10 bar, this unit utilizes flexible cushioning rings or plates at both ends and lacks position detection capabilities. It functions with compressed air matching ISO8573-1:2010 [7:4:4] standards and permits lubricated operation, which then remains subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 9147 is a double-acting industrial component featuring a 12 mm piston diameter and a 140 mm stroke with a single-ended piston rod. It operates within a working pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], and accommodates lubricated operation that subsequently becomes required for continued use. This model includes flexible cushioning rings or plates at both ends for cushioning and does not feature position detection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 9146 is a double-acting industrial component featuring a 12 mm piston diameter and a 100 mm stroke with a single-ended piston rod. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, this unit includes flexible cushioning rings or plates at both ends and permits lubricated operation once subsequently required. Position detection is not included. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 9145 is a double-acting industrial component featuring an 80 mm stroke and a 12 mm piston diameter with a single-ended piston rod. It operates on compressed air matching ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, utilizing flexible cushioning rings or plates at both ends (P) for cushioning without position detection. Lubricated operation is possible and subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 9144 is a double-acting industrial component featuring a 12 mm piston diameter and a 50 mm stroke with a single-ended piston rod. It operates with compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, utilizing flexible cushioning rings or plates at both ends and accommodating lubricated operation when subsequently required. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 9143 is a double-acting industrial component featuring a 12 mm piston diameter and a 40 mm stroke with a single-ended piston rod. It operates within a working pressure range of 1 to 10 bar using compressed air that complies with ISO8573-1:2010 [7:4:4] standards, allowing for lubricated operation once subsequently required. This model incorporates flexible cushioning rings and plates at both ends (P cushioning) without position detection capabilities. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 9142 is a double-acting industrial component featuring a 12 mm piston diameter and a 25 mm stroke with a single-ended piston rod. Operating at a working pressure range of 1 to 10 bar, this unit utilizes flexible cushioning rings and plates at both ends and requires compressed air matching ISO8573-1:2010 [7:4:4], with lubricated operation possible though subsequently required for further operation. Position detection is not included. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 9141 is a double-acting industrial component featuring a 10 mm stroke and a 12 mm piston diameter with a single-ended piston rod. Operating at a working pressure of 1 to 10 bar, this unit utilizes compressed air in accordance with ISO8573-1:2010 [7:4:4] as its operating medium, featuring flexible cushioning rings or plates at both ends (P) and allowing lubricated operation that is subsequently required for further operation without position detection. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
This Festo industrial component, part number 9131, is a double-acting pneumatic cylinder featuring a 16 mm piston diameter and a 300 mm stroke with a single-ended piston rod. It operates within a working pressure range of 1 to 10 bar using compressed air that conforms to ISO8573-1:2010 [7:4:4], incorporating flexible cushioning rings or plates at both ends and permitting lubricated operation once subsequently required. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 9130 is a double-acting industrial component featuring a 16 mm piston diameter and a 200 mm stroke with a single-ended piston rod. Operating at a working pressure of 1 to 10 bar, this unit utilizes flexible cushioning rings or plates at both ends and lacks position detection. Compressed air in accordance with ISO8573-1:2010 [7:4:4] serves as the operating medium, and lubricated operation is possible though subsequently required for further operation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 9129 is a double-acting industrial component featuring a 16 mm piston diameter and a 140 mm stroke with a single-ended piston rod. This unit operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, utilizing flexible cushioning rings or plates at both ends (P) without position detection. Lubricated operation is possible, though it is subsequently required for further operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 9128 is a double-acting industrial component featuring a 16 mm piston diameter, a 100 mm stroke, and a single-ended piston rod. Operating at a working pressure of 1 to 10 bar, this unit utilizes flexible cushioning rings or plates at both ends and lacks position detection. It operates on compressed air compliant with ISO8573-1:2010 [7:4:4], and lubricated operation is possible though subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This double-acting industrial component from Festo features a 16 mm piston diameter and an 80 mm stroke, operating via compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar. The unit incorporates flexible cushioning rings or plates at both ends, a single-ended piston rod, and allows for lubricated operation which is subsequently required for further operation without position detection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 9126, is a double-acting actuator featuring a 16 mm piston diameter and a 50 mm stroke with a single-ended piston rod. It operates within a 1 to 10 bar working pressure range using compressed air that conforms to ISO8573-1:2010 [7:4:4], and it includes flexible cushioning rings or plates at both ends without position detection capabilities. Lubricated operation is possible and subsequently required for continued use. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 9125 is a double-acting industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and a single-ended piston rod operating across a working pressure range of 1 to 10 bar. This unit utilizes flexible cushioning rings or plates at both ends for cushioning and functions with compressed air meeting ISO8573-1:2010 [7:4:4] standards, allowing for lubricated operation that subsequently becomes required for continued use. Position detection is not included in this model's configuration. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 9124 is a double-acting industrial component featuring a 16 mm piston diameter and a 25 mm stroke with a single-ended piston rod. Operating within a pressure range of 1 to 10 bar, this unit utilizes flexible cushioning rings or plates at both ends and lacks position detection. It functions with compressed air meeting ISO8573-1:2010 [7:4:4] standards, permitting lubricated operation that is subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8970 is a double-acting industrial component featuring a 20 mm piston diameter and a 140 mm stroke with a single-ended piston rod. It operates on compressed air matching ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, utilizing flexible cushioning rings or plates at both ends and lacking position detection. Lubricated operation is possible and subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo

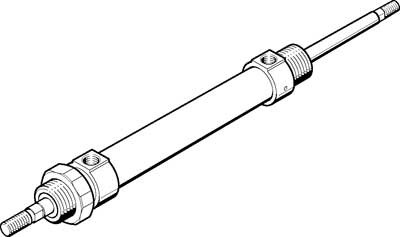

The Festo part number 8819 is a double-acting industrial component featuring a 25 mm piston diameter, a 1 to 500 mm stroke, and a through piston rod operating via compressed air in accordance with ISO8573-1:2010 [7:4:4] at a working pressure of 1 to 12 bar. This unit delivers a theoretical force of 247 N for both advance and return strokes at 6 bar and incorporates adjustable pneumatic cushioning (PPV) at both ends with a 16 mm cushioning length for an ambient temperature range of -20 to 80 °C. Lubricated operation is possible and subsequently required for further operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 8818, is a blue pneumatic tubing with an outside diameter of 4.65 mm, an inside diameter of 2.9 mm, and a weight of 0.014 kg/m. It features a bending radius relevant for flow rate of 20 mm and operates within a temperature-dependent working pressure range of -0.95 to 10 bar at ambient temperatures from -30 to 60 °C, while incorporating materials that conform to RoHS. Request a quote for this Festo part by submitting your exact part number, quantity, and application requirements.
View product details →
Festo
The Festo part number 8817 is a black industrial component featuring an outside diameter of 4.65 mm, an inside diameter of 2.9 mm, and a product weight of 0.014 kg/m. This RoHS-conforming part operates at a temperature-dependent working pressure of -0.95 to 10 bar within an ambient temperature range of -30 to 60 °C, and maintains a 20 mm bending radius relevant for flow rate. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
