Festo
The Festo part number 8742 is a double-acting industrial component featuring a 20 mm piston diameter, an M8 piston rod thread, and a stroke length adjustable from 1 to 320 mm. Conforming to CETOP RP 52 P and ISO 6432 standards, this cylinder operates on compressed air within a working pressure range of 1 to 10 bar and an ambient temperature span of -20 to 80 °C. It is equipped with adjustable pneumatic cushioning at both ends (PPV) with a 15 mm cushioning length and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

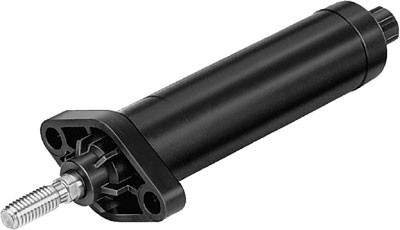

The Festo 8613 is a single-acting industrial component featuring a pushing action, a 12 mm piston diameter, and a 40 mm stroke. It delivers a theoretical force of 50 N at 6 bar during the advance stroke and incorporates flexible cushioning rings or plates at both ends. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 8612 is a single-acting industrial component featuring a pushing action mode of operation with a 12 mm piston diameter and a 25 mm stroke. This unit utilizes flexible cushioning rings or plates at both ends for cushioning and delivers a theoretical force of 50 N at 6 bar during the advance stroke. Request a quote for this specific part number by submitting your required quantity and application details.
View product details →
Festo
The Festo 8611 is a single-acting industrial component featuring a pushing action mode of operation with a 12 mm piston diameter and a 10 mm stroke. This unit is equipped with flexible cushioning rings and plates at both ends, delivering a theoretical force of 50 N at 6 bar during the advance stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8531 is a double-acting industrial component featuring a 25 mm piston diameter and a 125 mm stroke with a male M10x1,25 piston-rod end. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a pressure range of 1 to 10 bar, this unit delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar. Conforming to ISO 6432 and CETOP RP 52 P standards, the assembly incorporates adjustable pneumatic cushioning at both ends (PPV) with a 17 mm cushioning length and supports any assembly position within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8524 is a double-acting industrial component featuring a 25 mm piston diameter, a 250 mm stroke, and an M10x1,25 male piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating within a pressure range of 1 to 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4], it delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar. This single-ended piston rod unit incorporates flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and an ambient temperature operating range of -20 to 80 °C. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

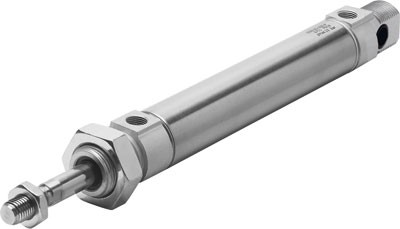

The Festo part number 8523 is a double-acting industrial component featuring a 25 mm piston diameter, a 125 mm stroke, and a male M10x1,25 piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a 1 to 10 bar pressure range and a -20 to 80 °C ambient temperature span, this single-ended piston rod unit delivers a theoretical force of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and functions with compressed air meeting ISO 8573-1:2010 [7:4:4] standards. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8522 is a double-acting industrial component featuring a 20 mm piston diameter, a 250 mm stroke, and a male M8 piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating within a 1 to 10 bar pressure range and an ambient temperature span of -20 to 80 °C, this unit utilizes flexible cushioning rings at both ends and accepts compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8521 is a double-acting industrial component featuring a 20 mm piston diameter, a 125 mm stroke, and a male M8 piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Designed with a single-ended piston rod, flexible cushioning rings at both ends, and a working pressure range of 1 to 10 bar, this unit operates with compressed air meeting ISO 8573-1:2010 [7:4:4] specifications across an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8520 is a double-acting industrial component featuring a 16 mm piston diameter, a 125 mm stroke, and a single-ended piston rod with a male M6 thread. Built in accordance with CETOP RP 52 P and ISO 6432 standards, this unit operates on compressed air within a 1 to 10 bar working pressure and features flexible cushioning rings at both ends for 0.15 J of end-position impact energy. It delivers a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, maintaining a CRC 2 moderate corrosion resistance across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8519 is a double-acting industrial component featuring a 12 mm piston diameter, a 125 mm stroke, and an M6 male piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1.5 to 10 bar pressure range and -20 to 80 °C ambient temperature, this single-ended piston rod cylinder utilizes flexible cushioning rings at both ends and achieves theoretical forces of 67.9 N on the advance stroke and 50.9 N on the return stroke at 6 bar. Constructed with a piston, piston rod, and cylinder barrel featuring a CRC 2 moderate corrosion resistance classification, it allows any assembly position and lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 8501, is a black product featuring a 9.5 mm outside diameter, a 6.5 mm inside diameter, and a 44 mm bending radius relevant for flow rate. The component has a product weight of 0.048 kg/m, an ambient temperature range of -30 to 60 °C, a temperature-dependent working pressure of -0.95 to 10 bar, and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 8500, is a blue tubing featuring an outside diameter of 9.5 mm, an inside diameter of 6.5 mm, and a bending radius relevant for flow rate of 44 mm. It operates at a temperature-dependent working pressure of -0.95 to 10 bar within an ambient temperature range of -30 to 60 °C, maintains a product weight according to length of 0.048 kg/m, and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8252826 is an industrial app Docker container providing basic functionality for asset type packages under a device-bound, time-limited 5-year license. This software features a graphical user interface available in German and English with Docker Compose support, requiring a minimum Docker Engine version of 2.0, 4 CPU cores, 120 GB of storage space, and 8 GB of RAM. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 8252825 is an industrial application software type packaged as a Docker container with Docker Compose support, requiring a minimum Docker Engine version of 2.0. This device-bound, time-limited 5-year license provides basic functionality for asset type packages through a graphical user interface available in German and English. System requirements include 4 CPU cores, 8 GB of working memory (RAM), and 120 GB of required storage space. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 8252824 is a time-limited industrial app software type provided as a Docker container with a three-year license period and device-bound license allocation. Featuring basic functionality for asset type packages with a graphical user interface in German and English, this software supports Docker Compose and requires a minimum Docker Engine version of 2.0. System prerequisites include four CPU cores, 8 GB of working memory (RAM), and 120 GB of required storage space. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8252823 is a 12-month annual subscription for a device-bound industrial app delivered as a Docker container supporting Docker Compose with a minimum Docker Engine version of 2.0. The software features basic functionality for asset type packages accessed through a graphical user interface available in German and English. System requirements include 4 CPU cores, 8 GB of working memory (RAM), and 120 GB of required storage space. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 8179241 is an electromechanical linear module featuring a toothed-belt design with a 5 mm pitch, a 50.93 mm effective diameter of the drive pinion, and a feed constant of 160 mm/U. This vertical assembly component delivers a working stroke between 200 and 2,000 mm, a maximum feed force of 1,200 N, a maximum speed of 5 m/s, and a maximum acceleration of 30 m/s2 while maintaining a repetition accuracy of ±0,05 mm and a 100 % duty cycle. Constructed with RoHS-conforming materials and VDMA24364 zone III PWIS conformity, the unit operates within an ambient temperature range of 5 to 45 °C, relative air humidity from 0 to 90 %, and features position detection for proximity sensors with an IP20 protection class. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →
Festo
The Festo 8179240 is an electromechanical linear module featuring a toothed-belt design with a 3 mm pitch, a 30.558 mm effective diameter of the drive pinion, and a feed constant of 96 mm/U. This unit operates with a working stroke of 200 to 1,200 mm, a max feed force of 600 N, a max speed of 5 m/s, and a max acceleration of 50 m/s2 while maintaining a repetition accuracy of ±0,05 mm at a 100 % duty cycle. Built for vertical assembly positions with integrated position detection for a proximity sensor, it requires a mounting surface flatness of 0.1 mm/m and conforms to RoHS and VDMA24364 zone III PWIS conformity standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 8179239 is an electromechanical linear module with a toothed belt featuring a working stroke of 200 to 800 mm, a drive pinion effective diameter of 30.558 mm, and a maximum feed force Fx of 300 N. This vertical assembly component delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s2, a repetition accuracy of plus or minus 0.05 mm, and a 100 % duty cycle. Constructed with a 3 mm toothed-belt pitch, 0.17 % toothed-belt stretch, and a feed constant of 96 mm/U, it requires a mounting surface flatness of 0.1 mm/m and includes position detection for a proximity sensor while complying with RoHS and VDMA24364 zone III PWIS conformity standards. Submit the exact part number, quantity, and application requirements to request a formal quote.
