Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 8816 is a double-acting industrial component featuring a 20 mm piston diameter and a 300 mm stroke with a single-ended piston rod. It operates within a working pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4] and includes flexible cushioning rings or plates at both ends with no position detection. Lubricated operation is possible, provided it is subsequently required for continued operation. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo part number 8815 is a double-acting industrial component featuring a single-ended piston rod, a 20 mm piston diameter, and a 200 mm stroke. It operates within a working pressure range of 1 to 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4], with flexible cushioning rings or plates at both ends and no position detection. Lubricated operation is possible, though it is subsequently required for further operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8814 is a double-acting industrial component featuring a 100 mm stroke and a 20 mm piston diameter with a single-ended piston rod. This unit operates on compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, utilizing flexible cushioning rings or plates at both ends and permitting lubricated operation that is subsequently required for further operation. Position detection is not included on this model. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

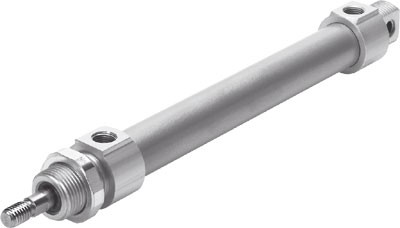

The Festo 8813 is a double-acting industrial component featuring a 20 mm piston diameter, an 80 mm stroke, and a single-ended piston rod. It operates with compressed air conforming to ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, utilizing flexible cushioning rings or plates at both ends without position detection. Lubricated operation is possible, though it is subsequently required for further operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 8812, is a double-acting actuator featuring a 20 mm piston diameter and a 50 mm stroke with a single-ended piston rod. It operates within a working pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], utilizing flexible cushioning rings or plates at both ends and permitting lubricated operation that is subsequently required for further operation without position detection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 8811 is a double-acting industrial component featuring a 20 mm piston diameter and a 40 mm stroke, operating via compressed air in accordance with ISO8573-1:2010 [7:4:4]. This single-ended piston rod unit functions at a working pressure range of 1 to 10 bar and includes flexible cushioning rings or plates at both ends for end-position energy absorption. Lubricated operation is possible, though it is subsequently required for further operation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 8810 is a double-acting industrial component featuring a 20 mm piston diameter and a 25 mm stroke with a single-ended piston rod. Operating at pressures ranging from 1 to 10 bar, this unit utilizes compressed air conforming to ISO8573-1:2010 [7:4:4] as the operating medium and incorporates flexible cushioning rings or plates at both ends. Lubricated operation is possible and subsequently required for continued use, while position detection is not included. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8809 is a double-acting industrial component featuring a 20 mm piston diameter and a 10 mm stroke with a single-ended piston rod. Operating within a 1 to 10 bar pressure range, this unit utilizes flexible cushioning rings or plates at both ends (P) and functions with compressed air compliant with ISO8573-1:2010 [7:4:4], allowing for lubricated operation that is subsequently required for further operation. This model operates without position detection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

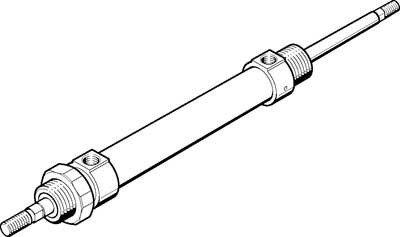

This Festo 8808 industrial component is a double-acting through piston rod model featuring a 20 mm piston diameter and adjustable pneumatic cushioning at both ends (PPV). It operates with compressed air conforming to ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar without position detection capabilities. Lubricated operation is permissible, though it subsequently remains a requirement for continued operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8806 is a double-acting industrial component featuring a 20 mm piston diameter and a through piston rod. Operating with compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working range, this unit utilizes flexible cushioning rings and plates at both ends without position detection. Lubricated operation is possible and subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 8805 is a double-acting industrial component featuring a 20 mm piston diameter and a variable stroke ranging from 1 to 500 mm with a single-ended piston rod. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a working pressure of 1 to 10 bar and ambient temperatures between -20 and 80 °C, this unit delivers a theoretical force of 188 N on the advance stroke and 158 N on the return stroke at 6 bar through a G1/8 pneumatic connection. It utilizes flexible cushioning rings or plates at both ends (P) and permits lubricated operation once subsequently required for further operation. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
Festo
The Festo 8751 is a double-acting industrial component featuring a 20 mm piston diameter, a 300 mm stroke, and a male M8 piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Designed with a single-ended piston rod, piston, piston rod, and cylinder barrel, this pneumatic cylinder operates at pressures between 1 and 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 15 mm cushioning length, delivering a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

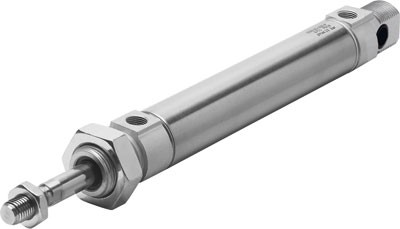

The Festo 8750 is a double-acting industrial component featuring a 20 mm piston diameter, a 250 mm stroke, and a male M8 piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. This single-ended piston rod unit operates on compressed air within a 1 to 10 bar pressure range and features adjustable pneumatic cushioning at both ends with a 15 mm cushioning length. It delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8749 is a double-acting industrial component featuring a 200 mm stroke and a 20 mm piston diameter with an M8 male piston rod thread. Operating within a 1 to 10 bar pressure range using compressed air conforming to ISO 8573-1:2010 [7:4:4], this cylinder incorporates adjustable pneumatic cushioning at both ends (PPV) with a 15 mm cushioning length and a CRC 2 moderate corrosion resistance classification. It conforms to CETOP RP 52 P and ISO 6432 standards, delivering a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo part number 8748 is a double-acting industrial component featuring a 20 mm piston diameter, a 160 mm stroke, and a male M8 piston rod thread operating within a pressure range of 1 to 10 bar. Conforming to ISO 6432 and CETOP RP 52 P standards, this single-ended piston rod unit incorporates adjustable pneumatic cushioning at both ends with a 15 mm cushioning length, an impact energy rating of 0.2 J, and delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar using compressed air meeting ISO 8573-1:2010 [7:4:4]. Built with a CRC 2 moderate corrosion resistance classification, it operates in ambient temperatures from -20 to 80 °C in any assembly position without position detection, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8747 is a double-acting industrial component featuring a 20 mm piston diameter, a 125 mm stroke, and an M8 male piston rod thread designed to CETOP RP 52 P and ISO 6432 standards. This unit operates on compressed air within a 1 to 10 bar working pressure range across ambient temperatures from -20 to 80 °C, and incorporates adjustable pneumatic cushioning at both ends with a 15 mm cushioning length. Delivering theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, it offers a CRC 2 moderate corrosion resistance classification and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 8746 is a double-acting industrial component featuring a 20 mm piston diameter and a 100 mm stroke with a male M8 piston rod thread. Conforming to CETOP RP 52 P and ISO 6432 standards, this single-ended piston rod cylinder operates on compressed air within a 1 to 10 bar working pressure and features adjustable pneumatic cushioning at both ends. It delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 8745 is a double-acting industrial component featuring an 80 mm stroke, a 20 mm piston diameter, and an M8 male piston rod thread designed in accordance with ISO 6432. It operates at a working pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. This unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 17 mm cushioning length, features a CRC 2 moderate corrosion resistance classification, and functions within an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8744 is a double-acting industrial component featuring a 20 mm piston diameter and a 50 mm stroke, conforming to CETOP RP 52 P and ISO 6432 standards with a single-ended male threaded M8 piston rod. Designed with a piston, piston rod, and cylinder barrel structure, it operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and -20 to 80 °C ambient temperature range. This unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 15 mm cushioning length, delivering theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →
Festo
The Festo 8743 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and an M8 male piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating on compressed air within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperatures, it delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. This single-ended piston rod unit incorporates adjustable pneumatic cushioning at both ends with a 15 mm cushioning length, 0.2 J end-position impact energy, and a CRC 2 moderate corrosion resistance classification for any assembly position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
