Festo
The Festo 8076065 is a double-acting industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and an M10x1,25 male piston-rod thread built to ISO 21287 standards. Designed with self-adjusting pneumatic end-position cushioning (PPS) and integrated position detection for proximity sensors, it operates within a pressure range of 0.15 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit functions across an ambient temperature range of -20 to 80 °C with a CRC corrosion resistance classification of 1 and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076064 is a double-acting industrial component featuring a 32 mm piston diameter and a 70 mm stroke with an M10x1,25 female piston-rod end. Built in accordance with ISO 21287, this single-ended piston rod design operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards within a working pressure range of 0.6 to 10 bar (0.06 to 1 MPa). It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and an ambient temperature operating range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8076063 is a double-acting industrial component featuring a 32 mm piston diameter, a 25 mm stroke, and an M10x1.25 female threaded piston-rod end that conforms to ISO 21287. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar), this unit utilizes self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length and 1 J impact energy capacity for compressed air media conforming to ISO 8573-1:2010 [7:4:4]. It is designed for any assembly position, accommodates position detection via proximity sensors, and functions within an ambient temperature range of -20 to 80 °C under a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076062 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and a female M10x1.25 piston rod thread conforming to ISO 21287. Designed with a single-ended piston rod, this unit operates within a pressure range of 0.15 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4] and includes self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length. It accommodates any assembly position, features position detection for proximity sensors, and functions across an ambient temperature range of -20 to 80 °C with a CRC corrosion resistance classification of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076061 is a double-acting industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends, a single-ended piston rod, and provisions for proximity sensor position detection, it operates within a pressure range of 0.06 to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4]. This unit functions across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 415 N at 0.6 MPa with a CRC rating of 1 for low corrosion stress. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 8076060 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. This unit operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar), delivering a theoretical retracting force of 415 N at 0.6 MPa. Designed with flexible cushioning rings at both ends, a single-ended piston rod, and provisions for proximity sensor position detection, it functions in any assembly position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →
Festo

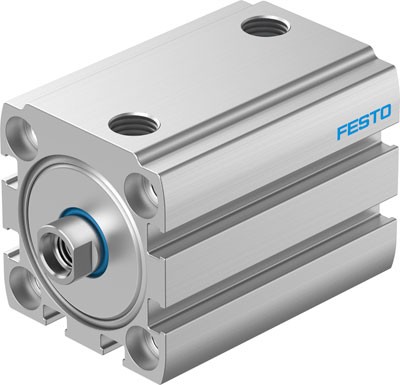

The Festo part number 8076059 is a double-acting industrial component featuring a 32 mm piston diameter, a 60 mm stroke, and an M10x1,25 female piston-rod end thread conforming to ISO 21287. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a pressure range of 0.6 to 10 bar (0.06 to 1 MPa), this single-ended piston rod unit incorporates flexible cushioning rings at both ends and accommodates proximity sensors for position detection. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 415 N at 0.6 MPa (6 bar, 87 psi) with a CRC rating of 1 and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

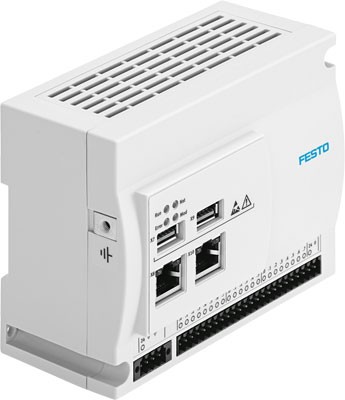

Manufactured by Festo, part number 8067301 is an industrial component measuring 130 mm by 106 mm by 60 mm with a weight of 315 g, featuring mounting via through-hole for M4 screw or top-hat rail. It operates on a nominal DC voltage of 24 V with a permissible voltage fluctuation of +/- 10% and a power consumption of 20 W, carrying KC-EMV certification and the CE symbol in accordance with the EU-EMV guideline while incorporating PELV protection against direct and indirect contact. The unit is equipped with a 24-pin circuit board plug connector RM 3.5 mm supporting 12 digital inputs—including 2 inputs with integrated pull-up resistors—and 8 digital outputs, along with ground and power supply connections. Submit part number 8067301, quantity, and application requirements for an official quote.
View product details →
Festo
The Festo 8076058 is a double-acting industrial component featuring a 32 mm piston diameter and a 60 mm stroke conforming to ISO 21287. Operating within a pressure range of 1.5 to 10 bar (0.15 to 1 MPa), this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length and 1 J impact energy capacity. It utilizes a male M10x1,25 piston rod thread, supports any assembly position, and includes position detection for proximity sensors while operating on compressed air meeting ISO 8573-1:2010 [7:4:4] standards across an ambient temperature range of -20 to 80 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo

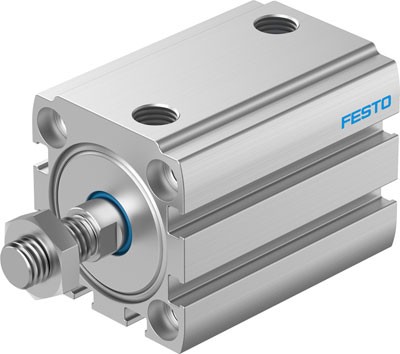

Engineered by Festo to ISO 21287 standards, this double-acting industrial component features a 32 mm piston diameter, a 30 mm stroke, and an M10x1,25 male piston rod thread. Operating within a pressure range of 0.6 to 10 bar (0.06 to 1 MPa), the unit utilizes flexible cushioning rings at both ends and accommodates compressed air media from -20 to 80 °C. It provides position detection via proximity sensors, features a single-ended piston rod design, and delivers a theoretical retracting force of 415 N at 0.6 MPa. Submit part number 8076057, required quantity, and application specifications to request a formal quotation.
View product details →
Festo
The Festo 8076056 is a double-acting industrial component featuring a 32 mm piston diameter and a 35 mm stroke conforming to ISO 21287. Designed with a single-ended piston rod with an M10x1,25 male thread, it operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4]. This unit includes flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
This Festo industrial component, part number 8076055, is a double-acting pneumatic cylinder featuring a 32 mm piston diameter, a 70 mm stroke, and an M10x1.25 male piston rod thread conforming to ISO 21287. It operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4], and incorporates flexible cushioning rings at both ends for 0.4 J end-position impact energy. The unit is designed with any assembly position, position detection for proximity sensors, a CRC 1 corrosion resistance classification, and an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 415 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Manufactured by Festo under part number 8076054, this double-acting industrial component conforms to ISO 21287 and features a 32 mm piston diameter with a 20 mm stroke. The unit operates at pressures ranging from 0.15 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] and incorporates self-adjusting pneumatic end-position cushioning. Designed with an M10x1,25 male piston rod thread and provisions for position detection via proximity sensors, the hardware functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this specification.
View product details →
Festo
The Festo 8076053 is a double-acting industrial component conforming to ISO 21287 featuring a 32 mm piston diameter, a 60 mm stroke, and an M10x1,25 male piston rod thread. Operating within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit provides flexible cushioning rings at both ends and incorporates position detection for proximity sensors across an ambient temperature range of -20 to 80 °C. It delivers a theoretical retracting force of 415 N at 0.6 MPa with an impact energy of 0.4 J in the end positions and a CRC corrosion resistance classification of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076052 is a double-acting industrial component featuring a 32 mm piston diameter and a 70 mm stroke conforming to ISO 21287. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length and 1 J impact energy capacity, alongside a single-ended piston rod with an M10x1,25 female thread and integrated position detection for proximity sensors. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4], the assembly functions in any position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8076051 is a double-acting industrial component featuring a 32 mm piston diameter, a 70 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. This unit operates on compressed air within a 0.15 to 1 MPa pressure range and integrates PPS self-adjusting pneumatic end-position cushioning with a 4 mm cushioning length and 1 J impact energy. Designed for any assembly position with position detection for proximity sensors, it functions in ambient temperatures from -20 to 80 °C and exhibits a CRC 1 low corrosion stress classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8076050 is a double-acting industrial component featuring a 32 mm piston diameter and a 40 mm stroke, conforming to ISO 21287 standards. This model utilizes flexible cushioning rings at both ends, accommodates proximity sensors for position detection, and operates within a pressure range of 0.06 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
The Festo part number 8076049 is a double-acting industrial component featuring a 32 mm piston diameter and a 15 mm stroke, conforming to the ISO 21287 standard. Designed with an M10x1,25 female piston-rod end and self-adjusting PPS pneumatic end-position cushioning, this unit operates within a working pressure range of 1.5 to 10 bar and an ambient temperature range of -20 to 80 °C. Position detection is enabled for proximity sensors, and the assembly position is unrestricted across its single-ended piston rod design. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076048 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a male M10x1,25 piston rod thread. Built to ISO 21287 standards, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length and 1 J impact energy capacity. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) and an ambient temperature range of -20 to 80 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo part number 8076047 is a double-acting industrial component featuring a 32 mm piston diameter, a 5 mm stroke, and an M10x1,25 male piston-rod end designed to ISO 21287 standards. This single-ended piston rod model operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a 0.06 to 1 MPa operating pressure range, incorporating flexible cushioning rings at both ends and provisions for position detection via proximity sensors. It delivers a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C, while achieving a CRC rating of 1 for low corrosion stress and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
