Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 8075638 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and a male M8 piston-rod end conforming to ISO 21287. This model incorporates flexible cushioning rings at both ends, accommodates position detection via proximity sensors, and operates within a pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Designed with a single-ended piston rod and any assembly position, it delivers a theoretical retracting force of 247 N at 0.6 MPa while functioning across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076030 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and an M10x1,25 female piston-rod thread adhering to the ISO 21287 standard. Operating on compressed air within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) and temperatures from -20 to 80 °C, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length and 1 J impact energy. It is designed for mounting in any assembly position and includes position detection capabilities for a proximity sensor, with a CRC corrosion resistance classification of 1 and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo

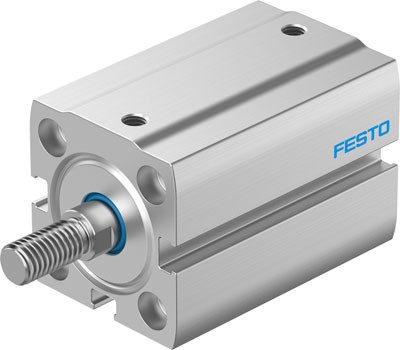

The Festo part number 8075637 is a double-acting industrial component featuring a 25 mm piston diameter and a 35 mm stroke conforming to ISO 21287. This unit includes flexible cushioning rings at both ends, an M8 male piston-rod thread, and accommodates position detection via proximity sensors across an operating pressure range of 0.06 to 1 MPa. Operating within an ambient temperature range of -20 to 80 °C, it delivers a theoretical retracting force of 247 N at 0.6 MPa utilizing compressed air matching ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

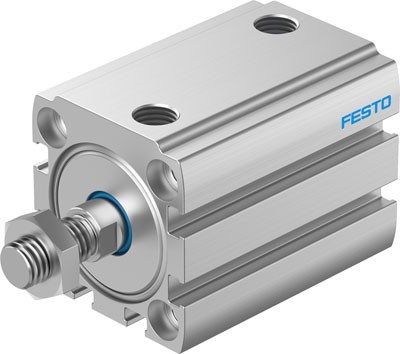

The Festo 8076029 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and an M10x1.25 male piston-rod end. Conforming to ISO 21287, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length and operates within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It is designed with position detection for proximity sensors, a CRC corrosion resistance classification of 1, and an ambient temperature range of -20 to 80 °C for any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 8075636 is a double-acting industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. This unit operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4] and includes flexible cushioning rings at both ends with an end-position impact energy of 0.3 J. Designed with a single-ended piston rod for any assembly position, it delivers a theoretical retracting force of 247 N at 0.6 MPa and supports position detection via proximity sensors across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8076028 is a double-acting industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and an M10x1,25 female piston-rod end thread operating in any assembly position. Built to ISO 21287 standards with flexible cushioning rings at both ends, this unit handles an operating pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It includes position detection for proximity sensors, achieves a theoretical retracting force of 415 N at 0.6 MPa, and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075635 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. This unit operates within a pressure range of 0.06 to 1 MPa using compressed air that complies with ISO 8573-1:2010 [7:4:4] standards, featuring flexible cushioning rings at both ends and integration for proximity sensors. Designed for installation in any assembly position, it functions across an ambient temperature range of -20 to 80 °C while delivering a theoretical retracting force of 247 N at 0.6 MPa. Submit your required part number, quantity, and application parameters to receive an official quote for this component.
View product details →
Festo

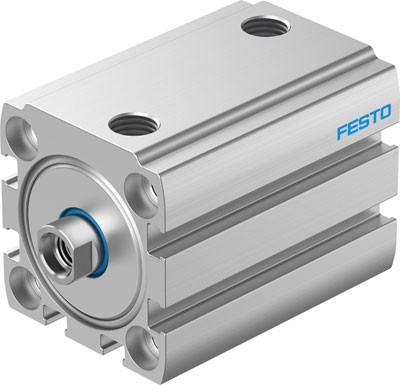

The Festo 8076027 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and an M10x1,25 female piston-rod end that conforms to ISO 21287. It operates within a pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] and incorporates flexible cushioning rings at both ends with an impact energy rating of 0.4 J. Designed with position detection capabilities for proximity sensors, this unit delivers a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075634 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends and provisions for proximity sensor position detection, this unit operates within a pressure range of 0.06 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. It delivers a retracting theoretical force of 247 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076026 is a double-acting industrial component featuring a 32 mm piston diameter and a 50 mm stroke, conforming to ISO 21287 with a piston-rod end male thread of M10x1,25. Designed with self-adjusting pneumatic end-position cushioning (PPS) and position detection for proximity sensors, it operates at pressures ranging from 0.15 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. This single-ended piston rod unit functions in any assembly position across an ambient temperature range of -20 to 80 °C, exhibiting a corrosion resistance classification of CRC 1 and a 4 mm cushioning length with 1 J impact energy in end positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075633 is a double-acting industrial component featuring a 25 mm piston diameter, a 60 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends, a single-ended piston rod, and position detection for proximity sensors, this unit operates between 0.06 and 1 MPa using compressed air that complies with ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 247 N at 0.6 MPa, supports ambient temperatures from -20 to 80 °C, and maintains a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 8076025, is a double-acting compact cylinder featuring a 32 mm piston diameter and a 25 mm stroke conforming to ISO 21287 standards. The unit includes a male M10x1,25 piston rod thread, self-adjusting pneumatic end-position cushioning (PPS), and position detection capabilities for proximity sensors. It operates within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air according to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this specification.
View product details →
Festo
The Festo part number 8075632 is a double-acting industrial component featuring a 25 mm piston diameter and a 70 mm stroke conforming to ISO 21287. This ISO-compliant pneumatic actuator incorporates flexible cushioning rings at both ends, an M8 male piston rod thread, and integrated position detection capabilities for proximity sensors. It operates within a pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] and delivers a theoretical retracting force of 247 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

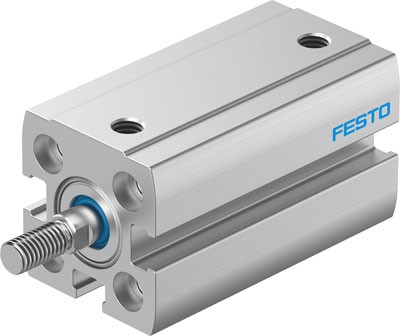

The Festo 8076023 is a double-acting industrial component featuring a 12 mm piston diameter, a 5 mm stroke, and an M5 male piston rod thread conforming to ISO 21287. Operating on compressed air within a pressure range of 1 to 10 bar (0.1 to 1 MPa), this unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 51 N at 0.6 MPa (87 psi). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076022 is a double-acting industrial component featuring a 12 mm piston diameter, a 10 mm stroke, and a male M5 piston rod thread complying with ISO 21287. Operating on compressed air within a pressure range of 1 to 10 bar (0.1 to 1 MPa), this model incorporates flexible cushioning rings at both ends and allows for position detection via proximity sensor in any assembly position. It delivers a theoretical retracting force of 51 N at 0.6 MPa (6 bar) and functions across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 8076021 is a double-acting industrial component featuring a 16 mm piston diameter, a 70 mm stroke, and an M6 female thread on the piston-rod end. Built to conform to ISO 21287 standards with a single-ended piston rod and flexible cushioning rings at both ends, it operates on compressed air within a pressure range of 0.1 to 1 MPa (1 to 10 bar) and supports any assembly position. This unit includes position detection for proximity sensors, a CRC rating of 1 for low corrosion stress, and delivers a theoretical retracting force of 90 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

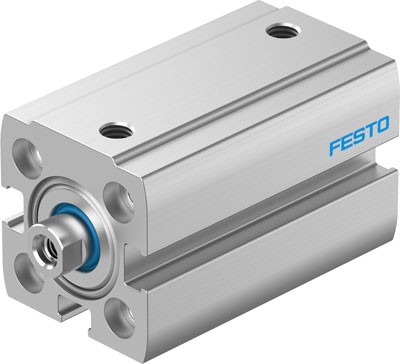

The Festo 8076020 is a double-acting industrial component featuring a 16 mm piston diameter, a 60 mm stroke, and an M6 female thread on the piston-rod end. Conforming to ISO 21287, this single-ended piston rod model operates on compressed air within a working pressure range of 1 to 10 bar (0.1 to 1 MPa) and accommodates an ambient temperature range of -20 to 80 °C. It incorporates flexible cushioning rings at both ends, allows for position detection via proximity sensors, and delivers a theoretical retracting force of 90 N at 0.6 MPa (6 bar). Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 8076019 is a double-acting industrial component featuring a 16 mm piston diameter, a 50 mm stroke, and an M6 female threaded piston-rod end compliant with ISO 21287. Operating on compressed air within a pressure range of 1 to 10 bar (0.1 to 1 MPa), this single-ended piston rod unit incorporates flexible cushioning rings at both ends and allows for position detection via proximity sensors in any assembly position. It delivers a theoretical retracting force of 90 N at 0.6 MPa (6 bar, 87 psi) across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8076018 is a double-acting industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and an M6 female thread on the single-ended piston rod. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.1 to 1 MPa (1 to 10 bar), this unit incorporates flexible cushioning rings at both ends and allows for proximity sensor position detection. It conforms to ISO 21287 with a CRC rating of 1 for low corrosion stress, a VDMA24364-B2-L PWIS conformity, and an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 90 N at 0.6 MPa. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076017 is a double-acting industrial component featuring a 16 mm piston diameter, a 35 mm stroke, and an M6 female thread on the single-ended piston rod. Conforming to ISO 21287, this unit operates on compressed air within a pressure range of 1 to 10 bar (0.1 to 1 MPa) and functions across an ambient temperature range of -20 to 80 °C. It is equipped with flexible cushioning rings at both ends, position detection for proximity sensors, and provides a theoretical retracting force of 90 N at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
