Festo
The Festo 8076046 is a double-acting industrial component featuring a 32 mm piston diameter and a 35 mm stroke, built with a single-ended piston rod and female M10x1,25 threads in accordance with ISO 21287. Designed with PPS self-adjusting pneumatic end-position cushioning offering a 4 mm cushioning length and 1 J impact energy capacity, this unit operates within a pressure range of 0.15 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It accommodates any assembly position, includes position detection for proximity sensors, and maintains an ambient temperature range of -20 to 80 °C with a CRC 1 low corrosion stress classification. Submit part number 8076046, quantity, and application requirements to receive an official price and lead time quote.
View product details →
Festo
The Festo 8076045 is a double-acting industrial component featuring a 32 mm piston diameter and a 20 mm stroke, conforming to ISO 21287 standards with a single-ended piston rod and female thread M10x1,25. This unit operates within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and incorporates self-adjusting pneumatic end-position cushioning (PPS) across a 4 mm cushioning length with 1 J impact energy in end positions. Featuring position detection for proximity sensors, it supports any assembly position, ambient temperatures from -20 to 80 °C, and lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076044 is a double-acting industrial component featuring a 32 mm piston diameter, a 20 mm stroke, and an M10x1,25 female piston-rod end thread that conforms to ISO 21287. Operating on compressed air within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar), this unit utilizes flexible cushioning rings at both ends, accommodates position detection via proximity sensors, and delivers a theoretical retracting force of 415 N at 0.6 MPa. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, exhibits a CRC 1 corrosion resistance classification, and supports lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8076043 is an industrial component featuring a 32 mm piston diameter, a 20 mm stroke, and an M10x1,25 male piston rod thread in a single-ended piston rod design structure conforming to ISO 21287. This double-acting unit operates on compressed air matching ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar), delivering a theoretical retracting force of 415 N at 0.6 MPa while utilizing flexible cushioning rings at both ends for end-position impacts up to 0.4 J. Designed with position detection capabilities for proximity sensors and an ambient temperature operating range of -20 to 80 °C, it supports any assembly position and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076042 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar), this unit incorporates flexible cushioning rings at both ends and allows for position detection via proximity sensors. It operates in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 415 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

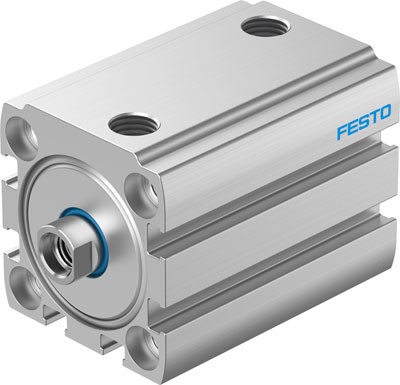

The Festo 8076041 is a double-acting industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and an M10x1.25 female piston-rod end thread complying with ISO 21287 standards. Designed with a single-ended piston rod and flexible cushioning rings at both ends, this unit operates within a pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C and includes provisions for position detection via a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076040 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and an M10x1,25 female piston-rod end thread complying with ISO 21287 standards. Designed with flexible cushioning rings at both ends and position detection capabilities for proximity sensors, it operates within a pressure range of 0.06 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. This single-ended piston rod unit functions in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 415 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8076038 is a double-acting industrial component featuring a 32 mm piston diameter and a 60 mm stroke, conforming to ISO 21287 standards with a single-ended piston rod and female M10x1,25 thread. It operates on compressed air within a working pressure range of 1.5 to 10 bar (0.15 to 1 MPa) across an ambient temperature range of -20 to 80 °C, incorporating PPS self-adjusting pneumatic end-position cushioning. This unit includes position detection for a proximity sensor, can be assembled in any position, and has a CRC corrosion resistance classification of 1 under low corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8076037 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and a male M10x1,25 piston rod thread. Built to ISO 21287 standards with a piston and piston rod design structure, it operates at pressures ranging from 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit includes self-adjusting pneumatic end-position cushioning (PPS) with a 4 mm cushioning length, position detection for a proximity sensor, and functions across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

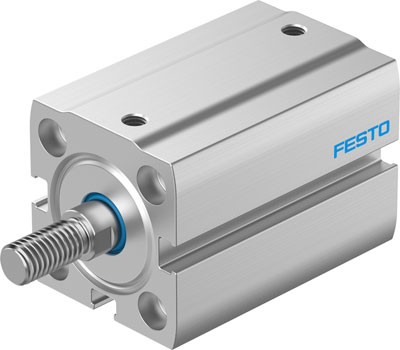

The Festo part number 8075643 is a double-acting industrial component featuring a 25 mm piston diameter, a 5 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Operating within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit provides 247 N of theoretical retracting force at 0.6 MPa. It incorporates flexible cushioning rings at both ends, a single-ended piston rod design with position detection for proximity sensors, and functions in any assembly position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 8076036 is a double-acting industrial component featuring a 32 mm piston diameter and a 15 mm stroke conforming to ISO 21287. Operating on compressed air within a 0.06 to 1 MPa pressure range, this unit incorporates flexible cushioning rings at both ends and provides a theoretical retracting force of 415 N at 0.6 MPa. Designed with a single-ended piston rod featuring an M10x1,25 female thread and provisions for proximity sensor position detection, it functions in any assembly position across ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075642 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Operating within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends and accommodates position detection via proximity sensors in any assembly position. It delivers a theoretical retracting force of 247 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C under a CRC 1 low corrosion stress classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076035 is an ISO 21287 compliant industrial component featuring a 32 mm piston diameter, a 35 mm stroke, and a female M10x1,25 piston rod thread in a double-acting, single-ended piston rod design structure. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] across a working pressure range of 0.6 to 10 bar (0.06 to 1 MPa), delivering a theoretical retracting force of 415 N at 0.6 MPa and utilizing flexible cushioning rings at both ends for 0.4 J of end-position impact energy. Equipped for position detection via proximity sensor and supporting any assembly position, this unit functions within an ambient temperature range of -20 to 80 °C under a CRC 1 low corrosion stress classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 8075641, is a double-acting piston and piston rod assembly conforming to ISO 21287 with a 25 mm piston diameter and an 80 mm stroke. It operates on compressed air within a working pressure range of 0.6 to 10 bar (0.06 to 1 MPa), delivering a theoretical retracting force of 247 N at 6 bar and featuring flexible cushioning rings at both ends. The unit includes a male M8 piston rod thread, position detection capability for proximity sensors, and an ambient temperature operating range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8076034 is a double-acting industrial component featuring a 32 mm piston diameter, a 25 mm stroke, and an M10x1,25 female piston-rod thread conforming to ISO 21287. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.06 to 1 MPa pressure range, this unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and an allowable ambient temperature span of -20 to 80 °C. It delivers a theoretical retracting force of 415 N at 0.6 MPa while maintaining a CRC 1 low corrosion stress rating and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075640 is a double-acting industrial component featuring a 25 mm piston diameter, a 15 mm stroke, and a male M8 piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends, this piston-and-rod assembly operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air according to ISO 8573-1:2010 [7:4:4]. It accommodates any assembly position, includes position detection for proximity sensors, and delivers a retracting force of 247 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Festo
The Festo 8076033 is a double-acting industrial component featuring a 32 mm piston diameter and a 5 mm stroke, conforming to the ISO 21287 standard. This single-ended piston rod design includes a female M10x1,25 piston rod thread, flexible cushioning rings or plates at both ends, and position detection for proximity sensors. It operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) utilizing compressed air according to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 415 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

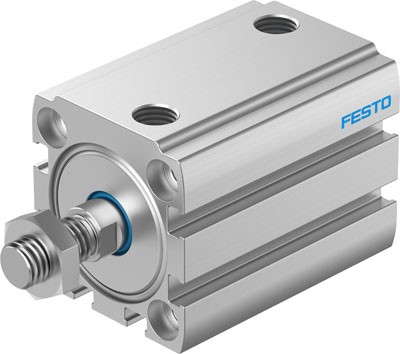

This Festo industrial component, part number 8076032, is a double-acting piston and piston rod assembly conforming to ISO 21287 with a 32 mm piston diameter and a 35 mm stroke. It features self-adjusting pneumatic end-position cushioning, an M10x1,25 male piston-rod thread, position detection capability for proximity sensors, and an operating pressure range of 0.15 to 1 MPa using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. The unit operates within ambient temperatures from -20 to 80 °C, exhibits a CRC 1 corrosion resistance classification, and allows for any assembly position with lubricated operation. Please submit part number 8076032, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component features a 25 mm piston diameter, a 20 mm stroke, and a double-acting mode of operation conforming to ISO 21287. Designed with an M8 male piston-rod thread, flexible cushioning rings at both ends, and position detection for proximity sensors, it operates on compressed air within a 0.06 to 1 MPa pressure range and an ambient temperature span of -20 to 80 °C. The unit delivers a theoretical retracting force of 247 N at 0.6 MPa, supports lubricated operation, and maintains a CRC 1 corrosion resistance classification with any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076031 is a double-acting industrial component featuring a 32 mm piston diameter, a 15 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], it incorporates self-adjusting PPS pneumatic end-position cushioning with a 4 mm cushioning length and 1 J impact energy. This unit includes position detection for a proximity sensor, a single-ended piston rod in any assembly position, and functions in ambient temperatures from -20 to 80 °C under CRC 1 low corrosion stress. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
