Festo
The Festo 8058734 is a color vision sensor featuring a WideVGA sensor resolution of 736 x 480 pixels, an image rate of 40 fps, and an operating distance ranging from 30 mm to infinite. Equipped with an integrated white LED lighting type, built-in optical lens attachments, and a manual focus setting via adjusting screw, this industrial component supports up to 255 test programs and 255 test criteria including position tracking, pattern matching, edge detection, and colour value analysis. It carries CE conformity according to the EU-EMV guideline, KC-EMV, RCM Mark, and c UL us - Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8058733 is a color vision sensor equipped with a WideVGA resolution of 736 x 480 pixels, an integrated white LED lighting type, and a focal depth of 6 mm with an operating distance from 6 mm to infinite. Featuring a 40 fps image rate and support for up to 255 test programs and detectors, this component executes functions including position tracking, pattern and contour matching, edge detection, contrast, brightness, grey value threshold, vernier caliper, BLOB, and multiple color evaluations. It carries CE, KC, RCM, and c UL us - Listed (OL) authorizations and complies with the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →

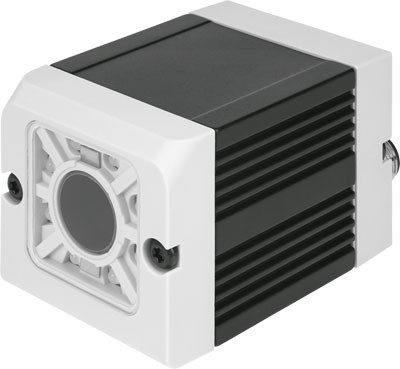

Festo
The Festo 8058732 industrial component is a WideVGA color vision sensor featuring a 736 x 480 pixel resolution, a 40 fps image rate, and an operating distance ranging from 30 mm to infinity. It incorporates built-in optical devices with an adjustable 12 mm focal depth, an integrated white LED lighting type, and M12 4-pin socket Ethernet connectivity supporting 100 Mbit/s transmission speeds. This unit supports up to 8 test programs and 2 test criteria utilizing detectors for position tracking, contrast, and colour surface functions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8058731 is a color vision sensor featuring a WideVGA resolution of 736 x 480 pixels, an image rate of 40 fps, and an operating distance ranging from 6 mm to infinity. It incorporates white LED lighting, a built-in optical lens with a 6 mm focal depth, and supports up to 8 test programs with 2 test criteria. Communication is handled via an M12 4-pin Ethernet socket supporting 100 Mbit/s data transmission speeds, while compliance is backed by CE, KC, RCM, and c UL us-Listed authorizations. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8058730 is an object vision sensor featuring a 1280 x 1024 pixel monochrome sensor resolution, a 12 mm focal depth, and an integrated white LED lighting type. This component supports up to 255 test programs and detectors with diverse inspection functions including contour position tracking, pattern matching, edge detection, and BLOB analysis at a 40 fps image rate. Communication is handled via a 4-pin M12 Ethernet socket supporting 100 Mbit/s data transmission speeds and Ethernet/IP protocols. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8058729 is a monochrome object sensor featuring a 1280 x 1024 pixel SXGA sensor resolution, a 40 fps image rate, and a CS-Mount lens attachment with a variable field of vision. It supports up to 255 test programs and detectors, incorporating detector functions such as position tracking, pattern and contour matching, edge detection, contrast, brightness, grey value threshold, vernier caliper, and BLOB analysis with cycle times ranging from 2 ms to 30 ms. Communication interfaces include a 4-pin M12 Ethernet socket supporting Ethernet/IP, FTP, PROFINET, SMB, and TCP/IP at 100 Mbit/s, alongside an M12 serial plug connection. Certified with CE, KC-EMV, RCM, and c UL us - Listed (OL) authorizations, this unit operates according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8058728 is an object sensor vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and a 50 fps image rate with CS-Mount lens attachment. This component supports up to 255 test programs and detectors utilizing functions such as contour position tracking, pattern matching, edge detection, contrast, brightness, grey value threshold, vernier caliper, and BLOB, with cycle times ranging from 2 ms to 30 ms. Communication interfaces include a 4-pin M12 Ethernet socket supporting Ethernet/IP, FTP, PROFINET, SMB, and TCP/IP at 100 Mbit/s, alongside an M12 plug serial interface. Authorization standards include the RCM Mark and c UL us - Listed (OL), with CE and KC marks according to EU-EMV and KC-EMV guidelines. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8058727 is an object vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps, utilizing an integrated infrared LED light with an 880 nm wavelength. It supports up to 255 test programs and test criteria with detector functions including position tracking, pattern and contour matching, edge detection, contrast, brightness, grey value threshold, vernier caliper, and BLOB analysis. Operating from 30 mm to infinite distance with a 12 mm focal depth and built-in optical lens attachments, the unit communicates via a 4-pin M12 Ethernet socket and complies with EU-EMV, KC-EMV, RCM, and c UL us - Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
The Festo part number 8058726 is an object sensor vision system featuring a WideVGA monochrome sensor resolution of 736 x 480 pixels and an image rate of 50 fps. This component provides an operating distance of 6 mm to infinity, a focal depth of 6 mm, and a minimum field of vision of 5 x 4 mm, utilizing integrated infrared and LED lighting at an 880 nm wavelength. It supports up to 255 test programs and detectors, incorporating M12 4-pin socket Ethernet connectivity and compliance with EU-EMV, KC-EMV, RCM, and c UL us - Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8058725 is a WideVGA monochrome object vision sensor featuring a 736 x 480 pixel resolution, an integrated white LED lighting type, and a 50 fps image rate. Operating at a distance ranging from 30 mm to infinity with a 12 mm focal depth, this component supports up to 255 test programs and detectors including contour position tracking, pattern matching, edge detection, and BLOB analysis. Connectivity is handled via a 4-pin M12 Ethernet socket supporting 100 Mbit/s data transmission speeds, and the unit carries c UL us - Listed (OL), RCM, and KC-EMV authorizations alongside CE compliance according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8058724 is an object vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an integrated white LED lighting type. This unit operates from a 6 mm operating distance to infinity with a 6 mm focal depth, a minimum field of vision of 5 x 4 mm, and a 50 fps image rate. Detector functions comprise position tracking via contour, pattern matching, contour matching, edge detection, contrast, brightness, grey value threshold, vernier caliper, and BLOB, supporting up to 255 test programs and 255 test criteria. Communication occurs via a 4-pin M12 socket Ethernet connection operating at a data transmission speed of 100 Mbit/s, while compliance is backed by the CE mark according to the EU-EMV guideline, KC-EMV, RCM Mark, and c UL us - Listed (OL) authorizations. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8058723 is a code reader vision sensor featuring a monochrome SXGA sensor resolution of 1280 x 1024 pixels, an image rate of 40 fps, and an operating distance ranging from 30 mm to infinity. It incorporates an integrated red LED lighting type with a 640 nm wavelength, a 12 mm focal depth, a minimum field of vision of 16 x 13 mm, and a focus setting via adjusting screw. Operating with a typical cycle time of 30 ms for 1D barcodes and 40 ms for 2D codes, this unit supports up to 255 test programs and detectors including EAN, UPC, QR-Code, and Code 128 formats, alongside a 4-pin M12 socket Ethernet connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →
Festo
The Festo 8058722 is an industrial vision sensor configured as a code reader featuring a monochrome SXGA sensor resolution of 1280 x 1024 pixels and an image rate of 40 fps. It incorporates integrated lighting, a CS-mount lens attachment, and supports up to 255 test programs and test criteria for diverse symbologies including EAN, UPC, Code 128, ECC200, and QR-Codes with typical cycle times of 30 ms for 1D barcodes and 40 ms for 2D codes. Communication capabilities include a 100 Mbit/s Ethernet connection supporting Ethernet/IP, FTP, PROFINET, SMB, and TCP/IP protocols alongside a 5-pin M12 serial interface, while carrying CE, KC, RCM, and c UL us-Listed authorizations. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →

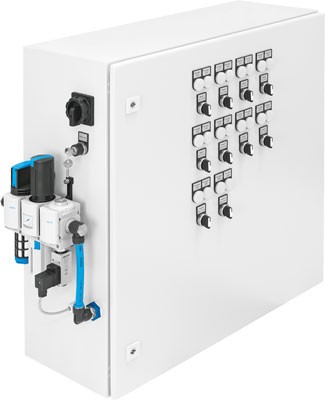

Festo
Engineered by Festo, part number 8061000 is an industrial component operating at a working pressure of 4 to 10 bar within an ambient temperature range of -20 to 40 °C and storage temperatures from -20 to 60 °C. The unit features an IP54 protection class, cage clamp terminal and push-in electrical connections, a CRC corrosion resistance classification of 0 with no corrosion stress, and conforms to RoHS while containing PWIS substances. It complies with the EU-EMV and EU low voltage guidelines, is rated for a maximum relative air humidity of 50% at 40 °C, and functions at a nominal altitude of use up to 1000 m NN. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →

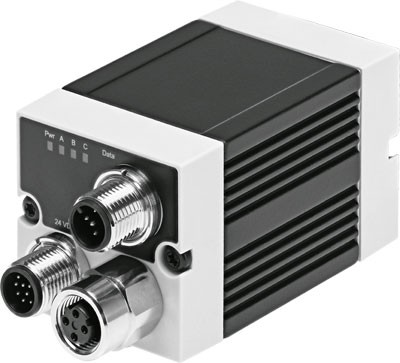

Festo
The Festo 8058721 is a monochrome code reader vision sensor featuring a 736 x 480 pixel WideVGA resolution and an integrated lighting system with a CS-Mount lens attachment. This industrial component delivers an image rate of 50 fps, supporting up to 255 test programs and detectors capable of processing 1D barcodes and 2D codes such as ECC200 and QR-Codes. Communication interfaces include a 4-pin M12 Ethernet connection supporting 100 Mbit/s transmission speeds across protocols like PROFINET and EtherNet/IP, alongside a 5-pin M12 serial plug interface. Certifications include CE according to the EU-EMV guideline, KC-EMV, RCM Mark, and c UL us - Listed (OL). Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8058720 code reader vision sensor features a monochrome WideVGA sensor with a 736 x 480 pixel resolution and a 50 fps image rate operating from a 30 mm to infinite distance. This industrial component includes integrated infrared LED lighting at an 880 nm wavelength, a 12 mm focal depth, a minimum 8 x 6 mm field of vision, and built-in optical lens attachments with an adjustable focus screw. Supporting up to 255 test programs and criteria, it processes 1D barcodes and 2D codes such as EAN, UPC, Code 39, QR-Code, and ECC200 with typical cycle times of 30 ms and 40 ms respectively. Communication is handled via a 4-pin M12 socket Ethernet connection, backed by CE, KC, RCM, and c UL us-Listed authorizations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8058719 is a vision sensor code reader featuring an operating distance of 6 mm to infinite, a focal depth of 6 mm, and a minimum field of vision of 5 x 4 mm with built-in optical lens attachments. Equipped with a monochrome WideVGA sensor resolution of 736 x 480 pixels, an integrated infrared LED lighting type at an 880 nm wavelength, and a 50 fps image rate, this unit supports up to 255 test programs and 255 test criteria for various 1D and 2D codes with 4-pin M12 Ethernet socket connectivity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8058718 is a code reader vision sensor featuring a WideVGA monochrome sensor resolution of 736 x 480 pixels and an image rate of 50 fps. This industrial component includes integrated infrared and LED lighting with a 640 nm wavelength, a 12 mm focal depth, and an adjustable focus via adjusting screw operating from 30 mm to infinite. It supports up to 255 test programs and detectors capable of reading 1D barcodes and 2D codes such as EAN, UPC, QR-Code, and PDF 417, with communication facilitated through an M12 4-pin Ethernet socket. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8058717 is an industrial code reader vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps. It provides an operating distance from 6 mm to infinite, a focal depth of 6 mm, a minimum field of vision of 5 x 4 mm, and an integrated red LED lighting type with a 640 nm wavelength. Supporting up to 255 test programs and 255 test criteria for various 1D and 2D code formats, this unit operates with a typical cycle time of 30 ms for 1D barcodes and 40 ms for 2D codes, and includes an M12 4-pin socket for Ethernet connection technology. Certifications and authorizations include the CE symbol according to the EU-EMV guideline, KC mark, RCM mark, and c UL us listing. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8058716 is a code reader vision sensor featuring a WideVGA monochrome sensor resolution of 736 x 480 pixels and an image rate of 50 fps, utilizing an integrated white LED lighting type. Operating across a distance from 30 mm to infinite with a 12 mm focal depth, the unit processes up to 255 test programs and detectors, supporting 1D barcode and 2D code formats including EAN, UPC, ECC200, and QR-Code with typical cycle times of 30 ms and 40 ms respectively. Connectivity is provided via an M12 4-pin Ethernet socket supporting a data transmission speed of 100 Mbit/s, while compliance is backed by CE, KC-EMV, RCM, and cULus-Listed authorizations. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
