Festo
The Festo 8076016 is a double-acting industrial component featuring a 16 mm piston diameter, a 30 mm stroke, and a female M6 piston rod thread configured as a single-ended variant conforming to ISO 21287. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit provides flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a theoretical retracting force of 90 N at 0.6 MPa. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, exhibits a CRC rating of 1 for low corrosion stress, and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076015 is a double-acting industrial component featuring a 16 mm piston diameter, a 25 mm stroke, and an M6 female piston-rod thread conforming to ISO 21287. Built with a single-ended piston rod and flexible cushioning rings at both ends, this unit operates within a pressure range of 1 to 10 bar (0.1 to 1 MPa) on compressed air matching ISO 8573-1:2010 [7:4:4] standards. It accommodates any assembly position, includes position detection for a proximity sensor, and delivers a theoretical retracting force of 90 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →

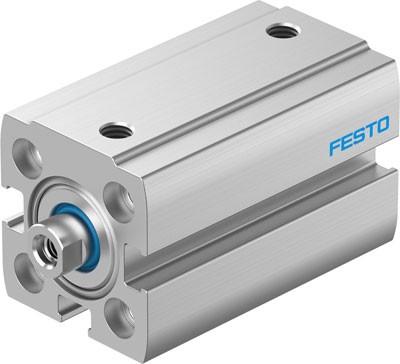

Festo
The Festo 8076014 is a double-acting industrial component featuring a 16 mm piston diameter, a 20 mm stroke, and an M6 female thread on its single-ended piston rod. Built to ISO 21287 standards with a piston and piston rod design structure, it operates on compressed air within a working pressure range of 1 to 10 bar and accommodates any assembly position. The unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a theoretical retracting force of 90 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 8069732 industrial component features a PWM-MOSFET power output stage with a cascade controller, supporting P position control, PI speed control, and proportional-integral electricity control with a 2 ms minimum cycle time and a maximum speed of 3,300 1/min. It integrates an absolute multi-turn magnetic rotary position encoder, supports star, ring, and line topologies at 10/100 Mbit/s baud rates, and includes protective functions such as I²t, temperature, current, voltage failure, drag error, and software end-position monitoring. Built-in safety features encompass Safe Torque Off (STO) providing SIL 2, category 3, and performance level d compliance alongside a 6 Ohm external braking resistor and LED status display. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

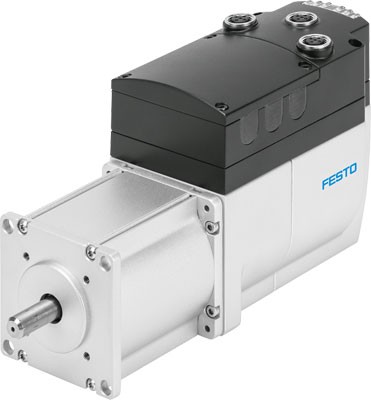

Festo
The Festo part number 8069731 is an industrial component featuring a PWM-MOSFET power output stage controller with cascade, P position, PI speed, and proportional-integral electricity controllers, supported by an ESI file and a minimum cycle time of 2 ms. It incorporates an absolute multi-turn encoder with a magnetic rotary position measuring principle, supports star, ring, and line topologies at a baud rate of 10/100 Mbit/s, and delivers a nominal rotary speed of 3,100 1/min alongside a maximum speed of 3,500 1/min. Comprehensive protective and safety functions include STO rated at SIL 2, category 3, and performance level d, alongside an external 6 Ohm braking resistor, 90% diagnostic coverage, and LED status display. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 8069730 is an industrial component featuring a PWM-MOSFET power output stage controller operating mode with cascade, P position, PI speed, and proportional-integral electricity controllers, supported by an ESI configuration file and an absolute single-turn magnetic rotor position encoder. This unit achieves a minimum cycle time of 2 ms, a nominal rotary speed of 3,150 1/min, and a maximum speed of 3,300 1/min while utilizing a 6 Ohm external braking resistor and supporting star, ring, and line topologies at 10/100 Mbit/s baud rates. Integrated safety functions include Safe Torque Off (STO) rated at SIL 2, category 3, and performance level d, alongside diagnostic coverage of 90 percent and comprehensive protective functions encompassing I²t, temperature, current, voltage failure, drag error, and software end-position monitoring. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo industrial component, part number 8069729, features a PWM-MOSFET power output stage with a cascade controller encompassing a P position controller, PI speed controller, and proportional-integral electricity controller driven by an absolute single turn magnetic rotary position encoder. Operating at a minimum cycle time of 2 ms, it delivers a nominal rotary speed of 3,100 1/min and a maximum speed of 3,500 1/min while supporting Star, Ring, and Line topologies alongside CoE, distributed clocks, emergency messaging, and variable PDO mapping via an ESI file. Integrated protective functions include I²t, temperature, current, voltage failure, drag error, and software end-position detection, complemented by Safe torque off (STO) providing SIL 2 and category 3, performance level d safety ratings. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8069728 industrial component features a PWM-MOSFET power output stage, a cascade controller with P position and PI speed controllers, and an absolute multi-turn magnetic rotary position encoder supporting a nominal rotary speed of 3,150 1/min and a maximum speed of 3,300 1/min. It includes Safe Torque Off (STO) providing SIL 2, category 3, and performance level d safety functions alongside extensive protective monitoring for current, voltage, temperature, and I²t levels. Communication topologies encompass star, ring, and line configurations with IRT compatibility, LLDP, MRP, SNMP, and a baud rate of 10/100 Mbit/s. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8069727 is an industrial component featuring a PWM-MOSFET power output stage, cascade controller with P position controller, PI speed controller, and proportional and integral controller for electricity supporting a minimum cycle time of 2 ms and a maximum speed of 3,500 1/min at a nominal rotary speed of 3,100 1/min. It incorporates an absolute multi-turn magnetic rotary position encoder, LED display, 6 Ohm external braking resistor, and comprehensive protective functions including I²t, temperature, current, voltage failure, drag error, and software end-position monitoring with a hardware fault tolerance of 1 and 90% diagnostic coverage. Supporting star, ring, and line topologies, the unit provides GSDML file configuration support, 10/100 Mbit/s baud rates, FCT or DCP IP address allocation, and various network functions alongside Safe Torque Off (STO) ensuring SIL 2 and category 3, performance level d compliance. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo part number 8069726 is an industrial component featuring a PWM-MOSFET power output stage controller operating mode with cascade, P position, PI speed, and proportional-integral electricity controllers. It supports GSDML file configuration, achieves a minimum cycle time of 2 ms, and utilizes a magnetic absolute single turn encoder for rotor position sensing. Safety functions include Safe Torque Off (STO) at SIL 2 and category 3, performance level d, alongside protective functions for I²t monitoring, temperature, current, voltage failure detection, drag error, and software end-position detection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 8069725 is an industrial component featuring a PWM-MOSFET power output stage, cascade controller with P position controller, PI speed controller, and a proportional and integral controller for electricity supporting a minimum cycle time of 2 ms. It integrates an absolute single-turn magnetic rotary position encoder, supports a nominal rotary speed of 3,100 1/min up to a maximum speed of 3,500 1/min, and incorporates Safe torque off (STO) providing SIL 2 and category 3, performance level d safety functions alongside extensive protective functions including I²t, temperature, current, voltage failure, drag error, and software end-position monitoring. Communication and topology capabilities include GSDML configuration support, star, ring, and line topologies, 10/100 Mbit/s baud rates, and protocols such as Conformance Class B, DCP, IRT, LLDP, MRP, Realtime Class 1, and SNMP with FCT or DCP IP address allocation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8073913 is a size 4 single-acting industrial component featuring a pushing action and a 4 mm stroke with a 4 mm cushioning length. This unit operates with self-adjusting cushioning, handles a maximum impact speed of 1 m/s, absorbs a maximum energy consumption of 0.8 J per stroke, and withstands a maximum stop force of 100 N across an ambient temperature range of -10 to 80 °C. Weighing 10.2 g, the part is mounted with a threaded sleeve in any assembly position and delivers a CRC 2 moderate corrosion stress classification with reset times ranging from 0.2 s to 1 s. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →

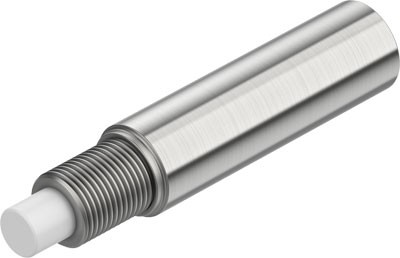

Festo
The Festo 8073912 is an industrial component featuring a size 3 designation, a 4 mm stroke, and a single-acting pushing mode of operation with self-adjusting cushioning. This 7.8 g unit supports mounting via a threaded sleeve in any assembly position, accommodating a maximum impact speed of 1 m/s, a max stop force of 80 N, and an ambient temperature range of -10 to 80 °C with CRC 2 moderate corrosion resistance. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

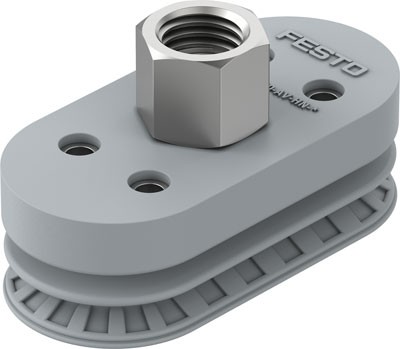

Festo
The Festo 8073869 is an industrial component featuring an oval, bellows 1.5 convolution suction cup measuring 30x65 mm with a nominal size of 6 mm, a 7 mm height compensator, and an 11.5 cm3 volume. Designed with a top connection position and any assembly position, it operates within a pressure range of -95 to 0 kPa (-0.95 to 0 bar or -13.775 to 0 psi) using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a retention force and vertical lateral force of 75 N at a nominal operating pressure of -60 kPa (-0.6 bar). This 48 g unit achieves a minimum workpiece radius of 15 mm, a CRC corrosion resistance classification of 2 for moderate corrosion stress, PWIS conformity to VDMA24364-A1-L, and an ambient temperature range of 10 to 120 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →

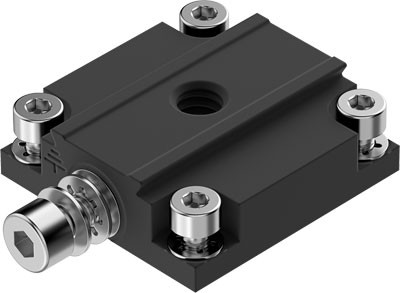

Festo
The Festo part number 8066474 is an industrial component weighing 19 g with VDMA24364-B2-L PWIS conformity. It features a clamped and threaded mounting type constructed from anodized wrought aluminum alloy and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8066471 is an industrial component featuring a sensor resolution of 2456 x 2054 pixels (5 MPix) and a C-Mount lens attachment within dimensions of 29 mm width, 29 mm height, and 49 mm length. Operating on a nominal DC voltage of 5 V with a power consumption of 2.3 to 3 W, this 52 g unit mounts via a mounting kit and holds an IP30 protection class when assembled. It functions in ambient temperatures from 0 to 40 °C under dry, screened conditions with clean ambient air, adhering to EU-EMV guidelines and bearing the KC-EMV mark. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 8066470 is an industrial component featuring a sensor resolution of 2456 x 2054 pixels (5 MPix) and a C-Mount lens attachment with a field of vision dependent on the selected lens. Measuring 29 mm in width, 29 mm in height, and 49 mm in length with a product weight of 52 g, this device operates on a nominal DC voltage of 5 V consuming 2.3 to 3 W within a permissible voltage fluctuation of +/- 5%. It includes mounting via a mounting kit, complies with IP30 protection class in assembled condition, and requires ambient conditions specified for cleanliness, dryness, and screening from extreme external light sources at temperatures from 0 to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8066469 is an industrial component featuring a 1600 x 1200 pixel UXGA sensor resolution and a C-mount lens attachment with a field of vision dependent on the selected lens. Housed in a 29 mm wide, 29 mm high, and 49 mm long body weighing 52 g, this device operates on a nominal DC voltage of 5 V with a power consumption of 1.3 to 1.5 W and requires a mounting kit for installation. It features an IP30 protection class when assembled, complies with KC-EMV and EU-EMV guidelines, and operates within ambient temperatures from 0 to 40 °C under clean, dry, screened conditions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

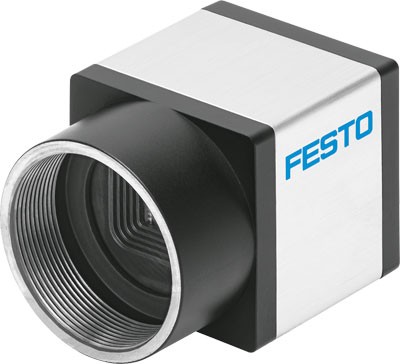

Festo
The Festo part number 8066468 is an industrial component featuring a sensor resolution of 1600 x 1200 pixels (UXGA) and a C-Mount lens attachment with a field of vision dependent on the selected lens. Measuring 29 mm in width, 29 mm in height, and 49 mm in length with a product weight of 52 g, this device operates on a nominal DC voltage of 5 V consuming 1.3 to 1.5 W within a permissible voltage fluctuation of +/- 5 %. It includes a mounting kit for installation and is rated IP30 in assembled condition while operating under ambient temperatures from 0 to 40 °C, requiring clean, dry air and screening from extreme external light sources. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 8066467 is an industrial component featuring a 1280 x 1024 pixel (SXGA) sensor resolution and a C-mount lens attachment with a field of vision dependent on the selected lens. Measuring 29 mm in width, 29 mm in height, and 49 mm in length with a product weight of 52 g, this device operates on a nominal DC voltage of 5 V with an electrical power consumption of 1.3 to 1.5 W and a permissible voltage fluctuation of +/- 5 %. It is designed for mounting with a mounting kit in ambient temperatures ranging from 0 to 40 °C under dry, clean air conditions with screening from extreme external light sources, and maintains an IP30 protection class when assembled. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
