Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

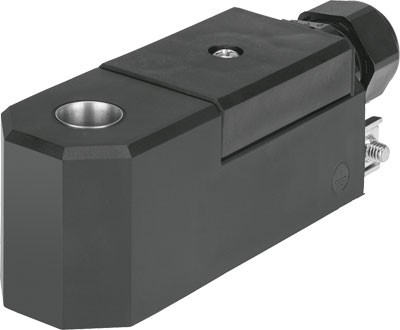

The Festo part number 570784 is an electrical component featuring a 100% duty cycle, Class H insulation, and characteristic coil data of 24 V DC at 1.8 W and 24 V AC at 40/65 Hz with 1.8 VA power. Constructed with a 330 g weight, IP65 protection class, and a CRC 4 very high corrosion stress classification, this unit operates within a permissible voltage fluctuation of -15% / +10% via an M20x1.5 terminal box cable entry. It carries ATEX and international explosion protection certifications for gas (II 2G Ex e mb IIC T6 Gb) and dust (II 2D Ex tb IIIC T70°C Db) environments with an ambient temperature range of -20°C to +40°C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

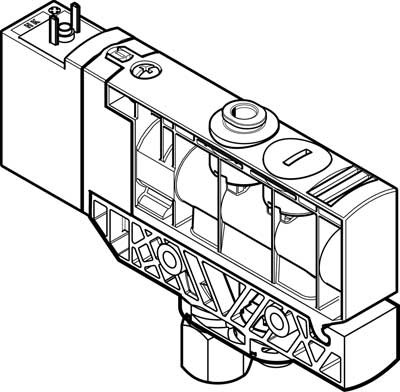

The Festo 568280 is a 3/2 closed, monostable industrial component utilizing a piston slide design with soft sealing and internal pilot air supply. Featuring a 20 mm valve size, a 7 mm nominal size, and a standard nominal flow rate of 500 l/min, this electrically actuated unit operates at a working and pilot pressure range of 2 to 8 bar. It includes an air spring reset, detenting and pushing manual override, non-reversible flow direction, and an IP65 protection class rating while drawing 1.5 W at 24 V DC with 20 ms switching times. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571953 is a double-acting industrial component featuring a 40 mm piston diameter, a 10 mm stroke, and an M10x1,25 piston rod thread based on the ISO 21287 standard. Designed with flexible cushioning rings at both ends, a single-ended piston rod, and position detection for proximity sensors, this unit operates on compressed air within a 0.6 to 10 bar working pressure range across an ambient temperature span of -10 to 60 °C. It delivers a theoretical force of 754 N on the advance stroke and 686 N on the return stroke at 6 bar, while achieving a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 571952 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and an M10x1.25 piston rod thread based on the ISO 21287 standard. Operating on compressed air within a 0.6 to 10 bar range, this unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a moderate corrosion resistance classification of CRC 2. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 571951, is a double-acting piston cylinder based on the ISO 21287 standard featuring a 32 mm piston diameter, a 60 mm stroke, and an M10x1,25 male piston rod thread. Operating within a pressure range of 0.6 to 10 bar utilizing compressed air conforming to ISO8573-1:2010 [7:4:4], the unit incorporates flexible cushioning rings at both ends and provisions for position detection via proximity sensor. It delivers a theoretical advance force of 483 N and a return force of 415 N at 6 bar across an ambient temperature range of -10 to 60 °C with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 571950 is a double-acting industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and an M10x1,25 piston rod thread based on the ISO 21287 standard. Operating on compressed air within a 0.6 to 10 bar working pressure range, this model incorporates flexible cushioning rings at both ends and integrated position detection for proximity sensors. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571949 is a double-acting industrial component featuring a 32 mm piston diameter and a 40 mm stroke based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.6 to 10 bar, this unit includes an M10x1,25 male piston rod thread, flexible cushioning rings at both ends, and position detection for proximity sensors. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo

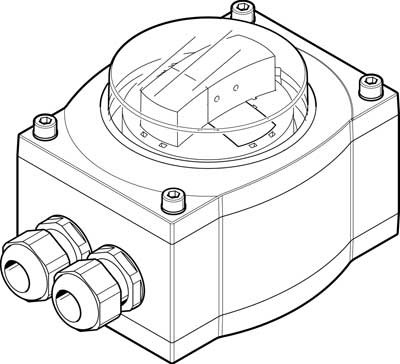

The Festo part number 568274 is an angular industrial component utilizing a Reed magnetic measuring principle for rotation angle feedback based on the VDI/VDE 3845 NAMUR standard. This normally open contact switching element features a switching point reproducibility of plus or minus 1 degree, a max output current of 500 mA, and maximum contact ratings of 10 VA AC and 10 W DC across an ambient temperature range of -20 to 80 degrees Celsius. It holds C-Tick and c UL us - Recognized authorizations, bears the CE symbol per EU-EMV and ATEX guidelines, complies with RoHS, and is certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Furthermore, it meets ATEX category II 3G and II 3D standards with specific Ex nA and Ex tc explosion ignition protection types for hazardous environments operating between -20°C and +80°C. Submit your exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 571948 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and an M10x1,25 piston rod thread based on the ISO 21287 standard. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range, it incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection. The unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, with a moderate corrosion resistance classification of CRC 2 and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 568272 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that utilizes a reed magnetic measuring principle to measure rotation angles via a changeover switch. This component operates within an ambient temperature range of -20 to 80 °C, supports a maximum output current of 500 mA with contact ratings of 10 VA AC and 10 W DC, and features a switching point reproducibility of +/- 1 deg. It carries C-Tick and c UL us - Recognized (OL) authorizations, CE compliance according to EU-EMV and EU-Ex protection guidelines, ATEX certifications for Gas (II 3G Ex nA IIC T5 X Gc) and Dust (II 3D Ex tc IIIC T90°C X Dc IP65), Eurasian EPL Dc and Gc certifications, RoHS conformance, and safety function certification up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571947 is a double-acting industrial component featuring a 32 mm piston diameter and a 25 mm stroke, built on the ISO 21287 standard with a single-ended male piston rod thread of M10x1,25. Designed with flexible cushioning rings at both ends and position detection for proximity sensors, this unit operates within a 0.6 to 10 bar working pressure using compressed air meeting ISO 8573-1:2010 [7:4:4] standards. It delivers a theoretical advance force of 483 N and a return force of 415 N at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 568271 is an angular industrial component utilizing a Reed magnetic measuring principle for rotation angle measurement with a switching point reproducibility of +/- 1 degree and a changeover switch element function. It features an operating ambient temperature range of -20 to 80 degrees Celsius, a maximum output current of 500 mA, and maximum contact ratings of 10 VA for AC and 10 W for DC. Designed on the VDI/VDE 3845 NAMUR standard, this RoHS-compliant unit holds C-Tick and c UL us - Recognized (OL) authorizations, CE symbols according to EU-EMV and EU-Ex protection guidelines, ATEX categories II 3G and II 3D, and is certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 571946 is a double-acting industrial component featuring a 32 mm piston diameter and a 20 mm stroke, designed in accordance with ISO 21287 with a single-ended piston rod and male M10x1,25 thread. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.6 to 10 bar, this unit incorporates flexible cushioning rings at both ends and provisions for position detection via proximity sensor. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar while withstanding ambient temperatures from -10 to 60 °C and moderate corrosion stress (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 568267 is an angular industrial component utilizing a Reed magnetic measuring principle for rotation angle measurement with a switching point reproducibility of +/- 1 degree and a changeover switch element function. It features an operating ambient temperature range of -20 to 80 degrees Celsius, a max. output current of 500 mA, and maximum contact ratings of 10 VA for AC and 10 W for DC. Built on the VDI/VDE 3845 NAMUR standard, this RoHS-conforming device carries C-Tick and c UL us - Recognized (OL) authorizations alongside CE compliance under EU-EMV and EU-Ex protection guidelines. It is certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508, and includes ATEX category II 3G/3D ratings with Ex nA IIC T5 X Gc and Ex tc IIIC T90°C X Dc IP65 explosion protection for hazardous environments within a -20°C to +80°C temperature range. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo

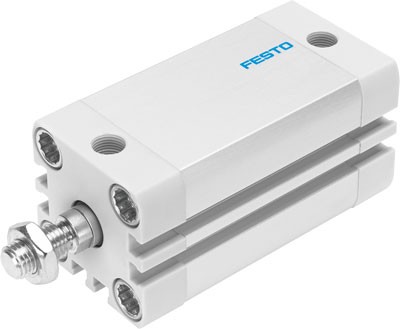

The Festo 571945 is a double-acting industrial component featuring a 32 mm piston diameter, a 15 mm stroke, and an M10x1,25 piston rod thread based on the ISO 21287 standard. Operating within a pressure range of 0.6 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4], this single-ended piston rod cylinder includes flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, with a CRC 2 moderate corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

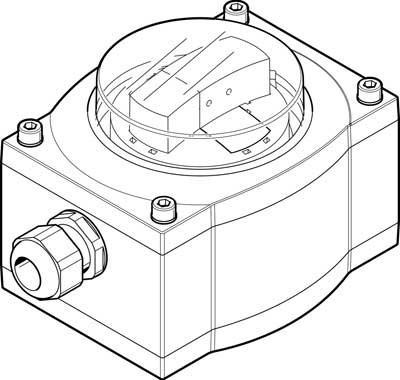

The Festo 568266 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that measures rotation angle using a reed magnetic measuring principle with a changeover switch switching element function. It features ATEX category II 3G and II 3D certifications for explosive atmospheres with an ambient temperature range of -20°C to +80°C, c UL us recognition, C-Tick authorization, and conformity with the RoHS directive and EU-EMV and EU-Ex protection guidelines. This device delivers a switching point reproducibility of +/- 1 degree, a maximum output current of 500 mA, and maximum contact ratings of 10 VA AC and 10 W DC, while being certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Submit your required part number, quantity, and application parameters to receive an official quote.
View product details →
Festo
The Festo 571944 is a double-acting industrial component featuring a 32 mm piston diameter and a 10 mm stroke based on the ISO 21287 standard. This unit operates with compressed air within a 0.6 to 10 bar working range and incorporates flexible cushioning rings at both ends with an impact energy of 0.32 J in the end positions. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, while supporting position detection via proximity sensors. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 568262 is an angular industrial component utilizing a reed magnetic measuring principle for rotation angle measurement with a switching point reproducibility of +/- 1 deg and a normally open contact switching element function. Operating within an ambient temperature range of -20 to 80 °C, this unit supports a maximum output current of 500 mA along with a maximum contact rating of 10 VA for AC and 10 W for DC. It complies with VDI/VDE 3845 (NAMUR) standards and holds C-Tick and c UL us - Recognized (OL) authorizations, alongside CE conformity to EU-EMV and EU-Ex protection guidelines. Certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508, the device features ATEX category II 3G and II 3D classifications with Ex nA IIC T5 X Gc and Ex tc IIIC T90°C X Dc IP65 explosion ignition protection, an explosion-proof ambient temperature of -20°C <= Ta <= +80°C, EPL Gc and EPL Dc certifications outside the EU, and RoHS-conforming materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

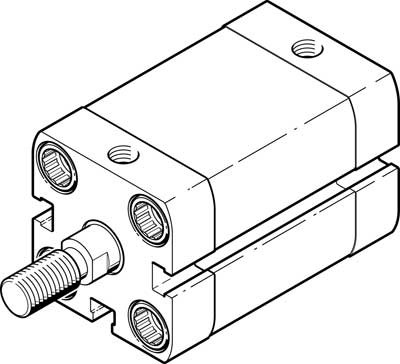

The Festo 571943 is a double-acting industrial component featuring a 25 mm piston diameter, a 60 mm stroke, and an M8 piston rod thread based on the ISO 21287 standard. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range, this unit delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a single-ended male piston rod end, position detection capabilities for a proximity sensor, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 568261 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that measures rotation angle using a reed magnetic measuring principle with a normally open contact switching element function. This device features a switching point reproducibility of +/- 1 degree, a maximum output current of 500 mA, and maximum contact ratings of 10 VA AC and 10 W DC across an ambient temperature range of -20 to 80 °C. It carries C-Tick and c UL us Recognized authorizations, bears CE symbols according to EU-EMV and ATEX guidelines, complies with ATEX categories II 3G and II 3D with corresponding gas and dust explosion protection types, holds non-EU EPL certifications for explosive atmospheres, conforms to RoHS materials notes, and is certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
