Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
Engineered to ISO 21287 standards by Festo, the 571942 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a male M8 piston rod thread. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and accommodates position detection via proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, while functioning across an ambient temperature range of -10 to 60 °C with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo

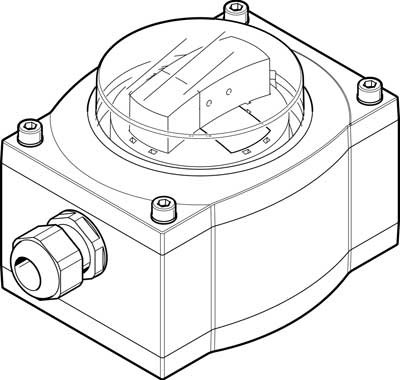

The Festo 568257 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that measures rotation angle using a reed magnetic measuring principle with a normally open contact switching element function. It features ATEX category II 3G and II 3D certifications with Ex nA IIC T5 X Gc and Ex tc IIIC T90°C X Dc IP65 explosion ignition protection types, operating within an ambient temperature range of -20 to 80 °C and supporting safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. This RoHS-conforming device carries C-Tick and c UL us - Recognized authorizations alongside EU-EMV and EU-Ex protection guideline compliance, with a switching point reproducibility of +/- 1 degree and a max contact rating of 10 VA AC and 10 W DC without short circuit strength. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
Engineered with a 25 mm piston diameter, a 40 mm stroke, and an M8 piston rod thread, this Festo double-acting industrial component operates within a working pressure range of 0.6 to 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4] standards. The unit features flexible cushioning rings at both ends, a male piston-rod end, position detection capabilities for a proximity sensor, and a CRC 2 moderate corrosion resistance classification. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar while functioning in any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

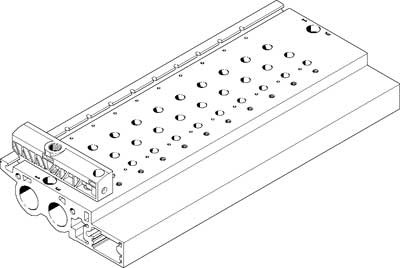

This Festo industrial component, part number 570729, features a 21 mm grid dimension and accommodates a maximum of 10 valve positions within a wrought aluminum alloy manifold. Constructed with a CRC 2 moderate corrosion resistance classification, the unit incorporates NPT1/2-14 pneumatic connection ports and NPT1/8-27 auxiliary pilot air ports 12/14, with a total product weight of 1,380 g. The materials are RoHS compliant and free of copper and PTFE, requiring maximum tightening torques of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 568256 is an angular industrial component featuring a Reed magnetic measuring principle for rotation angle measurement with a switching point reproducibility of +/- 1 deg and a normally open contact switching element function. Built on the VDI/VDE 3845 NAMUR standard, this RoHS-compliant device operates in ambient temperatures from -20 to 80 °C and holds C-Tick and c UL us - Recognized (OL) authorizations alongside ATEX category II 3G and II 3D explosion protection certifications. It achieves up to SIL 2 high demand mode safety function certification according to ISO 13849 and IEC 61508, with a maximum contact rating of 10 VA for AC and 10 W for DC without short circuit strength. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 571940 is a double-acting industrial component based on the ISO 21287 standard featuring a 25 mm piston diameter, a 30 mm stroke, and an M8 male piston rod thread. This single-ended piston rod unit incorporates flexible cushioning rings at both ends, accommodates position detection via proximity sensors, and operates on compressed air within a working pressure range of 0.6 to 10 bar. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar while functioning across an ambient temperature range of -10 to 60 °C with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo

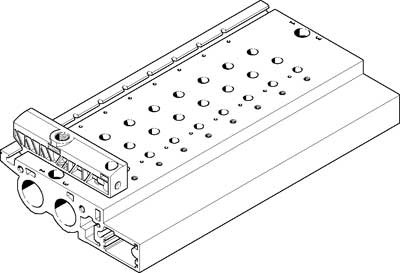

This Festo industrial component, part number 570728, features a 21 mm grid dimension and accommodates a maximum of eight valve positions on its wrought aluminum alloy manifold. The assembly includes port 3 with an NPT1/2-14 pneumatic connection, auxiliary pilot air ports 12/14 utilizing NPT1/8-27 threads, and a total product weight of 1,150 g with a CRC rating of 2 for moderate corrosion stress. Installation requires maximum tightening torques of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting, while the materials are RoHS compliant and free of copper and PTFE. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 568255 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that utilizes a reed magnetic measuring principle for rotation angle measurement with a switching point reproducibility of plus or minus one degree. Certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508, this RoHS-conforming device operates within an ambient temperature range of -20 to 80 degrees Celsius and carries ATEX category II 3G and II 3D ratings alongside C-Tick and c UL us recognitions. It features a normally open contact switching element function with a maximum output current of 500 mA and maximum contact ratings of 10 VA for AC and 10 W for DC. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

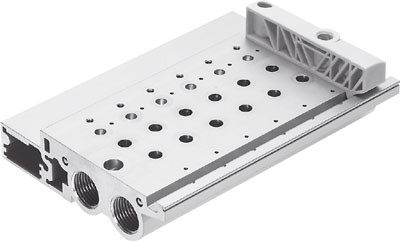

The Festo 570727 is an industrial component featuring a 21 mm grid dimension and a wrought aluminum alloy manifold capable of supporting a maximum of 6 valve positions. Constructed without copper and PTFE and conforming to RoHS standards, this part includes a CRC 2 moderate corrosion stress classification and weighs 915 g with NPT1/8-27 auxiliary pilot air ports 12/14 and NPT1/2-14 pneumatic connection ports (3). Installation requires maximum tightening torques of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 571939 is a double-acting industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and an M8 male piston rod thread based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, with a moderate corrosion resistance classification CRC of 2 and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 568254 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that measures rotation angle using a reed magnetic measuring principle with a normally open contact switching element function. This device features an ambient temperature range of -20 to 80 °C, a switching point reproducibility of +/- 1 deg, a maximum output current of 500 mA, and maximum contact ratings of 10 VA AC and 10 W DC. It holds C-Tick and c UL us Recognized authorizations, carries the CE symbol according to EU-EMV and EU-Ex protection guidelines, meets RoHS materials requirements, and is certified for safety function up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Furthermore, it is rated for ATEX category II 3G Gas with Ex nA IIC T5 X Gc protection, ATEX category II 3D Dust with Ex tc IIIC T90°C X Dc IP65 protection, and includes EPL Dc and EPL Gc Russian explosion protection certifications for an explosion-proof ambient temperature range of -20°C to +80°C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

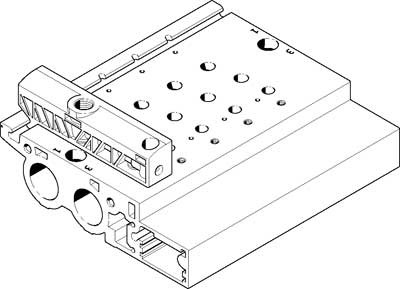

The Festo 570726 industrial component features a 21 mm grid dimension and accommodates a maximum of four valve positions on its wrought aluminum alloy manifold. Weighing 690 g with a CRC 2 moderate corrosion stress classification, this RoHS-compliant part is copper-free and PTFE-free, incorporating NPT1/8-27 auxiliary pilot air ports 12/14 alongside NPT1/2-14 pneumatic connection ports 3. Installation requires maximum tightening torques of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571938 is a double-acting industrial component featuring a 25 mm piston diameter, a 20 mm stroke, and an M8 male piston rod thread based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, with a moderate corrosion resistance classification of CRC 2 and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 568251 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that measures rotation angle using a reed magnetic measuring principle with a normally open contact switching element function. It features ATEX category II 3G and II 3D certifications with Ex nA IIC T5 X Gc and Ex tc IIIC T90°C X Dc IP65 explosion protection, C-Tick and c UL us - Recognized (OL) authorizations, and CE conformity under EU-EMV and EU-Ex protection guidelines. Rated for an ambient temperature of -20 to 80 °C, the unit includes RoHS-conforming materials, a switching point reproducibility of +/- 1 degree, max contact ratings of 10 VA AC and 10 W DC, and is certified for safety function to ISO 13849 and IEC 61508 up to SIL 2 high demand mode without short circuit strength. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

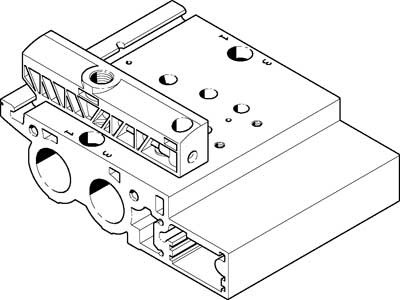

The Festo 570725 is an industrial component featuring a 21 mm grid dimension and a wrought aluminum alloy manifold with a CRC 2 moderate corrosion stress classification. This 460 g assembly accommodates a maximum of two valve positions, utilizing NPT1/8-27 auxiliary pilot air ports and NPT1/2-14 pneumatic connection ports 3, while incorporating materials that are free of copper and PTFE and conform to RoHS. Installation requires a maximum tightening torque of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
View product details →
Festo

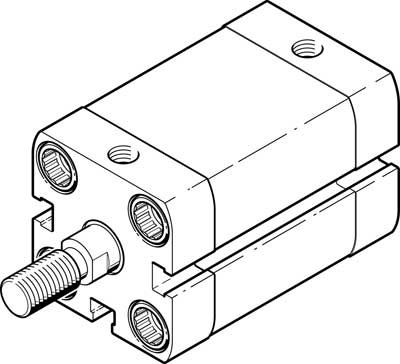

The Festo part number 571937 is a double-acting industrial component featuring a 25 mm piston diameter, a 15 mm stroke, and an M8 piston rod thread designed to ISO 21287 standards. This pneumatic cylinder operates within a working pressure range of 0.6 to 10 bar utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4] and incorporates flexible cushioning rings at both ends with a CRC of 2 for moderate corrosion stress. It provides a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar while accommodating position detection for proximity sensors across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 568250 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that utilizes a reed magnetic measuring principle for rotation angle feedback with a switching point reproducibility of +/- 1 degree. It features a normally open contact with a maximum contact rating of 10 VA for AC and 10 W for DC, operating across an ambient temperature range of -20 to 80 degrees Celsius. Certified for safety functions up to SIL 2 high demand mode according to ISO 13849 and IEC 61508, the unit holds ATEX category II 3G and II 3D approvals for hazardous locations alongside c UL us recognition and C-Tick authorization. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

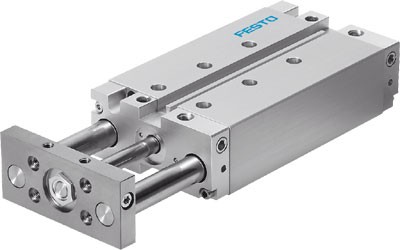

The Festo 570607 is a double-acting industrial component featuring a 63 mm piston diameter, a 200 mm stroke, and a yoke operating mode driven by compressed air meeting ISO8573-1:2010 [7:4:4] standards. Operating within a pressure range of 1 to 10 bar and ambient temperatures from -20 to 80 °C, this guide design incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and position detection for proximity sensors with 1/4 NPT pneumatic connections. Constructed with a wrought aluminum alloy cover and a CRC 2 moderate corrosion resistance classification, it delivers a theoretical force of 1,750 N retracting and 1,870 N advancing at 6 bar (87 psi). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 571936 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and an M8 male piston rod thread designed according to ISO 21287. Operating on compressed air within a 0.6 to 10 bar working range and -10 to 60 °C ambient temperatures, it delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 568249 is an angular industrial component based on the VDI/VDE 3845 NAMUR standard that measures rotation angle using a reed magnetic principle with a normally open contact switching element function and a switching point reproducibility of plus or minus 1 degree. It features a max output current of 500 mA, max contact ratings of 10 VA AC and 10 W DC, an ambient temperature range of -20 to 80 °C, and RoHS-conforming materials. This component carries C-Tick and c UL us Recognized authorizations, CE compliance under EU-EMV and EU-Ex protection guidelines, ATEX categories II 3G and II 3D with Ex nA IIC T5 X Gc and Ex tc IIIC T90°C X Dc IP65 explosion ignition protection, and safety function certification up to SIL 2 high demand mode according to ISO 13849 and IEC 61508. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
