Festo

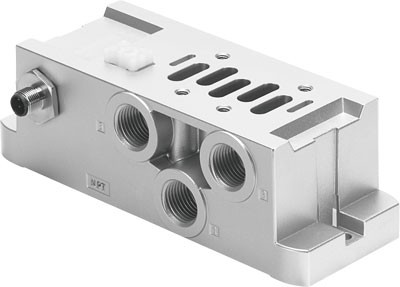

The Festo industrial component, part number 567704, is built to the ISO 5599-2 standard with a width of 52 mm and allows for any assembly position with internal pilot air supply. It operates within a working pressure range of -0.9 to 10 bar, an operating voltage range of 24 V DC, an acceptable current load of 2 A at 40°C, and a surge strength of 0.8 kV, while providing IP65 and NEMA 4 protection in the assembled condition under an ambient temperature range of -5 to 50 °C. The unit features ATEX certification for both gas (II 3G Ex nA II T3 X) and dust (II 3D Ex tD A22 IP65 T125°C X) for explosive environments between -5°C and +50°C, and runs on compressed air conforming to ISO 8573-1:2010 [7:4:4] with provisions for lubricated operation. Submit your exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 566416 is an electric cylinder featuring a piston rod and a linear AC synchronous motor based on the ISO 21287 standard, with a size of 40 and a stroke of 20 to 45 mm. This industrial component operates in a horizontal assembly position, achieving a max speed of 1.5 to 1.6 m/s, a repetition accuracy of +/-0.1 mm, and a corrosion resistance classification CRC of 2. Equipped with integrated temperature monitoring that shuts down at over-temperature, it features IP65 and IP40 protection classes for an ambient temperature range of 0 to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

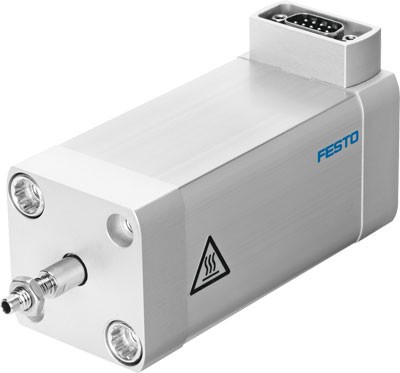

The Festo 566415 is an electric cylinder with a size 32 piston rod and a linear AC synchronous motor based on the ISO 21287 standard, featuring a stroke of 15 to 35 mm and horizontal assembly position. This electric linear direct drive delivers a maximum speed of 1.8 to 1.9 m/s, a repetition accuracy of +/-0.1 mm, and a min positioning time of 30 to 62 ms, supported by built-in temperature monitoring with shutdown at over-temperature. Rated with IP65 and IP40 protection classes and CRC 2 corrosion resistance, the unit operates in ambient temperatures from 0 to 40 °C and conforms to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 566403, features a size 25 specification with a corrosion resistance classification CRC of 2 and an ambient temperature range of -20 to 70 °C. The unit weighs 1.2 g and includes an adapter constructed from wrought aluminum alloy with materials conforming to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 566402 is an industrial component manufactured with a size 20 wrought aluminum alloy adapter and a product weight of 1.4 g. This part features a corrosion resistance classification CRC of 2 and operates within an ambient temperature range of -20 to 70 °C, while its materials conform to RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Festo
The Festo 566401 is an industrial component featuring a size of 16 and a product weight of 1.5 g, with an adapter constructed from wrought aluminum alloy. It has a corrosion resistance classification CRC of 2 and an ambient temperature range of -20 to 70 °C, while its materials conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 566370 is a double-acting industrial component featuring a 32 mm piston diameter, a 200 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating on compressed air within a 1 to 8 bar working pressure range, it incorporates progressive shock absorbers at both ends with a 20 mm cushioning length and achieves a repetition accuracy of ±0.01 mm at speeds up to 0.8 m/s. This unit accommodates position detection via proximity sensors and functions within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
The Festo part number 566369 is a double-acting industrial component featuring a 32 mm piston diameter and a 150 mm stroke, operating via a yoke drive unit design structure with a slide, piston, and piston rod. This unit operates on compressed air within a working pressure range of 1 to 8 bar, incorporating progressive shock absorbers at both ends for cushioning alongside a ball bearing cage guide and position detection for proximity sensors. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and functions in ambient temperatures from 0 to 60 °C with an end-position impact energy rating of 10 Nm. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

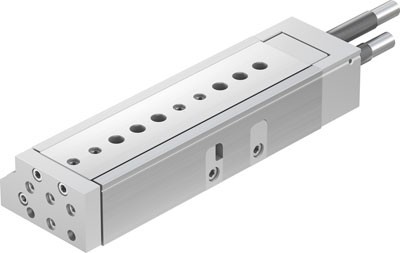

The Festo 566368 is a double-acting industrial component featuring a 32 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], this assembly includes a ball bearing cage guide, progressive shock absorber cushioning at both ends, and provisions for position detection via proximity sensors. It achieves a repetition accuracy of ±0.01 mm, a maximum speed of 0.8 m/s, and handles an impact energy of 10 Nm within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 566367 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Driven by compressed air within a working pressure range of 1 to 8 bar and operating at speeds up to 0.8 m/s, it utilizes a ball bearing cage guide and progressive shock absorbers at both ends for 10 Nm of impact energy handling. Position detection is supported via proximity sensors, while the adjustable end position range measures 108.5 mm at the front length and 49 mm at the rear length. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

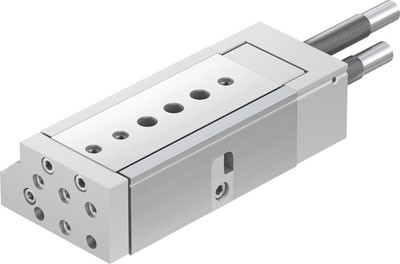

The Festo 566366 is a double-acting industrial component featuring a 32 mm piston diameter, 50 mm stroke, and a yoke drive unit design with a piston, piston rod, and slide. Operating on compressed air within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and incorporates progressive shock absorbers at both ends for 10 Nm impact energy management. Position detection is accommodated via proximity sensors, and the assembly utilizes a ball bearing cage guide operable in any position within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 566365 is a double-acting industrial component featuring a 32 mm piston diameter and a 40 mm stroke driven by a yoke design structure with a piston, piston rod, and slide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, this unit utilizes a ball bearing cage guide, progressive shock absorbers at both ends for cushioning, and a repetition accuracy of ±0.01 mm. It accommodates an adjustable end position range of 53.5 mm at the front and 49 mm at the rear, operates at a maximum speed of 0.8 m/s across an ambient temperature range of 0 to 60 °C, and includes provisions for position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

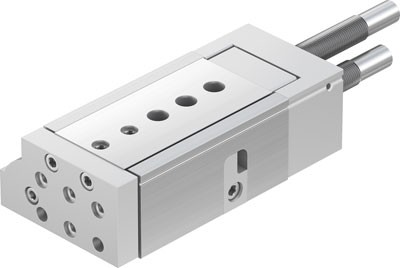

The Festo part number 566364 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and a yoke drive unit design with a ball bearing cage guide. Operating on compressed air within a working pressure range of 1 to 8 bar and a maximum speed of 0.8 m/s, it incorporates progressive shock absorber cushioning at both ends with a 20 mm cushioning length and 10 Nm impact energy. This unit accommodates position detection via proximity sensors, operates in any assembly position within an ambient temperature range of 0 to 60 °C, and achieves a repetition accuracy of ±0,01 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

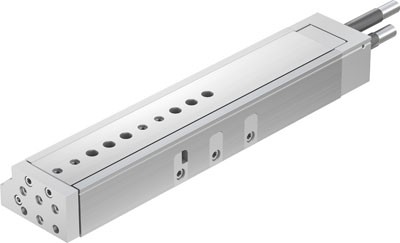

The Festo 566363 is a double-acting industrial component featuring a 25 mm piston diameter, a 200 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar on compressed air in accordance with ISO8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It utilizes a ball bearing cage guide, progressive shock absorbers at both ends providing 7 Nm of impact energy, and allows for position detection via a proximity sensor within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

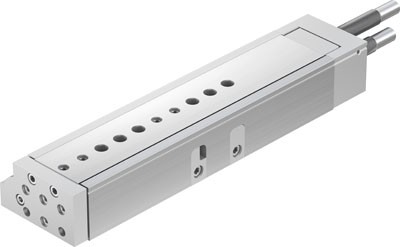

The Festo part number 566362 is a double-acting industrial component featuring a 25 mm piston diameter, a 150 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], this unit utilizes a ball bearing cage guide, progressive shock absorber cushioning at both ends, and allows for position detection via proximity sensors. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, an adjustable end position range of 88 mm at the front and 49.5 mm at the rear, an ambient temperature range of 0 to 60 °C, and a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 566361 is a double-acting industrial component featuring a 25 mm piston diameter, a 100 mm stroke, and a yoke drive unit design with a piston, piston rod, and slide. Operating on compressed air within a 1 to 8 bar working pressure and 0 to 60 °C ambient temperature range, it achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. This unit incorporates progressive shock absorber cushioning at both ends with a 17 mm cushioning length, adjustable end position ranges of 88 mm at the front and 49.5 mm at the rear, a ball bearing cage guide, and provisions for proximity sensor position detection. Submit part number 566361, required quantity, and application specifications to request a quote.
View product details →
Festo

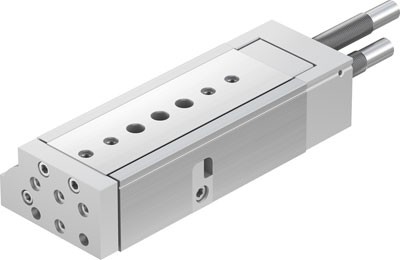

The Festo 566360 is a double-acting industrial component featuring a 25 mm piston diameter, an 80 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating at working pressures from 1 to 8 bar with compressed air matching ISO8573-1:2010 [7:4:4], it achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and progressive shock absorber cushioning at both ends. The unit includes adjustable end position ranges of 44 mm at the front and 49.5 mm at the rear, 17 mm of cushioning length, and position detection capabilities for proximity sensors across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 566359 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating on compressed air within a 1 to 8 bar working pressure and an ambient temperature range of 0 to 60 °C, this unit achieves a repetition accuracy of ±0.01 mm and a maximum speed of 0.8 m/s with progressive shock absorber cushioning at both ends. Submit your exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo

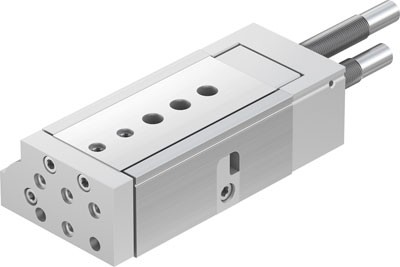

The Festo 566358 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide guided by a ball bearing cage guide. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure and 0 to 60 °C ambient temperature range, it achieves a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. This unit utilizes progressive shock absorber cushioning at both ends with a 17 mm cushioning length and 7 Nm impact energy in the end positions, featuring adjustable end position ranges of 44 mm at the front length and 49.5 mm at the rear length, alongside position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 566357 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and a yoke drive unit design with a ball bearing cage guide. Operating on compressed air within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. Progressive shock absorbers at both ends provide cushioning over a 17 mm length, accommodating an impact energy of 7 Nm in the end positions with adjustable front and rear ranges of 44 mm and 49.5 mm respectively. Submit the exact part number, quantity, and application requirements to request a quote.
