Festo

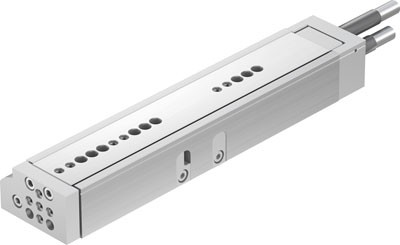

The Festo 566356 is a double-acting industrial component featuring a 20 mm piston diameter, a 150 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates at working pressures from 1 to 8 bar using compressed air meeting ISO8573-1:2010 [7:4:4], supporting a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and ambient temperatures between 0 and 60 °C with Y3 progressive shock absorber cushioning at both ends. Position detection is available for a proximity sensor, alongside an adjustable end position range of 72.5 mm at the front and 39.5 mm at the rear, a 14 mm cushioning length, 4 Nm impact energy in end positions, and a CRC 0 corrosion resistance classification with optional lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

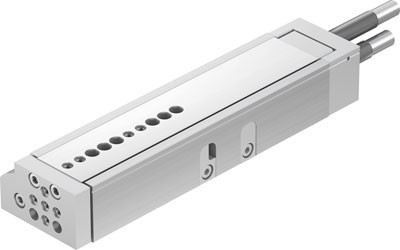

The Festo 566355 is a double-acting industrial component featuring a 20 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. This unit operates within a working pressure range of 1 to 8 bar using compressed air according to ISO 8573-1:2010 [7:4:4] at ambient temperatures between 0 and 60 °C, achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0,01 mm. Progressive shock absorbers at both ends provide cushioning across a 14 mm length with a 4 nm impact energy limit, complemented by an adjustable end position range of 72.5 mm at the front and 39.5 mm at the rear. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

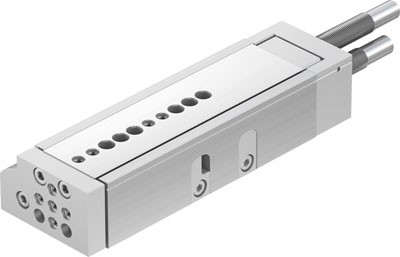

The Festo 566354 is a double-acting industrial component featuring a 20 mm piston diameter, an 80 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating on compressed air within a 1 to 8 bar working pressure range, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and includes progressive shock absorber cushioning at both ends. It operates in ambient temperatures from 0 to 60 °C, utilizes a ball bearing cage guide, and accommodates position detection via proximity sensors. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

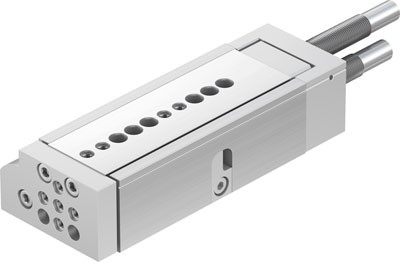

The Festo 566353 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar on compressed air conforming to ISO8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and incorporates progressive shock absorber cushioning at both ends for 4 Nm impact energy. It is equipped with a ball bearing cage guide, allows for any assembly position, and includes position detection capabilities for proximity sensors within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

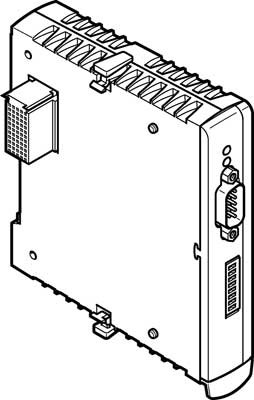

The Festo 565598 is an industrial component featuring a PROFIBUS slave DP-V1 fieldbus interface with a 9-pin Sub-D socket connection, electrical isolation, and transmission rates from 9.6 kbit/s up to 12 mbit/s. It operates at an ambient temperature range of 5 to 55 °C, requires a 5 V power consumption of 1.4 W, and includes LED status displays with a dedicated red indicator for bus faults. Built with an IP20 protection class and safety class III, the unit weighs 140 g and complies with EN 60068-2-6 and EN 60068-2-27 standards for vibration and shock insensitivity. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
The Festo 566352 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, this unit utilizes a ball bearing cage guide, progressive shock absorber cushioning at both ends, and accommodates proximity sensors for position detection. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and functions in ambient temperatures from 0 to 60 °C with an end-position impact energy of 4 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

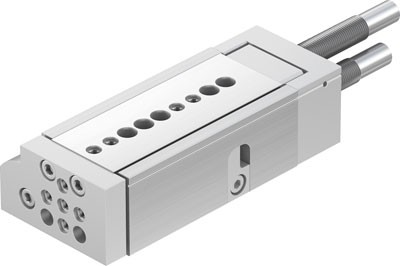

The Festo 566351 is a double-acting industrial component featuring a 20 mm piston diameter, a 30 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar and achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. Cushioning is provided by progressive shock absorbers at both ends with a 14 mm cushioning length and a 4 Nm impact energy capacity in the end positions, which have an adjustable front range of 37.5 mm and rear range of 39.5 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo

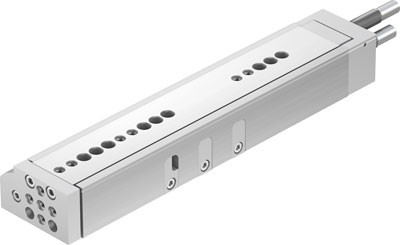

The Festo 566350 is a double-acting industrial component featuring a 16 mm piston diameter, a 150 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air within a 1 to 8 bar working pressure and an ambient temperature range of 0 to 60 °C, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It utilizes progressive shock absorber cushioning at both ends with a 10 mm cushioning length, accommodating 2 Nm impact energy in the end positions alongside adjustable end position ranges of 87 mm at the front length and 25.5 mm at the rear length. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

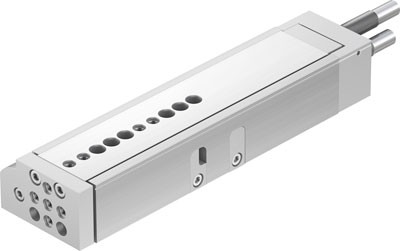

The Festo 566349 is a double-acting industrial component featuring a 16 mm piston diameter, a 100 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating on compressed air within a 1 to 8 bar working pressure range, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and incorporates progressive shock absorbers at both ends for cushioning. The assembly accommodates any mounting position, utilizes proximity sensors for position detection, and functions across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

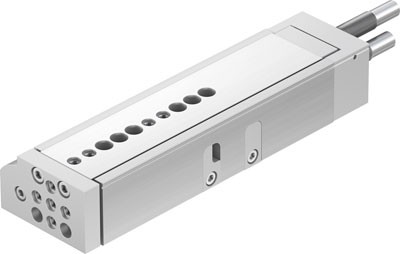

The Festo 566348 is a double-acting industrial component featuring a yoke drive unit, 16 mm piston diameter, and an 80 mm stroke operating within a working pressure range of 1 to 8 bar. This assembly incorporates a ball bearing cage guide, progressive shock absorber cushioning at both ends with a 10 mm cushioning length, and an adjustable end position range of 68 mm at the front and 25.5 mm at the rear. Designed with a repetition accuracy of ±0.01 mm, a maximum speed of 0.8 m/s, and position detection for proximity sensors, it functions using compressed air according to ISO 8573-1:2010 [7:4:4] within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →
Festo

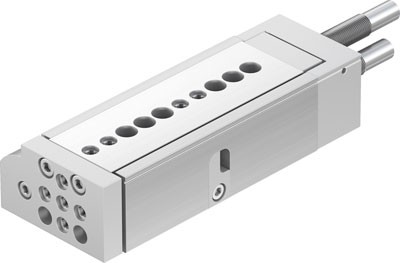

Engineered by Festo with part number 566347, this double-acting industrial component features a 16 mm piston diameter, a 50 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure and 0 to 60 °C ambient temperature range, the unit incorporates progressive shock absorbers at both ends for end position cushioning. It delivers a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and includes position detection capability for proximity sensors. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo

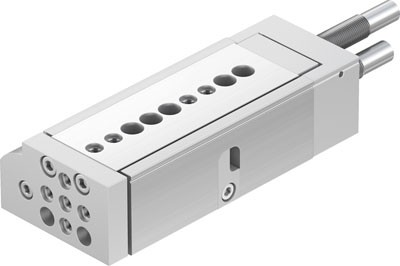

The Festo 566346 is a double-acting industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Equipped with a ball bearing cage guide, it operates on compressed air within a working pressure range of 1 to 8 bar and achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. Progressive shock absorbers at both ends provide cushioning for an impact energy of 2 Nm across a 10 mm cushioning length, with an adjustable end position range of 29 mm at the front and 25.5 mm at the rear. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

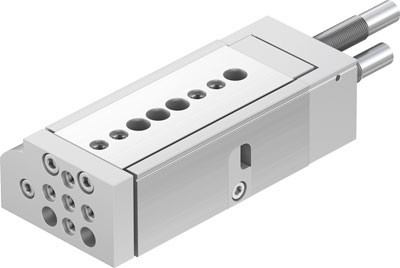

The Festo 566345 is a double-acting industrial component featuring a 16 mm piston diameter, a 30 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Driven by compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, it achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. Guided by a ball bearing cage guide, the unit operates within an ambient temperature range of 0 to 60 °C and utilizes progressive shock absorbers at both ends providing a 10 mm cushioning length for a 2 Nm impact energy in end positions. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo

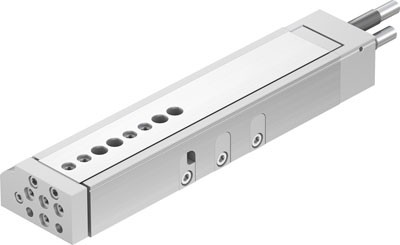

The Festo 566344 is a double-acting industrial component featuring a 12 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates within a working pressure range of 1.5 to 8 bar on compressed air meeting ISO8573-1:2010 [7:4:4], delivering a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and Y3 progressive shock absorber cushioning at both ends with an 8 mm cushioning length and 1 Nm impact energy in end positions. Featuring position detection for proximity sensors, adjustable end position ranges of 72 mm at the front and 20 mm at the rear, and an ambient temperature range of 0 to 60 °C, this unit has a CRC 0 corrosion resistance classification and supports lubricated operation. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

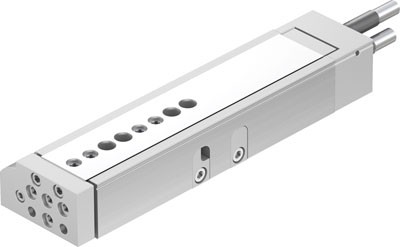

The Festo 566343 is a double-acting industrial component featuring a 12 mm piston diameter, an 80 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Driven by compressed air within a working pressure range of 1.5 to 8 bar, this assembly operates at speeds up to 0.8 m/s and includes progressive shock absorber cushioning at both ends with an 8 mm cushioning length and 1 Nm impact energy. It is equipped with a ball bearing cage guide, allows position detection via proximity sensor, and achieves a repetition accuracy of ±0.01 mm across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

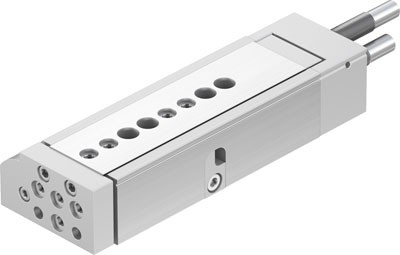

The Festo part number 566342 is a double-acting industrial component featuring a 12 mm piston diameter, a 50 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at a working pressure of 1.5 to 8 bar with compressed air in accordance with ISO8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and incorporates progressive shock absorbers at both ends for 1 Nm impact energy in end positions with an 8 mm cushioning length. It operates within an ambient temperature range of 0 to 60 °C, features a ball bearing cage guide, allows for position detection via proximity sensor, and has an adjustable end position range of 24 mm at the front length and 20 mm at the rear length. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

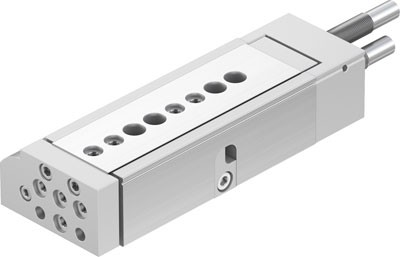

The Festo 566341 is a double-acting industrial component featuring a 12 mm piston diameter, a 40 mm stroke, and a yoke drive unit design structure that incorporates a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1.5 to 8 bar working pressure range, this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and features progressive shock absorber cushioning at both ends with an 8 mm cushioning length and 1 Nm impact energy in end positions. It includes provisions for position detection via proximity sensor, operates in ambient temperatures from 0 to 60 °C, allows for lubricated operation, and maintains a CRC corrosion resistance classification of 0 with an adjustable end position range of 24 mm at the front length and 20 mm at the rear length. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

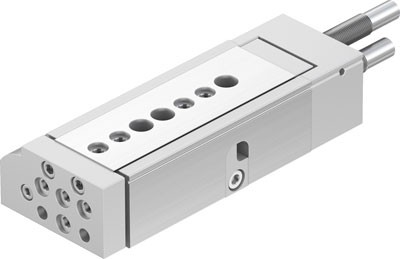

The Festo 566340 is a double-acting industrial component featuring a 12 mm piston diameter, a 30 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1.5 to 8 bar, this unit achieves a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm across an ambient temperature range of 0 to 60 °C. It utilizes progressive shock absorbers at both ends for end-position cushioning, providing a cushioning length of 8 mm, an impact energy of 1 Nm, and adjustable end position ranges of 24 mm at the front and 20 mm at the rear. Submit your exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

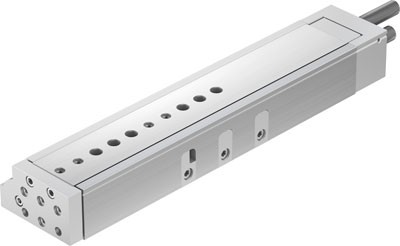

The Festo 566339 is a double-acting industrial component featuring a 32 mm piston diameter, a 200 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating on compressed air within a 1 to 8 bar working pressure range at ambient temperatures from 0 to 60 °C, this unit includes progressive shock absorbers at both ends providing 4.8 mm of cushioning length and a repetition accuracy of ±0.01 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component features a 32 mm piston diameter, a 150 mm stroke, and a double-acting operating mode utilizing a yoke drive unit design with an integrated ball bearing cage guide. Operating within a working pressure range of 1 to 8 bar and a maximum speed of 0.8 m/s, the unit incorporates flexible cushioning rings with stops at both ends and provides a repetition accuracy of ±0.01 mm. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of 0 to 60 °C and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
