Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 566337 is a double-acting industrial component featuring a 32 mm piston diameter, a 100 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar on compressed air meeting ISO8573-1:2010 [7:4:4] standards, this unit incorporates a ball bearing cage guide, P1 flexible cushioning rings with stops at both ends, and position detection capabilities for proximity sensors. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and functions within an ambient temperature range of 0 to 60 °C with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo

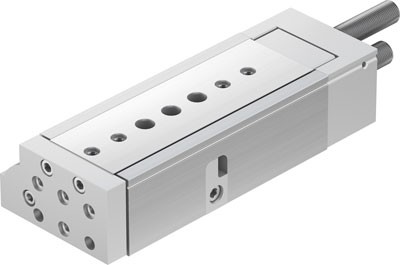

Engineered with a 32 mm piston diameter and an 80 mm stroke, this Festo industrial component operates in a double-acting mode utilizing a yoke drive unit structure comprising a piston, piston rod, and slide. The unit features flexible cushioning rings and plates with a stop at both ends, a ball bearing cage guide, and position detection for proximity sensors across a working pressure range of 1 to 8 bar. Operating within an ambient temperature of 0 to 60 °C, it achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0,01 mm using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

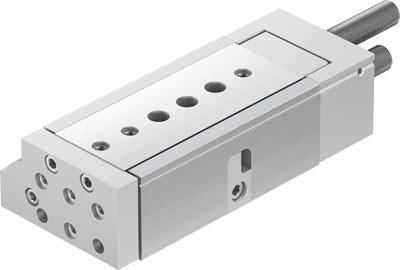

The Festo part number 566335 is a double-acting industrial component featuring a 32 mm piston diameter and a 50 mm stroke, operating via a yoke drive unit design structure that incorporates a piston, piston rod, and slide. Equipped with a ball bearing cage guide, P1 flexible cushioning rings/plates with stops at both ends, and provisions for proximity sensor position detection, this unit operates at working pressures from 1 to 8 bar with a repetition accuracy of ±0.01 mm and a maximum speed of 0.8 m/s. It functions within an ambient temperature range of 0 to 60 °C using compressed air according to ISO 8573-1:2010 [7:4:4], allowing for lubricated operation and featuring a CRC 0 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 566334 is a double-acting industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar on compressed air conforming to ISO8573-1:2010 [7:4:4], this assembly achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and incorporates flexible cushioning rings/plates with a 4.8 mm cushioning length. It includes a ball bearing cage guide, proximity sensor position detection capability, adjustable end position ranges of 55 mm at the front and 49 mm at the rear, and functions within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 566333 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating on compressed air within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm and includes P1 flexible cushioning rings with stops at both ends. It operates across an ambient temperature range of 0 to 60 °C and is equipped with a ball bearing cage guide for position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

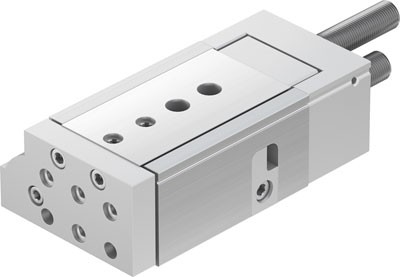

The Festo 566332 is a double-acting industrial component featuring a 32 mm piston diameter, a 20 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar on compressed air meeting ISO 8573-1:2010 [7:4:4] standards, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It includes flexible cushioning rings and plates with stops at both ends providing 0.25 Nm of impact energy in the end positions, alongside an adjustable end position range of 55 mm at the front length and 49 mm at the rear length. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

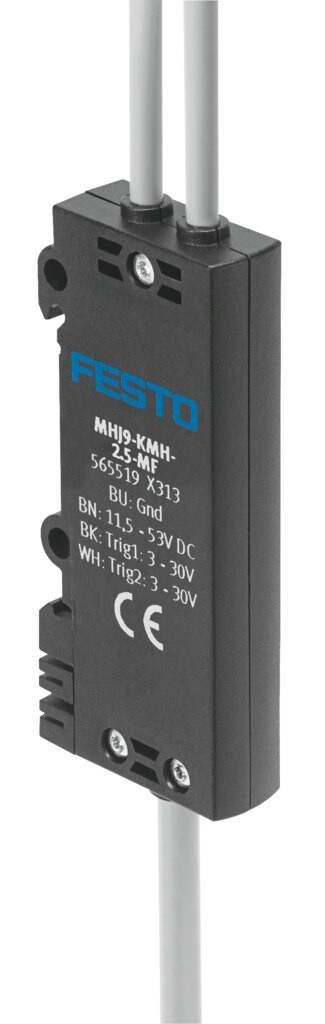

The Festo industrial component, part number 565519, features spark arresting, holding current reduction with energy recovery, and safety shut-off functions within a 98 g design. It operates on a DC voltage range of 12 V to 53 V with 100% duty cycle, offering versatile mounting via through-hole or DIN rail in any position. The unit includes built-in reverse polarity protection, IP40 degree of protection, and an integrated 2.5 m cable rated for static applications. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 566331 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating within a 1 to 8 bar working pressure utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm supported by a ball bearing cage guide. It includes flexible cushioning rings/plates with stops at both ends providing 0.25 Nm impact energy in end positions, adjustable end position ranges of 55 mm at the front and 49 mm at the rear, and position detection compatibility for proximity sensors across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo

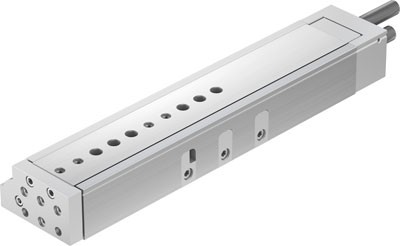

This Festo industrial component, part number 566330, is a double-acting drive unit featuring a 25 mm piston diameter, a 200 mm stroke, and a yoke design structure incorporating a piston, piston rod, and slide. It operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar and supports a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. The assembly utilizes a ball bearing cage guide, flexible cushioning rings with stops at both ends providing 5 mm of cushioning length, and includes provisions for proximity sensor position detection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

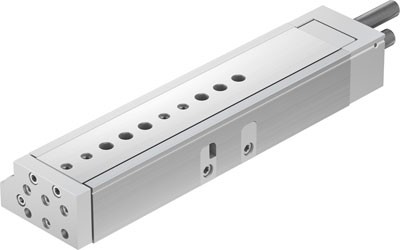

The Festo 566329 is a double-acting industrial component featuring a 25 mm piston diameter, a 150 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air within a 1 to 8 bar working pressure range at a maximum speed of 0.8 m/s, it utilizes flexible cushioning rings and plates at both ends with an impact energy of 0.2 Nm and a repetition accuracy of ±0.01 mm. This unit supports proximity sensor position detection, functions in any assembly position within an ambient temperature range of 0 to 60 °C, and exhibits a CRC 0 corrosion resistance classification. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

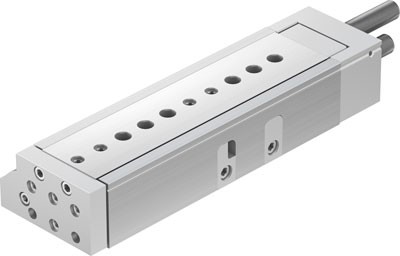

The Festo 566328 is a double-acting industrial component featuring a 25 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It utilizes flexible cushioning rings and plates with a stop at both ends providing a 5 mm cushioning length, adjustable end position ranges of 94.5 mm at the front and 49.5 mm at the rear, and integrated position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
Engineered by Festo as part number 566327, this double-acting industrial component features a 25 mm piston diameter, an 80 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. The unit utilizes flexible cushioning rings and plates with stops at both ends for P1 cushioning across an adjustable end position range of 50.5 mm at the front and 49.5 mm at the rear, functioning in any assembly position within ambient temperatures from 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
The Festo 566326 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. It operates within a working pressure range of 1 to 8 bar using compressed air conforming to ISO8573-1:2010 [7:4:4], achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. This unit incorporates flexible cushioning rings and plates with stops at both ends, supporting an ambient temperature range of 0 to 60 °C and position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

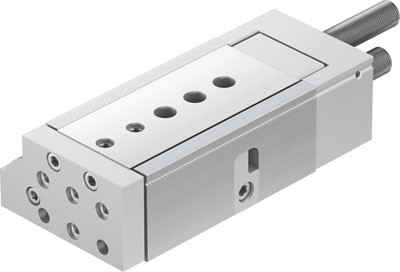

The Festo part number 566325 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating within a working pressure range of 1 to 8 bar and utilizing a ball bearing cage guide, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It incorporates flexible cushioning rings and plates with a 5 mm cushioning length at both ends, allowing an adjustable end position range of 50.5 mm at the front and 49.5 mm at the rear for compressed air media conforming to ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

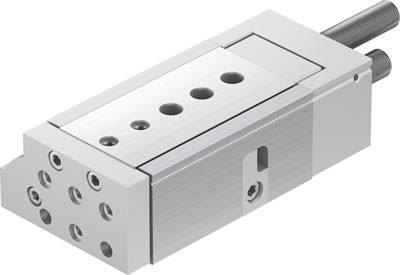

The Festo 566324 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. This drive unit operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] at a working pressure of 1 to 8 bar and achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It incorporates flexible cushioning rings and plates at both ends with a 5 mm cushioning length, adjustable end position ranges of 50.5 mm at the front and 49.5 mm at the rear, and integrated position detection for a proximity sensor across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 566323 is a double-acting industrial component featuring a 25 mm piston diameter, a 20 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. It operates on compressed air within a working pressure range of 1 to 8 bar, delivering a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm with flexible cushioning rings at both ends. The unit accommodates an ambient temperature range of 0 to 60 °C and includes provisions for position detection via proximity sensor in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

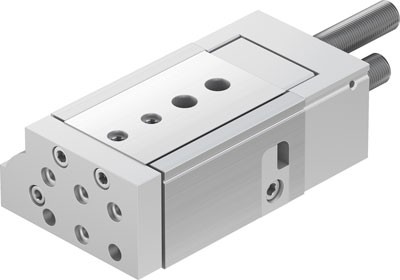

Engineered with a 25 mm piston diameter and a 10 mm stroke, this Festo industrial component operates in a double-acting mode utilizing a yoke drive unit structure with a ball bearing cage guide. The unit functions within a working pressure range of 1 to 8 bar and achieves a repetition accuracy of ±0.01 mm at a maximum speed of 0.8 m/s, featuring flexible cushioning rings with stops at both ends. It is designed for compressed air operation in accordance with ISO8573-1:2010 [7:4:4] across an ambient temperature range of 0 to 60 °C and includes provisions for proximity sensor position detection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

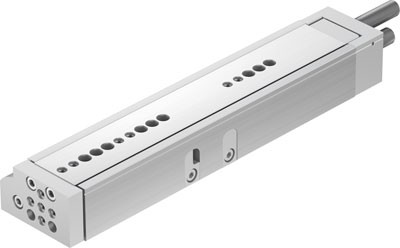

The Festo 566321 is a double-acting industrial component featuring a 20 mm piston diameter, a 150 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide guided by a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, achieves a repetition accuracy of ±0.01 mm at a maximum speed of 0.8 m/s, and utilizes flexible cushioning rings and plates at both ends with a 4.2 mm cushioning length. Designed for ambient temperatures between 0 and 60 °C, this unit includes position detection capabilities for proximity sensors and has a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

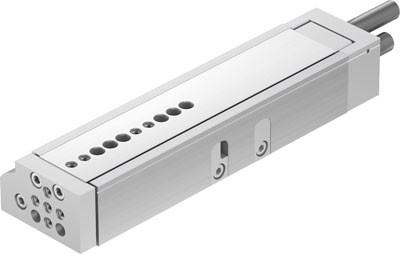

The Festo 566320 is a double-acting industrial component featuring a 20 mm piston diameter, a 100 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], this unit incorporates a ball bearing cage guide, flexible cushioning rings with stops at both ends, and position detection for proximity sensors. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and functions within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo

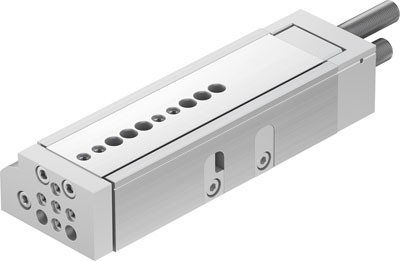

The Festo 566319 is a double-acting industrial component featuring an 80 mm stroke, a 20 mm piston diameter, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range and 0 to 60 °C ambient temperature, this part utilizes a ball bearing cage guide, flexible cushioning rings/plates with stops at both ends, and allows position detection via proximity sensors. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, an end position impact energy of 0.12 Nm, and operates in any assembly position with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
