Festo

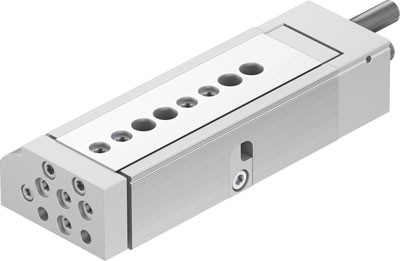

The Festo 566261 is a double-acting industrial component featuring a 12 mm piston diameter, a 40 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] across a working pressure range of 1.5 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm and incorporates flexible cushioning rings at both ends. It functions at ambient temperatures from 0 to 60 °C, accommodates proximity sensors for position detection, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

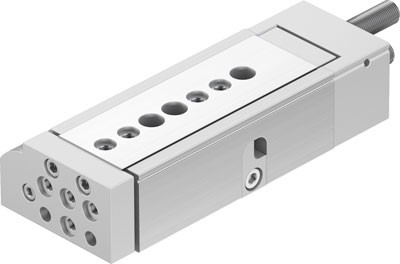

The Festo 566260 is a double-acting industrial component featuring a 12 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating via compressed air in accordance with ISO8573-1:2010 [7:4:4]. This design structure incorporates a piston, piston rod, slide, and a ball bearing cage guide, offering an adjustable end position range of 27.5 mm at the front and 20 mm at the rear. Operating within a working pressure range of 1.5 to 8 bar, it utilizes flexible cushioning rings and plates at both ends with a 1.3 mm cushioning length to absorb 0.12 Nm of impact energy in the end positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo

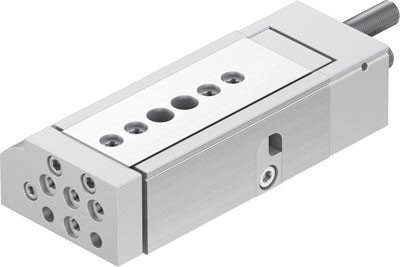

The Festo 566259 is a double-acting industrial component featuring a 12 mm piston diameter, a 20 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating with compressed air in accordance with ISO 8573-1:2010 [7:4:4] at a working pressure range of 1.5 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. It utilizes flexible cushioning rings and plates at both ends, a ball bearing cage guide, and allows for proximity sensor position detection within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

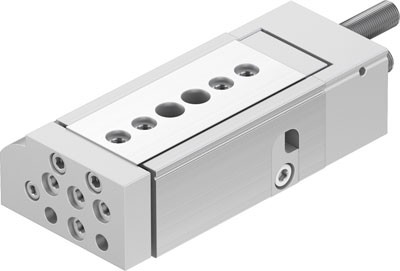

This Festo industrial component, part number 566258, is a double-acting drive unit featuring a 12 mm piston diameter, a 10 mm stroke, and a yoke design structure with a piston, piston rod, and slide. Driven by compressed air in accordance with ISO 8573-1:2010 [7:4:4] at a working pressure of 1.5 to 8 bar, the unit incorporates flexible cushioning rings at both ends, a ball bearing cage guide, and provisions for proximity sensor position detection. It operates within an ambient temperature range of 0 to 60 °C, achieving a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo mounting kit SMBR-8-25-B is an industrial component classified under corrosion resistance classification CRC 2. This assembly features materials that conform to RoHS requirements as specified in the official data sheet. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo SMBR-8-20-B mounting kit, designated under part number 566235, features a corrosion resistance classification CRC of 2 and materials conforming to RoHS standards according to the official Festo EN-US data sheet. Request a quote for this industrial component by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo mounting kit SMBR-8-16-B is an industrial component categorized under corrosion resistance classification CRC 2. This assembly features materials noted as conforming to RoHS, according to the official Festo data sheet. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

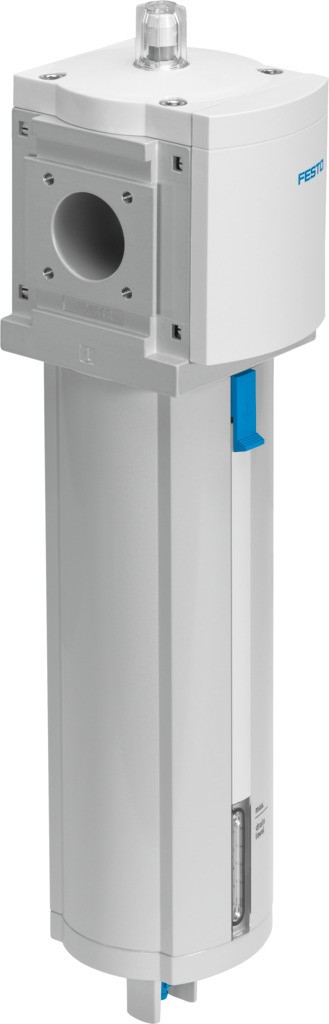

The Festo 564054 is an MS series size 9 industrial component featuring a fiber filter with a 0.01 µm filtration grade and 99.9999% filter efficiency for compressed air according to ISO 8573-1:2010 [6:-:4]. It operates within a pressure range of 0.2 MPa to 1.2 MPa and provides an air quality class at the output conforming to ISO 8573-1:2010 [3:-:2] with standard flow rates between 390 l/min and 7800 l/min. The unit includes both fully automatic and manual, non-detenting condensate drains accommodating a maximum condensate volume of 225 ml within a medium and ambient temperature range of 5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo MS series size 9 industrial component utilizes a fiber filter structural design with a 0.01 µm grade of filtration and a 99.9999% filter efficiency for compressed air per ISO 8573-1:2010 [6:-:4]. It features a manual rotating condensate drain with a maximum condensate volume of 225 ml, supporting operating pressures from 0 MPa to 2 MPa and standard flow rates between 390 l/min and 7800 l/min for air quality class [3:-:2]. The unit operates within a temperature range of -10 °C to 60 °C and meets moderate corrosion stress class CRC 2 with Class 7 cleanroom suitability according to ISO 14644-1. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 564050 is an industrial component from the MS series, size 9, featuring a fiber filter structural design with a 0.01 µm grade of filtration and 99.9999% filter efficiency. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar, 29 psi to 174 psi) utilizing compressed air as per ISO 8573-1:2010 [6:-:4], and delivers an air quality class at the output corresponding to ISO 8573-1:2010 [3:-:2] with standard flow rates between 325 l/min and 6500 l/min. Equipment features include a maximum condensate volume of 225 ml, fully automatic and manual non-detenting condensate drains, moderate corrosion resistance (CRC 2), and cleanroom suitability according to ISO 14644-1 Class 7. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 565288 is a 1,530 g industrial component featuring a 44-pin Sub-D plug socket electrical connection with 4-40UNC mounting and any assembly position. Built with a 10 m PVC-sheathed cable of 8.9 mm diameter featuring a 40 x 0,14 mm² cable structure for static applications, it operates at a DC voltage range of 24 V or less and handles an acceptable current load of 0.86 A at 40 °C. The housing consists of TPE, the crimp connectors are made of gold-plated bronze, and the materials conform to RoHS while providing IP65 protection class ratings across an ambient temperature range of -40 to 80 °C, or -5 to 80 °C with flexible cable installation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 565287 is a 5-meter industrial component featuring a 44-pin Sub-D plug socket electrical connection, a cable diameter of 8.9 mm, and a 40 x 0,14 mm² cable structure designed for static applications. Constructed with a PVC cable sheath, a TPE housing, and gold-plated bronze crimp connectors, this RoHS-compliant part supports a DC operating voltage up to 24 V and an acceptable current load of 0.86 A at 40°C. It offers an IP65 protection class, 4-40UNC mounting type, an ambient temperature range of -40 to 80°C (-5 to 80°C with flexible cable installation), any assembly position, and a product weight of 850 g. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
The Festo MS series size 9 industrial component utilizes a fiber filter design with a 0.01 µm grade of filtration and a manual, rotating condensate drain. It operates within a pressure range of 0 MPa to 2 MPa (0 bar to 20 bar, 0 psi to 290 psi) and processes compressed air conforming to ISO 8573-1:2010 [6:-:4] to deliver an output air quality class of ISO 8573-1:2010 [3:-:2]. Featuring a 99.9999% filter efficiency, a maximum standard flow rate of 6500 l/min, and a minimum standard flow rate of 325 l/min, this unit handles a maximum condensate volume of 225 ml within a temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 565286 is an industrial component featuring a 44-pin Sub-D plug socket and a 2.5 m PVC-sheathed cable with a diameter of 8.9 mm and 40 x 0,14 mm² structure for static applications. Designed for any assembly position, this part operates at a DC voltage range of 24 V or less, supports an acceptable current load of 0.86 A at 40°C, and provides IP65 protection. It incorporates a TPE housing, 4-40UNC mounting type, RoHS-conforming bronze and gold-plated crimp connectors, and a product weight of 490 g with an ambient temperature range of -40 to 80°C (-5 to 80°C with flexible cable installation). Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
This Festo industrial component, part number 565285, features a 25-pin Sub-D plug socket electrical connection, a 10 m cable length with a 9.9 mm cable diameter, and a 25 x 0.25 mm² cable structure designed for static applications. The assembly supports any mounting position via 4-40UNC mounting type, operates at a DC voltage range of 24 V or less, and permits an acceptable current load of 1.64 A at 40°C with an IP65 protection class. Constructed with a TPE housing, PVC cable sheaths, and gold-plated bronze crimp connectors, the 1,500 g unit complies with RoHS and functions within an ambient temperature range of -40 to 80 °C, or -5 to 80 °C during flexible cable installation. Submit the exact part number, quantity, and application requirements for a formal price quote.
View product details →
Festo
The Festo part number 564046 is a Size 9 industrial component from the MS series featuring a fiber filter with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar, 29 psi to 174 psi) and supports a standard flow rate between 500 l/min and 10000 l/min for compressed air media conforming to ISO 8573-1:2010 [6:-:4]. Additional specifications include fully automatic or manual non-detenting condensate drains with a 225 ml maximum condensate volume, a residual oil content of 0.5 mg/m³, and an operating temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
The Festo 565284 is an industrial component featuring a 25-pin Sub-D plug socket electrical connection, a 5 m cable with a 9.9 mm diameter, and a 25 x 0,25 mm² cable structure designated for static applications. Constructed with TPE housing, a PVC cable sheath, and gold-plated bronze crimp connectors, this part supports a DC operating voltage range up to 24 V and an acceptable current load of 1.64 A at 40°C. It provides an IP65 protection class, accommodates any assembly position, utilizes 4-40UNC mounting, conforms to RoHS materials notes, and operates in ambient temperatures ranging from -40 to 80°C (-5 to 80°C with flexible cable installation) while weighing 850 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

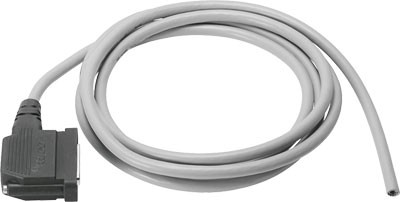

The Festo 565283 is an industrial component featuring a 25-pin Sub-D plug socket electrical connection, a 2.5 m cable length with a 9.9 mm diameter, and a 25 x 0,25 mm² cable structure designated for static applications. Constructed with a TPE housing, PVC cable sheaths, and gold-plated bronze crimp connectors, this part supports an operating voltage range of up to 24 V DC, an acceptable current load of 1.64 A at 40°C, and IP65 protection. It accommodates any assembly position, secures via 4-40UNC mounting, and operates within an ambient temperature range of -40 to 80°C, or -5 to 80°C with flexible cable installation, while conforming to RoHS materials notes at a weight of 520 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 565282 is an industrial component featuring a 25-pin Sub-D plug socket electrical connection with 4-40UNC mounting and a total product weight of 1,580 g. Constructed with a 10 m PVC-sheathed cable of 9.5 mm diameter containing 18 x 0,34 mm² conductors and gold-plated bronze crimp connectors, this assembly supports static cable applications within an operating voltage range up to 24 V DC and an acceptable current load of 2.95 A at 40°C. It provides IP65 protection and accommodates any assembly position while operating in ambient temperatures from -40 to 80 °C, or -5 to 80 °C with flexible cable installation, utilizing RoHS-conforming TPE housing materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this item.
View product details →
Festo
The Festo part number 564044 is an MS-series industrial component, size 9, featuring a fiber filter structural design with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates within a pressure range of 0 MPa to 2 MPa (0 bar to 20 bar, 0 psi to 290 psi) and handles compressed air conforming to ISO 8573-1:2010 [6:-:4], delivering an output air quality class of ISO 8573-1:2010 [5:-:3] with standard flow rates between 500 l/min and 10000 l/min. Additional specifications include a manual rotating condensate drain with a maximum volume of 225 ml, a moderate corrosion resistance class (CRC 2), a fine particle filter efficiency of 99%, a residual oil content of 0.5 mg/m³, and a medium, ambient, and storage temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
