Festo

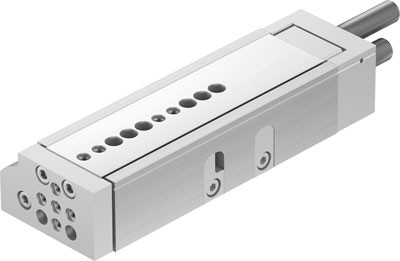

This Festo industrial component, part number 566278, features a double-acting drive unit with an 80 mm stroke, a 20 mm piston diameter, and a yoke design structure incorporating a piston, piston rod, and slide. Operating at a working pressure range of 1 to 8 bar with compressed air conforming to ISO 8573-1:2010 [7:4:4], the assembly utilizes a ball bearing cage guide, flexible cushioning rings or plates at both ends, and allows for position detection via a proximity sensor. The unit operates at a maximum speed of 0.8 m/s within an ambient temperature range of 0 to 60 °C, providing a repetition accuracy of 0.3 mm and an impact energy of 0.35 Nm in the end positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

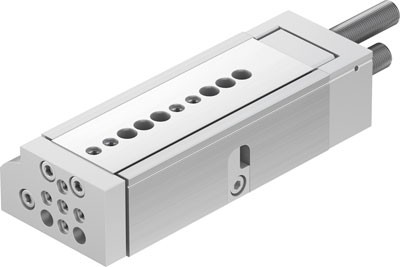

The Festo 566277 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating via compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This assembly incorporates a ball bearing cage guide, flexible cushioning rings at both ends with a 1.2 mm cushioning length, and provisions for position detection using a proximity sensor within a working pressure range of 1 to 8 bar. It operates at a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

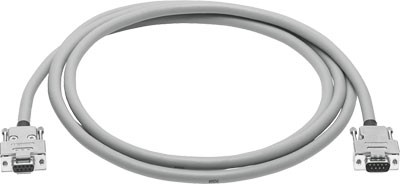

This Festo industrial component, part number 565371, features a 10 m shielded cable structure comprising 2x0,5 mm² plus 3x(2x0,14 mm²)D and 1x0,14 mm² with TPE-U(PUR) cable sheaths conforming to RoHS. The assembly provides an IP65 protection class in the assembled condition, a degree of contamination rating of 3, and a minimum cable bending radius of 65 mm while remaining suitable for chain link trunking. Ambient temperatures span from -50 to 90 °C overall, and -40 to 90 °C specifically with flexible cable installation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

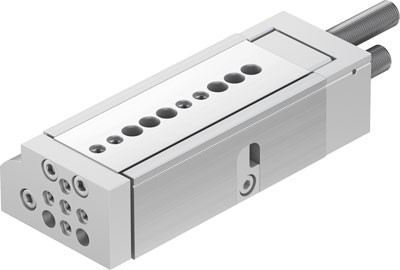

The Festo 566276 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, utilizing flexible cushioning rings or plates at both ends with a 1.2 mm cushioning length, 0.35 Nm impact energy in end positions, and a maximum speed of 0.8 m/s. Designed for any assembly position with provisions for position detection via proximity sensor, it functions at ambient temperatures from 0 to 60 °C with a 0.3 mm repetition accuracy and CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 565370 industrial component features a 5 m shielded cable with a structure of 2x0,5 mm²+3x(2x0,14 mm²)D plus 1x0,14mm² and TPE-U(PUR) cable sheaths suitable for chain link trunking with a minimum bending radius of 65 mm. It operates at ambient temperatures from -50 to 90 °C, or -50 to 90 °C with flexible cable installation, maintains a degree of contamination rating of 3, and achieves IP65 protection class in assembled condition while conforming to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

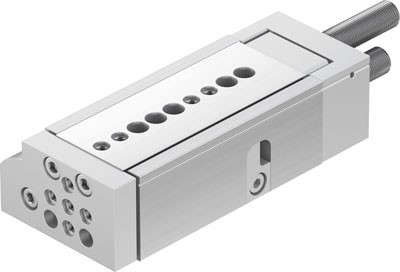

The Festo 566275 is a double-acting industrial component featuring a 20 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating via compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This assembly utilizes a ball bearing cage guide, flexible cushioning rings or plates at both ends, and allows for position detection via proximity sensors within a working pressure range of 1 to 8 bar. It operates at a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 565369, features a 2.5 m shielded cable with a structure of 2x0,5 mm²+3x(2x0,14 mm²)D plus 1x0,14 mm² and TPE-U(PUR) cable sheaths. Designed for chain link trunking with a minimum cable bending radius of 65 mm, the assembly operates within ambient temperature ranges of -50 to 90 °C, and -40 to 90 °C during flexible cable installation. The part achieves an IP65 protection class in an assembled condition, has a degree of contamination of 3, and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

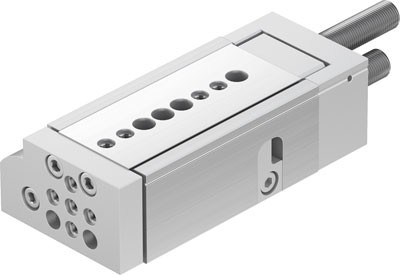

The Festo 566274 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and a yoke drive unit design incorporating a piston rod, slide, and ball bearing cage guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. It utilizes flexible cushioning rings and plates at both ends with a 1.2 mm cushioning length, accommodating an ambient temperature range of 0 to 60 °C and position detection via a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

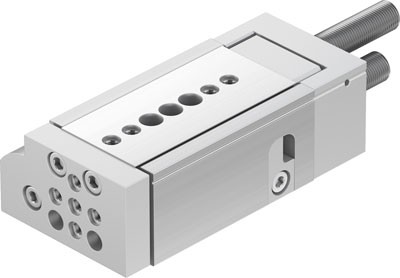

The Festo part number 566273 is a double-acting industrial component featuring a 20 mm piston diameter, a 10 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and flexible cushioning rings or plates at both ends with an impact energy of 0.35 Nm. This unit accommodates position detection via a proximity sensor, operates in ambient temperatures from 0 to 60 °C, and exhibits a CRC corrosion resistance classification of 0 with any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

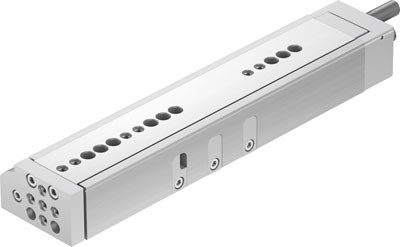

The Festo 566272 is a double-acting industrial component featuring a yoke drive unit design with a 16 mm piston diameter and a 150 mm stroke. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. It is equipped with flexible cushioning rings or plates at both ends, a ball bearing cage guide, and position detection for a proximity sensor, while operating across an ambient temperature range of 0 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

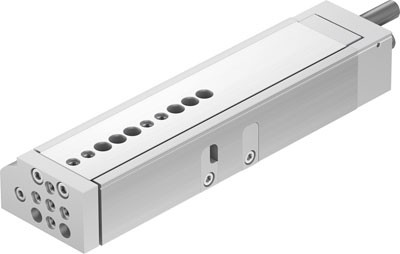

The Festo 566271 is a double-acting industrial component featuring a 16 mm piston diameter, a 100 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar with compressed air in accordance with ISO8573-1:2010 [7:4:4], this unit incorporates a ball bearing cage guide, flexible cushioning rings or plates at both ends, and position detection for a proximity sensor. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, an impact energy in end positions of 0.25 Nm, and functions across an ambient temperature range of 0 to 60 °C with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo

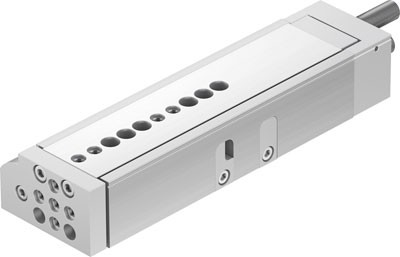

This Festo industrial component, part number 566270, is a double-acting drive unit featuring a yoke design structure with a piston, piston rod, and slide, operating at a working pressure of 1 to 8 bar on compressed air in accordance with ISO8573-1:2010 [7:4:4]. It provides an 80 mm stroke, a 16 mm piston diameter, a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and flexible cushioning rings or plates at both ends with a 1 mm cushioning length and 0.25 Nm impact energy in end positions. The unit includes a ball bearing cage guide, adjustable end position ranges of 68 mm at the front and 25.5 mm at the rear, position detection for proximity sensors, and a CRC corrosion resistance classification of 0 for ambient temperatures between 0 and 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo

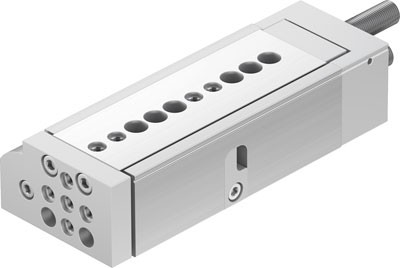

The Festo part number 566269 is a double-acting industrial component featuring a 16 mm piston diameter, a 50 mm stroke, and a yoke drive unit design structure comprised of a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar with compressed air matching ISO8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends, a ball bearing cage guide, and position detection for a proximity sensor. It functions within an ambient temperature range of 0 to 60 °C, achieving a maximum speed of 0.8 m/s and a repetition accuracy of 0.3 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

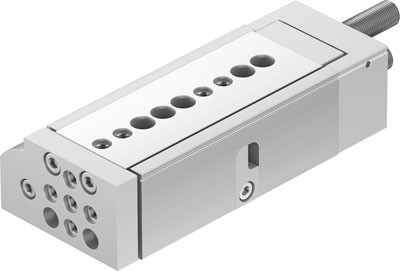

The Festo 566268 is a double-acting industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating design structure comprising a piston, piston rod, and slide. Driven by compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, it achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. This unit incorporates flexible cushioning rings and plates at both ends, a ball bearing cage guide, and provisions for proximity sensor position detection across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

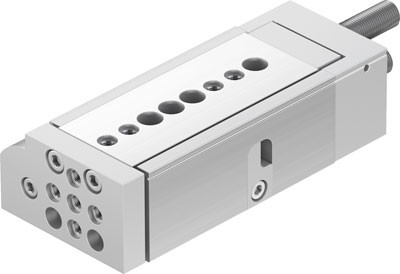

The Festo 566267 is a double-acting industrial component featuring a 16 mm piston diameter, a 30 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, slide, and ball bearing cage guide. It operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, an ambient temperature range of 0 to 60 °C, and a maximum speed of 0.8 m/s, utilizing flexible cushioning rings or plates at both ends with a 1 mm cushioning length and 0.25 Nm impact energy in the end positions. Additional attributes include an adjustable end position range of 29 mm at the front length and 25.5 mm at the rear length, 0.3 mm repetition accuracy, position detection capability for proximity sensors, any assembly position, and a CRC corrosion resistance classification of 0 with lubricated operation possible. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

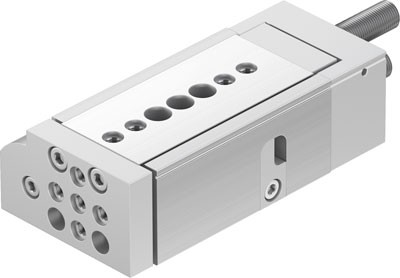

The Festo 566266 is a double-acting industrial component featuring a yoke drive unit design with a 16 mm piston diameter, a 20 mm stroke, and a ball bearing cage guide. This unit operates on compressed air within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and flexible cushioning rings at both ends. It includes position detection for a proximity sensor, an adjustable end position range of 29 mm at the front and 25.5 mm at the rear, and functions in ambient temperatures from 0 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo

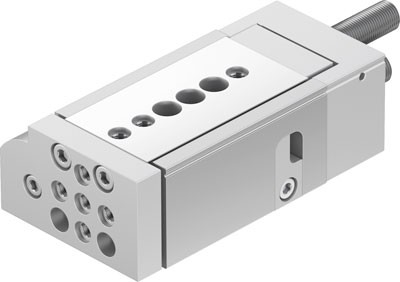

The Festo part number 566265 is a double-acting industrial component featuring a 16 mm piston diameter and a 10 mm stroke driven by a yoke design structure that includes a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar using compressed air conforming to ISO8573-1:2010 [7:4:4], this drive unit integrates flexible cushioning rings at both ends, a ball bearing cage guide, and position detection capabilities for proximity sensors. It functions within an ambient temperature range of 0 to 60 °C, achieving a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

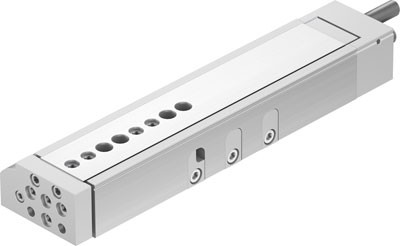

The Festo 566264 is a double-acting industrial component featuring a 100 mm stroke, a 12 mm piston diameter, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating at a working pressure range of 1.5 to 8 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and utilizes flexible cushioning rings at both ends with a 1.3 mm cushioning length. It includes a ball bearing cage guide, allows for proximity sensor position detection, and functions in ambient temperatures from 0 to 60 °C with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

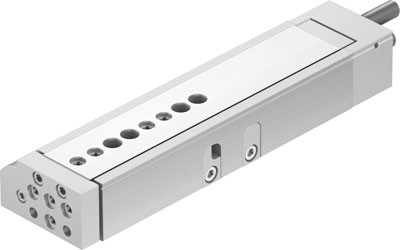

The Festo 566263 is a double-acting industrial component featuring a 12 mm piston diameter, an 80 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. This drive unit operates on compressed air conforming to ISO8573-1:2010 [7:4:4] at a working pressure of 1.5 to 8 bar, achieving a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Flexible cushioning rings and plates at both ends provide cushioning over a length of 1.3 mm, accommodating an ambient temperature range of 0 to 60 °C and position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →
Festo

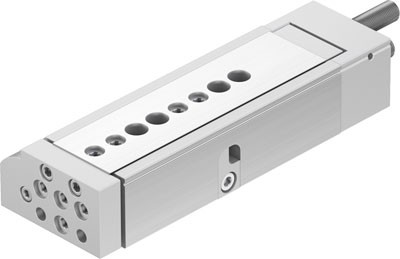

The Festo part number 566262 is a double-acting industrial component featuring a 12 mm piston diameter and a 50 mm stroke driven by a yoke operating mode. This unit incorporates a ball bearing cage guide, flexible cushioning rings or plates at both ends with a 1.3 mm cushioning length, and provision for proximity sensor position detection. It operates within a working pressure range of 1.5 to 8 bar, an ambient temperature range of 0 to 60 °C, and a maximum speed of 0.8 m/s while maintaining a repetition accuracy of 0.3 mm. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
