Festo

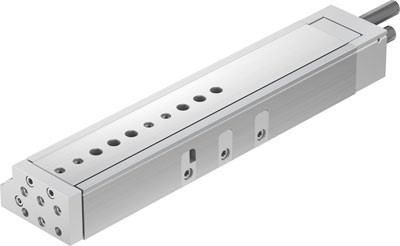

This Festo industrial component features a 32 mm piston diameter, a 200 mm stroke, and a double-acting mode of operation utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4]. The unit incorporates a yoke drive mechanism with a ball bearing cage guide, flexible cushioning rings at both ends, and provisions for position detection via proximity sensors. Operating within a working pressure range of 1 to 8 bar and an ambient temperature range of 0 to 60 °C, the assembly achieves a maximum speed of 0.8 m/s and a repetition accuracy of 0,3 mm. Submit the exact part number, quantity, and application requirements to request a quote for this Festo part.
View product details →
Festo
The Festo part number 566297 is a double-acting industrial component featuring a 32 mm piston diameter, a 150 mm stroke, and a yoke drive unit design with an integrated ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, utilizing flexible cushioning rings or plates at both ends with a 1.3 mm cushioning length and 0.55 Nm impact energy in end positions. The unit includes adjustable end position ranges of 110 mm at the front and 49 mm at the rear, supports position detection via proximity sensors, and achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm across an ambient temperature range of 0 to 60 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo part number 566296 is a double-acting industrial component featuring a 32 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and flexible cushioning rings or plates at both ends. Designed for an ambient temperature range of 0 to 60 °C in any assembly position, this unit includes position detection capabilities for a proximity sensor and features an adjustable end position range of 110 mm at the front and 49 mm at the rear. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 566295 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, this unit achieves a maximum speed of 0.8 m/s, 0.3 mm repetition accuracy, and utilizes flexible cushioning rings or plates at both ends with 1.3 mm cushioning length and 0.55 Nm end position impact energy. It is equipped for position detection via proximity sensor, operates in ambient temperatures from 0 to 60 °C with a CRC 0 corrosion resistance classification, and accommodates an adjustable end position range of 110 mm at the front length and 49 mm at the rear length in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 566294 is a double-acting industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide guided by a ball bearing cage guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm and utilizes flexible cushioning rings or plates at both ends. It functions at ambient temperatures from 0 to 60 °C, accommodates position detection via proximity sensors, and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

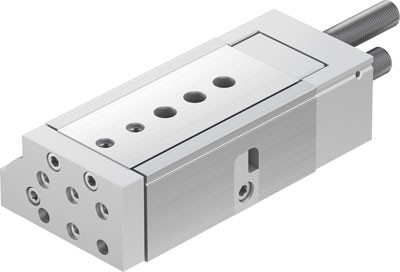

The Festo 566293 is a double-acting industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and a ball bearing cage guide utilizing a yoke drive unit design structure. It operates on compressed air within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s with flexible cushioning rings at both ends and a repetition accuracy of 0.3 mm. Configured for any assembly position, the unit functions in ambient temperatures from 0 to 60 °C and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

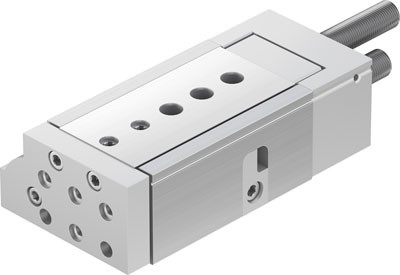

The Festo 566292 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, accommodating a maximum speed of 0.8 m/s, flexible cushioning rings at both ends, and adjustable end position ranges of 55 mm at the front and 49 mm at the rear. Built with position detection for proximity sensors, it functions in any assembly position at ambient temperatures from 0 to 60 °C with a repetition accuracy of 0.3 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

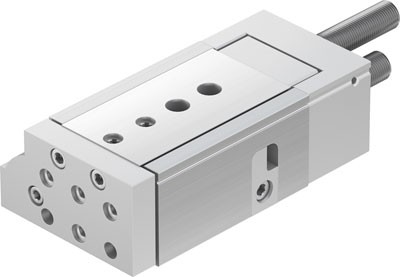

The Festo 566291 is a double-acting industrial component featuring a 32 mm piston diameter, a 20 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm and incorporates flexible cushioning rings or plates at both ends. It functions in any assembly position within an ambient temperature range of 0 to 60 °C, includes position detection for proximity sensors, and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 566290 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar with compressed air in accordance with ISO8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends, a ball bearing cage guide, and proximity sensor position detection. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 566289 is a double-acting industrial component featuring a 25 mm piston diameter and a 200 mm stroke driven by a yoke design structure that includes a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, incorporating flexible cushioning rings or plates at both ends and position detection for a proximity sensor. Engineered for an ambient temperature range of 0 to 60 °C, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

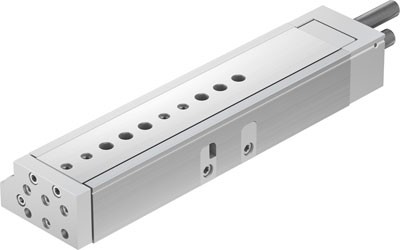

The Festo 566288 is a double-acting industrial component featuring a 25 mm piston diameter, a 150 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating on compressed air within a 1 to 8 bar working pressure range, this unit includes flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a repetition accuracy of 0.3 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

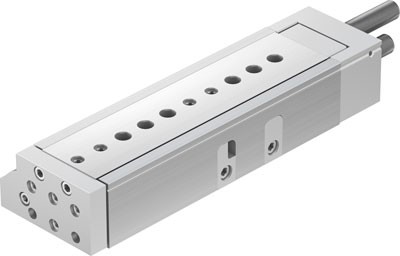

Engineered by Festo, part number 566287 is a double-acting industrial component featuring a yoke drive unit design structure with a piston, piston rod, and slide. This unit operates within a working pressure range of 1 to 8 bar, utilizing a 25 mm piston diameter, a 100 mm stroke, and a ball bearing cage guide supporting speeds up to 0.8 m/s. Integrated flexible cushioning rings at both ends manage a 0.45 Nm impact energy across a 1.2 mm cushioning length, while accommodating an ambient temperature range of 0 to 60 °C and position detection via proximity sensors. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo

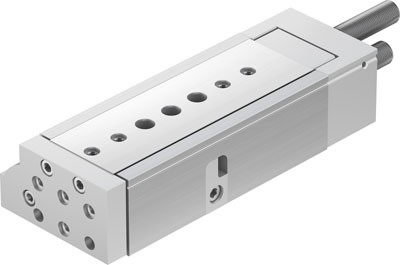

This Festo industrial component, part number 566286, is a double-acting drive unit featuring a yoke design with a piston, piston rod, and slide operating across a 25 mm piston diameter and an 80 mm stroke. It operates within a working pressure of 1 to 8 bar using compressed air meeting ISO8573-1:2010 [7:4:4] standards, accommodating lubricated operation and an ambient temperature range of 0 to 60 °C. The assembly incorporates a ball bearing cage guide, flexible cushioning rings or plates at both ends, and position detection capabilities for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

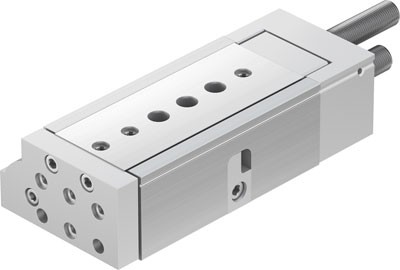

The Festo 566285 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. It operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, delivering a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Equipped with flexible cushioning rings or plates at both ends providing a 1.2 mm cushioning length, this unit handles an impact energy of 0.45 Nm in its end positions spanning an adjustable range of 50.5 mm at the front and 49.5 mm at the rear. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 566284 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, this drive unit utilizes flexible cushioning rings and plates at both ends with an impact energy capacity of 0.45 Nm. It accommodates any assembly position, achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm, and includes position detection for a proximity sensor while functioning in ambient temperatures from 0 to 60 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo part number 566283 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar using compressed air meeting ISO8573-1:2010 [7:4:4], this unit incorporates a ball bearing cage guide, flexible cushioning rings or plates at both ends, and position detection for a proximity sensor. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, an impact energy of 0.45 Nm in its end positions with a 1.2 mm cushioning length, and an adjustable end position range of 50.5 mm at the front and 49.5 mm at the rear. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
The Festo 566282 is a double-acting industrial component featuring a 25 mm piston diameter, a 20 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. It incorporates flexible cushioning rings and plates at both ends with an impact energy rating of 0.45 Nm, adjustable end position ranges of 50.5 mm at the front and 49.5 mm at the rear, and integrated position detection for proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

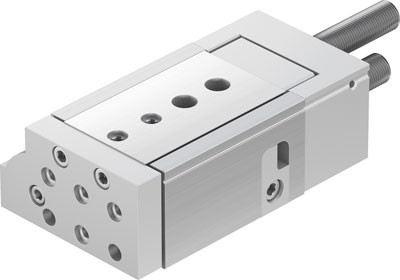

The Festo part number 566281 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. This unit operates on compressed air matching ISO8573-1:2010 [7:4:4] standards within a working pressure range of 1 to 8 bar and handles a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Integrated with a ball bearing cage guide, flexible cushioning rings at both ends, and provisions for proximity sensor position detection, the assembly functions at ambient temperatures from 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

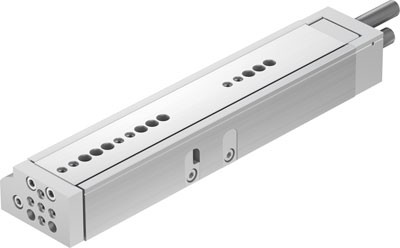

The Festo 566280 is a double-acting industrial component featuring a 20 mm piston diameter, a 150 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, utilizing flexible cushioning rings or plates at both ends with a 1.2 mm cushioning length and 0.35 Nm impact energy in the end positions. Equipped for position detection via proximity sensor, it achieves a maximum speed of 0.8 m/s and a repetition accuracy of 0.3 mm across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

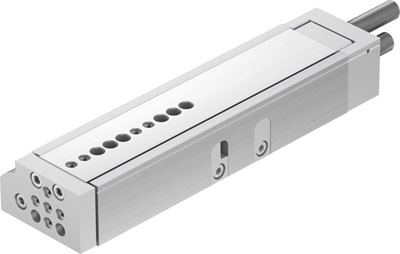

The Festo 566279 is a double-acting industrial component featuring a 20 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, it utilizes flexible cushioning rings and plates at both ends with a 1.2 mm cushioning length and 0.35 Nm impact energy in end positions. The unit includes an adjustable end position range of 72.5 mm at the front and 39.5 mm at the rear, position detection for proximity sensors, a repetition accuracy of 0.3 mm, and a maximum speed of 0.8 m/s across an ambient temperature range of 0 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
