Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

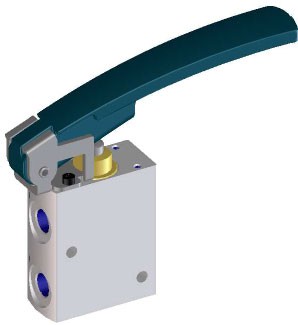

The Festo 563777 is a 20 mm wide industrial component featuring a 3/2 closed, monostable valve function with direct, manual actuation requiring an 18 N actuating force and mechanical spring reset. Constructed with a poppet seat design and G1/8 pneumatic connections, it operates at a standard nominal flow rate of 500 l/min across a working pressure range of -0.95 to 8 bar. This RoHS-compliant unit weighs 148 g, offers a CRC 2 moderate corrosion resistance classification, and functions with compressed air conforming to ISO8573-1:2010 [7:-:-] within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

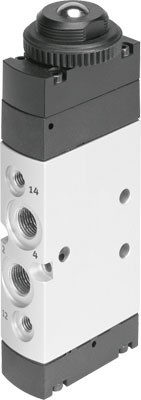

The Festo 563776 is a 20 mm wide industrial component featuring a 5/2 monostable valve function and a piston slide design structure. It operates with a standard nominal flow rate of 500 l/min, a nominal size of 4 mm, and a working pressure ranging from 2.5 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:-:-]. Mechanically actuated with an internal pilot air supply, it requires an actuating force of 44 N and supports a maximum switching frequency of 3 Hz within a medium and ambient temperature range of -10 to 60 °C. Please submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo part number 563775 is a 20 mm wide mechanical industrial component featuring a 3/2 open, monostable valve function and a poppet seat design structure with a 4 mm nominal size. This mechanically actuated, piloted unit operates with an external pilot air supply ranging from 4.5 to 8 bar, a working pressure of -0.95 to 8 bar, and a standard nominal flow rate of 500 l/min utilizing compressed air in accordance with ISO8573-1:2010 [7:-:-]. It accommodates a maximum actuating speed of 0.6 m/s for axial actuation, 0.2 m/s for side actuation, a maximum switching frequency of 3 Hz, and medium and ambient temperatures between -10 and 60 °C, while strictly excluding use as a mechanical stop. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 563774 is a 20 mm wide mechanical industrial component featuring a 3/2 open, monostable poppet seat design with an internal pilot air supply. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of 4.5 to 8 bar, utilizing a mechanical spring reset and requiring an actuating force of 44 N. The unit operates within a medium and ambient temperature range of -10 to 60 °C, exhibits a CRC 2 moderate corrosion resistance classification, and accommodates lubricated compressed air per ISO8573-1:2010 [7:-:-] with a maximum switching frequency of 3 Hz. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 563773 is a 20 mm wide mechanical industrial component featuring a 3/2 closed, monostable poppet seat design with a 4 mm nominal size and a standard nominal flow rate of 500 l/min. Operating across a working pressure range of -0.95 to 8 bar, this piloted valve utilizes external pilot air supply at 3.5 to 8 bar and incorporates a mechanical spring reset. It handles compressed air per ISO8573-1:2010 [7:-:-] within a medium and ambient temperature range of -10 to 60 °C, supporting lubricated operation and a maximum switching frequency of 3 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

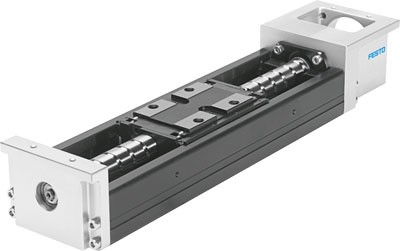

The Festo 562754 is an electromechanical linear axis featuring a ball screw design with a size 20 profile, a 6 mm spindle diameter, and an adjustable working stroke ranging from 25 to 125 mm. Equipped with a recirculating ball bearing guide and a reference switch, this component delivers a max speed of 0.1 to 0.6 m/s, a max acceleration of 10 m/s2, and a repetition accuracy between ±0,003 and ±0,001 mm. It operates within an ambient temperature range of 0 to 40 °C, providing a max feed force Fx of 69 to 112 N, a fixed bearing dynamic basic load rating of 1,150 N, and an IP10 protection class with CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 564894 is an industrial component featuring a standard size and a nominal size of 6 mm, with a pneumatic connection port using a push-in sleeve QS-8. Constructed with a chromium- and nickel-plated brass housing, this part weighs 12.6 g and operates at pressures ranging from -0.95 to 16 bar across a 0 to 150 °C ambient temperature range. It accommodates compressed air conforming to ISO8573-1:2010 [7:-:-] with lubricated operation possible, achieves a corrosion resistance classification CRC of 3, meets food safety requirements according to the manufacturer's declaration, holds Germanischer Lloyd authorization, and conforms to RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 563772 is a 20 mm wide mechanical industrial component featuring a 3/2 closed, monostable poppet seat design with a standard nominal flow rate of 500 l/min and a 4 mm nominal size. Operating within a working pressure range of 3.5 to 8 bar, this piloted valve utilizes internal pilot air supply, a mechanical spring reset, and requires an actuating force of 44 N to handle a maximum switching frequency of 3 Hz. It functions within medium and ambient temperatures of -10 to 60 °C, permits lubricated operation with compressed air conforming to ISO8573-1:2010 [7:-:-], and carries a corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

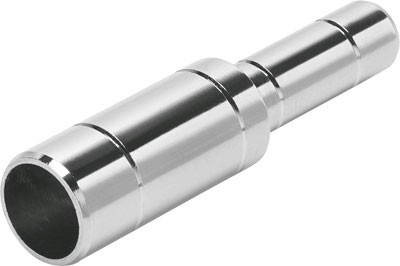

The Festo 564893 is a standard industrial component featuring a nominal size of 4 mm and a Push-in sleeve QS-6 pneumatic connection port. Constructed with a chromium and nickel-plated brass housing yielding a CRC corrosion resistance classification of 3, this 7.2 g part operates at pressures from -0.95 to 16 bar across an ambient temperature range of 0 to 150 °C. It utilizes compressed air conforming to ISO8573-1:2010 [7:-:-], accommodates lubricated operation, complies with RoHS materials standards, and carries Germanischer Lloyd authorization alongside a food safety manufacturer's declaration. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 564892 is a standard industrial component featuring a 2 mm nominal size and a push-in sleeve QS-4 pneumatic connection port. Constructed with a chromium and nickel-plated brass housing, this 4.4 g part operates at pressures from -0.95 to 16 bar across an ambient temperature range of 0 to 150 °C. It accommodates compressed air in accordance with ISO8573-1:2010 [7:-:-] with optional lubricated operation, maintains a corrosion resistance classification CRC of 3, meets food safety standards per the manufacturer's declaration, and holds Germanischer Lloyd authorization alongside RoHS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo

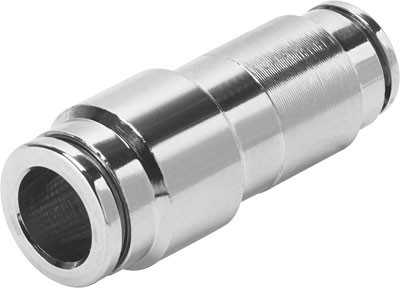

The Festo part number 564891 is a standard industrial component featuring a 7 mm nominal size and a push/pull design structure with a port 2 pneumatic connection for 8mm outside diameter tubing. Constructed with a chromium and nickel-plated brass housing and an FPM tubing seal, this 48.5 g component operates within a temperature range of 0 to 150 °C and an operating pressure range of -0.95 to 16 bar for compressed air compliant with ISO8573-1:2010 [7:-:-]. It holds Germanischer Lloyd authorization, meets RoHS materials requirements, includes a corrosion resistance classification CRC of 3, supports lubricated operation, and provides food safety according to the manufacturer's declaration. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo

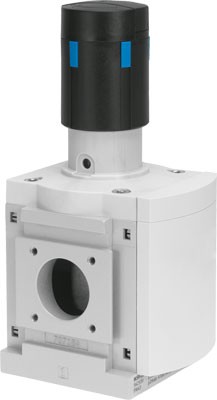

The Festo 564143 is an industrial component utilizing a pilot-actuated diaphragm regulator design from the MS series in size 9, featuring a constant output pressure controller function with initial pressure compensation, secondary exhaust, and return flow. Weighing 1,400 g with a robust aluminum die-cast subbase and PA-reinforced cover, this RoHS-conforming unit operates within a working pressure range of 0.8 to 20 bar and a pressure control range of 0.3 to 12 bar across medium and ambient temperatures of -10 to 60 °C. The assembly supports any position with optional mounting types including line installation, front panel installation, or with accessories, and incorporates a pressure gauge alongside a lockable actuator lock with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 564890 is a standard industrial component featuring a 5 mm nominal size and a push/pull design structure. Constructed with a chromium- and nickel-plated brass housing, an FPM tubing seal, and a port 2 pneumatic connection for 6 mm outside diameter tubing, this part weighs 23.5 g and operates on compressed air conforming to ISO8573-1:2010 [7:-:-] across a pressure range of -0.95 to 16 bar and an ambient temperature range of 0 to 150 °C. It includes Germanischer Lloyd authorization, a corrosion resistance classification of CRC 3, RoHS conformity, lubricated operation capability, and food safety according to the manufacturer's declaration. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 564889 is a standard industrial component featuring a nominal size of 3 mm and a push/pull design structure operating within a pressure range of -0.95 to 16 bar. Constructed with a chromium- and nickel-plated brass housing, FPM tubing seal, and a 4 mm outside diameter port 2 connection, this 16.8 g unit handles compressed air per ISO8573-1:2010 [7:-:-] with lubricated operation possible across an ambient temperature of 0 to 150 °C. It carries a corrosion resistance classification CRC of 3, conforms to RoHS, includes food safety to the manufacturer's declaration, and holds Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 564141 is a size 9 industrial component belonging to the MS series, featuring a pilot-actuated diaphragm regulator design structure with a weight of 1,400 g. This unit provides a constant output pressure controller function with initial pressure compensation, secondary exhaust, and return flow, operating within a working pressure range of 0.8 to 20 bar and a pressure control range of 0.3 to 7 bar. Constructed with an aluminum die-cast subbase and a PA-reinforced cover, the assembly includes a pressure gauge and is lockable with accessories for optional mounting types including line installation, front panel installation, or with accessories in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 564139 is an industrial component featuring a pilot actuated diaphragm regulator of the MS series in size 9, equipped with a pressure gauge and a lockable actuator lock via accessories. It offers a working pressure of 0.8 to 20 bar, a pressure control range of 0.3 to 4 bar, a maximum pressure hysteresis of 0.3 bar, and controller functions including constant output pressure with initial pressure compensation, secondary exhaust, and return flow. Constructed with a PA-reinforced cover and an aluminum die cast subbase meeting RoHS standards, the unit weighs 1,400 g and supports any assembly position with optional mounting types including line installation, front panel installation, or accessories. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo

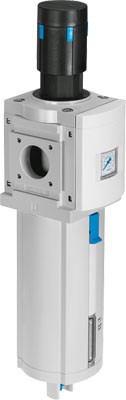

The Festo 564133 is an MS series pilot-actuated filter diaphragm regulator featuring a 5 µm filtration grade, a fully automatic condensate drain with a 220 ml maximum condensate volume, and an integrated pressure gauge. Engineered with a working pressure of 2 to 12 bar and a pressure control range of 0.3 to 12 bar, this unit delivers a constant output pressure with initial pressure compensation, secondary exhaust, and return flow functionality. It operates within a temperature range of 5 to 60 °C, maintains DIN ISO 8573-1 air quality class 5:7:- input and class 3.7.- output, and possesses a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 2,400 g industrial component.
View product details →Festo
The Festo 564132 is a pilot-actuated filter diaphragm regulator from the MS series featuring a 5 µm grade of filtration, manual rotary condensate drain, and a maximum condensate volume of 220 ml. This component operates within a working pressure of 0.8 to 20 bar and a pressure control range of 0.3 to 12 bar, providing constant output pressure with initial pressure compensation, secondary exhaust, and return flow. Weighing 2,400 g with a CRC rating of 2, it is designed for vertical ± 5° assembly with optional line installation or accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 564131 is an industrial component featuring a pilot-actuated filter diaphragm regulator from the MS series with a 40 µm filtration grade and a fully automatic condensate drain supporting a maximum condensate volume of 220 ml. This assembly operates within a working pressure range of 2 to 12 bar and a pressure control range of 0.3 to 12 bar, providing an output pressure constant with initial pressure compensation, secondary exhaust, and return flow functions. Built for a vertical assembly position within +/- 5°, the unit incorporates a pressure gauge, a corrosion resistance classification of CRC 2, and functions within ambient, medium, and storage temperatures of 5 to 60 µ0C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 2,400 g component.
View product details →Festo
The Festo 564130 is a pilot-actuated filter diaphragm regulator from the MS series featuring a 40 µm filtration grade, a manual rotary condensate drain with a 220 ml maximum condensate volume, and an included pressure gauge. Operating within a working pressure range of 0.8 to 20 bar and a pressure control range of 0.3 to 12 bar, this component provides an output pressure constant with initial pressure compensation, secondary exhaust, and return flow while maintaining air quality class 5:7:- per DIN ISO 8573-1 at both input and output. Designed for a vertical assembly position within plus or minus 5 degrees and a CRC corrosion resistance classification of 2, the unit weighs 2,400 g and supports line installation or optional mounting with accessories that include a lockable actuator lock. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
