Festo
The Festo 564127 is a size 9 industrial component from the MS series featuring a pilot-actuated filter diaphragm regulator design structure with a 5 µm grade of filtration and fully automatic condensate drain with a 220 ml max. condensate volume. This unit operates within a working pressure of 2 to 12 bar and a pressure control range of 0.3 to 7 bar, providing output pressure constant control with initial pressure compensation, secondary exhaust, and return flow functions alongside an integrated pressure gauge. Weighing 2,400 g with a corrosion resistance classification CRC of 2, it functions at a medium and ambient temperature range of 5 to 60 µ0 °C and processes operating media meeting air quality class 5:7:- per DIN ISO 8573-1, yielding an air purity class at output of 3.7.- per DIN ISO 8573-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

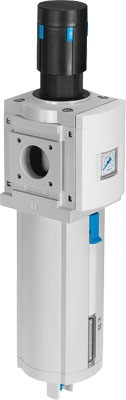

The Festo 564126 is an MS series size 9 industrial component featuring a pilot-actuated filter diaphragm regulator design structure with a manual rotary condensate drain and a 220 ml max condensate volume. Operating within a working pressure of 0.8 to 20 bar and a pressure control range of 0.3 to 7 bar, this unit delivers a constant output pressure with initial pressure compensation, secondary exhaust, and return flow while maintaining a 5 µm grade of filtration. It weighs 2,400 g, includes a pressure gauge, offers lockable actuator security with accessories, and operates at temperatures from -10 to 60 µC with a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 564123 is a size 9 industrial component from the MS series featuring a pilot-actuated filter diaphragm regulator design structure with a 40 µm grade of filtration and fully automatic condensate drain. This unit operates within a working pressure of 2 to 12 bar and a pressure control range of 0.3 to 7 bar, delivering a max condensate volume of 220 ml and a maximum pressure hysteresis of 0.3 bar while maintaining constant output pressure with initial pressure compensation, secondary exhaust, and return flow. Weighing 2,400 g with a CRC corrosion resistance classification of 2, it is assembled vertically within +/- 5° for operating, medium, and ambient temperatures ranging from 5 to 60 °C, and includes a pressure gauge and lockable accessories. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

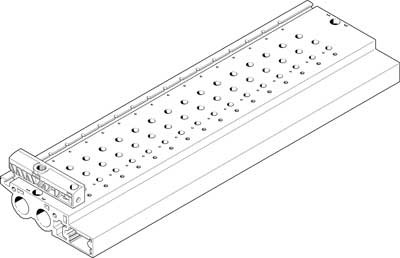

Engineered by Festo with a 21 mm grid dimension, this industrial component accommodates a maximum of 16 valve positions and weighs 2,100 g. The manifold strip is constructed from a wrought aluminum alloy with a CRC 2 corrosion resistance classification and features a materials note confirming it is free of copper and PTFE while conforming to RoHS. Installation parameters include a maximum tightening torque of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting, alongside pneumatic connections comprising a G1/2 port 3 and a G1/8 auxiliary pilot air port 12/14. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 564122 is an MS-series size 9 industrial component featuring a pilot-actuated filter diaphragm regulator design structure with a 40 µm filtration grade and a 220 ml max. condensate volume. Operating within a 0.8 to 20 bar working pressure and a 0.3 to 7 bar pressure control range, it provides a constant output pressure with initial pressure compensation, secondary exhaust, and return flow functions. The unit includes a manual rotary condensate drain, a pressure gauge, and lockable accessories, while weighing 2,400 g with a CRC of 2 for operations within -10 to 60 µC environments. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →Festo
The Festo 563390 is a 20 mm wide mechanical industrial component featuring a 5/2 monostable valve function with direct piloting and a piston slide design. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.95 to 10 bar, utilizing a mechanical spring for reset with a nominal size of 4 mm. Operating medium is restricted to compressed air in accordance with ISO8573-1:2010 [7:-:-] within a temperature range of -10 to 60 °C, requiring an actuating force of 27.5 N while strictly prohibiting use as a mechanical stop. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 563389 is a 20 mm wide mechanical 5/2 monostable industrial component featuring a piston slide design structure with a nominal size of 4 mm and direct piloting. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.95 to 10 bar, utilizing an air spring reset and a maximum actuating speed of 0.6 m/s for axial actuation. Operating with compressed air in accordance with ISO 8573-1:2010 [7:-:-], this unit handles medium and ambient temperatures from -10 to 60 °C with a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

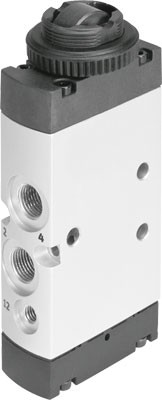

The Festo 563388 is a 20 mm wide mechanical industrial component featuring a 5/2 monostable valve function, piston slide design structure, and direct piloting with a 4 mm nominal size. It operates with compressed air according to ISO 8573-1:2010 [7:-:-] at a working pressure of 2.5 to 10 bar, delivering a standard nominal flow rate of 500 l/min with an air spring reset. The unit handles a medium and ambient temperature range of -10 to 60 °C, requiring an actuating force of 41 N while withstanding a maximum force on the actuator of 80 N. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

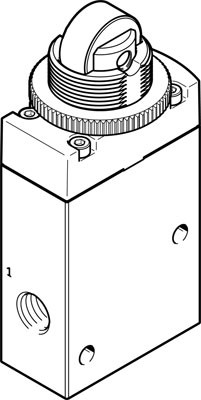

The Festo 563387 is a 20 mm wide mechanical industrial component featuring a 3/2 open, monostable valve function and a poppet seat design structure. Operating with compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of -0.95 to 8 bar, this directly piloted unit delivers a standard nominal flow rate of 500 l/min with a 4 mm nominal size. It achieves a maximum switching frequency of 2 Hz, an actuating force of 130 N, and allows lubricated operation where subsequently required for further operation. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
Engineered with a 20 mm width and a direct-piloted poppet seat design, the Festo 563386 is a 3/2 closed, monostable mechanical valve with a standard nominal flow rate of 500 l/min and a 4 mm nominal size. This component operates within a working pressure range of -0.95 to 8 bar, featuring a mechanical spring reset, an actuating force of 90 N, and a maximum axial actuating speed of 0.6 m/s. It functions within a medium and ambient temperature range of -10 to 60 °C while utilizing compressed air according to ISO8573-1:2010 [7:-:-] with a moderate corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 563367 is a double-acting rack and pinion industrial component featuring a size 16 design with a 180-degree swivel angle and an adjustable PPVJ pneumatic cushioning system. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit delivers a theoretical torque of 1.6 Nm at 6 bar and accommodates position detection via proximity sensors. It operates across an ambient temperature range of -10 to 60 °C with a maximum swivel frequency of 4 Hz at 6 bar and includes flexible mounting options utilizing through holes or internal female threads. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo part number 563356 is a double-acting industrial component featuring a rack and pinion design structure with a size 32 and a 180-degree swivel angle. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, this unit delivers a theoretical torque of 12.5 Nm at 6 bar and incorporates adjustable pneumatic cushioning (PPVJ). Position detection is accommodated for proximity sensors, while the mounting type is optional via through-hole or internal female thread. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

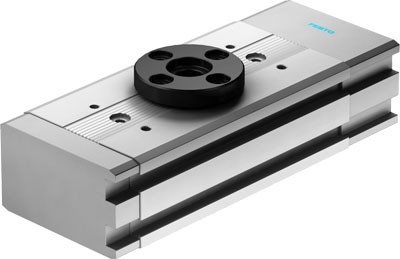

The Festo 563355 is a double-acting rack and pinion industrial component featuring a size 25 design with an 180-degree swivel angle and an adjustable PPVJ pneumatic cushioning system. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit delivers a theoretical torque of 6.1 Nm at 6 bar and accommodates a permissible mass moment of inertia of 0.002 kgm2. It includes position detection for proximity sensors, a heat-treatment steel drive shaft, copper- and PTFE-free materials, and versatile mounting via through holes, internal threads, or optional orientations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 563354 is a rack and pinion industrial component featuring a size 20 design with a double-acting mode of operation and an 180-degree swivel angle. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, this unit delivers a theoretical torque of 3.1 Nm at 6 bar and incorporates adjustable pneumatic cushioning (PPVJ). Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 563353 is a double-acting industrial component featuring a rack and pinion design with a size 16 and a 180-degree swivel angle. Operating within a 1 to 10 bar working pressure using compressed air, this unit delivers a theoretical torque of 1.6 Nm at 6 bar and incorporates adjustable pneumatic cushioning. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 563352 is a size 32 double-acting industrial component utilizing a rack and pinion design structure with a 180-degree swivel angle and adjustable YSRJ shock absorber cushioning. Operating at a working pressure of 2 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4], this unit delivers a theoretical torque of 12.5 Nm at 6 bar and includes position detection capabilities for proximity sensors. Constructed with a heat-treatment steel drive shaft and copper- and PTFE-free materials, it features an ambient temperature range of -10 to 60 °C and versatile mounting via through holes or internal threads. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

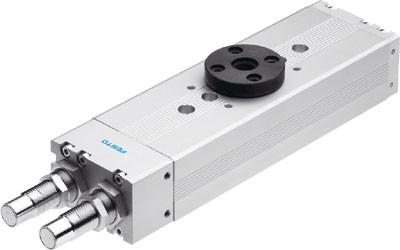

The Festo 563351 is a double-acting rack and pinion industrial component featuring a size 25 build, a 180-degree swivel angle, and an adjustable YSRJ hard characteristic curve shock absorber cushioning system with a swivel angle setting range of -20 to +6 degrees on both sides. This unit operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards at a working pressure of 2 to 10 bar, delivering a theoretical torque of 6.1 Nm at 6 bar and a maximum swivel frequency of 1.5 Hz. Built with a heat-treatment steel drive shaft and copper- and PTFE-free materials, it includes position detection for proximity sensors, M5 pneumatic connections, and supports optional mounting through holes or internal female threads in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 563350 is a double-acting industrial component utilizing a rack and pinion design with a size 20 format, delivering a theoretical torque of 3.1 Nm at 6 bar. Operating within a 2 to 10 bar working pressure and an ambient temperature range of -10 to 60 °C, this unit provides a 180-degree swivel angle with adjustable YSRJ hard characteristic curve shock absorber cushioning and position detection for a proximity sensor. It features M5 pneumatic connections, optional mounting types, and supports a maximum swivel frequency of 1.8 Hz at 6 bar with a permissible mass moment of inertia of 0.1 kgm2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

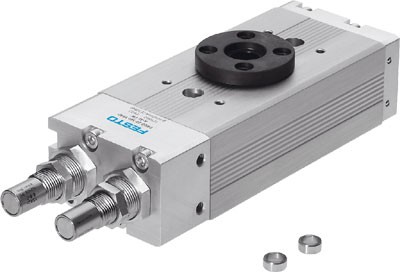

The Festo 563349 is a double-acting rack and pinion industrial component featuring a size of 16, a 180-degree swivel angle, and an adjustable YSRJ hard characteristic curve shock absorber cushioning with a setting range of -20 to +6 degrees on both sides. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] at a working pressure of 2 to 10 bar, this unit delivers a theoretical torque of 1.6 Nm at 6 bar and supports a maximum swivel frequency of 1.8 Hz. Constructed free of copper and PTFE with a CRC 1 corrosion resistance classification, it includes position detection for proximity sensors, allows any assembly position, and provides M5 pneumatic connections alongside optional mounting via through holes or internal female threads. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →Festo

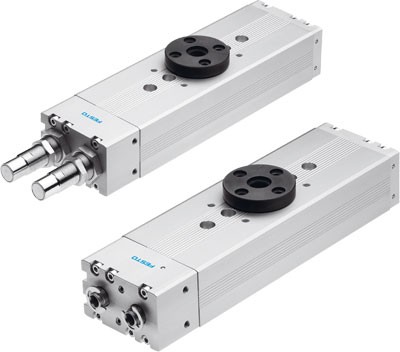

The Festo 563348 is a double-acting rack and pinion industrial component featuring a size 32 design with a 360-degree swivel angle and a swivel angle setting range of -20 to +6 degrees on both sides. This unit operates on a working pressure of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], supporting lubricated operation and accommodating position detection for proximity sensors. It includes adjustable elastomer cushioning, adjustable pneumatic cushioning, or an adjustable shock absorber with a hard characteristic curve, alongside variants for energy throughfeed, flanged shaft, transfer plate, or spigot shaft in any assembly position. Certified with an ATEX category II 2G and II 2D gas and dust rating for an explosion-proof ambient temperature range of -10°C to +60°C, the unit features a corrosion resistance classification CRC 1. Submit the exact part number, quantity, and application requirements to request a quote.
