Festo
The Festo part number 563347 is a double-acting industrial component featuring a size 25 rack and pinion design with a 360-degree swivel angle and a -20/+6 degree setting range on both sides. This unit operates on compressed air within a 1 to 10 bar working pressure range, incorporating position detection for proximity sensors, one intermediate position, and adjustable cushioning options including elastomer P1J, pneumatic PPVJ, and hard characteristic curve shock absorbers YSRJ. Certified for hazardous environments under ATEX category II 2G for gas and II 2D for dust with an ambient temperature range of -10°C to +60°C, the assembly supports any mounting position and offers energy throughfeed, flanged shaft, transfer plate, and spigot shaft variants. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 563346 is a double-acting industrial component featuring a rack and pinion design size 20 with a 360-degree swivel angle and a setting range of -20 to +6 degrees on both sides. Operating at a working pressure of 1 to 10 bar with compressed air matching ISO 8573-1:2010 [7:4:4], it incorporates adjustable elastomer cushioning, adjustable pneumatic cushioning, or an adjustable shock absorber with a hard characteristic curve, alongside position detection for proximity sensors and options for energy throughfeed, a flanged shaft, transfer plate, or spigot shaft. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust within an ambient temperature range of -10°C to +60°C, this unit has a corrosion resistance classification of CRC 1 and can be mounted in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

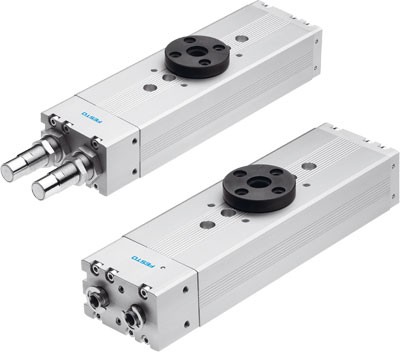

The Festo part number 563345 is a double-acting industrial component featuring a size 16 rack and pinion design with a 360-degree swivel angle, an adjustable swivel angle setting range of -20 to +6 degrees on both sides, and support for one intermediate position with proximity sensor position detection. Operating at pressures from 1 to 10 bar using ISO8573-1:2010 [7:4:4] compressed air, it incorporates adjustable elastomer cushioning (P1J), adjustable pneumatic cushioning (PPVJ), or an adjustable hard characteristic curve shock absorber (YSRJ), alongside variants including energy throughfeed, flanged shaft, transfer plate, and spigot shaft. Certified to ATEX category II 2G (c T4 X) and II 2D (c T120°C X) for explosive environments spanning -10°C to +60°C, this unit has a corrosion resistance classification of CRC 1, can be mounted in any assembly position, and permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

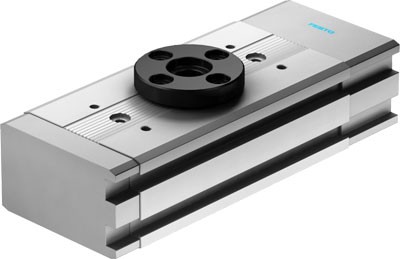

The Festo part number 563344 is a double-acting industrial component featuring a rack and pinion design with a size 32 and a 180-degree swivel angle. Operating within a working pressure range of 1 to 10 bar, this unit delivers a theoretical torque of 12.5 Nm at 6 bar and incorporates adjustable pneumatic cushioning (PPVJ). Position detection is configured for a proximity sensor, and mounting is achieved via optional through holes, internal female threads, or versatile installation in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 563343 is a double-acting industrial component featuring a rack and pinion design size 25 with an operating pressure range of 1 to 10 bar and a theoretical torque of 6.1 Nm at 6 bar. This unit delivers a 180-degree swivel angle with a -20 to +6 degree setting range on both sides, adjustable pneumatic cushioning (PPVJ), and position detection for a proximity sensor. Constructed with a heat-treatment steel drive shaft and copper- and PTFE-free materials, it operates within an ambient temperature range of -10 to 60 °C using compressed air meeting ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 563342 is a double-acting industrial component featuring a rack and pinion design with a size 20 and an overall swivel angle of 180 degrees. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, this unit delivers a theoretical torque of 3.1 Nm at 6 bar with an adjustable PPVJ pneumatic cushioning system. It includes position detection for a proximity sensor, operates in any assembly position within an ambient temperature range of -10 to 60 °C, and features M5 pneumatic connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 563341 is a double-acting industrial component featuring a rack and pinion design size 16 with a 180-degree swivel angle and an adjustable PPVJ pneumatic cushioning system. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, this unit delivers a theoretical torque of 1.6 Nm at 6 bar with a maximum swivel frequency of 3 Hz. It supports optional mounting via through holes or internal female threads, includes position detection for proximity sensors, and allows for lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

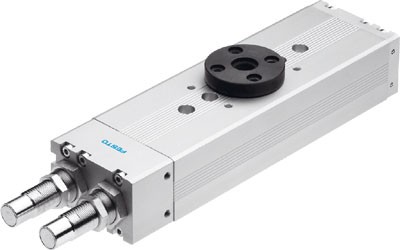

The Festo 563340 is a double-acting rack and pinion industrial component featuring a size 32 design and a 180-degree swivel angle with a setting range of -20 to +6 degrees on both sides. This unit delivers a theoretical torque of 12.5 Nm at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4], and utilizes adjustable YSRJ hard characteristic curve shock absorbers for cushioning. Built with a heat-treatment steel drive shaft and copper- and PTFE-free materials, it operates within an ambient temperature range of -10 to 60 °C and supports a max swivel frequency of 1.2 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 563339, is a double-acting rack and pinion drive featuring a size 25 design with an 180-degree swivel angle and an adjustable YSRJ shock absorber cushioning. It operates on compressed air matching ISO8573-1:2010 [7:4:4] standards within a working pressure range of 2 to 10 bar, delivering a theoretical torque of 6.1 Nm at 6 bar. The unit includes position detection for proximity sensors, allows for optional mounting types, and incorporates heat-treatment steel for the drive shaft. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

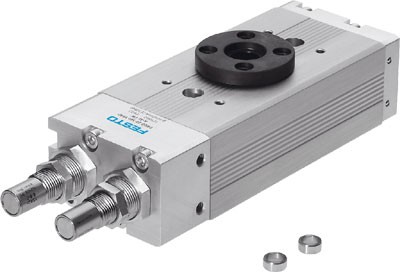

The Festo 563338 is a double-acting industrial component featuring a rack and pinion design size 20, operating at a working pressure of 2 to 10 bar with a theoretical torque of 3.1 Nm at 6 bar. This unit provides a 180-degree swivel angle with an adjustable YSRJ shock absorber cushioning and a setting range of -20 to +6 degrees on both sides, supporting compressed air operating medium in accordance with ISO8573-1:2010 [7:4:4]. Constructed with M5 pneumatic connections, position detection for proximity sensors, and optional through-hole or internal female thread mounting, it accommodates an ambient temperature range of -10 to 60 °C and a max swivel frequency of 1.8 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 563337 is a double-acting industrial component featuring a rack and pinion design size 16 with a 180-degree swivel angle and an adjustable YSRJ hard characteristic curve shock absorber cushioning. It operates on compressed air in accordance with ISO8573-1:2010 [7:4:4] at a working pressure of 2 to 10 bar, delivering a theoretical torque of 1.6 Nm at 6 bar and supporting a maximum swivel frequency of 1.8 Hz. This unit includes position detection for a proximity sensor, allows a swivel angle setting range of -20 to +6 degrees on both sides, and accommodates a permissible mass moment of inertia of 0.07 kgm2 across any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 563071 is an industrial component featuring a width of 42 mm and compliance with the ISO 5599-2 standard for any assembly position with internal pilot air supply. Designed for a working pressure range of -0.9 to 10 bar, this unit operates on 24 V DC with a surge strength of 0.8 kV, an acceptable current load of 2 A at 40°C, and a degree of contamination of 3. It holds ATEX category II 3G and II 3D certifications for gas (Ex nA II T3 X) and dust (Ex tD A22 IP65 T125°C X) in ambient temperatures from -5°C to +50°C, delivering IP65 and NEMA 4 protection when assembled. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

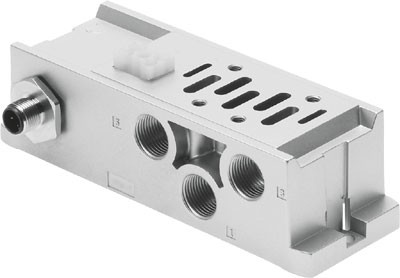

The Festo industrial component, part number 563070, is built with a 42 mm width based on the ISO 5599-2 standard and features an external pilot air supply with an assembly position of any. Operating on a 24 V DC operating voltage range with an acceptable current load of 2 A at 40°C, 0.8 kV surge strength, and degree of contamination 3, it functions within a working pressure range of -0.9 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4] where lubricated operation is possible. It holds IP65, NEMA 4 protection class in assembled condition, CRC corrosion resistance classification 0, an ambient and explosion-proof temperature range of -5°C to 50°C, CE certification under the EU low voltage guideline, and ATEX categories II 3G and II 3D with Ex nA II T3 X gas and Ex tD A22 IP65 T125°C X dust explosion ignition protection types. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

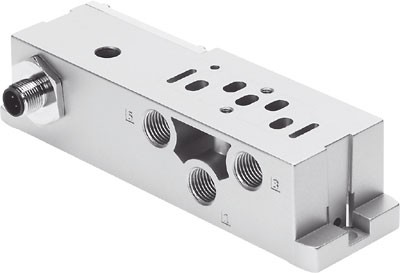

Manufactured by Festo and based on the ISO 15407-2 standard, this 26 mm industrial component features an internal pilot air supply, a working pressure range of -0.9 to 10 bar, and a 24 V DC operating voltage range. It offers IP65 and NEMA 4 protection class ratings in assembled condition, supports an acceptable current load of 2 A at 40°C, and carries ATEX certifications for both gas and dust environments within an ambient temperature range of -5°C to +50°C. The unit operates with compressed air meeting ISO 8573-1:2010 [7:4:4] standards and allows for lubricated operation that is subsequently required for further operation. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 563068 is an industrial component featuring a 26 mm width based on the ISO 15407-2 standard with an any assembly position and external pilot air supply. It operates within a working pressure of -0.9 to 10 bar, an operating voltage range of 24 V DC, an acceptable current load of 2 A at 40°C, and a surge strength of 0.8 kV under a degree of contamination 3. The unit holds ATEX category II 3G and II 3D ratings with Ex nA II T3 X and Ex tD A22 IP65 T125°C X explosion ignition protection types for an explosion-proof ambient temperature range of -5°C to +50°C. Rated to IP65 and NEMA 4 protection class in assembled condition with a CRC corrosion resistance classification of 0, it functions with compressed air conforming to ISO 8573-1:2010 [7:4:4] where lubricated operation is possible. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
Manufactured by Festo, part number 563067 is an 18 mm industrial component based on the ISO 15407-2 standard featuring an internal pilot air supply, any assembly position, and a working pressure ranging from -0.9 to 10 bar. The unit operates on a 24 V DC operating voltage range with a 0.8 kV surge strength, a 2 A acceptable current load at 40°C, and degree of contamination 3 protection, while maintaining an IP65, NEMA 4 protection class in assembled condition across an ambient temperature range of -5 to 50°C. It meets ATEX category II 3G gas and II 3D dust specifications with Ex nA II T3 X and Ex tD A22 IP65 T125°C X explosion ignition protection types for hazardous environments between -5°C and +50°C when utilizing compressed air per ISO8573-1:2010 [7:4:4] with optional lubricated operation. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →Festo
The Festo 563066 is an industrial component featuring a width of 18 mm and built according to the ISO 15407-2 standard for any assembly position with an external pilot air supply. Operating on a 24 V DC operating voltage range with an acceptable current load of 2 A at 40°C and 0.8 kV surge strength, this part functions within a working pressure of -0.9 to 10 bar and an ambient temperature of -5 to 50 °C. It holds IP65 and NEMA 4 protection class ratings in the assembled condition, features ATEX category II 3G and II 3D gas and dust certifications, and utilizes compressed air operating media per ISO 8573-1:2010 [7:4:4] with lubricated operation possible. Request a formal quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

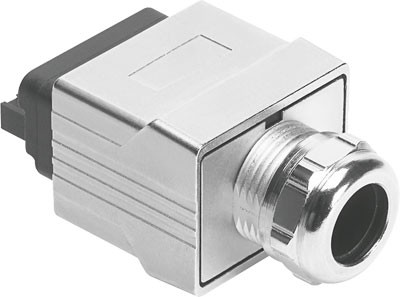

The Festo 563059 industrial component is built to EN 61984 standards with an AIDA push-pull 5-pin electrical connection featuring a socket and spring-loaded terminal, plug coding on contacts 2 and 5, and an operating voltage range of 0 to 24 VDC. Constructed with a nickel-plated zinc die-casting housing in silver, NBR and TPE seals, and nickel- and gold-plated copper alloy electrical contacts, it handles a 16 A current load at 40°C, 2.5 kV surge strength, and cable diameters from 9 to 13 mm with a 0.75 to 2.5 mm2 terminal cross-section. This RoHS-compliant part provides IP65 and IP67 protection classes, a degree of contamination of 3, a CRC corrosion resistance of 1, and operates within an ambient temperature range of -40 to 100 °C. Request a formal quote by submitting your exact part number, quantity, and application requirements.
View product details →Festo

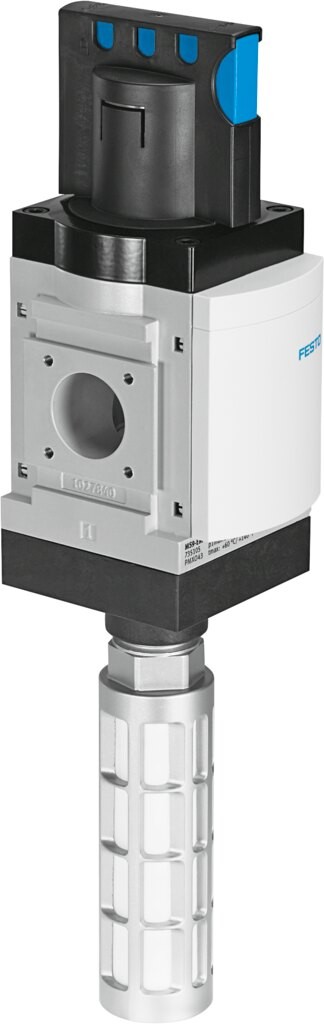

The Festo 562954 is an industrial component featuring a size 9 MS series design with a 90 mm width dimension and a piston gate valve structural design. This 3/2-way bistable valve utilizes manual actuation via a rotary knob with detent, soft sealing principle, direct control, and a positive overlap lap with forced guidance reset. It operates at pressures from 0 bar to 20 bar, delivering a normal nominal flow rate of 18000 l/min and a standard nominal flow rate 2-3 of 14100 l/min using compressed air as per ISO 8573-1:2010 [7:4:4] with oil lubrication capability. The unit incorporates a non-throttleable exhaust air function, moderate corrosion stress resistance class 2, RoHS compliance, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

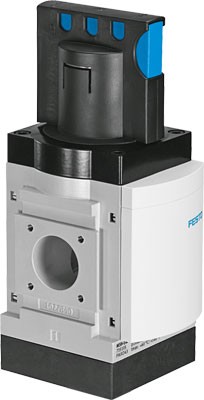

The Festo 562953 is an MS-series size 9 industrial component featuring a piston slide design structure with a 90 mm grid dimension and a 3/2 bistable valve function. Actuated manually via a rotary knob with lock utilizing a soft sealing principle and direct piloting, it operates within a working pressure range of 0 to 20 bar and handles a standard nominal flow rate of 18,000 l/min with an exhaust-air function that is not throttleable. The unit accommodates filtered compressed air at a filtration grade of 40 µm, supporting both lubricated and unlubricated operation across a medium and ambient temperature range of -10 to 60 °C with forced guidance reset and corrosion resistance classification CRC 2. Constructed with RoHS-conforming materials, this component allows for optional mounting via accessories or line installation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
