Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

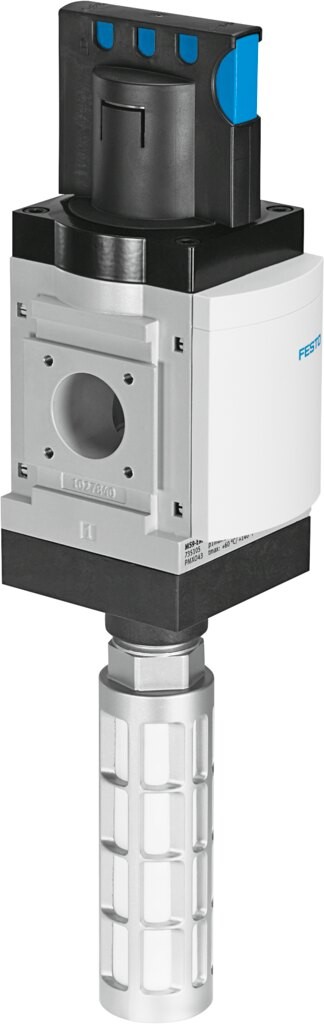

The Festo 562952 is a size 9 industrial component from the MS series featuring a 90 mm width dimension and a direct-controlled, bistable 3/2-way piston gate valve design with soft sealing. It is manually actuated via a rotary knob with detent and forced guidance reset, offering an operating pressure range of 0 bar to 20 bar, a normal nominal flow rate of 18000 l/min, and a standard nominal flow rate 2-3 of 14100 l/min. This RoHS-compliant unit operates with compressed air as per ISO 8573-1:2010 [7:4:4], accommodates oil lubrication, and features a moderate corrosion resistance class (CRC) of 2 alongside VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

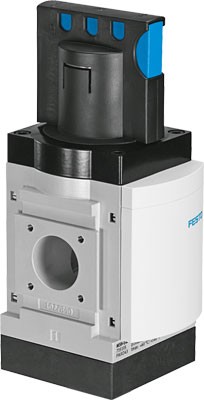

The Festo 562951 is an MS-series industrial component featuring a size 9 design with a 90 mm grid dimension and a soft sealing principle. Utilizing a direct-piloted piston slide with a manual rotary knob actuator lock and forced guidance reset, this 3/2 bistable valve delivers a standard nominal flow rate of 18,000 l/min and operates across a working pressure range of 0 to 20 bar. It accommodates filtered compressed air with a 40 µm filtration grade across medium and ambient temperatures from -10 to 60 µC, while offering optional line installation or accessory mounting with a CRC 2 corrosion resistance classification and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 562950 is an electrical industrial component from the MS series, size 9, featuring a 90 mm grid dimension and a piston slide design structure with soft sealing. This 3/2 closed, monostable piloted valve operates with a working pressure of 3.5 to 16 bar, a mechanical spring reset, a non-throttleable exhaust-air function, and a detenting or pushing manual override. It delivers a standard nominal flow rate of 18,000 l/min and a flow rate 2-3 of 14,100 l/min at a 100% duty cycle using filtered compressed air at medium temperatures between -10 and 60 °C. Powered by 230 V AC at 50 or 60 Hz with RoHS-conforming materials and CRC 2 corrosion resistance, this unit accommodates lubricated or unlubricated 40 µm media. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

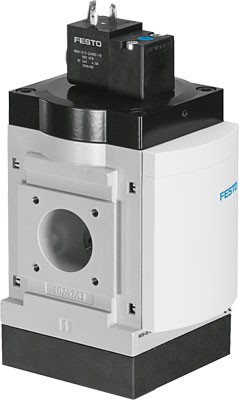

The Festo 562949 is an MS-series industrial component featuring a 90 mm grid dimension, size 9 housing, and a piston slide design structure with soft sealing. This electrically actuated, 3/2 closed monostable valve operates with a piloted mechanism, mechanical spring reset, non-throttleable exhaust-air function, and a detenting or pushing manual override. It delivers a working pressure range of 3.5 to 16 bar, a standard nominal flow rate of 18,000 l/min, and a standard nominal flow rate 2-3 of 14,100 l/min across a 100% duty cycle. Powered by 230 V AC (50/60 Hz) coil characteristics, the unit functions within a medium temperature range of -10 to 60 °C using filtered compressed air at a 40 µm grade of filtration, maintains CRC 2 corrosion resistance, and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 562948 is an MS-series industrial component of size 9 with a 90 mm grid dimension utilizing a piloted piston slide design structure and soft sealing principle. It features an electrically actuated 3/2 closed, monostable valve function with a mechanical spring reset, detenting and pushing manual override, and a non-throttleable exhaust-air function. Operating within a working pressure range of 3.5 to 16 bar, it delivers a standard nominal flow rate of 18,000 l/min and a standard nominal flow rate 2-3 of 14,100 l/min using filtered compressed air at a 40 µm filtration grade in temperatures from -10 to 60 µC. This RoHS-compliant unit achieves a 100% duty cycle, possesses a CRC 2 corrosion resistance classification, and operates on 110 V AC coils at 50 Hz or 60 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 562947 is an industrial component from the MS series, featuring a size 9 design with a 90 mm grid dimension and a piston slide structure. This electrically actuated, piloted 3/2 closed monostable valve operates with a soft sealing principle, a mechanical spring reset, and a working pressure range of 3.5 to 16 bar. It delivers a standard nominal flow rate of 18,000 l/min and a standard nominal flow rate 2-3 of 14,100 l/min utilizing filtered compressed air at a medium temperature of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 562945 is an MS series industrial component featuring a size 9 design with a 90 mm grid dimension and a piston slide structure. Engineered with an electrical actuation, soft sealing principle, and a piloted valve function that is 3/2 closed and monostable, this unit delivers a standard nominal flow rate of 18,000 l/min across a working pressure range of 3.5 to 16 bar. It operates on a 24V DC characteristic coil drawing 4.5W at a 100% duty cycle, utilizing filtered compressed air within a medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 562944 is a Size 9 industrial component from the MS series featuring a 90 mm grid dimension and a piston slide design structure. This electrically actuated, piloted valve functions as a 3/2 closed, monostable unit with soft sealing, a mechanical spring reset, and a non-throttleable exhaust-air function. Operating at a working pressure range of 3.5 to 16 bar, it delivers a standard nominal flow rate of 18,000 l/min and incorporates detenting and pushing manual override capabilities. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component from the MS series, size 9, features a 90 mm grid dimension and a piloted piston slide design structure with electrical actuation. Operating within a working pressure range of 3.5 to 16 bar, it delivers a standard nominal flow rate of 18,000 l/min and a 2-3 flow rate of 14,100 l/min using filtered compressed air at medium temperatures between -10 and 60 °C. The unit incorporates a soft sealing principle, mechanical spring reset, detenting and pushing manual override, and a 3/2 closed, monostable valve function rated for a 100% duty cycle at 230 V AC coil data. Submit part number 562943, quantity, and application requirements for a quote.
View product details →Festo
The Festo 562942 is an MS-series industrial component featuring a size 9 design structure with a 90 mm grid dimension and a piston slide configuration. This electrically actuated, piloted valve utilizes a soft sealing principle and provides a 3/2 closed, monostable valve function with a mechanical spring reset, a detenting and pushing manual override, and a non-throttleable exhaust-air function. It operates at working pressures from 3.5 to 16 bar, delivers a standard nominal flow rate of 18,000 l/min alongside a 2-3 standard nominal flow rate of 14,100 l/min, and supports a 100% duty cycle across a medium temperature range of -10 to 60 °C using filtered compressed air at a 40 µm filtration grade. Built with a CRC 2 corrosion resistance classification and RoHS-compliant materials, the unit runs on 110 V AC at 50 Hz with an 11.5 VA switching power and 8.9 VA holding capacity, or at 60 Hz with a 9.5 VA switching power and 6.2 VA holding capacity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 562941 is a size 9 industrial component from the MS series featuring a 90 mm grid dimension and a piston slide design structure. This electrically actuated, piloted valve functions as a 3/2 closed, monostable unit with soft sealing, a mechanical spring reset, non-throttleable exhaust-air function, and a detenting or pushing manual override. It operates within a working pressure range of 3.5 to 16 bar, a medium temperature range of -10 to 60 °C, and delivers a standard nominal flow rate of 18,000 l/min with a 100% duty cycle on filtered compressed air rated at a 40 °C filtration grade. The unit utilizes a coil characteristic of 110 V AC at 50 Hz with 11.5 VA switching power and 8.9 VA holding capacity, or 60 Hz with 9.5 VA switching power and 6.2 VA holding capacity, while maintaining a CRC 2 corrosion resistance classification and RoHS conformity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 562939 is an industrial component from the MS series in size 9 with a 90 mm grid dimension, featuring a piston slide design structure and soft sealing principle. This 3/2 closed, monostable valve utilizes electrical actuation with a piloted type of piloting, mechanical spring reset, and a 24V DC 4,5W characteristic coil data at a 100% duty cycle, alongside a detenting and pushing manual override and a non-throttleable exhaust-air function. Operating within a working pressure range of 3.5 to 16 bar, it delivers a standard nominal flow rate of 18,000 l/min and a standard nominal flow rate 2-3 of 14,100 l/min using filtered compressed air at a medium temperature of -10 to 60 °C. The unit incorporates a CRC 2 corrosion resistance classification and RoHS-conforming materials while functioning with lubricated or unlubricated air requiring a 40 µm filtration grade. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 562899 is an electrical industrial component featuring a 100% duty cycle, Class H insulation, and characteristic coil data of 230 V AC at 50/60 Hz with 3.5 VA power or 230 V DC at 3.5 W. Certified for explosive atmospheres with ATEX categories II 2G and II 2D alongside international EPL Gb and Db ratings, this unit offers IP65 protection and a CRC 4 very high corrosion stress classification within an ambient temperature range of -20°C to +60°C. It includes a terminal box with an M20x1.5 cable entry thread, weighs 580 g, and permits voltage fluctuations of -15% / +10% while accommodating any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

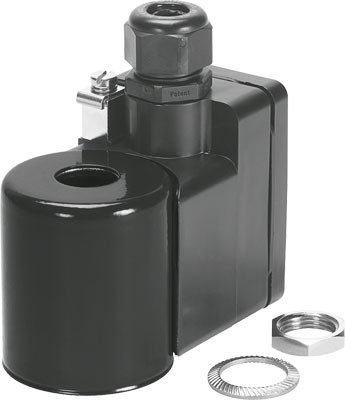

The Festo 562898 industrial component features electrical actuation with a 100% duty cycle, Class H insulation, and characteristic coil data of 110 V AC at 50/60 Hz with 3.5 VA power or 110 V DC at 3.5 W. Certified for hazardous locations with ATEX categories II 2G and II 2D, this unit provides IP65 protection and a CRC 4 very high corrosion resistance classification within an ambient temperature range of -20°C to +60°C. Weighing 580 g, the assembly accommodates any position and connects via a terminal box with an M20x1.5 cable entry thread, permitting a voltage fluctuation of -15% / +10%. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo part number 562897 is an electrical industrial component weighing 580 g with any assembly position and a 100% duty cycle, featuring Class H insulation and a characteristic coil data of 24 V DC at 3.5 W or 24 V AC 50/60 Hz at 3.5 VA with a permissible voltage fluctuation of -15% / +10%. It includes a terminal box with an M20x1.5 cable entry thread, IP65 protection class, and a corrosion resistance classification of CRC 4, while carrying ATEX gas and dust categories II 2G and II 2D alongside international explosion protection certifications from INMETRO, KGS, NEPSI, and PTB. Materials contain PWIS substances and conform to RoHS without a switching position indicator. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

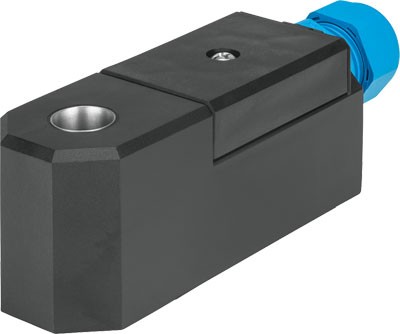

The Festo 562896 is an electrical industrial component featuring a 100% duty cycle, a required current consumption of 16 mA, insulation class H, and characteristic coil data of 14 to 32 V DC at 0.22 to 1.1 W with a maximum input power of 1.2 W, voltage of 32 V, and current of 0.2 A. Certified for hazardous locations with ATEX category II 2G and II 2D ratings along with multiple international explosion-proof certifications, this unit supports any assembly position and permits a voltage fluctuation of -15% / +10% across specified ambient temperature ranges. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

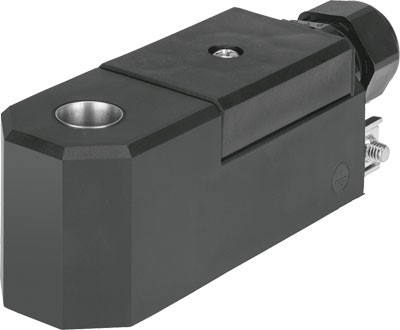

The Festo part number 562895 is an electrical industrial component featuring a 100% duty cycle, insulation class H, and characteristic coil data of 230 V DC at 1.8 W and 230 V AC at 40/65 Hz with a power of 1.8 VA. It incorporates an M20x1.5 cable entry thread terminal box, a corrosion resistance classification of CRC 4, IP64 protection class, and weighs 330 g with any assembly position. Certified for hazardous locations with ATEX categories II 2G and II 2D alongside international EPL Gb and Db ratings, this component operates within a -20°C to +60°C ambient temperature range depending on the temperature class. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →Festo
The Festo 562894 is an electrical industrial component featuring a 100% duty cycle, Class H insulation, and characteristic coil data of 110 V DC at 1.8 W and 110 V AC at 40/65 Hz with 1.8 VA power. Constructed with an IP64 protection class, a CRC of 4 for very high corrosion stress, and a product weight of 330 g, it operates within an explosion-proof ambient temperature range of -20°C to +60°C and includes ATEX and international explosion protection certifications for gas and dust environments. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 562893 is an electrically actuated industrial component featuring a 100% duty cycle, Class H insulation, and characteristic coil data of 24 V DC at 1.8 W or 24 V AC at 40/65 Hz with 1.8 VA power. Constructed with a CRC 4 very high corrosion resistance classification and IP64 protection class, this 330 g unit includes a terminal box with an M20x1.5 cable entry thread and operates across an ambient temperature range of -20°C to +60°C depending on the classification. It holds ATEX category II 2G and II 2D certifications along with international EPL Db and EPL Gb approvals, and conforms to RoHS while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

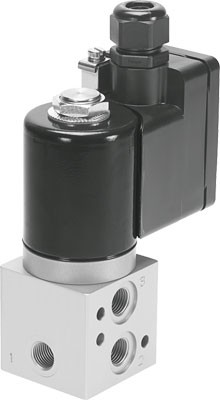

The Festo 562886 is a directly actuated poppet valve featuring a 3/2 closed, monostable electrical valve function with a 51 mm width and a nominal size of 5 mm. This component delivers a standard nominal flow rate of 450 l/min across a working pressure range of 0 to 10 bar utilizing a soft sealing principle and mechanical spring reset. It is equipped with IP65 protection, supports vacuum applications, and provides Safety Integrity Level (SIL) ratings up to SIL 3 in both high and low demand modes. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →
